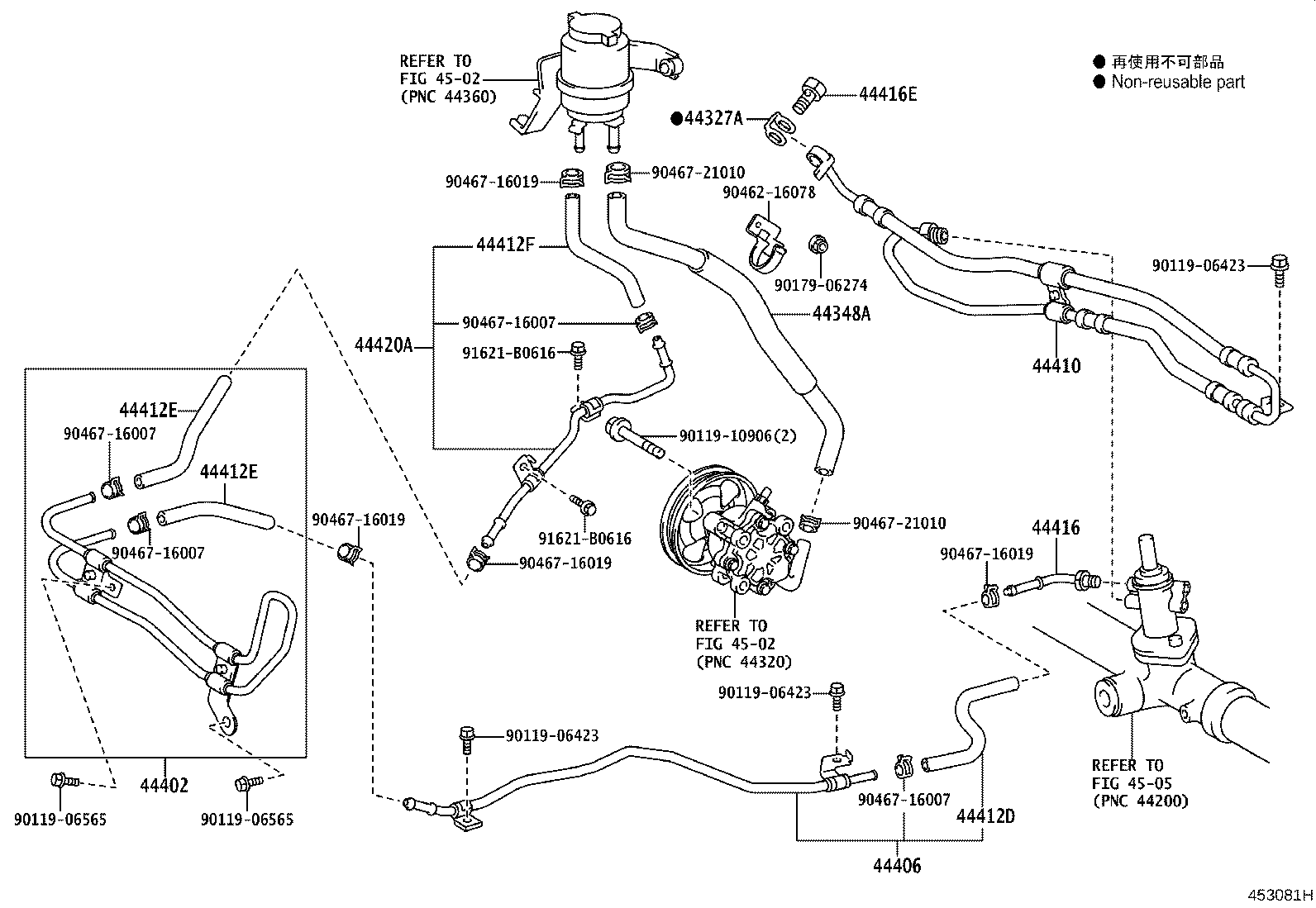

Toyota Alphard g/v ANH15 POWER STEERING TUBE

Part #	Description	Period	Qty
44327A - GASKET, PRESSURE PORT, NO.1
44327-30030	ANH1#,MNH1#	04/2003 - 04/2005	1
44327-12010	ANH1#,MNH1#	05/2002 - 03/2003	1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-28260	ANH15	05/2002 - 04/2005	1
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-58010	ANH1#,MNH1#	05/2002 - 04/2005	1
44406 - TUBE SUB-ASSY, RETURN
44406-58021	ANH15,MNH15	01/2005 - 04/2005	1
44406-58020	ANH15,MNH15	05/2002 - 01/2005	1
44410 - TUBE ASSY, PRESSURE FEED
44410-58020	ANH1#	05/2002 - 07/2002	1
44410-58021	ANH1#	07/2002 - 04/2005	1
44412D - HOSE, RETURN, NO.1
44412-58010	ANH15,MNH15	05/2002 - 04/2005	1
44412E - HOSE, RETURN, NO.2
44412-26300	ANH1#,MNH1#	05/2002 - 04/2005	2
44412E - HOSE, RETURN, NO.2
44412-26300	ANH1#,MNH1#	05/2002 - 04/2005	2
44412F - HOSE, RETURN, NO.3
44412-58050	ANH1#,MNH1#	05/2002 - 04/2005	1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-28370	ANH1#,MNH1#	05/2002 - 04/2005	1
44416E - BOLT, UNION(FOR RETURN TUBE)
96341-41603	ANH1#	05/2002 - 04/2005	1
44420A - TUBE ASSY, RETURN
44420-58010	ANH1#,MNH1#	05/2002 - 04/2005	1
Common parts
90119-06423
90119-06565
90119-10906
90179-06274
90462-16078
90467-16007
90467-16019
90467-21010
91621-B0616
Linked diagrams
4502
4505

ANH15W-PFPSK (2002)
