ANH15W-PFPSK (2002)

Toyota Alphard G/V

Production May 2002 - Apr 2005
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

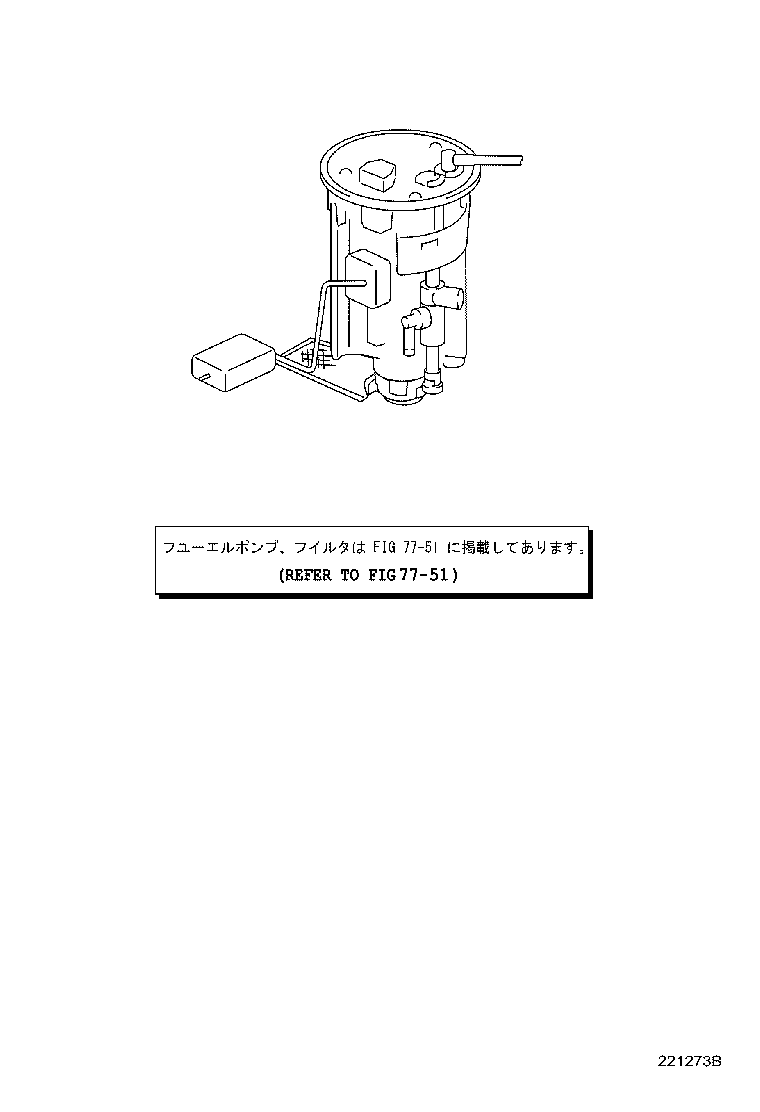

ILLUST NO. 2 OF 2(0205- )2AZFE

Click highlighted areas on diagram

diagram 7751
Part # Description Qty Price
Linked diagrams
7751

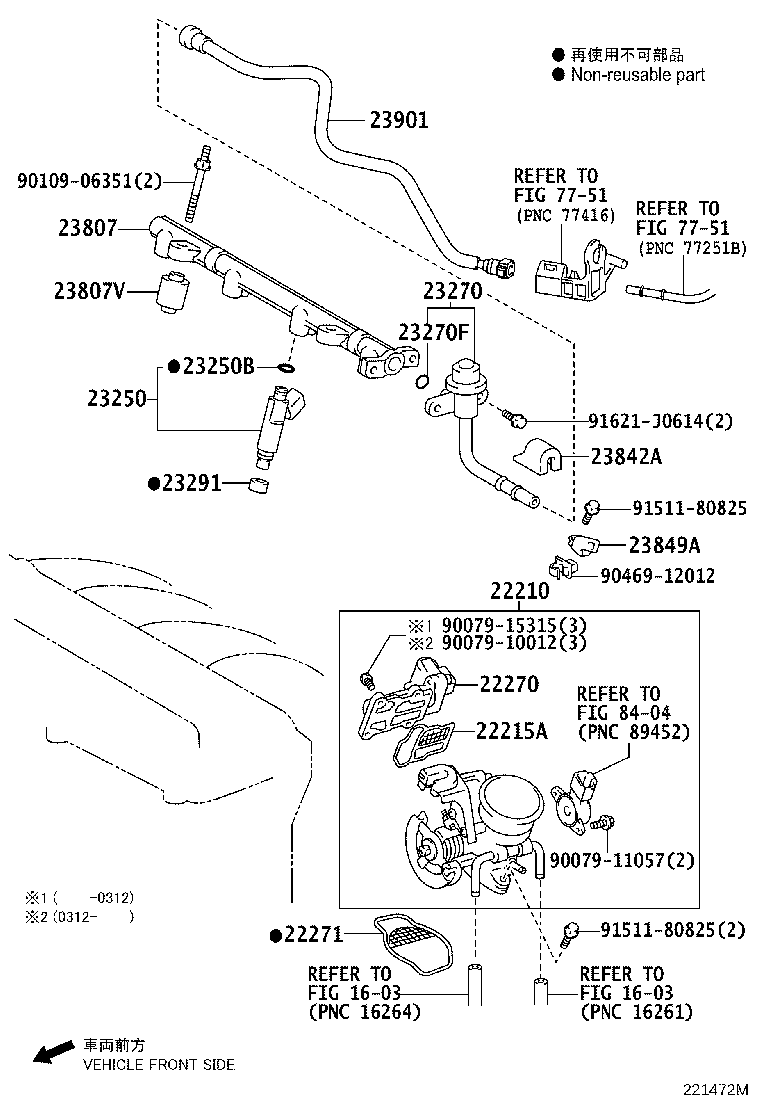

ILLUST NO. 1 OF 2(0205-0504)2AZFE

Click highlighted areas on diagram

diagram 1603 1603 22210 22215A 22270 22271 23250 23250B 23270 23270F 23291 23807 23807V 23842A 23849A 23901 7751 7751 8404 9007910012 9007911057 9007915315 9010906351 9046912012 9151180825 9151180825 91621J0614
Part # Description Qty Price
22210 - BODY ASSY, THROTTLE
22210-28070

2AZFE..ANH1#

 1
22210-28100

2AZFE..ANH1#

 1
22215A - GASKET, IDLE SPEED CONTROL VALVE
22215-28042

2AZFE..ANH1#

 1
22215-7A680

2AZFE..ANH1#

 1
22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270-28010

2AZFE..ANH1#

 1
22270-28020

2AZFE..ANH1#

 1
22271 - GASKET, THROTTLE BODY
22271-28020

2AZFE..ANH1#

 1
23250 - INJECTOR ASSY, FUEL
23209-28020

2AZFE..ANH1#

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07024

2AZFE..ANH1#

 4
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-28020

2AZFE..ANH1#

 1
23270F - RING, O(FOR PULSATION DAMPER)
90301-07037

2AZFE..ANH1#

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010

2AZFE..ANH1#

 4
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23814-28031

2AZFE..ANH1#

 1
23814-28020

2AZFE..ANH1#

 1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
90561-08053

2AZFE..ANH1#

 2
23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI)
23842-22020

2AZFE..ANH1#

 1
23849A - SUPPORT, FUEL PIPE
23849-28010

2AZFE..ANH1#

 1
23901 - TUBE SUB-ASSY, FUEL
23901-28010

2AZFE..ANH1#

 1
23901-28011

2AZFE..ANH1#

 1
Common parts
90079-10012
90079-11057
90079-15315
90109-06351
90469-12012
91511-80825
91621-J0614
Linked diagrams
1603
7751
8404
