ANH15W-PFPGK (2002)

Toyota Alphard G/V

Production May 2002 - Apr 2005
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

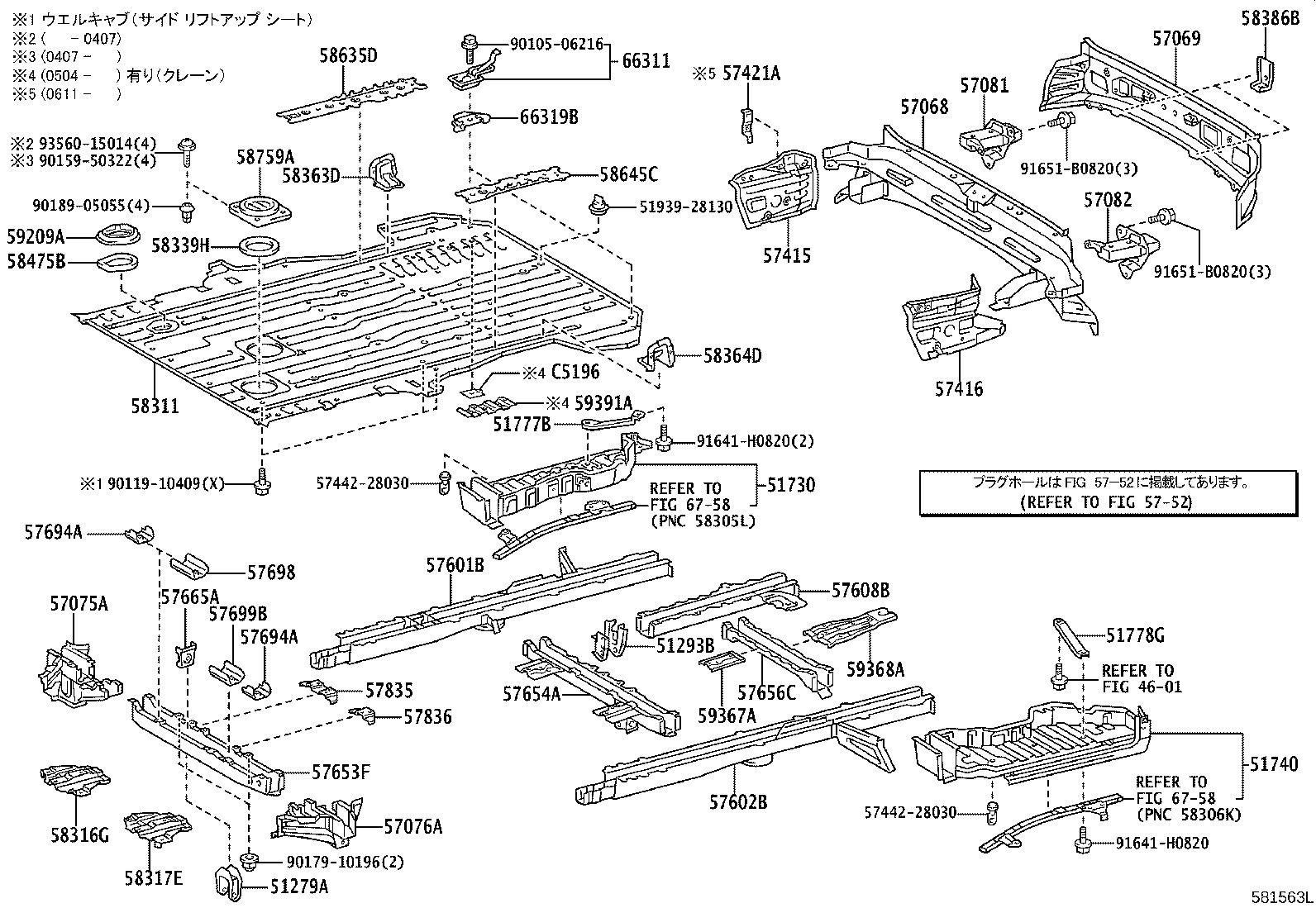

ILLUST NO. 1 OF 2(0205- )ANH15,MNH15

Click highlighted areas on diagram

diagram 4601 51279A 51293B 51730 51740 51777B 51778G 5193928130 57068 57069 57075A 57076A 57081 57082 57415 57416 57421A 5744228030 5744228030 5752 57601B 57602B 57608B 57653F 57654A 57656C 57665A 57694A 57694A 57698 57699B 57835 57836 58311 58316G 58317E 58339H 58363D 58364D 58386B 58475B 58635D 58645C 58759A 59209A 59367A 59368A 59391A 66311 66319B 6758 6758 9010506216 9011910409 9015950322 9017910196 9018905055 91641H0820 91641H0820 91651B0820 91651B0820 9356015014 C5196
Part # Description Qty Price
51279A - BRACKET, DIFFERENTIAL SUPPORT
51279-28021

ANH15,MNH15

 1
51293B - BRACKET, DIFFERENTIAL SUPPORT DAMPER, RH
51293-28011

ANH15,MNH15

 1
51730 - STEP ASSY, REAR FLOOR, RH
51730-58023

ANH1#,MNH1#

SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ

 1
51730-58020

ANH1#,MNH1#..4FC

SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ

 1
51730-58010

ANH1#,MNH1#..4FC

 1
51730-58013

ANH1#,MNH1#

 1
51740 - STEP ASSY, REAR FLOOR, LH
51740-58030

ANH1#,MNH1#..07S..(AX,MX,MZ)

ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ)

 1
51740-58030

ANH1#,MNH1#..07S..(AX,MX,MZ)

ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車

 1
51740-58040

ANH1#,MNH1#..07S..(AX,MX,MZ)

ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ

 1
51740-58020

ANH1#,MNH1#

SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ

 1
51740-58010

ANH1#,MNH1#

 1
51740-58040

ANH1#,MNH1#..07S..(AX,MX,MZ)

ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ

 1
51777B - STAY, STEP PLATE
51777-58010

ANH1#,MNH1#

 1
51778G - STAY, STEP PLATE, LH
51778-58010

ANH1#,MNH1#

 1
57068 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER
57068-58020

ANH1#,MNH1#

 1
57069 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER
57069-58010

ANH1#,MNH1#

 1
57075A - BRACKET SUB-ASSY, REAR SUSPENSION ARM, RH
57075-58010

ANH1#,MNH1#

 1
57076A - BRACKET SUB-ASSY, REAR SUSPENSION ARM, LH
57076-58010

ANH1#,MNH1#

 1
57081 - BRACKET SUB-ASSY, REAR BUMPER MOUNTING
57081-58010

ANH1#,MNH1#

 1
57082 - BRACKET SUB-ASSY, REAR BUMPER ARM SUPPORT, LH
57082-58010

ANH1#,MNH1#

 1
57415 - RAIL, FLOOR SIDE, REAR RH
57415-58010

ANH1#,MNH1#

 1
57416 - RAIL, FLOOR SIDE, REAR LH
57416-58010

ANH1#,MNH1#

 1
57601B - MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH
57601-58020

ANH1#,MNH1#

 1
57602B - MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH
57602-58020

ANH1#,MNH1#

 1
57608B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4
57608-58010

ANH1#,MNH1#

 1
57653F - MEMBER, REAR FLOOR CROSS, NO.2
57653-28120

ANH15,MNH15

 1
57653-28100

ANH15,MNH15

 1
57654A - MEMBER, REAR FLOOR CROSS, NO.3
57607-58021

ANH15,MNH15..4FC

 1
57607-58022

ANH15,MNH15

 1
57656C - MEMBER, REAR FLOOR CROOS, NO.5
57656-58010

ANH1#,MNH1#

 1
57665A - REINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.2
57665-28030

ANH15,MNH15

 1
57694A - REINFORCEMENT, FUEL TANK SUPPORT, NO.2
57694-28020

ANH1#,MNH1#

 2
57694A - REINFORCEMENT, FUEL TANK SUPPORT, NO.2
57694-28020

ANH1#,MNH1#

 2
57698 - REINFORCEMENT, FUEL TANK
57698-28010

ANH1#,MNH1#

 1
57699B - REINFORCE, FUEL TANK MOUNTING BRACKET, NO.3
57699-28010

ANH1#,MNH1#

 1
57835 - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.1
57835-28100

ANH1#,MNH1#

 1
57836 - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.2
57836-28070

ANH1#,MNH1#

 1
58311 - PAN, REAR FLOOR
58311-58040

ANH15,MNH15..07S..(AX,MX,MZ)

助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ車

 1
58311-58060

ANH15,MNH15..07S..(AX,MX,MZ)

ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車

 1
58311-58040

ANH15,MNH15..07S

 1
58311-58061

ANH15,MNH15..07S..(AX,MX,MZ)

ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車

 1
58311-58041

ANH15,MNH15..07S..(AX,MX,MZ)

助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ車

 1
58311-58041

ANH15,MNH15..07S

 1
58311-58062

ANH15,MNH15..07S..(AX,MX,MZ)

ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車

 1
58316G - RETAINER, REAR SEAT, NO.1
58316-58020

ANH1#,MNH1#..4FC

 1
58316-58021

ANH1#,MNH1#

 1
58317E - RETAINER, REAR SEAT, NO.2
58317-58021

ANH1#,MNH1#

 1
58317-58020

ANH1#,MNH1#..4FC

 1
58339H - PACKING, REAR FLOOR SERVICE HOLE
58337-28010

ANH1#,MNH1#

 1
58363D - REINFORCEMENT, REAR FLOOR PANEL, NO.2 RH
58363-58010

ANH1#,MNH1#

 1
58364D - REINFORCEMENT, REAR FLOOR PANEL, NO.2 LH
58364-58010

ANH1#,MNH1#

 1
58386B - BRACKET, REAR BUMPER COVER, NO.2
58386-28010

ANH1#,MNH1#

 2
58475B - PACKING, INSPECTION HOLE COVER
58475-95J00

ANH15,MNH15

 1
58635D - PLATE, REAR FLOOR, CENTER UPPER NO.1 RH
58635-58010

ANH1#,MNH1#

 1
58645C - PLATE, REAR FLOOR, CENTER UPPER NO.1 LH
58645-58010

ANH1#,MNH1#

 1
58759A - COVER, FUEL TANK INSPECTION HOLE
58759-58010

ANH1#,MNH1#..4FC

 1
58759-58011

ANH1#,MNH1#

 1
59209A - COVER SUB-ASSY, INSPECTION HOLE
59209-95J00

ANH15,MNH15

 1
59367A - RETAINER, REAR SEAT, NO.4
59375-58010

ANH1#,MNH1#

 1
59368A - RETAINER, REAR SEAT, NO.2
59385-58010

ANH1#,MNH1#

 1
66311 - HOOK, ROPE
66310-58010A0

ANH1#,MNH1#..AX,MX,MZ

IVORY,TRIM0#

 2
66310-58011A0

ANH1#,MNH1#..AX,MX,MZ

IVORY,TRIM0#

 2
66319B - BRACKET, ROPE HOOK
66319-58010

ANH1#,MNH1#

 2
Common parts
51939-28130
57442-28030
90105-06216
90119-10409
90159-50322
90179-10196
90189-05055
91641-H0820
91651-B0820
93560-15014
Linked diagrams
4601
5752
6758

ILLUST NO. 2 OF 2(0205- )07S..AX,MX,MZ

Click highlighted areas on diagram

ｸﾙﾏｲｽ ｺﾃｲ ｿｳﾁ

diagram 66311 66311 7155 7155 7155 91622B1025 91622B1025 C6510 C6510
Part # Description Qty Price
66311 - HOOK, ROPE
66310-58010A0

ANH1#,MNH1#..AX,MX,MZ

IVORY,TRIM0#

 2
66310-58011A0

ANH1#,MNH1#..AX,MX,MZ

IVORY,TRIM0#

 2
66311 - HOOK, ROPE
66310-58010A0

ANH1#,MNH1#..AX,MX,MZ

IVORY,TRIM0#

 2
66310-58011A0

ANH1#,MNH1#..AX,MX,MZ

IVORY,TRIM0#

 2
C6510 - HOLDER ASSY, WHEEL CHAIR
C6510-58010

ANH1#,MNH1#..07S..(AX,MX,MZ)

ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車

 2
C6510 - HOLDER ASSY, WHEEL CHAIR
C6510-58010

ANH1#,MNH1#..07S..(AX,MX,MZ)

ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車

 2
Common parts
91622-B1025
Linked diagrams
7155
