ANH15W-PFPGK (2002)
Toyota Alphard G/V

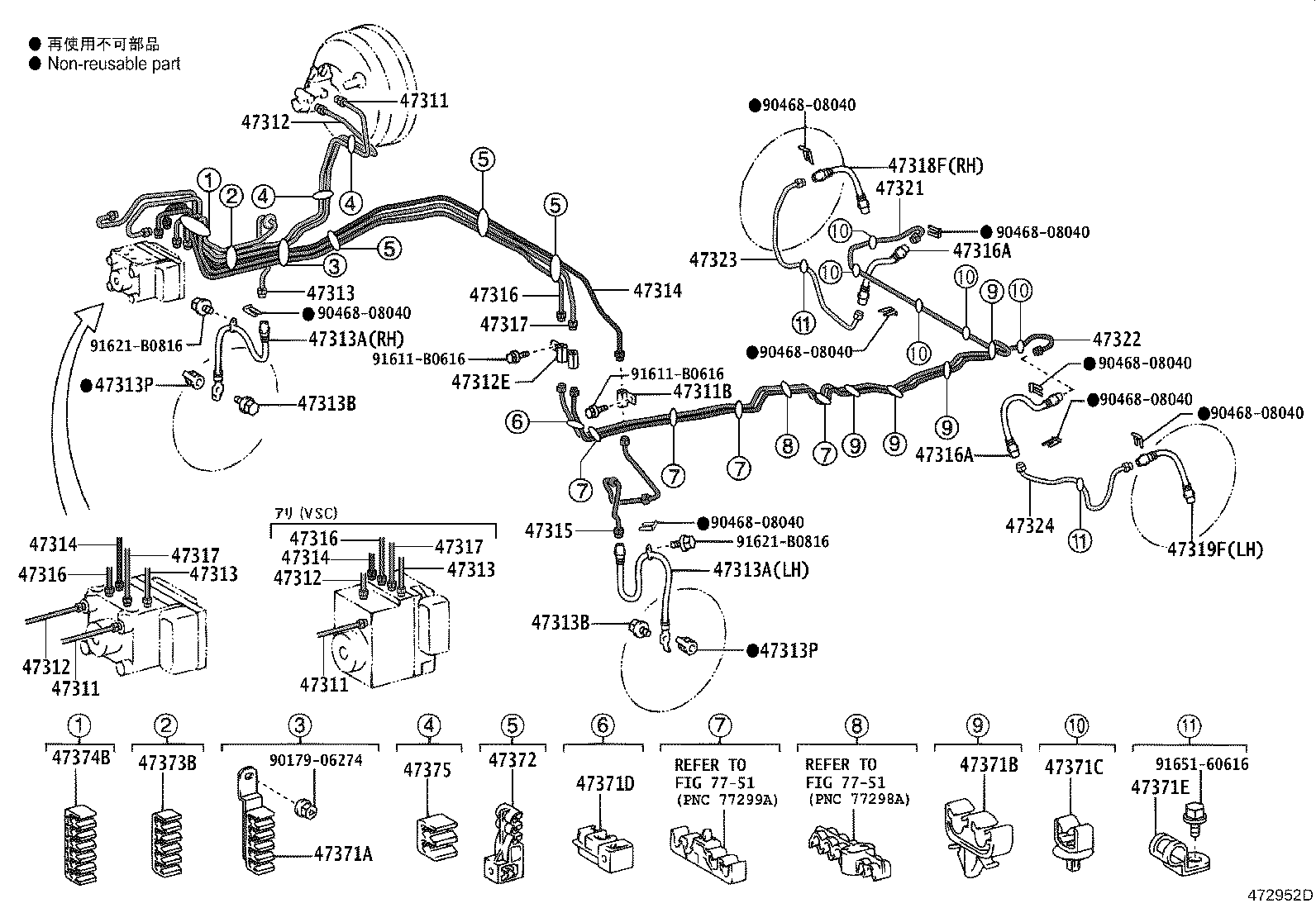

ILLUST NO. 1 OF 2(0205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-58020 |
ANH1#,MNH1# |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-58020 |
ANH1#,MNH1# |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-58020 |
ANH1#,MNH1# |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10144 |
ANH1#,MNH1# |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-58020 |
ANH1#,MNH1# |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-58020 |
ANH1#,MNH1# |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-58020 |
ANH1#,MNH1# |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10158 |
ANH1#,MNH1# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-28350 |
ANH1#,MNH1# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-28350 |
ANH1#,MNH1# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-28350 |
ANH1#,MNH1# |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02D29 |
ANH1#,MNH1# 左側 |
1 | ||
| 90947-02D28 |
ANH1#,MNH1# 右側 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02D29 |
ANH1#,MNH1# 左側 |
1 | ||
| 90947-02D28 |
ANH1#,MNH1# 右側 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ANH1#,MNH1# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ANH1#,MNH1# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
ANH1#,MNH1# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
ANH1#,MNH1# |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-58020 |
ANH1#,MNH1# |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-58020 |
ANH1#,MNH1# |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-58020 |
ANH1#,MNH1# |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-58010 |
ANH1#,MNH1# |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-58020 |
ANH1#,MNH1# |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-58020 |
ANH1#,MNH1# |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-58020 |
ANH1#,MNH1# |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02D30 |
ANH1#,MNH1# |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02D30 |
ANH1#,MNH1# |
2 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-58020 |
ANH1#,MNH1# |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-58020 |
ANH1#,MNH1# |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-58020 |
ANH1#,MNH1# |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02D24 |
ANH1#,MNH1# |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02D24 |
ANH1#,MNH1# |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-58010 |
ANH1#,MNH1# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-58010 |
ANH1#,MNH1# |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-28340 |
ANH1#,MNH1# |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-28240 |
ANH1#,MNH1# |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-28070 |
ANH1#,MNH1# |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90469-07012 |
ANH1#,MNH1# |
4 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90949-01A84 |
ANH1#,MNH1# |
5 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 77299-32030 |
ANH1#,MNH1# |
1 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90461-08715 |
ANH1#,MNH1# |
2 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-52010 |
ANH1#,MNH1# |
3 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01A18 |
ANH1#,MNH1# |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-01B10 |
ANH1#,MNH1# |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-01972 |
ANH1#,MNH1# |
2 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 90468-08040 | ||||
| 91611-B0616 | ||||
| 91621-B0816 | ||||
| 91651-60616 | ||||
| Linked diagrams | ||||
| 7751 | ||||

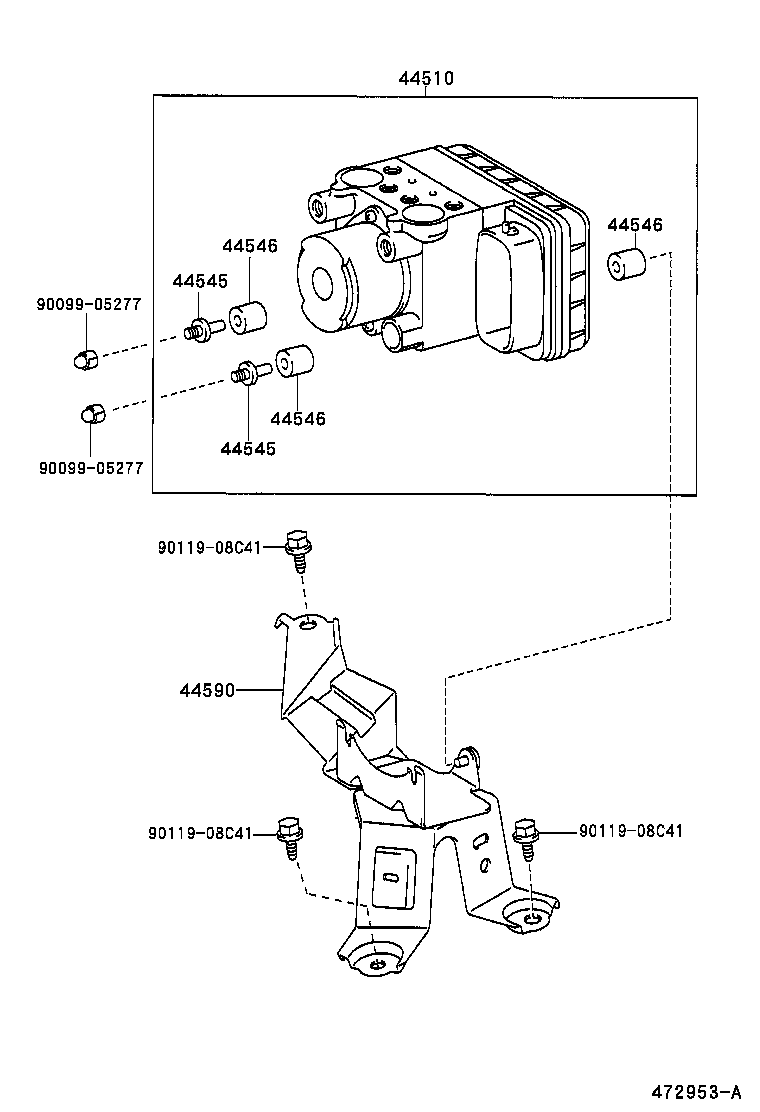

ILLUST NO. 2 OF 2(0205- )
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-58020 |
ANH15,MNH15 |
1 | ||
| 44545 - BOLT, UNION(FOR BRAKE ACTUATOR) | ||||
| 44545-63010 |
ANH1#,MNH1# |
2 | ||
| 44545 - BOLT, UNION(FOR BRAKE ACTUATOR) | ||||
| 44545-63010 |
ANH1#,MNH1# |
2 | ||
| 44546 - SPACER, AIR INLET | ||||
| 44546-63010 |
ANH1#,MNH1# |
3 | ||
| 44546 - SPACER, AIR INLET | ||||
| 44546-63010 |
ANH1#,MNH1# |
3 | ||
| 44546 - SPACER, AIR INLET | ||||
| 44546-63010 |
ANH1#,MNH1# |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-28110 |
ANH1#,MNH1# |
1 | ||
| Common parts | ||||
| 90099-05277 | ||||
| 90119-08C41 | ||||
