ANH10W-PRPSK (2002)
Toyota Alphard G/V

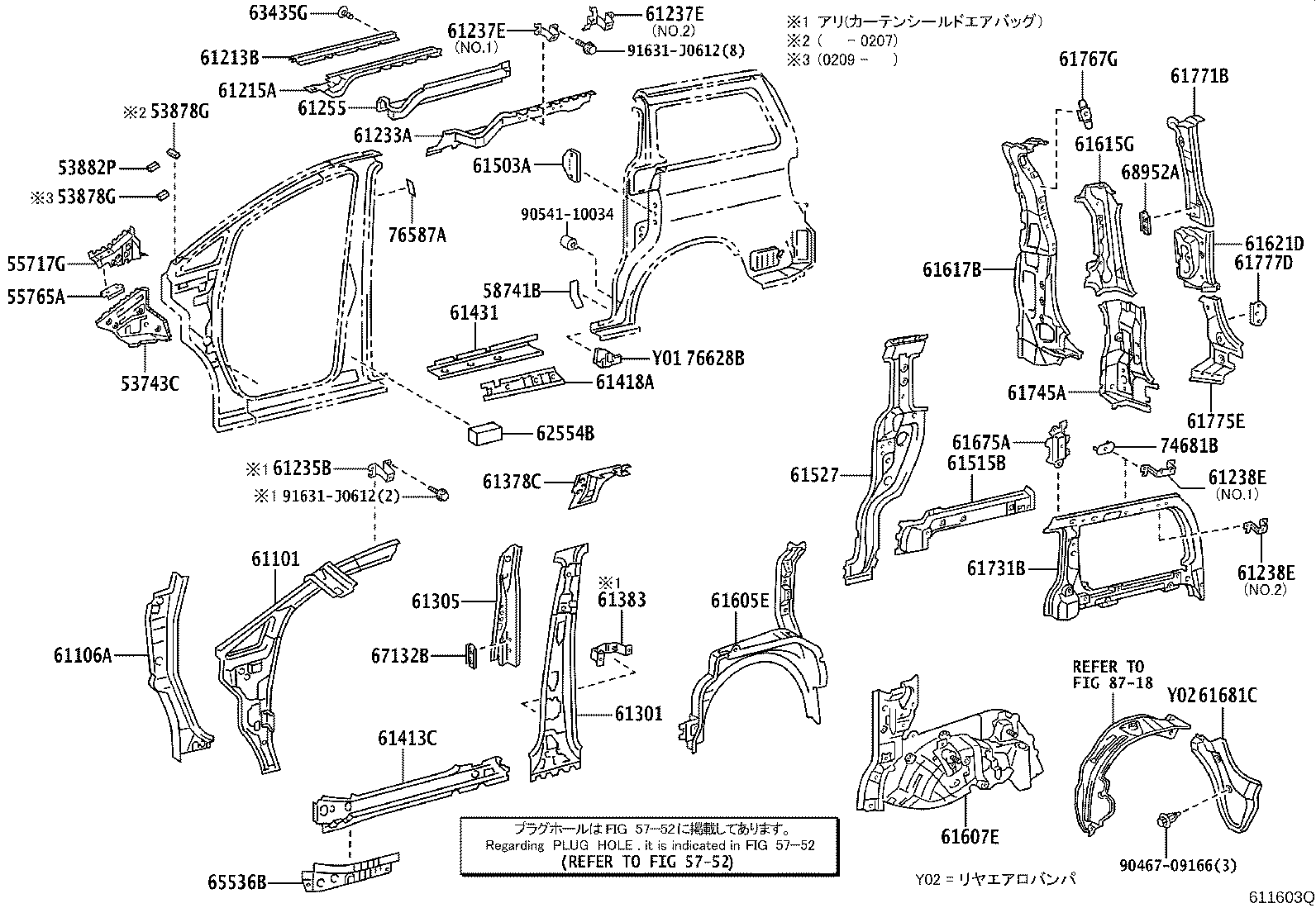

ILLUST NO. 2 OF 2(0205- )
ｲﾝﾅﾊﾟﾈﾙ,RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53743C - REINFORCEMENT, FRONT FENDER APRON, FRONT RH | ||||
| 53743-58010 |
ANH1#,MNH1# |
1 | ||
| 53878G - SPACER, FRONT FENDER | ||||
| 53878-28060 |
ANH1#,MNH1# |
1 | ||
| 53878-28070 |
ANH1#,MNH1# |
1 | ||
| 53878G - SPACER, FRONT FENDER | ||||
| 53878-28060 |
ANH1#,MNH1# |
1 | ||
| 53878-28070 |
ANH1#,MNH1# |
1 | ||
| 53882P - SEAL, FRONT FENDER, RH | ||||
| 53882-58010 |
ANH1#,MNH1#..4FC |
2 | ||
| 53882-58020 |
ANH1#,MNH1# |
2 | ||
| 55717G - PANEL, COWL TOP SIDE, INNER RH | ||||
| 55717-58010 |
ANH1#,MNH1# |
1 | ||
| 55765A - BRACKET, HOOD DANPER MOUNTING, RH | ||||
| 55765-44010 |
ANH1#,MNH1# |
1 | ||
| 61101 - PANEL SUB-ASSY, COWL SIDE, RH | ||||
| 61013-58010 |
ANH1#,MNH1# |
1 | ||
| 61106A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH | ||||
| 61106-58010 |
ANH1#,MNH1# |
1 | ||
| 61213B - RAIL, ROOF SIDE, OUTER NO.2 RH | ||||
| 61213-58010 |
ANH1#,MNH1# |
1 | ||
| 61215A - RAIL, ROOF SIDE, OUTER NO.3 RH | ||||
| 61215-58010 |
ANH1#,MNH1# |
1 | ||
| 61233A - RAIL, ROOF SIDE, INNER NO.2 RH | ||||
| 61233-58010 |
ANH1#,MNH1# |
1 | ||
| 61235B - BRACKET, ASSIST GRIP | ||||
| 61235-58010 |
ANH1#,MNH1# SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 61237E - BRACKET, ASSIST GRIP, NO.1 | ||||
| 61237-58020 |
ANH1#,MNH1# NO.2 |
2 | ||
| 61237-58010 |
ANH1#,MNH1# NO.1 |
2 | ||
| 61237E - BRACKET, ASSIST GRIP, NO.1 | ||||
| 61237-58020 |
ANH1#,MNH1# NO.2 |
2 | ||
| 61237-58010 |
ANH1#,MNH1# NO.1 |
2 | ||
| 61238E - BRACKET, ASSIST GRIP, NO.2 | ||||
| 61245-58010 |
ANH1#,MNH1# NO.1 |
2 | ||
| 61245-58020 |
ANH1#,MNH1# NO.2 |
2 | ||
| 61238E - BRACKET, ASSIST GRIP, NO.2 | ||||
| 61245-58010 |
ANH1#,MNH1# NO.1 |
2 | ||
| 61245-58020 |
ANH1#,MNH1# NO.2 |
2 | ||
| 61255 - PLATE, ROOF SIDE RAIL, OUTER RH | ||||
| 61255-58010 |
ANH1#,MNH1# |
1 | ||
| 61301 - PILLAR SUB-ASSY, CENTER BODY, RH | ||||
| 61301-58010 |
ANH1#,MNH1# |
1 | ||
| 61305 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH | ||||
| 61305-58010 |
ANH1#,MNH1# |
1 | ||
| 61378C - RETAINER, SLIDE DOOR DOWN STOP MALE, UPPER RH | ||||
| 61378-58010 |
ANH1#,MNH1# |
1 | ||
| 61383 - EXTENSION, CENTER BODY PILLAR, OUTER RH | ||||
| 61383-58010 |
ANH1#,MNH1# SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 61413C - REINFORCEMENT, ROCKER PANEL, NO.2 RH | ||||
| 61413-58010 |
ANH1#,MNH1# |
1 | ||
| 61418A - REINFORCEMENT, ROCKER PANEL, RH | ||||
| 61418-58010 |
ANH1#,MNH1# |
1 | ||
| 61431 - PANEL, ROCKER, OUTER REAR RH | ||||
| 61431-58010 |
ANH1#,MNH1# |
1 | ||
| 61431-58020 |
ANH1#,MNH1#..AS,MS 寒冷地仕様 |
1 | ||
| 61503A - REINFORCE SUB-ASSY, SLIDE DOOR LOCK STRIKER, RH | ||||
| 61503-58010 |
ANH1#,MNH1# |
1 | ||
| 61515B - EXTENSION, QUARTER LOCK PILLAR, RH | ||||
| 61515-58010 |
ANH1#,MNH1#..AS,AX,MS,MX |
1 | ||
| 61515-58020 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り |
1 | ||
| 61515-58020 |
ANH1#,MNH1#..AS,AX,MS,MX 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 61515-58020 |
ANH1#,MNH1#..AS,AX,MS,MX 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 61515-58020 |
ANH1#,MNH1#..AS,AX,MS,MX 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 61515-58020 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 61515-58020 |
ANH1#,MNH1#..AS,AX,MS,MX 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 61515-58020 |
ANH1#,MNH1#..AS,AX,MS,MX 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 61515-58020 |
ANH1#,MNH1#..AS,AX,MS,MX 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り |
1 | ||
| 61515-58020 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 61515-58020 |
ANH1#,MNH1#..AS,AX,MS,MX 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 61515-58020 |
ANH1#,MNH1#..AS,AX,MS,MX 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 61515-58020 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 61515-58020 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り |
1 | ||
| 61515-58020 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 61515-58020 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 61515-58020 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り |
1 | ||
| 61515-58020 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 61515-58020 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 61515-58020 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 61515-58020 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 61515-58020 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 61515-58020 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 61515-58020 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 61515-58020 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 61515-58020 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 61515-58020 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 61515-58020 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 61515-58020 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 61515-58020 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 61515-58020 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 61515-58020 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 61515-58020 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 61527 - REINFORCEMENT, QUARTER LOCK PILLER, LOWER RH | ||||
| 61527-58010 |
ANH1#,MNH1# |
1 | ||
| 61605E - PANEL, QUARTER, RH | ||||
| 61605-58010 |
ANH1#,MNH1# |
1 | ||
| 61607E - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-58020 |
ANH1#,MNH1#..08S..(AS,MS) ﾌﾟﾚﾐｱﾑALCANTARA VERSION *(B),*(T) |
1 | ||
| 61607-58020 |
ANH1#,MNH1#..08S..(AS,MS) ﾌﾟﾚﾐｱﾑ *(A),*(P) |
1 | ||
| 61607-58010 |
ANH1#,MNH1#..AS,MS |
1 | ||
| 61615G - REINFORCEMENT, REAR BODY REAR SIDE PANEL, RH | ||||
| 61615-58010 |
ANH1#,MNH1# |
1 | ||
| 61617B - PANEL, QUARTER INNER, LOWER RH | ||||
| 61067-58010 |
ANH1#,MNH1# |
1 | ||
| 61621D - TROUGH, BACK DOOR OPENING, RH | ||||
| 61621-58010 |
ANH1#,MNH1# |
1 | ||
| 61675A - REINFORCE, SEAT BELT ANCHOR, NO.2 UPPER RH | ||||
| 61077-58010 |
ANH1#,MNH1# |
1 | ||
| 61681C - EXTENSION, REAR WHEEL OPENING, RH | ||||
| 61681-58020 |
ANH1#,MNH1#..AS,MS |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-58010 |
ANH1#,MNH1# |
1 | ||
| 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH | ||||
| 61745-58010 |
ANH1#,MNH1# |
1 | ||
| 61767G - RETAINER, SEAT BELT ANCHOR, NO.2 | ||||
| 61767-44010 |
ANH1#,MNH1# |
1 | ||
| 61771B - FRAME, BACK DOOR OPENING UPPER CORNER, RH | ||||
| 61771-58010 |
ANH1#,MNH1# |
1 | ||
| 61775E - SHIELD, QUARTER WINDOW, REAR RH | ||||
| 61775-58020 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,MS |
1 | ||
| 61775-58010 |
ANH1#,MNH1#..AS,MS 寒冷地仕様 |
1 | ||
| 61775-58010 |
ANH1#,MNH1#..AS,MS |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,MS SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,AX,MS,MX 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,MS ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,MS SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,MS ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,AX,MS,MX 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,AX,MS,MX 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,AX,MS,MX 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,MS SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,MS ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,AX,MS,MX 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,AX,MS,MX 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,AX,MS,MX 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,AX,MS,MX 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,MS SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,AX,MS,MX 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,AX,MS,MX 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,AX,MS,MX 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,AX,MS,MX 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,AX,MS,MX 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,AX,MS,MX 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,AX,MS,MX 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,AX,MS,MX 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 61775-58020 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 61777D - RETAINER, BACK DOOR SIDE STOPPER, RH | ||||
| 61777-58010 |
ANH1#,MNH1# |
1 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-58010 |
ANH1#,MNH1# |
2 | ||
| 63435G - SEAL, ROOF CARRIER, NO.1 | ||||
| 63435-28020 |
ANH1#,MNH1# |
4 | ||
| 65536B - PATCH, SIDE PANEL REINFORCEMENT, RH | ||||
| 65536-58010 |
ANH1#,MNH1# |
1 | ||
| 67132B - REINFORCEMENT, SLIDE DOOR DOWN STOP, LOWER RH | ||||
| 67132-58010 |
ANH1#,MNH1# |
1 | ||
| 68952A - RETAINER, BACK DOOR STAY | ||||
| 68952-58010 |
ANH1#,MNH1# |
1 | ||
| 74681B - RETAINER, ASSIST GRIP | ||||
| 74681-58010 |
ANH1#,MNH1# |
1 | ||
| 76587A - PROTECTOR, CENTER PILLAR OUTER | ||||
| 76587-58010 |
ANH1#,MNH1# |
2 | ||
| 76628B - MUDGUARD, QUARTER PANEL, UPPER REAR RH | ||||
| 76628-58010 |
ANH1#,MNH1# 寒冷地仕様 |
1 | ||
| Common parts | ||||
| 90467-09166 | ||||
| 90541-10034 | ||||
| 91631-J0612 | ||||
| Linked diagrams | ||||
| 5752 | ||||
| 8718 | ||||

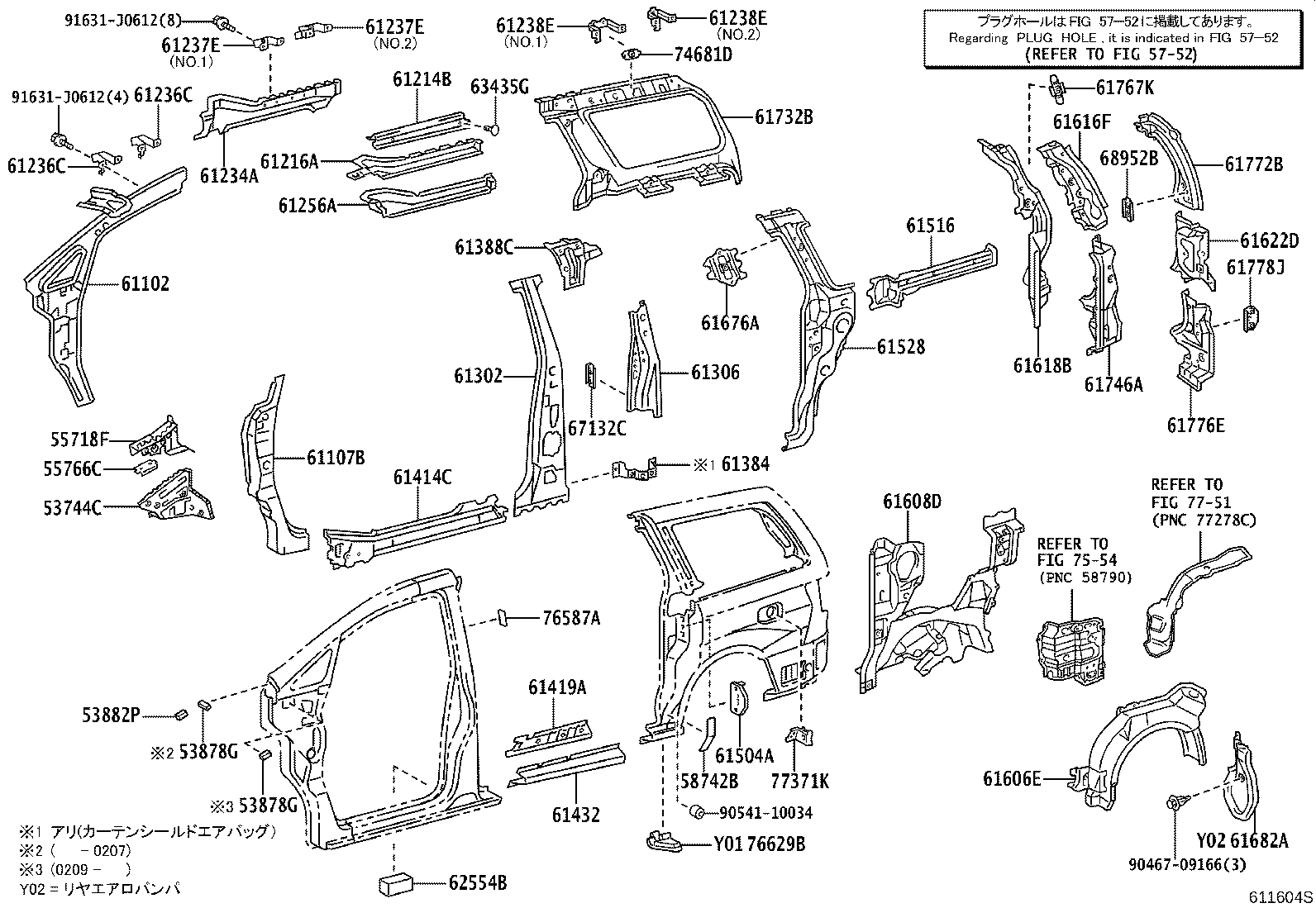

ILLUST NO. 2 OF 2(0205- )
ｲﾝﾅﾊﾟﾈﾙ,LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53744C - REINFORCEMENT, FRONT FENDER APRON, FRONT LH | ||||
| 53744-58010 |
ANH1#,MNH1# |
1 | ||
| 53878G - SPACER, FRONT FENDER | ||||
| 53878-28060 |
ANH1#,MNH1# |
1 | ||
| 53878-28070 |
ANH1#,MNH1# |
1 | ||
| 53878G - SPACER, FRONT FENDER | ||||
| 53878-28060 |
ANH1#,MNH1# |
1 | ||
| 53878-28070 |
ANH1#,MNH1# |
1 | ||
| 53882P - SEAL, FRONT FENDER, RH | ||||
| 53882-58010 |
ANH1#,MNH1#..4FC |
2 | ||
| 53882-58020 |
ANH1#,MNH1# |
2 | ||
| 55718F - PANEL, COWL TOP SIDE, INNER LH | ||||
| 55718-58010 |
ANH1#,MNH1# |
1 | ||
| 55766C - BRACKET, HOOD DAMPER MOUNTING, LH | ||||
| 55765-44010 |
ANH1#,MNH1# |
1 | ||
| 61102 - PANEL SUB-ASSY, COWL SIDE, LH | ||||
| 61014-58010 |
ANH1#,MNH1# |
1 | ||
| 61107B - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH | ||||
| 61107-58010 |
ANH1#,MNH1# |
1 | ||
| 61214B - RAIL, ROOF SIDE, OUTER NO.2 LH | ||||
| 61214-58010 |
ANH1#,MNH1# |
1 | ||
| 61216A - RAIL, ROOF SIDE, OUTER REAR LH | ||||
| 61216-58010 |
ANH1#,MNH1# |
1 | ||
| 61234A - RAIL, ROOF SIDE, INNER NO.2 LH | ||||
| 61234-58010 |
ANH1#,MNH1# |
1 | ||
| 61236C - BRACKET, ASSIST GRIP | ||||
| 61236-58010 |
ANH1#,MNH1# |
2 | ||
| 61236C - BRACKET, ASSIST GRIP | ||||
| 61236-58010 |
ANH1#,MNH1# |
2 | ||
| 61237E - BRACKET, ASSIST GRIP, NO.1 | ||||
| 61237-58020 |
ANH1#,MNH1# NO.2 |
2 | ||
| 61237-58010 |
ANH1#,MNH1# NO.1 |
2 | ||
| 61237E - BRACKET, ASSIST GRIP, NO.1 | ||||
| 61237-58020 |
ANH1#,MNH1# NO.2 |
2 | ||
| 61237-58010 |
ANH1#,MNH1# NO.1 |
2 | ||
| 61238E - BRACKET, ASSIST GRIP, NO.2 | ||||
| 61245-58010 |
ANH1#,MNH1# NO.1 |
2 | ||
| 61245-58020 |
ANH1#,MNH1# NO.2 |
2 | ||
| 61238E - BRACKET, ASSIST GRIP, NO.2 | ||||
| 61245-58010 |
ANH1#,MNH1# NO.1 |
2 | ||
| 61245-58020 |
ANH1#,MNH1# NO.2 |
2 | ||
| 61256A - PLATE, ROOF SIDE RAIL, OUTER LH | ||||
| 61256-58010 |
ANH1#,MNH1# |
1 | ||
| 61302 - PILLAR SUB-ASSY, CENTER BODY, LH | ||||
| 61302-58010 |
ANH1#,MNH1# |
1 | ||
| 61306 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH | ||||
| 61306-58010 |
ANH1#,MNH1# |
1 | ||
| 61384 - EXTENSION, CENTER BODY PILLAR, OUTER LH | ||||
| 61384-58010 |
ANH1#,MNH1# SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 61388C - RETAINER, SLIDE DOOR DOWN STOP MALE, UPPER LH | ||||
| 61388-58010 |
ANH1#,MNH1# |
1 | ||
| 61414C - REINFORCEMENT, ROCKER PANEL, NO.2 LH | ||||
| 61414-58010 |
ANH1#,MNH1# |
1 | ||
| 61419A - REINFORCEMENT, ROCKER PANEL, LH | ||||
| 61419-58010 |
ANH1#,MNH1# |
1 | ||
| 61432 - PANEL, ROCKER, OUTER REAR LH | ||||
| 61432-58020 |
ANH1#,MNH1#..AS,MS 寒冷地仕様 |
1 | ||
| 61432-58010 |
ANH1#,MNH1# |
1 | ||
| 61504A - REINFORCE SUB-ASSY, SLIDE DOOR LOCK STRIKER, LH | ||||
| 61503-58010 |
ANH1#,MNH1# |
1 | ||
| 61516 - EXTENSION, QUARTER LOCK PILLAR, LH | ||||
| 61516-58020 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)有り |
1 | ||
| 61516-58010 |
ANH1#,MNH1#..AS,AX,MS,MX |
1 | ||
| 61516-58020 |
ANH1#,MNH1#..AS,MS ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)有り |
1 | ||
| 61516-58020 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り |
1 | ||
| 61516-58020 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り |
1 | ||
| 61528 - REINFORCEMENT, QUARTER LOCK PILLER, LOWER LH | ||||
| 61528-58010 |
ANH1#,MNH1# |
1 | ||
| 61606E - PANEL, QUARTER, LH | ||||
| 61606-58010 |
ANH1#,MNH1# |
1 | ||
| 61608D - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-58010 |
ANH1#,MNH1# |
1 | ||
| 61616F - REINFORCEMENT, REAR BODY REAR SIDE PANEL, LH | ||||
| 61616-58010 |
ANH1#,MNH1# |
1 | ||
| 61618B - PANEL, QUARTER, INNER LOWER LH | ||||
| 61068-58010 |
ANH1#,MNH1# |
1 | ||
| 61622D - TROUGH, BACK DOOR OPENING, LH | ||||
| 61622-58010 |
ANH1#,MNH1# |
1 | ||
| 61676A - REINFORCE, SEAT BELT ANCHOR, NO.2 UPPER LH | ||||
| 61078-58010 |
ANH1#,MNH1# |
1 | ||
| 61682A - EXTENSION, REAR WHEEL OPENING, LH | ||||
| 61682-58020 |
ANH1#,MNH1#..AS,MS |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-58010 |
ANH1#,MNH1# |
1 | ||
| 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH | ||||
| 61746-58010 |
ANH1#,MNH1# |
1 | ||
| 61767K - RETAINER, SEAT BELT ANCHOR, NO.2 LH | ||||
| 61767-44010 |
ANH1#,MNH1# |
1 | ||
| 61772B - FRAME, BACK DOOR OPENING UPPER CORNER, LH | ||||
| 61772-58010 |
ANH1#,MNH1# |
1 | ||
| 61776E - SHIELD, QUARTER WINDOW, REAR LH | ||||
| 61776-58010 |
ANH1#,MNH1# |
1 | ||
| 61778J - RETAINER, BACK DOOR SIDE STOPPER, LH | ||||
| 61777-58010 |
ANH1#,MNH1# |
1 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-58010 |
ANH1#,MNH1# |
2 | ||
| 63435G - SEAL, ROOF CARRIER, NO.1 | ||||
| 63435-28020 |
ANH1#,MNH1# |
4 | ||
| 67132C - REINFORCEMENT, SLIDE DOOR DOWN STOP, LOWER LH | ||||
| 67132-58010 |
ANH1#,MNH1# |
1 | ||
| 68952B - RETAINER, BACK DOOR STAY | ||||
| 68952-58010 |
ANH1#,MNH1# |
1 | ||
| 74681D - RETAINER, ASSIST GRIP LH | ||||
| 74681-58010 |
ANH1#,MNH1# |
1 | ||
| 76587A - PROTECTOR, CENTER PILLAR OUTER | ||||
| 76587-58010 |
ANH1#,MNH1# |
2 | ||
| 76629B - MUDGUARD, QUARTER PANEL, UPPER REAR LH | ||||
| 76629-58010 |
ANH1#,MNH1# 寒冷地仕様 |
1 | ||
| 77371K - BRACKET, FUEL FILLER OPENING LID LOCK | ||||
| 77371-28010 |
ANH1#,MNH1# |
1 | ||
| Common parts | ||||
| 90467-09166 | ||||
| 90541-10034 | ||||
| 91631-J0612 | ||||
| Linked diagrams | ||||
| 5752 | ||||
| 7554 | ||||
| 7751 | ||||

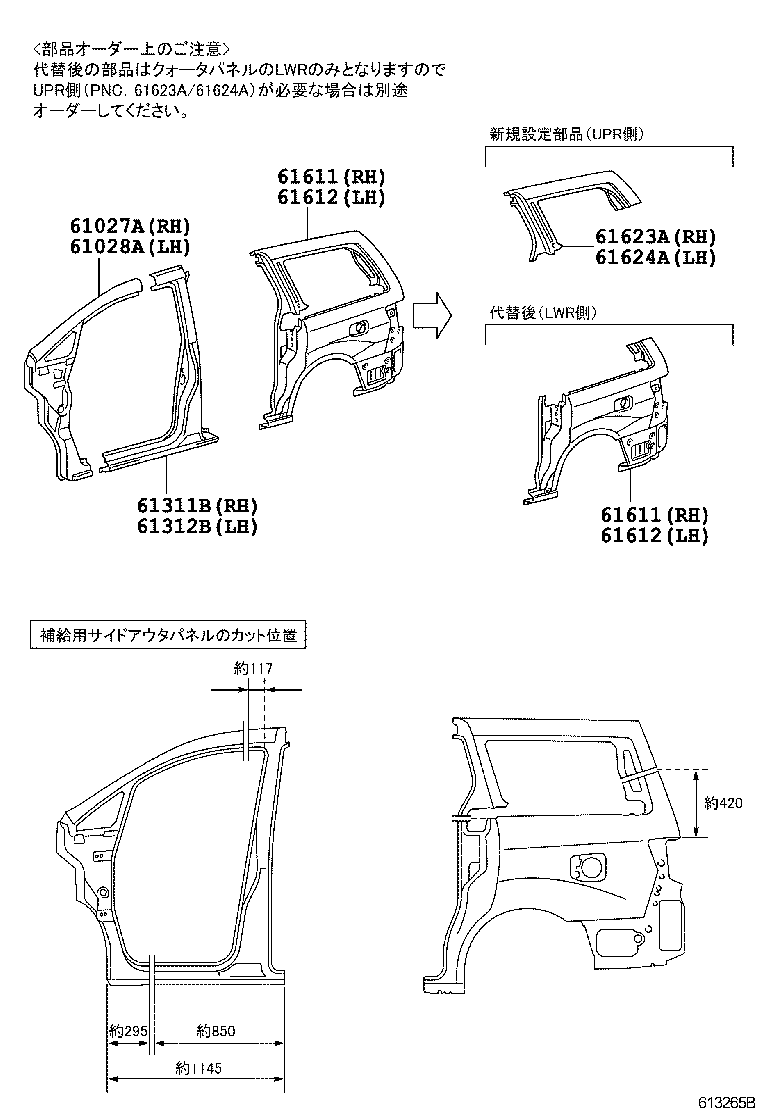

ILLUST NO. 1 OF 2(0205- )
ｱｳﾀﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH | ||||
| 61027-58010 |
ANH1#,MNH1# |
1 | ||
| 61027-58011 |
ANH1#,MNH1# |
1 | ||
| 61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH | ||||
| 61028-58010 |
ANH1#,MNH1#..4FC |
1 | ||
| 61028-58011 |
ANH1#,MNH1# |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-58010 |
ANH1#,MNH1# |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-58010 |
ANH1#,MNH1# |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様 |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 61611-58080 |
ANH1#,MNH1#..AS,MS 寒冷地仕様 |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 61611-58070 |
ANH1#,MNH1#..AS,MS |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様 |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 61611-58030 |
ANH1#,MNH1#..AS,MS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 61611-58080 |
ANH1#,MNH1#..AS,MS 寒冷地仕様 |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 61611-58070 |
ANH1#,MNH1#..AS,MS |
1 | ||
| 61611-58050 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-58030 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り |
1 | ||
| 61612-58020 |
ANH1#,MNH1#..AS,MS |
1 | ||
| 61612-58030 |
ANH1#,MNH1#..AS,MS 寒冷地仕様 |
1 | ||
| 61612-58030 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)有り |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-58030 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り |
1 | ||
| 61612-58020 |
ANH1#,MNH1#..AS,MS |
1 | ||
| 61612-58030 |
ANH1#,MNH1#..AS,MS 寒冷地仕様 |
1 | ||
| 61612-58030 |
ANH1#,MNH1#..AS,MS 寒冷地仕様&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)有り |
1 | ||
| 61623A - EXTENSION, QUARTER PANEL, OUTER RH | ||||
| 61623-58010 |
ANH1#,MNH1# |
1 | ||
| 61624A - EXTENSION, QUARTER PANEL, OUTER LH | ||||
| 61624-58010 |
ANH1#,MNH1# |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
