ANH10W-PRPSK (2002)

Toyota Alphard G/V

Production May 2002 - Apr 2005
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0205- )

Click highlighted areas on diagram

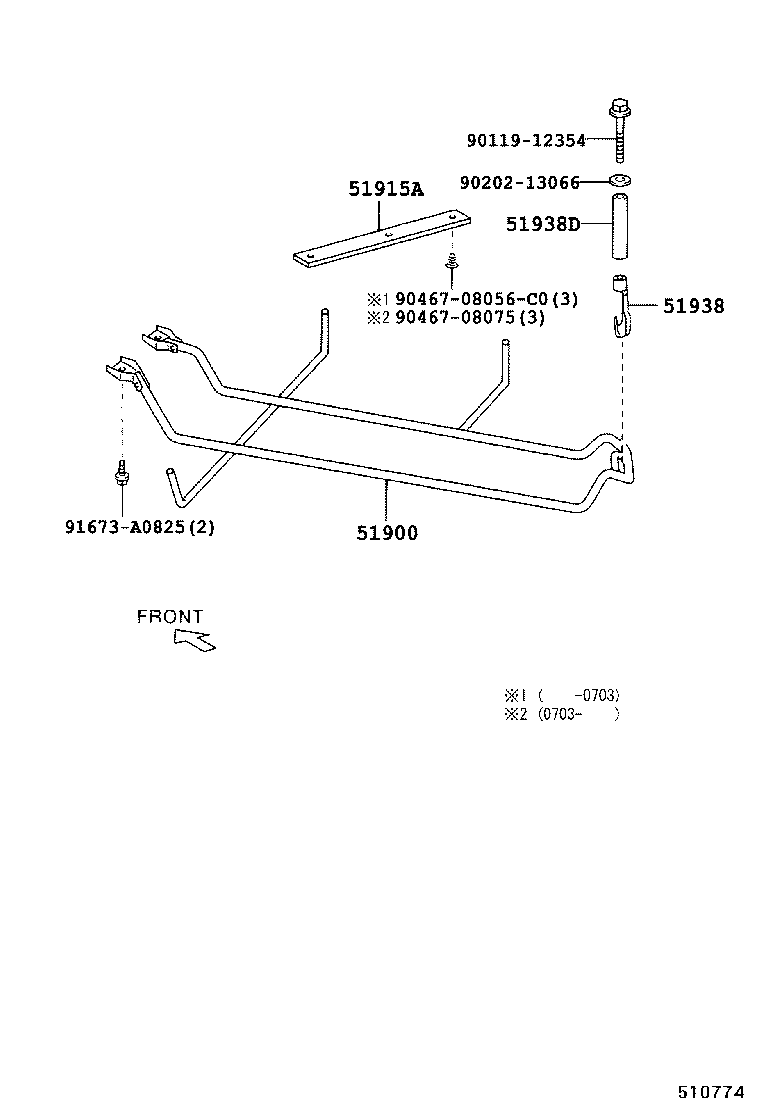

diagram 51900 51915A 51938 51938D 9011912354 9020213066 9046708056C0 9046708075 91673A0825
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51903-58010

ANH1#,MNH1#

 1
51915A - BASE, SPARE WHEEL CARRIER
51915-58010

ANH1#,MNH1#

 1
51938 - LOCK, SPARE WHEEL CARRIER
51938-44010

ANH1#,MNH1#

 1
51938D - TUBE(FOR SPARE WHEEL CARRIER BOLT)
90387-17014

ANH1#,MNH1#

 1
Common parts
90119-12354
90202-13066
90467-08056C0
90467-08075
91673-A0825
