ANH10W-PRPSK (2002)

Toyota Alphard G/V

Production May 2002 - Apr 2005
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(0205- )

Click highlighted areas on diagram

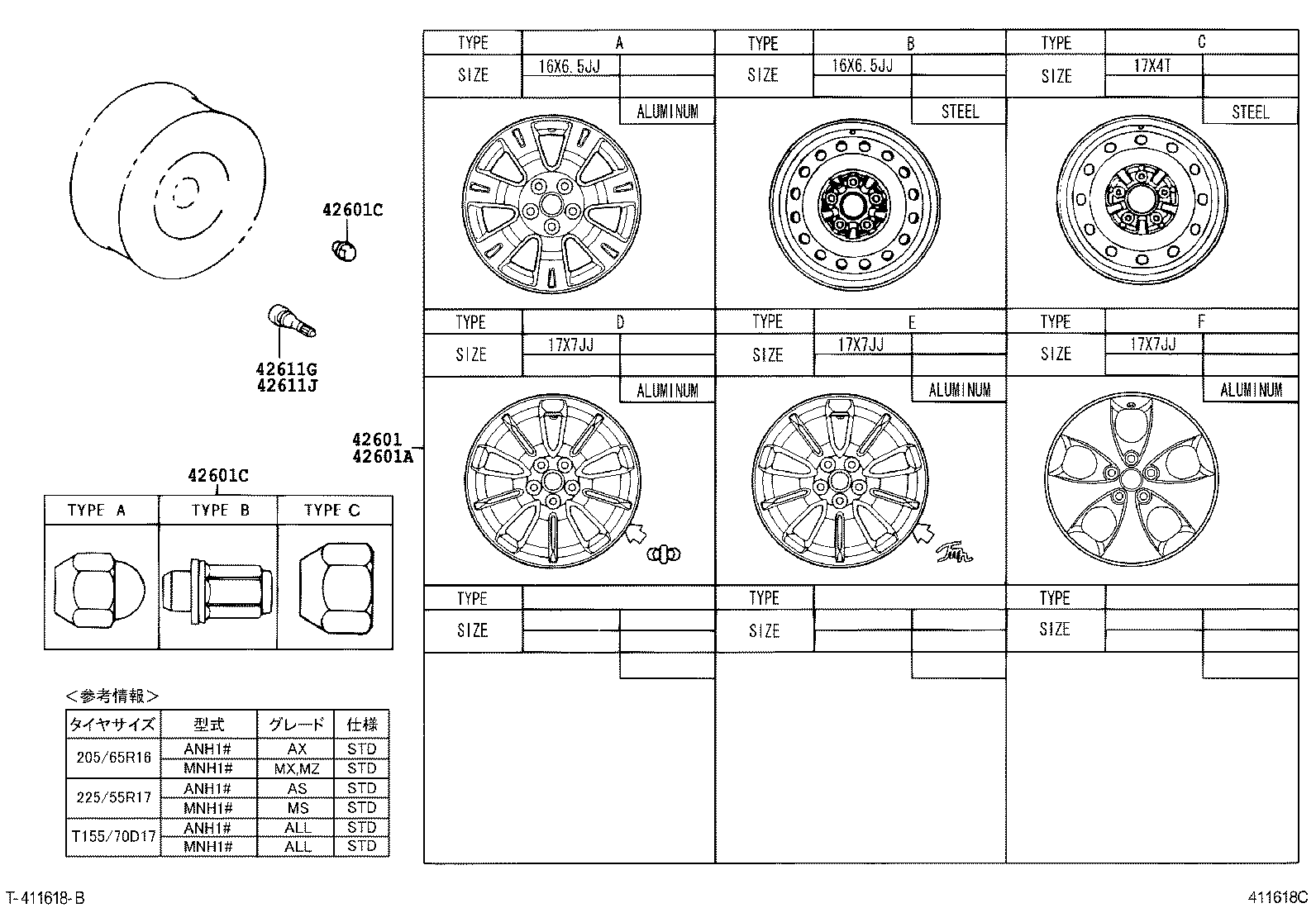

diagram 42601 42601A 42601C 42601C 42611G 42611J
Part # Description Qty Price
42601 - WHEEL, DISC
42611-58080

ANH1#,MNH1#..08S..4FC..(AS,MS)

17X7JJ,ﾌﾟﾚﾐｱﾑ *(A),*(P),TYPE E:ｲﾗｽﾄ参照

 4
42611-58060

ANH1#,MNH1#..08S..4FC..(AS,MS)

17X7JJ,*HGL,ﾌﾟﾚﾐｱﾑ *(A),*(P),TYPE D:ｲﾗｽﾄ参照

 4
42611-58060

ANH1#,MNH1#..08S..(AS,MS)

17X7JJ,*HGL,ﾌﾟﾚﾐｱﾑALCANTARA VERSION *(B),*iT),TYPE D:ｲﾗｽﾄ参照

 4
42611-58050

ANH1#,MNH1#..AS,MS

17X7JJ,#,TYPE E:ｲﾗｽﾄ参照

 4
42611-58080

ANH1#,MNH1#..08S..(AS,MS)

17X7JJ,ﾌﾟﾚﾐｱﾑALCANTARA VERSION *(B),*(T),TYPE E:ｲﾗｽﾄ参照

 4
42611-58040

ANH1#,MNH1#..AS,MS

17X7JJ,#,TYPE D:ｲﾗｽﾄ参照

 4
42601A - WHEEL, DISC (FOR SPARE)
42611-50090

ANH1#,MNH1#

17X4T,TYPE C:ｲﾗｽﾄ参照

 1
42601C - NUT, HUB (FOR AXLE)
90942-01058

ANH1#,MNH1#..AS,MS,MZ

TYPE B:ｲﾗｽﾄ参照

 20
42601C - NUT, HUB (FOR AXLE)
90942-01058

ANH1#,MNH1#..AS,MS,MZ

TYPE B:ｲﾗｽﾄ参照

 20
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009

ANH1#,MNH1#

 4
90942-05009

ANH1#,MNH1#

 4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05009

ANH1#,MNH1#

 1
90942-05009

ANH1#,MNH1#

 1

ILLUST NO. 2 OF 3(0205- )

Click highlighted areas on diagram

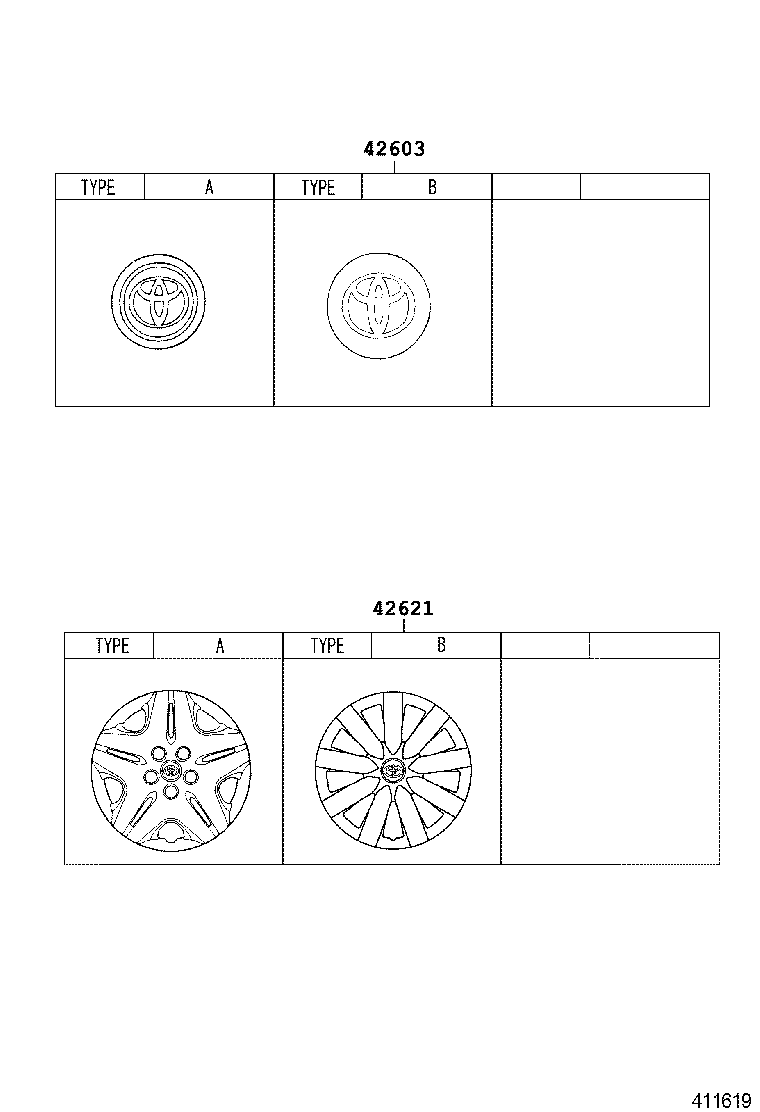

diagram 42603 42621
Part # Description Qty Price
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-30350

ANH1#,MNH1#..AS,MS

*ALU,TYPE B:ｲﾗｽﾄ参照

 4
42603-48050

ANH1#,MNH1#..08S..4FC..(AS,MS)

*PSC,ﾌﾟﾚﾐｱﾑ *(A),*(P),TYPE B:ｲﾗｽﾄ参照

 4
42603-48050

ANH1#,MNH1#..08S..(AS,MS)

*PSC,ﾌﾟﾚﾐｱﾑALCANTARA VERSION *(B),*(T),TYPE B:ｲﾗｽﾄ参照

 4

ILLUST NO. 3 OF 3(0205- )

Click highlighted areas on diagram

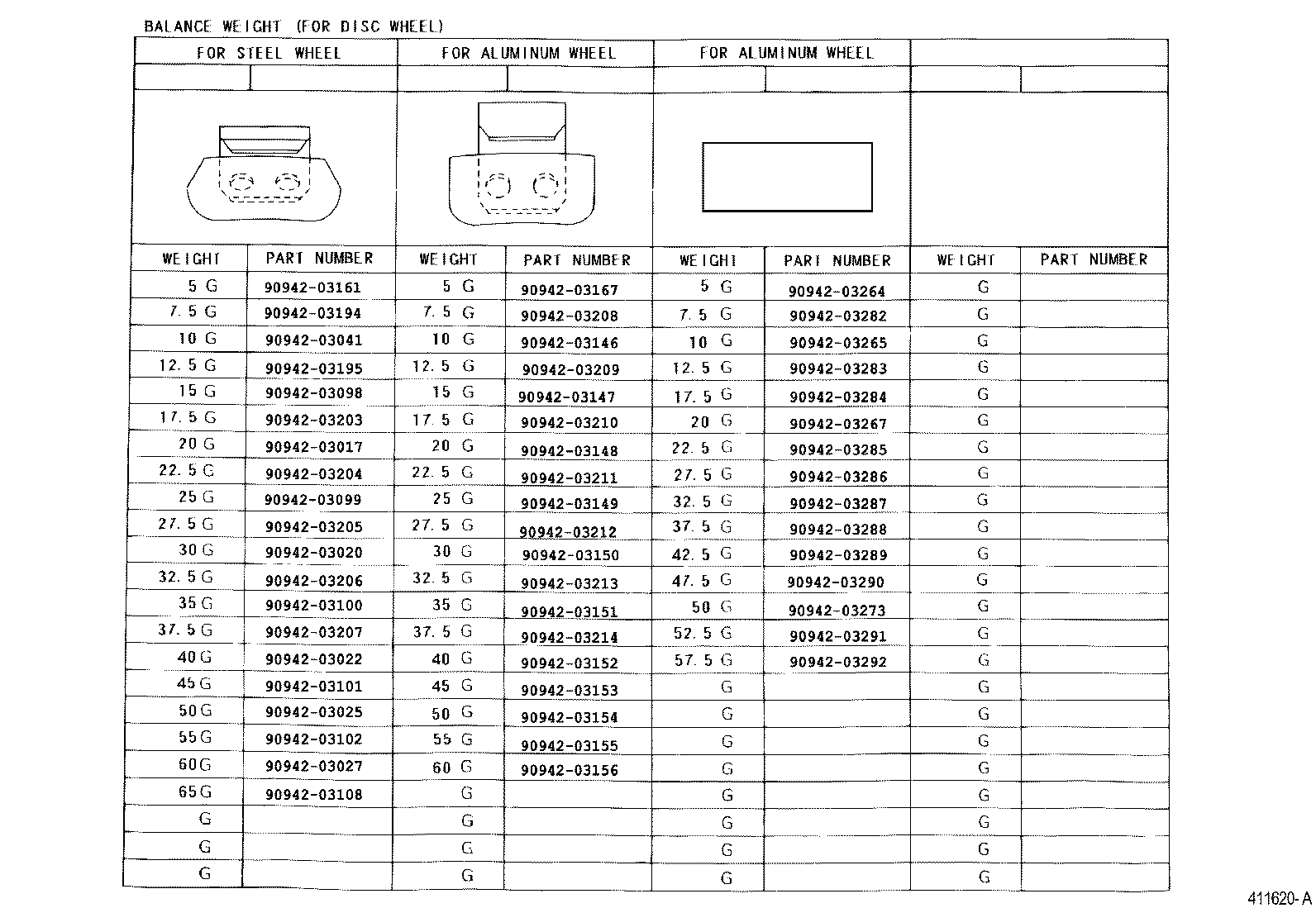

diagram 9094203017 9094203020 9094203022 9094203025 9094203027 9094203041 9094203098 9094203099 9094203100 9094203101 9094203102 9094203108 9094203146 9094203147 9094203148 9094203149 9094203150 9094203151 9094203152 9094203153 9094203154 9094203155 9094203156 9094203161 9094203167 9094203194 9094203195 9094203203 9094203204 9094203205 9094203206 9094203207 9094203208 9094203209 9094203210 9094203211 9094203212 9094203213 9094203214 9094203264 9094203265 9094203267 9094203273 9094203282 9094203283 9094203284 9094203285 9094203286 9094203287 9094203288 9094203289 9094203290 9094203291 9094203292
Part # Description Qty Price
Common parts
90942-03017
90942-03020
90942-03022
90942-03025
90942-03027
90942-03041
90942-03098
90942-03099
90942-03100
90942-03101
90942-03102
90942-03108
90942-03146
90942-03147
90942-03148
90942-03149
90942-03150
90942-03151
90942-03152
90942-03153
90942-03154
90942-03155
90942-03156
90942-03161
90942-03167
90942-03194
90942-03195
90942-03203
90942-03204
90942-03205
90942-03206
90942-03207
90942-03208
90942-03209
90942-03210
90942-03211
90942-03212
90942-03213
90942-03214
90942-03264
90942-03265
90942-03267
90942-03273
90942-03282
90942-03283
90942-03284
90942-03285
90942-03286
90942-03287
90942-03288
90942-03289
90942-03290
90942-03291
90942-03292
