ANH10W-PRPGK (2002)

Toyota Alphard G/V

Production May 2002 - Apr 2005
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0205- )

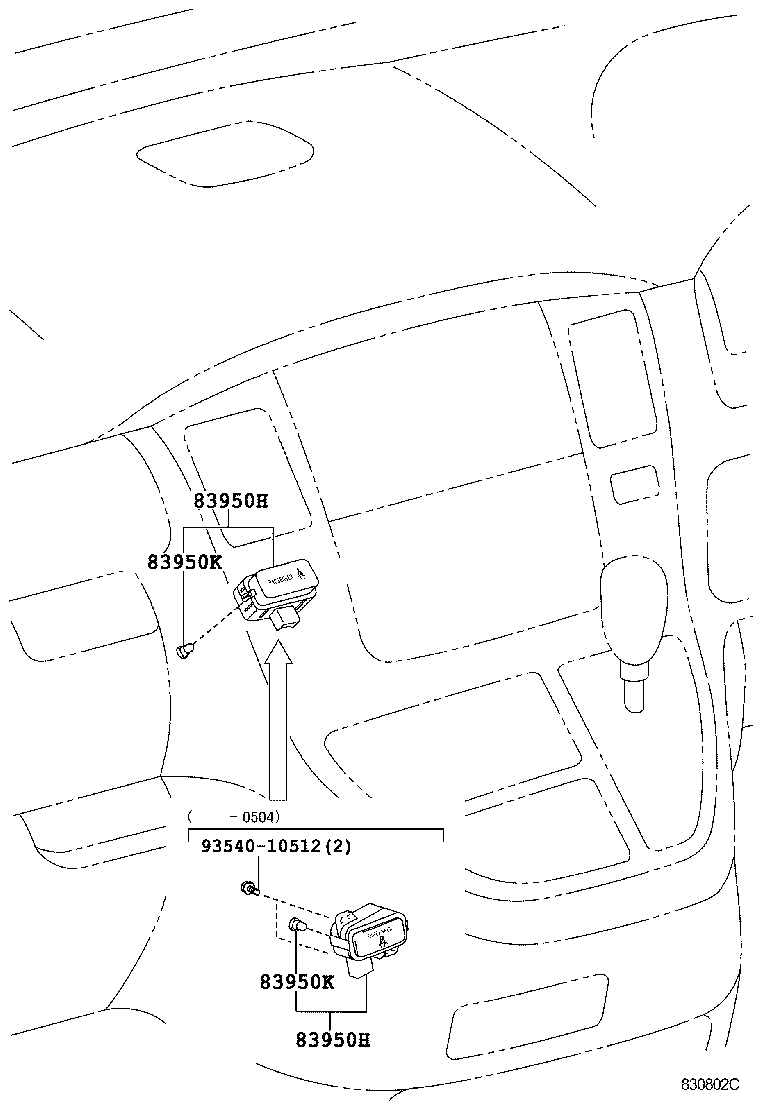

Click highlighted areas on diagram

diagram 83950H 83950H 83950K 83950K 9354010512
Part # Description Qty Price
83950H - LAMP ASSY, PASSENGER SEAT BELT WARNING
83950-58010

ANH1#,MNH1#

 1
83950H - LAMP ASSY, PASSENGER SEAT BELT WARNING
83950-58010

ANH1#,MNH1#

 1
83950K - BULB, PASSENGER SEAT BELT WARNING LAMP
90072-02005

ANH1#,MNH1#

14V 1.12W

 1
83950K - BULB, PASSENGER SEAT BELT WARNING LAMP
90072-02005

ANH1#,MNH1#

14V 1.12W

 1
Common parts
93540-10512
