ANH10W-PFPSK (2002)

Toyota Alphard G/V

Production May 2002 - Apr 2005
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0205- )ANH1#

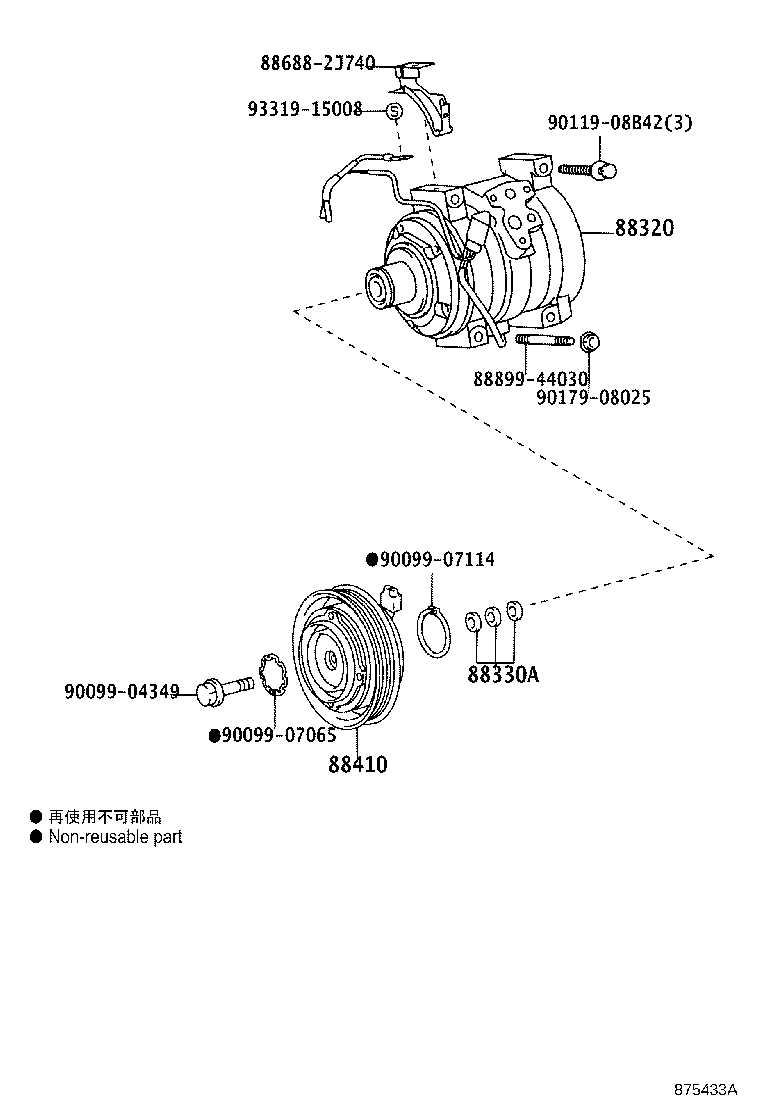

Click highlighted areas on diagram

diagram 88320 88330A 88410 886882J740 8889944030 9009904349 9009907065 9009907114 9011908B42 9017908025 9331915008
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-28350

ANH1#

 1
88320-28410

ANH1#

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

ANH1#,MNH1#

 1
88410 - CLUTCH ASSY, MAGNET
88410-28200

ANH1#

 1
88410-35400

ANH1#

 1
Common parts
88688-2J740
88899-44030
90099-04349
90099-07065
90099-07114
90119-08B42
90179-08025
93319-15008
