ANH10W-PFPSK (2002)

Toyota Alphard G/V

Production May 2002 - Apr 2005
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

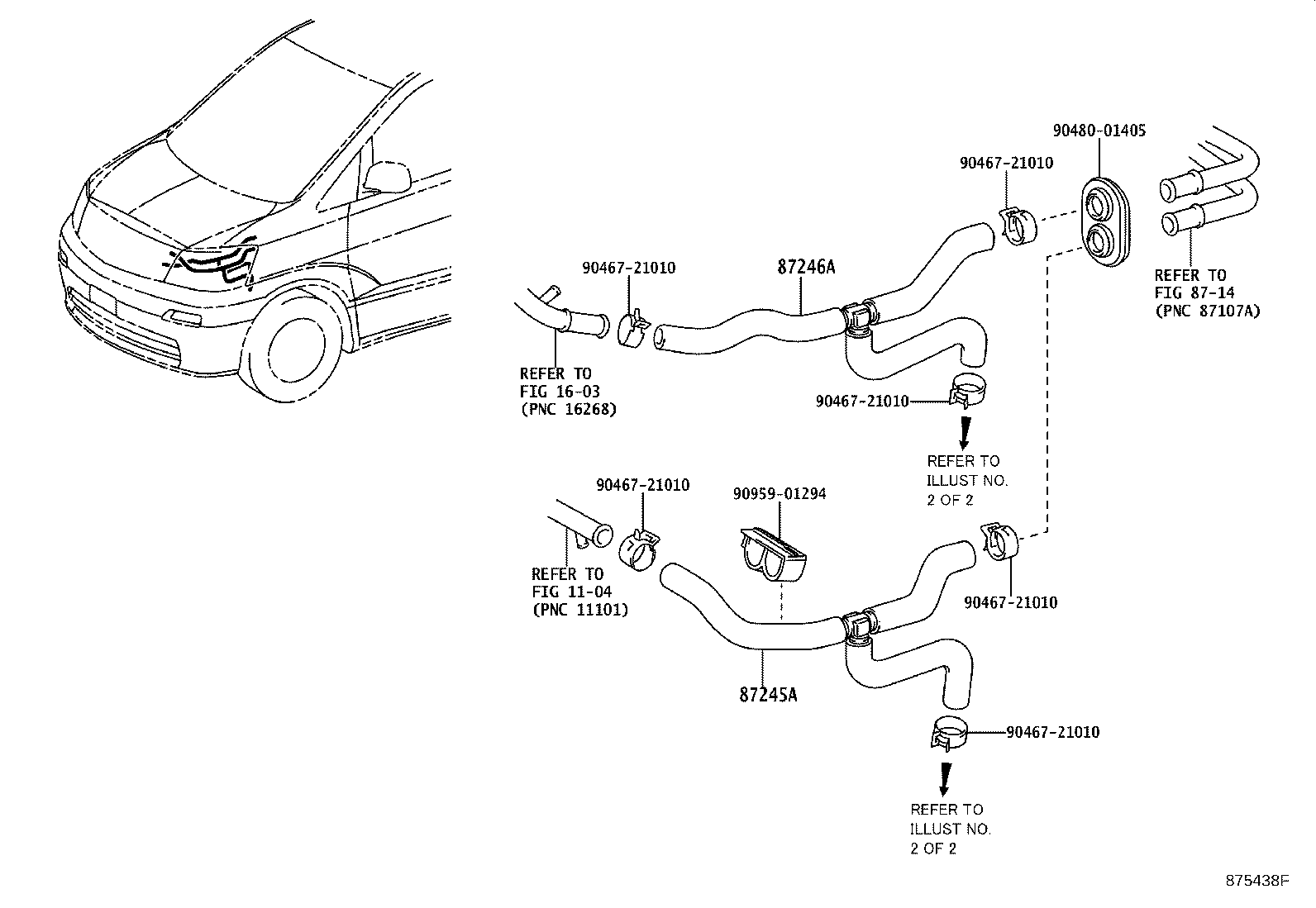

ILLUST NO. 1 OF 2(0205- )ANH1#

Click highlighted areas on diagram

ﾌﾛﾝﾄ

diagram 1104 1603 8714 87245A 87246A 9046721010 9046721010 9046721010 9046721010 9046721010 9046721010 9048001405 9095901294
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87209-58030

ANH1#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87209-58040

ANH1#

 1
Common parts
90467-21010
90480-01405
90959-01294
Linked diagrams
1104
1603
8714

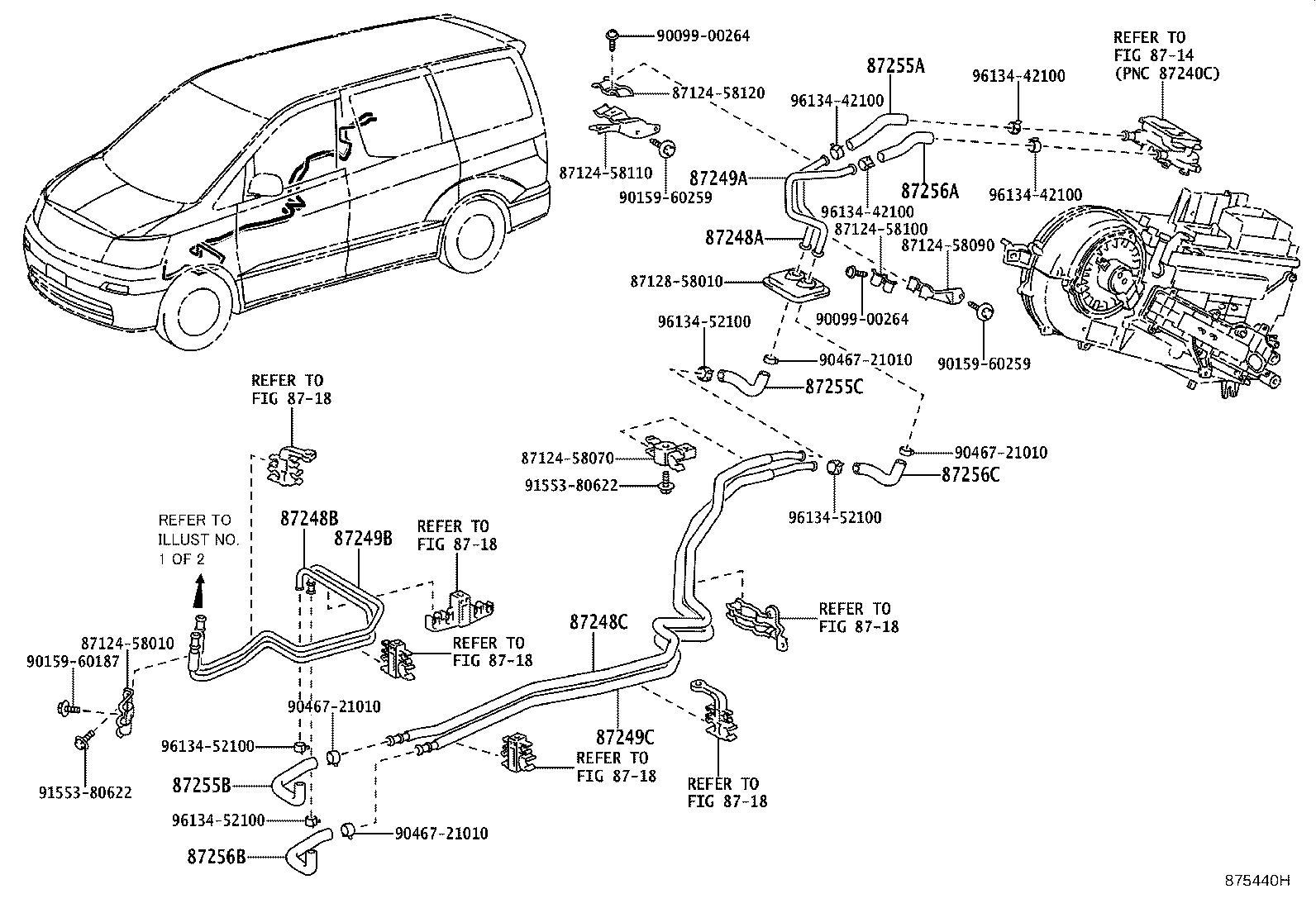

ILLUST NO. 2 OF 2(0205- )

Click highlighted areas on diagram

ﾘﾔ

diagram 8712458010 8712458070 8712458090 8712458100 8712458110 8712458120 8712858010 8714 8718 8718 8718 8718 8718 8718 87248A 87248B 87248C 87249A 87249B 87249C 87255A 87255B 87255C 87256A 87256B 87256C 9009900264 9009900264 9015960187 9015960259 9015960259 9046721010 9046721010 9046721010 9046721010 9155380622 9155380622 9613442100 9613442100 9613442100 9613442100 9613452100 9613452100 9613452100 9613452100
Part # Description Qty Price
87248A - PIPE, HEATER WATER INLET, A
87248-58050

ANH1#,MNH1#

 1
87248B - PIPE, HEATER WATER INLET, B
87248-58020

ANH1#,MNH1#

 1
87248C - PIPE, HEATER WATER INLET, C
87248-58030

ANH1#,MNH1#

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-58060

ANH1#,MNH1#

 1
87249B - PIPE, HEATER WATER OUTLET, B
87248-58010

ANH1#,MNH1#

 1
87249C - PIPE, HEATER WATER OUTLET, C
87248-58040

ANH1#,MNH1#

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-58050

ANH1#,MNH1#

 1
87255B - HOSE, REAR HEATER WATER INLET, B
87245-58010

ANH1#,MNH1#

 1
87255C - HOSE, REAR HEATER WATER INLET, C
87245-58030

ANH1#,MNH1#

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
87245-58060

ANH1#,MNH1#

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
87245-58020

ANH1#,MNH1#

 1
87256C - HOSE, REAR HEATER WATER OUTLET, C
87245-58040

ANH1#,MNH1#

 1
Common parts
87124-58010
87124-58070
87124-58090
87124-58100
87124-58110
87124-58120
87128-58010
90099-00264
90159-60187
90159-60259
90467-21010
91553-80622
96134-42100
96134-52100
Linked diagrams
8714
8718
