ANH10W-PFPSK (2002)

Toyota Alphard G/V

Production May 2002 - Apr 2005
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0205- )

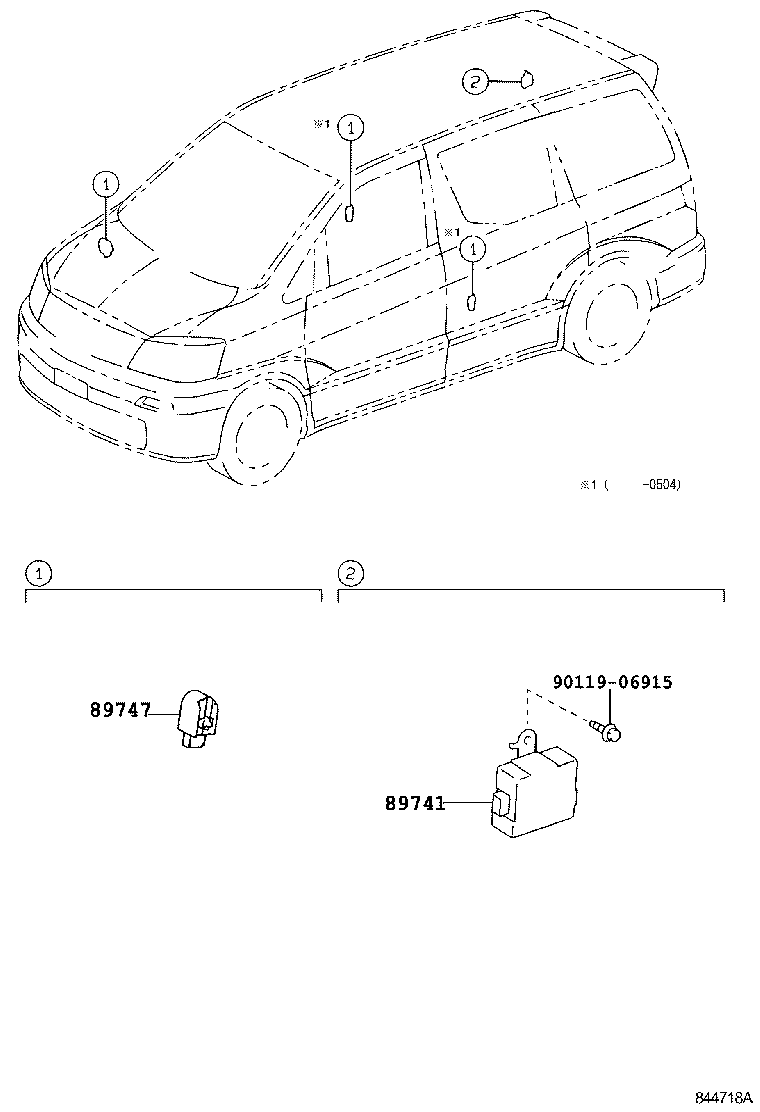

Click highlighted areas on diagram

diagram 89741 89747 9011906915
Part # Description Qty Price
89741 - RECEIVER, DOOR CONTROL
89741-58011

ANH1#,MNH1#

 1
89741-58010

ANH1#,MNH1#

 1
89747 - BUZZER, WIRELESS DOOR LOCK
89747-51010

ANH1#,MNH1#

 1
89747-51010

ANH1#,MNH1#..4FC..(AS,MS)

ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)有り

 1
89747-51010

ANH1#,MNH1#..AS,AX,MS,MX

ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り

 1
Common parts
90119-06915
