ANH10W-PFPSK (2002)
Toyota Alphard G/V

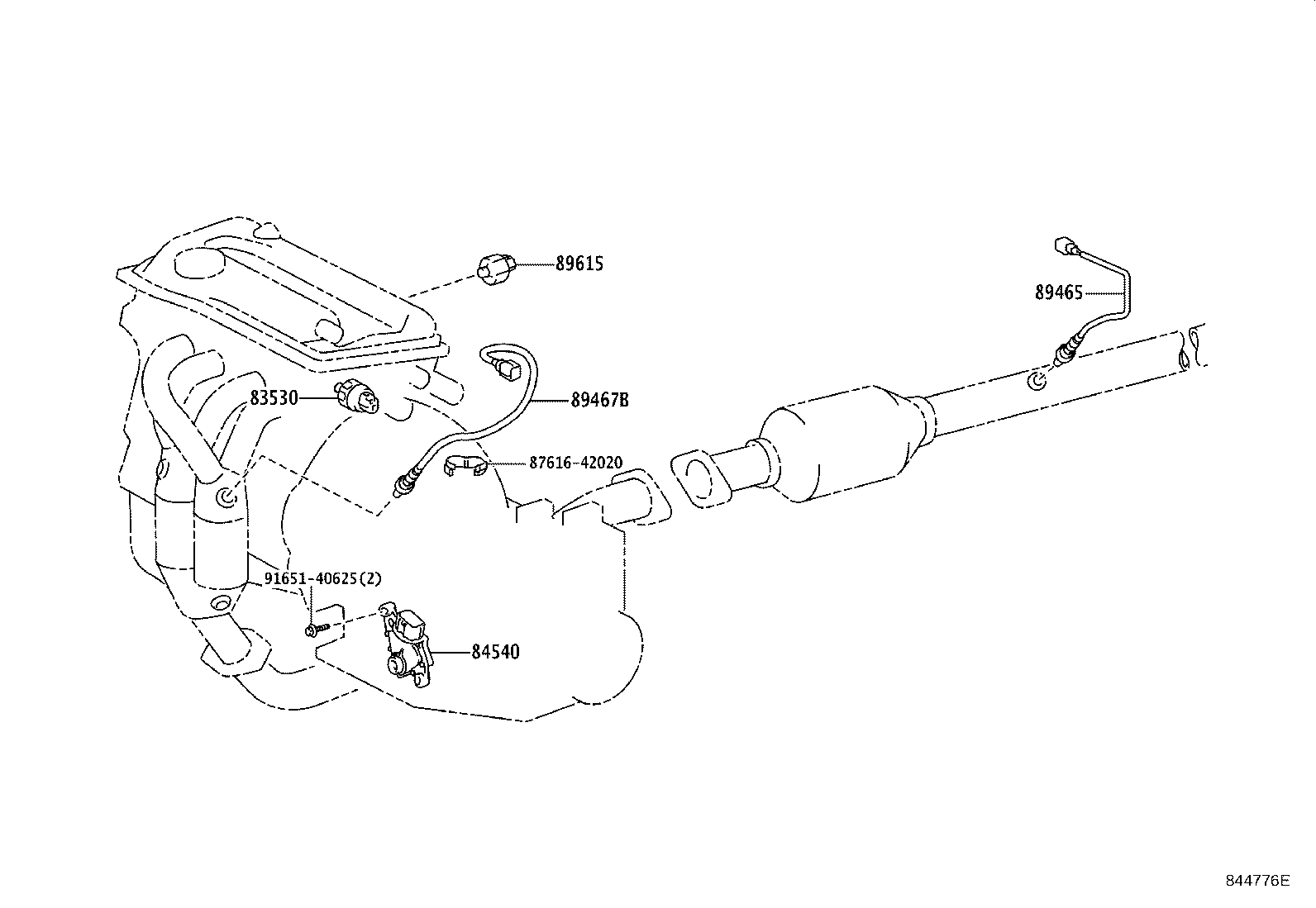

ILLUST NO. 1 OF 8(0205-0504)ANH1#
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
ANH1#,MNH1# DENSO |
1 | ||
| 83530-60020 |
ANH1#,MNH1# YAZAKI |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-32110 |
ANH1#,MNH1# |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-58020 |
ANH1# |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89465-58010 |
ANH1# |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-44010 |
ANH1# |
1 | ||
| Common parts | ||||
| 87616-42020 | ||||
| 91651-40625 | ||||

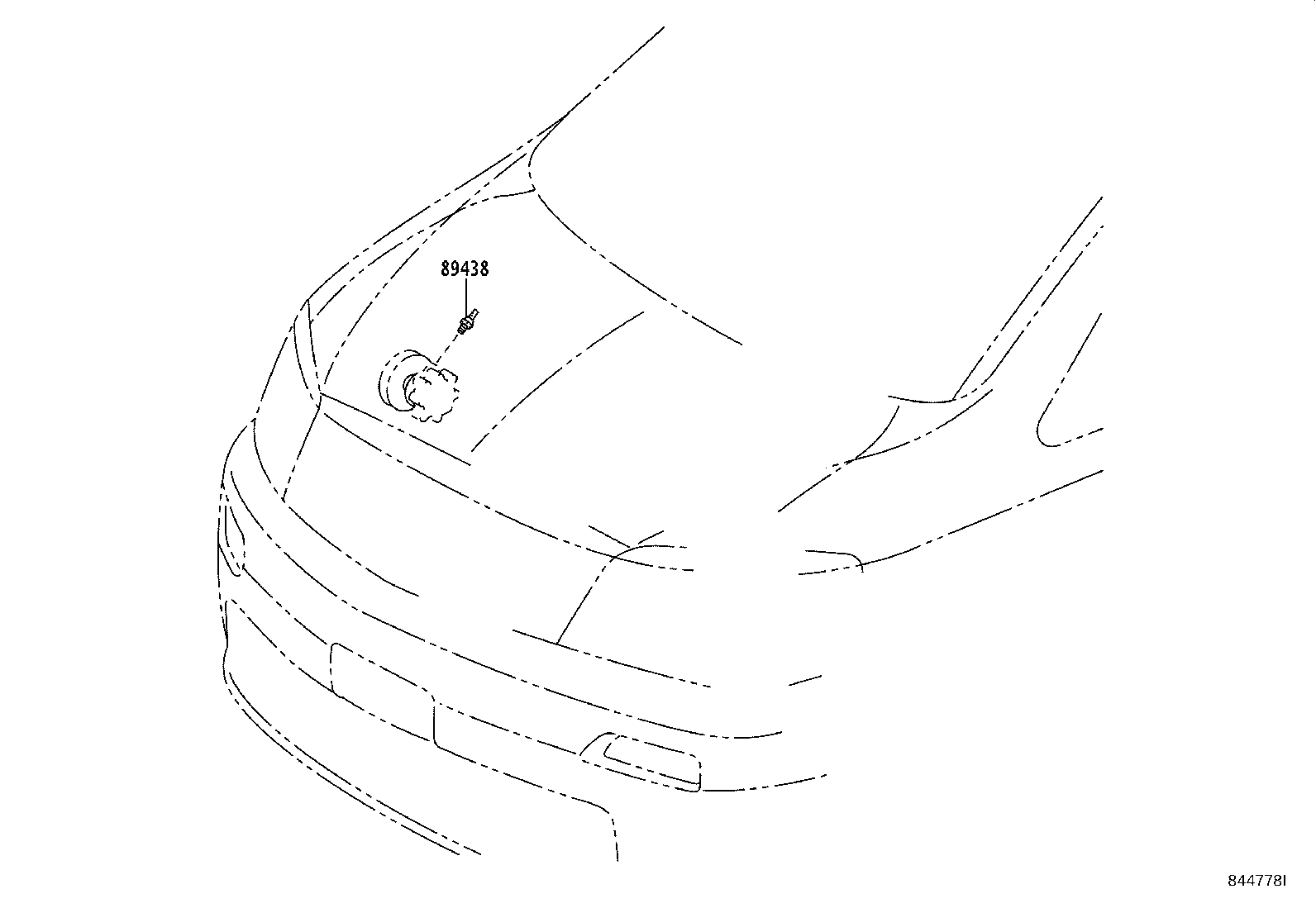

ILLUST NO. 2 OF 9(0205- )ANH1#
ｴﾝｼﾞﾝﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89438 - SWITCH, POWER STEERING OIL PRESSURE | ||||
| 89438-33010 |
ANH1#,MNH1# |
1 | ||

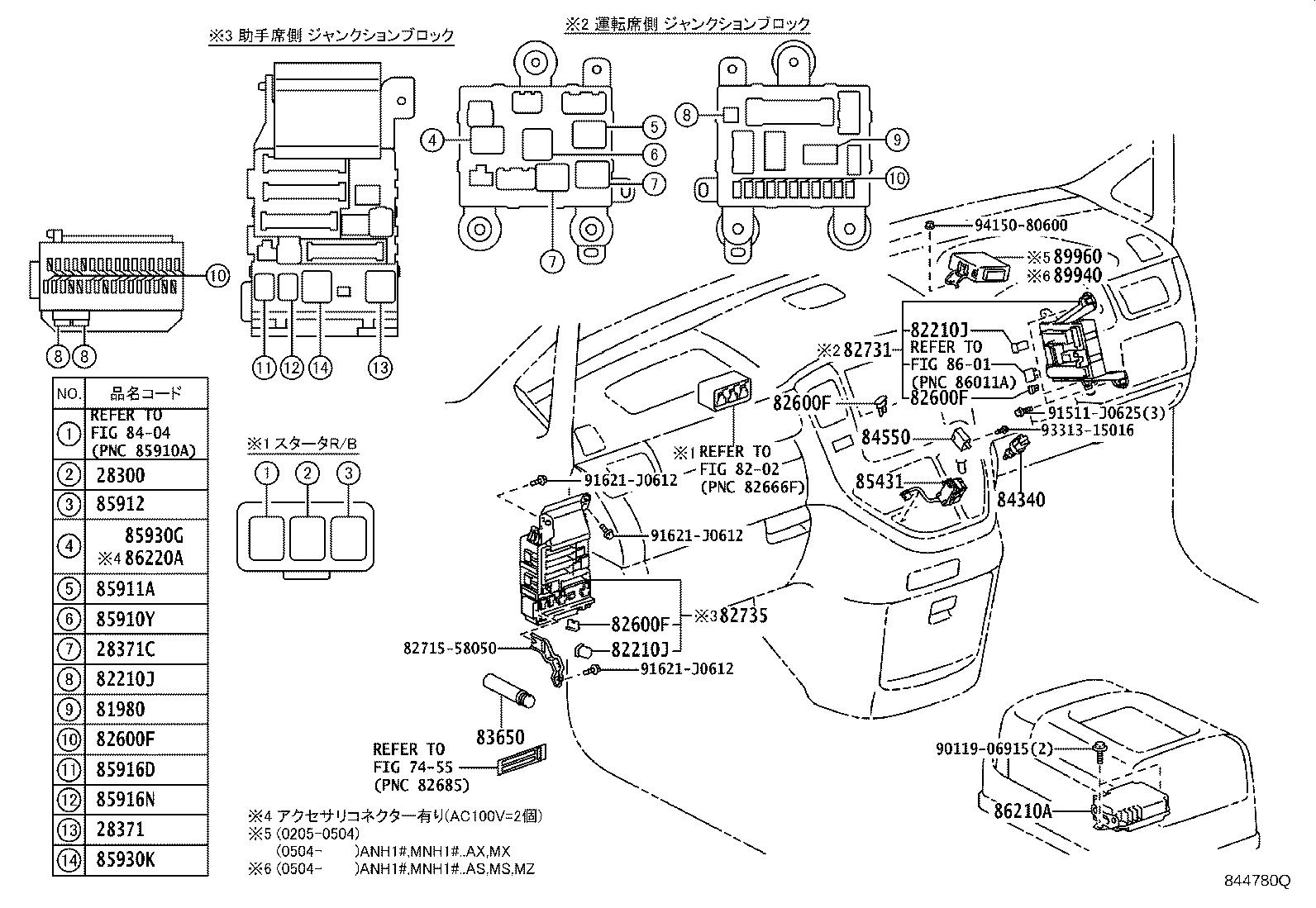

ILLUST NO. 4 OF 9(0205- )
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
2AZFE,1MZFE..ANH1#,MNH1# |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02025 |
2AZFE,1MZFE..ANH1#,MNH1# |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02024 |
2AZFE,1MZFE..ANH1#,MNH1# |
2 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-50030 |
ANH1#,MNH1# |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08282 |
ANH1#,MNH1# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08281 |
ANH1#,MNH1# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08280 |
ANH1#,MNH1# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08203 |
ANH1#,MNH1# 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08246 |
ANH1#,MNH1# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08286 |
ANH1#,MNH1# 140A,ｵｽ端子,赤茶 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08282 |
ANH1#,MNH1# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08281 |
ANH1#,MNH1# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08280 |
ANH1#,MNH1# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08203 |
ANH1#,MNH1# 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08246 |
ANH1#,MNH1# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08286 |
ANH1#,MNH1# 140A,ｵｽ端子,赤茶 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08282 |
ANH1#,MNH1# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08281 |
ANH1#,MNH1# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08280 |
ANH1#,MNH1# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08203 |
ANH1#,MNH1# 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08246 |
ANH1#,MNH1# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08286 |
ANH1#,MNH1# 140A,ｵｽ端子,赤茶 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09011 |
ANH1#,MNH1# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄,ｴﾝｼﾞﾝﾙｰﾑJ/B,運転席側 J/B |
1 | ||
| 90982-09009 |
ANH1#,MNH1# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤,ｴﾝｼﾞﾝﾙｰﾑJ/B,運転席側 J/B |
1 | ||
| 90982-09007 |
ANH1#,MNH1# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09012 |
ANH1#,MNH1# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09013 |
ANH1#,MNH1# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑,ｴﾝｼﾞﾝﾙｰﾑJ/B,運転席側 J/B |
1 | ||
| 90080-82052 |
ANH1#,MNH1# 15A,ﾐﾆ ﾋｭｰｽﾞ,青,ﾊﾟﾂｾﾝｼﾞﾔ− ｻｲﾄﾞ J/B |
1 | ||
| 90080-82050 |
ANH1#,MNH1# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90080-82051 |
ANH1#,MNH1# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤,ﾊﾟﾂｾﾝｼﾞﾔ− ｻｲﾄﾞ J/B |
1 | ||
| 90982-09010 |
ANH1#,MNH1# 15A,ﾐﾆ ﾋｭｰｽﾞ,青,ｴﾝｼﾞﾝﾙｰﾑJ/B,運転席側 J/B |
1 | ||
| 90080-82054 |
ANH1#,MNH1# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑,ﾊﾟﾂｾﾝｼﾞﾔ− ｻｲﾄﾞ J/B |
1 | ||
| 90080-82053 |
ANH1#,MNH1# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄,ﾊﾟﾂｾﾝｼﾞﾔ− ｻｲﾄﾞ J/B |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09011 |
ANH1#,MNH1# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄,ｴﾝｼﾞﾝﾙｰﾑJ/B,運転席側 J/B |
1 | ||
| 90982-09009 |
ANH1#,MNH1# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤,ｴﾝｼﾞﾝﾙｰﾑJ/B,運転席側 J/B |
1 | ||
| 90982-09007 |
ANH1#,MNH1# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09012 |
ANH1#,MNH1# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09013 |
ANH1#,MNH1# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑,ｴﾝｼﾞﾝﾙｰﾑJ/B,運転席側 J/B |
1 | ||
| 90080-82052 |
ANH1#,MNH1# 15A,ﾐﾆ ﾋｭｰｽﾞ,青,ﾊﾟﾂｾﾝｼﾞﾔ− ｻｲﾄﾞ J/B |
1 | ||
| 90080-82050 |
ANH1#,MNH1# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90080-82051 |
ANH1#,MNH1# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤,ﾊﾟﾂｾﾝｼﾞﾔ− ｻｲﾄﾞ J/B |
1 | ||
| 90982-09010 |
ANH1#,MNH1# 15A,ﾐﾆ ﾋｭｰｽﾞ,青,ｴﾝｼﾞﾝﾙｰﾑJ/B,運転席側 J/B |
1 | ||
| 90080-82054 |
ANH1#,MNH1# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑,ﾊﾟﾂｾﾝｼﾞﾔ− ｻｲﾄﾞ J/B |
1 | ||
| 90080-82053 |
ANH1#,MNH1# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄,ﾊﾟﾂｾﾝｼﾞﾔ− ｻｲﾄﾞ J/B |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09011 |
ANH1#,MNH1# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄,ｴﾝｼﾞﾝﾙｰﾑJ/B,運転席側 J/B |
1 | ||
| 90982-09009 |
ANH1#,MNH1# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤,ｴﾝｼﾞﾝﾙｰﾑJ/B,運転席側 J/B |
1 | ||
| 90982-09007 |
ANH1#,MNH1# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09012 |
ANH1#,MNH1# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09013 |
ANH1#,MNH1# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑,ｴﾝｼﾞﾝﾙｰﾑJ/B,運転席側 J/B |
1 | ||
| 90080-82052 |
ANH1#,MNH1# 15A,ﾐﾆ ﾋｭｰｽﾞ,青,ﾊﾟﾂｾﾝｼﾞﾔ− ｻｲﾄﾞ J/B |
1 | ||
| 90080-82050 |
ANH1#,MNH1# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90080-82051 |
ANH1#,MNH1# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤,ﾊﾟﾂｾﾝｼﾞﾔ− ｻｲﾄﾞ J/B |
1 | ||
| 90982-09010 |
ANH1#,MNH1# 15A,ﾐﾆ ﾋｭｰｽﾞ,青,ｴﾝｼﾞﾝﾙｰﾑJ/B,運転席側 J/B |
1 | ||
| 90080-82054 |
ANH1#,MNH1# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑,ﾊﾟﾂｾﾝｼﾞﾔ− ｻｲﾄﾞ J/B |
1 | ||
| 90080-82053 |
ANH1#,MNH1# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄,ﾊﾟﾂｾﾝｼﾞﾔ− ｻｲﾄﾞ J/B |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09011 |
ANH1#,MNH1# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄,ｴﾝｼﾞﾝﾙｰﾑJ/B,運転席側 J/B |
1 | ||
| 90982-09009 |
ANH1#,MNH1# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤,ｴﾝｼﾞﾝﾙｰﾑJ/B,運転席側 J/B |
1 | ||
| 90982-09007 |
ANH1#,MNH1# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09012 |
ANH1#,MNH1# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09013 |
ANH1#,MNH1# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑,ｴﾝｼﾞﾝﾙｰﾑJ/B,運転席側 J/B |
1 | ||
| 90080-82052 |
ANH1#,MNH1# 15A,ﾐﾆ ﾋｭｰｽﾞ,青,ﾊﾟﾂｾﾝｼﾞﾔ− ｻｲﾄﾞ J/B |
1 | ||
| 90080-82050 |
ANH1#,MNH1# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90080-82051 |
ANH1#,MNH1# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤,ﾊﾟﾂｾﾝｼﾞﾔ− ｻｲﾄﾞ J/B |
1 | ||
| 90982-09010 |
ANH1#,MNH1# 15A,ﾐﾆ ﾋｭｰｽﾞ,青,ｴﾝｼﾞﾝﾙｰﾑJ/B,運転席側 J/B |
1 | ||
| 90080-82054 |
ANH1#,MNH1# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑,ﾊﾟﾂｾﾝｼﾞﾔ− ｻｲﾄﾞ J/B |
1 | ||
| 90080-82053 |
ANH1#,MNH1# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄,ﾊﾟﾂｾﾝｼﾞﾔ− ｻｲﾄﾞ J/B |
1 | ||
| 82731 - BLOCK, DRIVER SIDE JUNCTION | ||||
| 82731-58010 |
ANH1#,MNH1# |
1 | ||
| 82731-58011 |
ANH1#,MNH1# |
1 | ||
| 82735 - BLOCK, PASSENGER SIDE JUNCTION | ||||
| 82730-58020 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)有り |
1 | ||
| 82730-58020 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) ﾊﾞｯｸﾓﾆﾀｰ&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ有り |
1 | ||
| 82730-58020 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 82730-58010 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) |
1 | ||
| 82730-58020 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)有り&ﾊﾞｯｸﾓﾆﾀｰ&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ有り |
1 | ||
| 82730-58021 |
ANH1#,MNH1#..AS,AX,MS,MX 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り |
1 | ||
| 82730-58020 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)有り |
1 | ||
| 82730-58011 |
ANH1#,MNH1#..AS,AX,MS,MX |
1 | ||
| 82730-58020 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾞｯｸﾓﾆﾀｰ&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ有り |
1 | ||
| 82730-58020 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)有り&ﾊﾞｯｸﾓﾆﾀｰ&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ有り |
1 | ||
| 82730-58021 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り |
1 | ||
| 82730-58021 |
ANH1#,MNH1#..AS,AX,MS,MX 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
ANH1#,MNH1# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-49035 |
ANH1#,MNH1# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-30080 |
ANH1#,MNH1# |
1 | ||
| 85431 - SOLENOID, SHIFT LOCK | ||||
| 85431-58010 |
ANH1#,MNH1# |
1 | ||
| 85910Y - RELAY, REAR HEATER | ||||
| 90987-02010 |
ANH1#,MNH1# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02024 |
ANH1#,MNH1# |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02024 |
ANH1#,MNH1# |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-04004 |
ANH1#,MNH1# |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90987-02024 |
ANH1#,MNH1# |
1 | ||
| 85930K - RELAY, ACC, NO.2 | ||||
| 90987-02025 |
ANH1#,MNH1# |
1 | ||
| 86210A - INVERTER ASSY, VOLTAGE | ||||
| 86210-58010 |
ANH1#,MNH1# ｱｸｾｻﾘｰｺﾈｸﾀｰ−有り(AC100V=ｲﾝﾊﾞｰﾀ付/2個) |
1 | ||
| 89960 - COMPUTER ASSY, HEADLAMP LEVELING | ||||
| 89960-58010 |
ANH1#,MNH1#..AS,MS,MX,MZ |
1 | ||
| Common parts | ||||
| 82715-58050 | ||||
| 90119-06915 | ||||
| 91511-J0625 | ||||
| 91621-J0612 | ||||
| 93313-15016 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 7455 | ||||
| 8202 | ||||
| 8404 | ||||
| 8601 | ||||

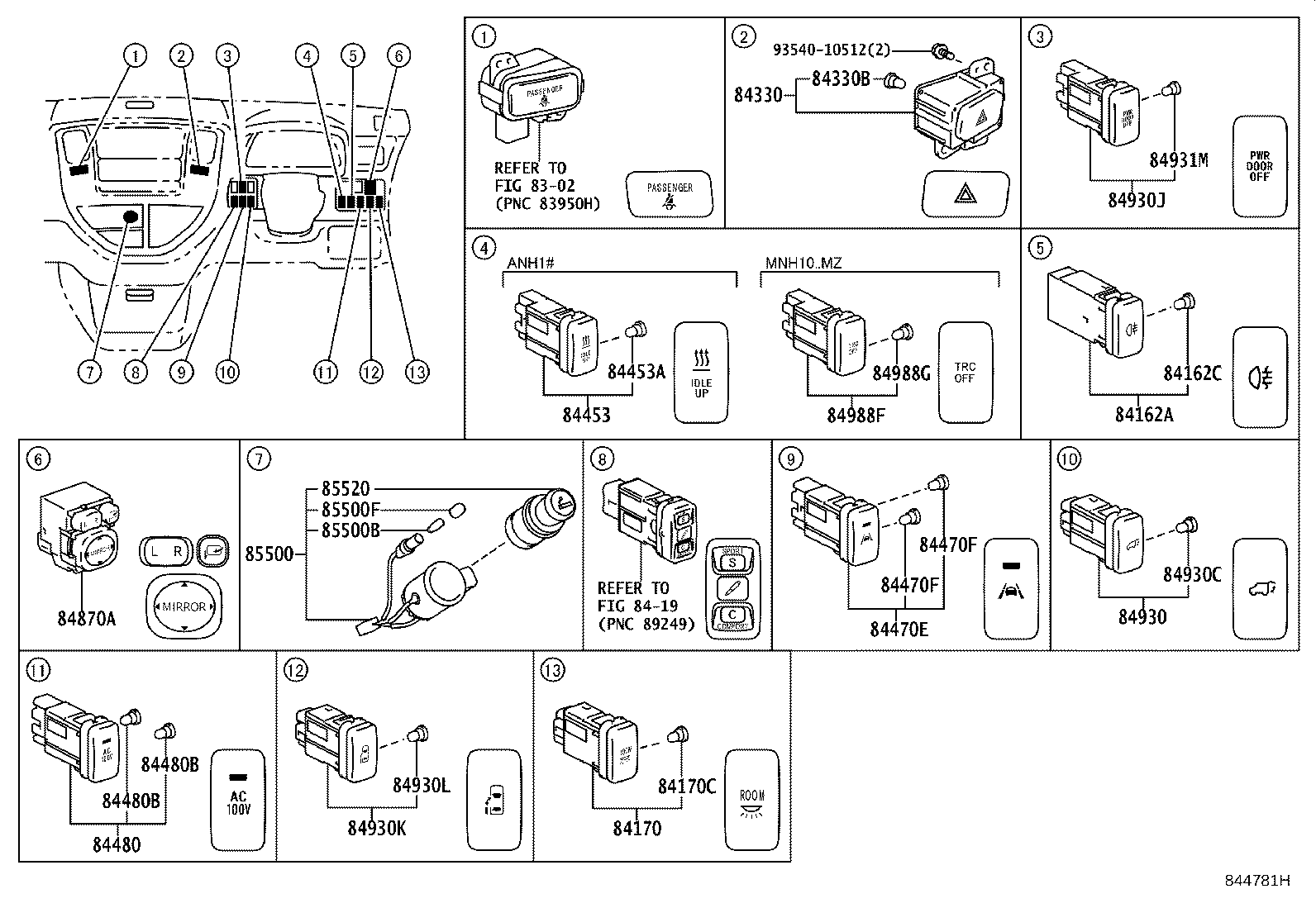

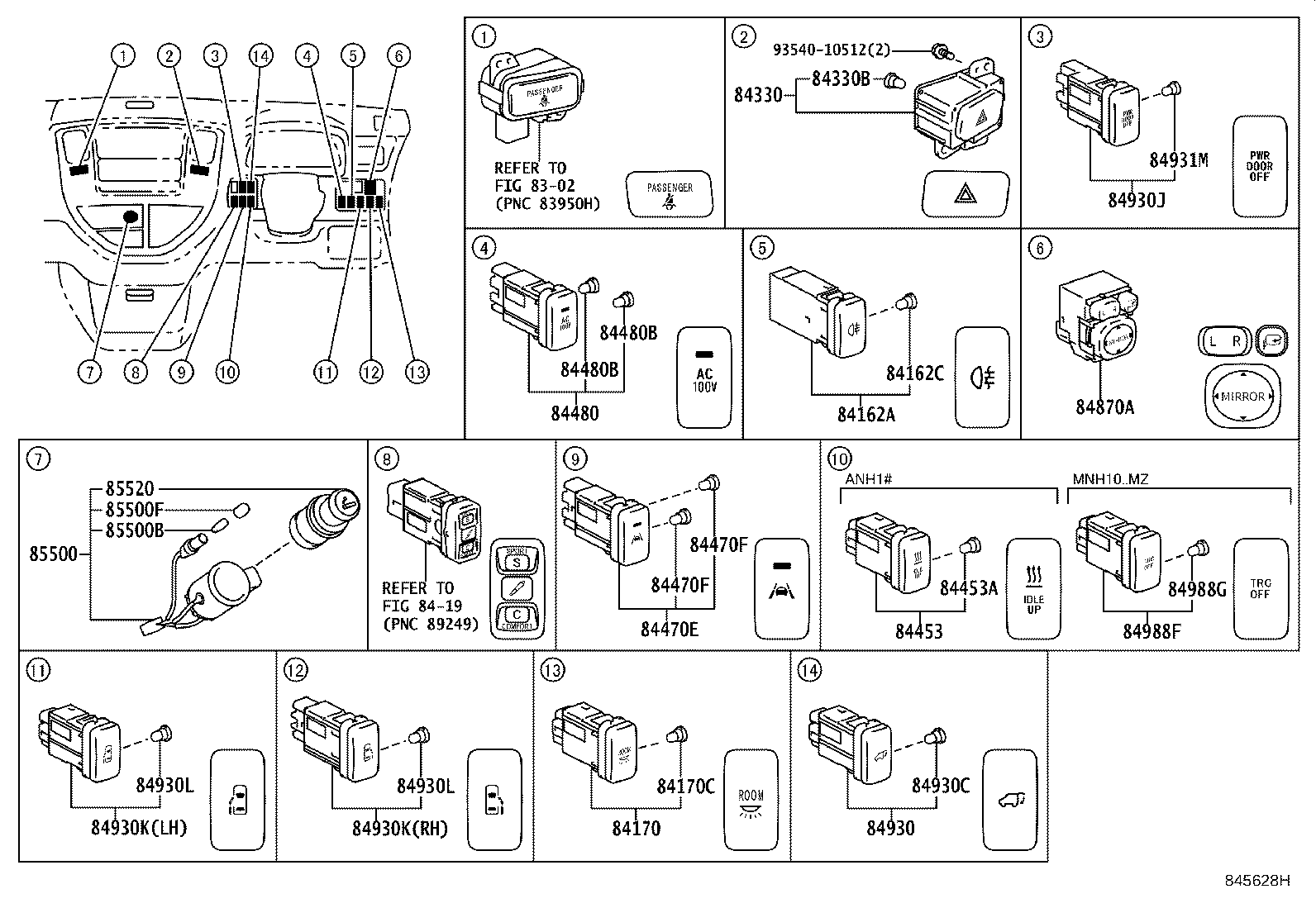

ILLUST NO. 5 OF 9(0205-0307)
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84162A - SWITCH, REAR FOG LAMP | ||||
| 84165-33040 |
ANH1#,MNH1# 寒冷地仕様 |
1 | ||
| 84162C - BULB (FOR REAR FOG LAMP SWITCH) | ||||
| 90010-01061 |
ANH1#,MNH1# 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,寒冷地仕様 |
1 | ||
| 84170 - SWITCH ASSY, INTERIOR DOME LAMP | ||||
| 84170-58010 |
ANH1#,MNH1# |
1 | ||
| 84170C - BULB,ROOM LAMP SWITCH | ||||
| 90010-01061 |
ANH1#,MNH1# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-58010 |
ANH1#,MNH1# |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 90010-05101 |
ANH1#,MNH1# 14V 1.12W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 84453 - SWITCH, IDLE UP | ||||
| 84453-44010 |
ANH1# 寒冷地仕様 |
1 | ||
| 84453-58010 |
ANH1# 寒冷地仕様 |
1 | ||
| 84453A - BULB, IDLE UP SWITCH | ||||
| 90010-01061 |
ANH1# 寒冷地仕様 |
1 | ||
| 84470E - SWITCH ASSY, LANE MONITORING MAIN | ||||
| 84470-58010 |
ANH1#,MNH1#..4FC ﾊﾞｯｸﾓﾆﾀｰ&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ有り |
1 | ||
| 84470-58010 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 84470-58010 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ) |
1 | ||
| 84470-58010 |
ANH1#,MNH1#..4FC ﾊﾞｯｸﾓﾆﾀｰ有り |
1 | ||
| 84470F - BULB, LANE MONITORING MAIN SWITCH | ||||
| 90010-01089 |
ANH1#,MNH1#..4FC 14V 0.63W,ｷｬｯﾌﾟ付き,ﾊﾞｯｸﾓﾆﾀｰ&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ有り |
1 | ||
| 90010-01061 |
ANH1#,MNH1#..4FC 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ﾊﾞｯｸﾓﾆﾀｰ有り |
1 | ||
| 90010-01089 |
ANH1#,MNH1#..4FC 14V 0.63W,ｷｬｯﾌﾟ付き,ﾊﾞｯｸﾓﾆﾀｰ有り |
1 | ||
| 90010-01061 |
ANH1#,MNH1# 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟ[ｶ) |
1 | ||
| 90010-01061 |
ANH1#,MNH1# 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰJ) |
1 | ||
| 90010-01061 |
ANH1#,MNH1#..4FC 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ﾊﾞｯｸﾓﾆﾀｰ&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀ[有り |
1 | ||
| 90010-01089 |
ANH1#,MNH1# 14V 0.63W,ｷｬｯﾌﾟ付き,ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ) |
1 | ||
| 90010-01089 |
ANH1#,MNH1# 14V 0.63W,ｷｬｯﾌﾟ付き,ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 84470F - BULB, LANE MONITORING MAIN SWITCH | ||||
| 90010-01089 |
ANH1#,MNH1#..4FC 14V 0.63W,ｷｬｯﾌﾟ付き,ﾊﾞｯｸﾓﾆﾀｰ&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ有り |
1 | ||
| 90010-01061 |
ANH1#,MNH1#..4FC 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ﾊﾞｯｸﾓﾆﾀｰ有り |
1 | ||
| 90010-01089 |
ANH1#,MNH1#..4FC 14V 0.63W,ｷｬｯﾌﾟ付き,ﾊﾞｯｸﾓﾆﾀｰ有り |
1 | ||
| 90010-01061 |
ANH1#,MNH1# 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟ[ｶ) |
1 | ||
| 90010-01061 |
ANH1#,MNH1# 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰJ) |
1 | ||
| 90010-01061 |
ANH1#,MNH1#..4FC 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ﾊﾞｯｸﾓﾆﾀｰ&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀ[有り |
1 | ||
| 90010-01089 |
ANH1#,MNH1# 14V 0.63W,ｷｬｯﾌﾟ付き,ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ) |
1 | ||
| 90010-01089 |
ANH1#,MNH1# 14V 0.63W,ｷｬｯﾌﾟ付き,ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 84480 - SWITCH ASSY, MAIN | ||||
| 84480-44010 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 84480-44010 |
ANH1#,MNH1#..4FC ｱｸｾｻﾘｰｺﾈｸﾀｰ−有り(AC100V=ｲﾝﾊﾞｰﾀ付/2個) |
1 | ||
| 84480-44010 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ) |
1 | ||
| 84480B - BULB, MAIN SWITCH ASSY | ||||
| 84999-10310 |
ANH1#,MNH1# 14V 0.91W,ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ) |
1 | ||
| 84999-10310 |
ANH1#,MNH1# 14V 0.91W,ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 84999-10310 |
ANH1#,MNH1#..4FC 14V 0.91W,ｱｸｾｻﾘｰｺﾈｸﾀｰ−有り(AC100V=ｲﾝﾊﾞｰﾀ付/2個j |
1 | ||
| 90010-01062 |
ANH1#,MNH1#..4FC 14V0.63W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ｱｸｾｻﾘｰｺﾈｸﾀｰ−有り(AC100u=ｲﾝﾊﾞｰﾀ付/2個) |
1 | ||
| 90010-01062 |
ANH1#,MNH1# 14V0.63W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰJ) |
1 | ||
| 90010-01062 |
ANH1#,MNH1# 14V0.63W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟ[ｶ) |
1 | ||
| 84480B - BULB, MAIN SWITCH ASSY | ||||
| 84999-10310 |
ANH1#,MNH1# 14V 0.91W,ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ) |
1 | ||
| 84999-10310 |
ANH1#,MNH1# 14V 0.91W,ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 84999-10310 |
ANH1#,MNH1#..4FC 14V 0.91W,ｱｸｾｻﾘｰｺﾈｸﾀｰ−有り(AC100V=ｲﾝﾊﾞｰﾀ付/2個j |
1 | ||
| 90010-01062 |
ANH1#,MNH1#..4FC 14V0.63W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ｱｸｾｻﾘｰｺﾈｸﾀｰ−有り(AC100u=ｲﾝﾊﾞｰﾀ付/2個) |
1 | ||
| 90010-01062 |
ANH1#,MNH1# 14V0.63W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰJ) |
1 | ||
| 90010-01062 |
ANH1#,MNH1# 14V0.63W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟ[ｶ) |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-52040 |
ANH1#,MNH1# |
1 | ||
| 84930J - SWITCH ASSY, AUTO SLIDE DOOR MAIN | ||||
| 84930-58030 |
ANH1#,MNH1#..AS,MS ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)有り |
1 | ||
| 84930-58030 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り |
1 | ||
| 84930K - SWITCH ASSY, AUTO SLIDE DOOR CONTROL | ||||
| 84930-58021 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り,左側 |
1 | ||
| 84930-58020 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)有り |
1 | ||
| 84930-58021 |
ANH1#,MNH1#..AS,MS ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)有り,左側 |
1 | ||
| 84930-28080 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り,右側 |
1 | ||
| 84930L - BULB, AUTO SLIDE DOOR CONTROL SWITCH | ||||
| 90010-01061 |
ANH1#,MNH1#..AS,AX,MS,MX 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)Lり |
2 | ||
| 90010-01061 |
ANH1#,MNH1#..AS,MS 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)有り |
1 | ||
| 90010-01062 |
ANH1#,MNH1#..AS,AX,MS,MX 14V0.63W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)有り |
1 | ||
| 84931M - BULB, DOOR CONTROL SWITCH | ||||
| 90010-01061 |
ANH1#,MNH1#..AS,AX,MS,MX 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)Lり |
1 | ||
| 90010-01061 |
ANH1#,MNH1#..AS,MS 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)有り |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-24050 |
ANH1#,MNH1# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11018 |
ANH1#,MNH1# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 85500F - CAP, CIGARETTE LIGHTER BULB | ||||
| 84998-10510 |
ANH1#,MNH1# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-89101 |
ANH1#,MNH1# |
1 | ||
| Common parts | ||||
| 93540-10512 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8419 | ||||

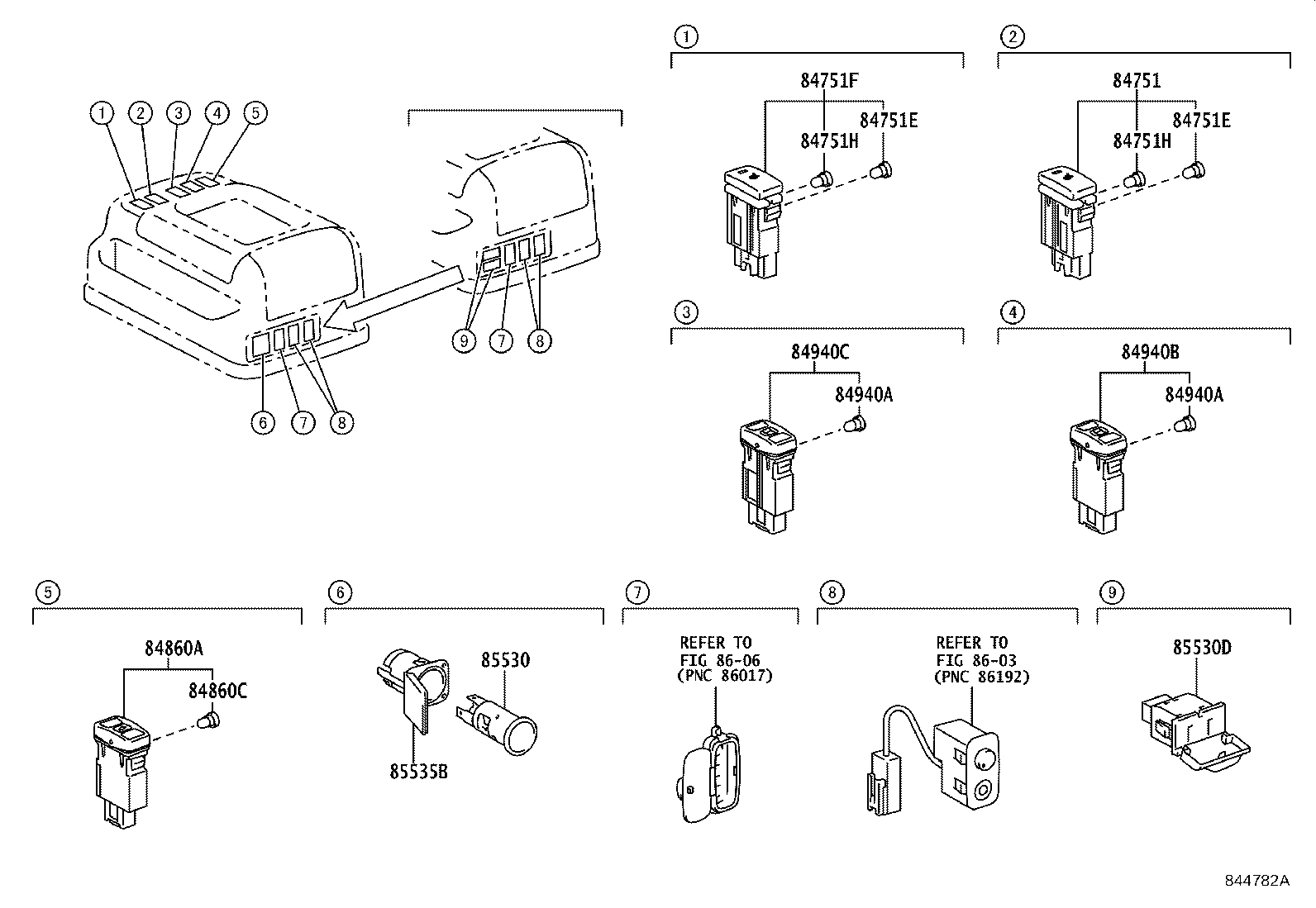

ILLUST NO. 6 OF 9(0205- )
ｺﾝｿ-ﾙﾎﾞﾂｸｽ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84860A - SWITCH ASSY, SLIDING ROOF | ||||
| 84860-58010 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 84860-58010 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 84860C - BLUB, SLIDING ROOF SWITCH | ||||
| 84999-10310 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 84999-10310 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-33020 |
ANH1#,MNH1# |
1 | ||
| 85530D - SOCKET ASSY, POWER OUTLET, NO.2 | ||||
| 85530-44030B1 |
ANH1#,MNH1#..AS,MS ｱｸｾｻﾘｰｺﾈｸﾀｰ−有り(AC100V=ｲﾝﾊﾞｰﾀ付/2個),STONE,TRIM1# |
2 | ||
| 85530-44030B1 |
ANH1#,MNH1#..AS,MS ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ),STONE,TRIM1# |
2 | ||
| 85530-44030B1 |
ANH1#,MNH1#..AS,MS ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ),STONE,TRIM1# |
2 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-58010B0 |
ANH1#,MNH1#..AS,MS STONE,TRIM1# |
1 | ||
| Linked diagrams | ||||
| 8603 | ||||
| 8606 | ||||
ILLUST NO. 7 OF 9(0205- )

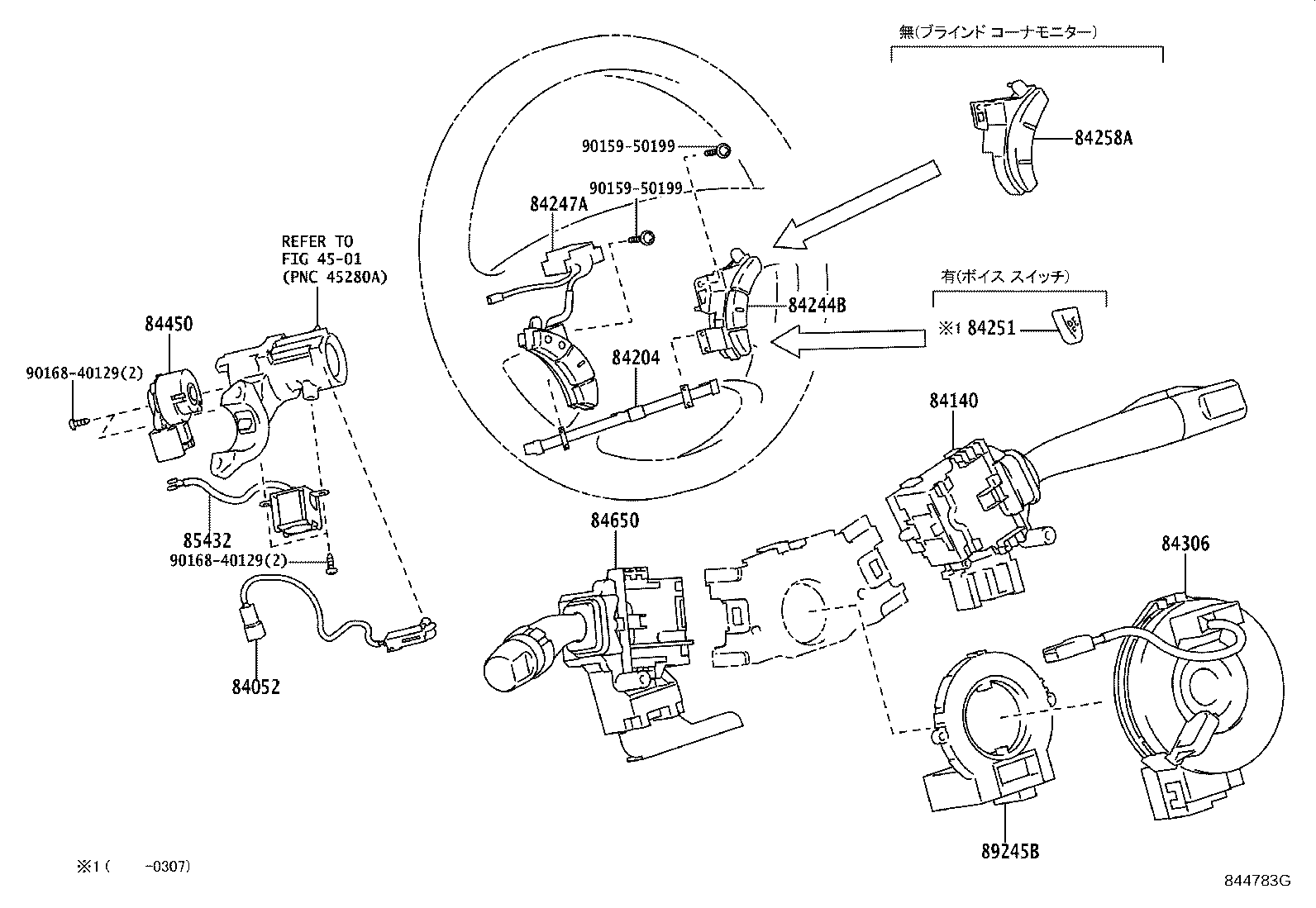

ｲｸﾞﾆﾂｼﾖﾝ & ｺﾝﾋﾞﾈ-ｼﾖﾝ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-12070 |
ANH1#,MNH1# |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-32240 |
ANH1#,MNH1# |
1 | ||
| 84204 - CABLE SUB-ASSY, STEERING PAD SWITCH | ||||
| 84204-58010 |
ANH1#,MNH1#..4FC ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾊﾞｯｸﾓﾆﾀｰ&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ有り |
1 | ||
| 84204-58010 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 84204-58010 |
ANH1#,MNH1#..4FC ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾊﾞｯｸﾓﾆﾀｰ&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ有り |
1 | ||
| 84204-58010 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ) |
1 | ||
| 84244B - SWITCH, STEERING PAD, RH | ||||
| 84244-58040B0 |
ANH1#,MNH1#..4FC..(AS,MS) ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾊﾞｯｸﾓﾆﾀｰ&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ有り,DK.GRAY,TRIM1# |
1 | ||
| 84244-58040B0 |
ANH1#,MNH1#..4FC..(AS,MS) ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾊﾞｯｸﾓﾆﾀｰ&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ有り,DK.GRAY,TRIM1# |
1 | ||
| 84244-58030B0 |
ANH1#,MNH1#..4FC..(AS,MS) ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ),DK.GRAY,TRIM1# |
1 | ||
| 84244-58031B0 |
ANH1#,MNH1#..AS,MS ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ),DK.GRAY,TRIM1# |
1 | ||
| 84244-58030B0 |
ANH1#,MNH1#..4FC..(AS,MS) ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ),DK.GRAY,TRIM1# |
1 | ||
| 84244-58031B0 |
ANH1#,MNH1#..AS,MS ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ),DK.GRAY,TRIM1# |
1 | ||
| 84247A - SWITCH, STEERING PAD, LH | ||||
| 84247-58010B0 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1# |
1 | ||
| 84251 - KNOB, STEERING PAD SWITCH | ||||
| 84251-58010B0 |
ANH1#,MNH1#..4FC..(AS,MS) ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾅﾋﾞｹﾞｰｼｮﾝ有り&ﾊﾞｯｸﾓﾆﾀｰ&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ有り,DK.GRAY,TRIM1# |
1 | ||
| 84251-58010B0 |
ANH1#,MNH1#..4FC..(AS,MS) ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾅﾋﾞｹﾞｰｼｮﾝ有り&ﾊﾞｯｸﾓﾆﾀｰ有り,DK.GRAY,TRIM1# |
1 | ||
| 84251-58010B0 |
ANH1#,MNH1#..4FC..(AS,MS) ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾅﾋﾞｹﾞｰｼｮﾝ有り&ﾊﾞｯｸﾓﾆﾀｰ有り,DK.GRAY,TRIM1# |
1 | ||
| 84251-58010B0 |
ANH1#,MNH1#..4FC..(AS,MS) ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾅﾋﾞｹﾞｰｼｮﾝ有り&ﾊﾞｯｸﾓﾆﾀｰ&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ有り,DK.GRAY,TRIM1# |
1 | ||
| 84251-58010B0 |
ANH1#,MNH1#..4FC..(AS,MS) ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾅﾋﾞｹﾞｰｼｮﾝ有り&ﾊﾞｯｸﾓﾆﾀｰ有り,DK.GRAY,TRIM1# |
1 | ||
| 84251-58010B0 |
ANH1#,MNH1#..4FC..(AS,MS) ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾅﾋﾞｹﾞｰｼｮﾝ有り&ﾊﾞｯｸﾓﾆﾀｰ&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ有り,DK.GRAY,TRIM1# |
1 | ||
| 84251-58010B0 |
ANH1#,MNH1#..4FC..(AS,MS) ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾅﾋﾞｹﾞｰｼｮﾝ有り&ﾊﾞｯｸﾓﾆﾀｰ&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ有り,DK.GRAY,TRIM1# |
1 | ||
| 84251-58010B0 |
ANH1#,MNH1#..4FC..(AS,MS) ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾅﾋﾞｹﾞｰｼｮﾝ有り&ﾊﾞｯｸﾓﾆﾀｰ有り,DK.GRAY,TRIM1# |
1 | ||
| 84258A - COVER, STEERING PAD, RH | ||||
| 84258-58010B0 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-58011 |
ANH1#,MNH1# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
ANH1#,MNH1# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-2G410 |
ANH1#,MNH1# |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-58010 |
ANH1#,MNH1# |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-12010 |
ANH1#,MNH1#..AS,MS |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 4501 | ||||

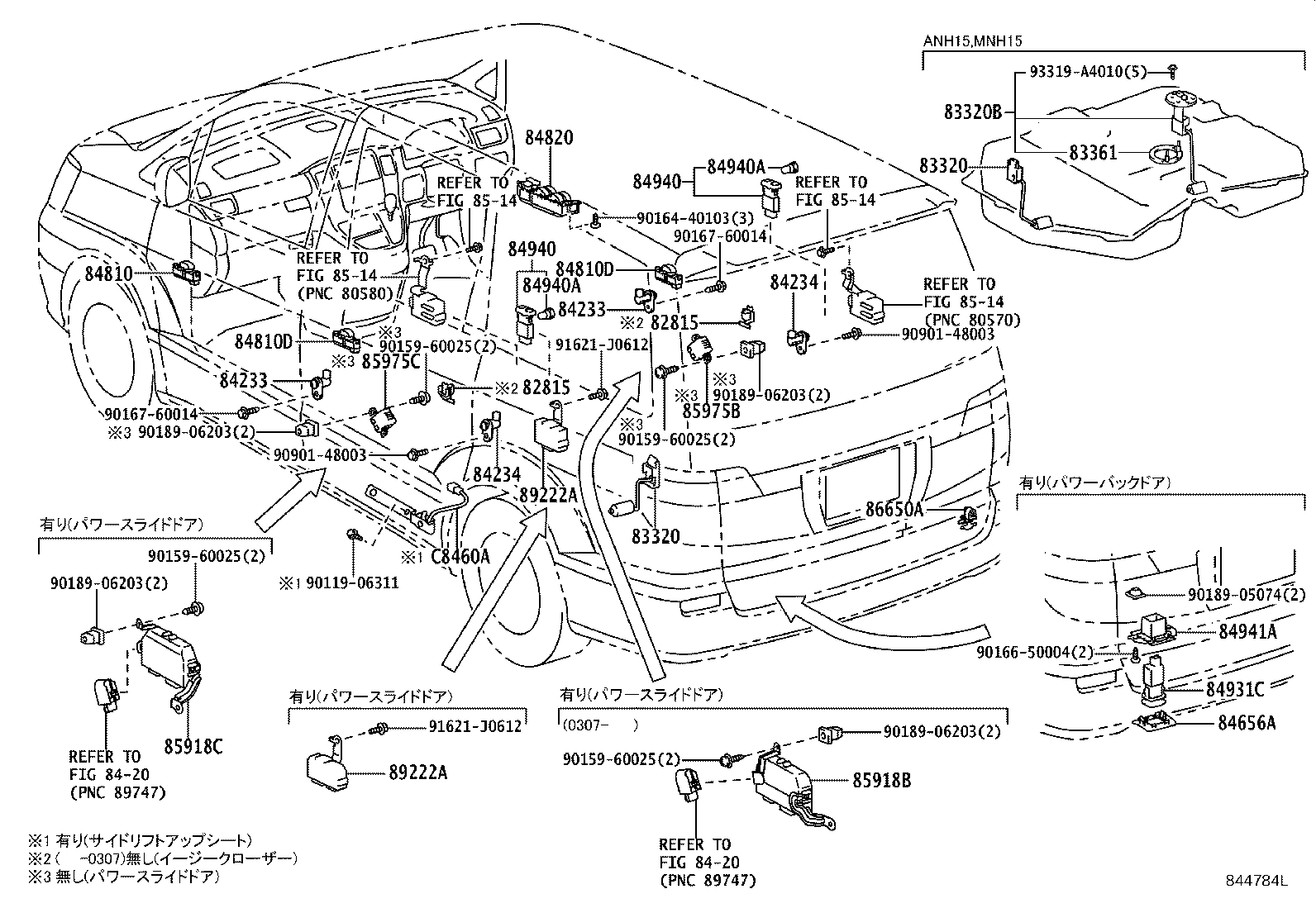

ILLUST NO. 9 OF 9(0205- )
ﾄﾞｱ,ﾙ-ﾌ,ﾌﾛｱ & ﾊﾞﾂｸﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-28470 |
ANH10,MNH10 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-28470 |
ANH10,MNH10 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-53010 |
ANH1#,MNH1# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-53010 |
ANH1#,MNH1# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
ANH1#,MNH1# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
ANH1#,MNH1# |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84030-58011 |
ANH1#,MNH1# |
1 | ||
| 84030-58010 |
ANH1#,MNH1#..4FC |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84030-58011 |
ANH1#,MNH1# |
2 | ||
| 84030-58010 |
ANH1#,MNH1#..4FC |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84030-58011 |
ANH1#,MNH1# |
2 | ||
| 84030-58010 |
ANH1#,MNH1#..4FC |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84040-58010 |
ANH1#,MNH1# |
1 | ||
| 85918B - RELAY, DOOR CONTROL, RH | ||||
| 85918-58030 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り |
1 | ||
| 85918C - RELAY, DOOR CONTROL, LH | ||||
| 85918-58020 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り |
1 | ||
| 85918-58010 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)有り |
1 | ||
| 85975B - RELAY, SLIDE DOOR CLOSER, RH | ||||
| 85975-28090 |
ANH1#,MNH1#..AS,AX,MS,MX |
1 | ||
| 85975C - RELAY, SLIDE DOOR CLOSER, LH | ||||
| 85975-28090 |
ANH1#,MNH1#..AS,AX,MS,MX |
1 | ||
| Common parts | ||||
| 90119-06311 | ||||
| 90159-60025 | ||||
| 90164-40103 | ||||
| 90166-50004 | ||||
| 90167-60014 | ||||
| 90189-05074 | ||||
| 90189-06203 | ||||
| 90901-48003 | ||||
| 91621-J0612 | ||||
| 93319-A4010 | ||||
| Linked diagrams | ||||
| 8420 | ||||
| 8514 | ||||
ILLUST NO. 5 OF 9(0307-0504)
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84162A - SWITCH, REAR FOG LAMP | ||||
| 84165-33040 |
ANH1#,MNH1# 寒冷地仕様 |
1 | ||
| 84162C - BULB (FOR REAR FOG LAMP SWITCH) | ||||
| 90010-01061 |
ANH1#,MNH1# 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,寒冷地仕様 |
1 | ||
| 84170 - SWITCH ASSY, INTERIOR DOME LAMP | ||||
| 84170-58010 |
ANH1#,MNH1# |
1 | ||
| 84170C - BULB,ROOM LAMP SWITCH | ||||
| 90010-01061 |
ANH1#,MNH1# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-58010 |
ANH1#,MNH1# |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 90010-05101 |
ANH1#,MNH1# 14V 1.12W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 84453 - SWITCH, IDLE UP | ||||
| 84453-44010 |
ANH1# 寒冷地仕様 |
1 | ||
| 84453-58010 |
ANH1# 寒冷地仕様 |
1 | ||
| 84453A - BULB, IDLE UP SWITCH | ||||
| 90010-01061 |
ANH1# 寒冷地仕様 |
1 | ||
| 84470E - SWITCH ASSY, LANE MONITORING MAIN | ||||
| 84470-58010 |
ANH1#,MNH1#..4FC ﾊﾞｯｸﾓﾆﾀｰ&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ有り |
1 | ||
| 84470-58010 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 84470-58010 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ) |
1 | ||
| 84470-58010 |
ANH1#,MNH1#..4FC ﾊﾞｯｸﾓﾆﾀｰ有り |
1 | ||
| 84470F - BULB, LANE MONITORING MAIN SWITCH | ||||
| 90010-01089 |
ANH1#,MNH1#..4FC 14V 0.63W,ｷｬｯﾌﾟ付き,ﾊﾞｯｸﾓﾆﾀｰ&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ有り |
1 | ||
| 90010-01061 |
ANH1#,MNH1#..4FC 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ﾊﾞｯｸﾓﾆﾀｰ有り |
1 | ||
| 90010-01089 |
ANH1#,MNH1#..4FC 14V 0.63W,ｷｬｯﾌﾟ付き,ﾊﾞｯｸﾓﾆﾀｰ有り |
1 | ||
| 90010-01061 |
ANH1#,MNH1# 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟ[ｶ) |
1 | ||
| 90010-01061 |
ANH1#,MNH1# 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰJ) |
1 | ||
| 90010-01061 |
ANH1#,MNH1#..4FC 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ﾊﾞｯｸﾓﾆﾀｰ&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀ[有り |
1 | ||
| 90010-01089 |
ANH1#,MNH1# 14V 0.63W,ｷｬｯﾌﾟ付き,ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ) |
1 | ||
| 90010-01089 |
ANH1#,MNH1# 14V 0.63W,ｷｬｯﾌﾟ付き,ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 84470F - BULB, LANE MONITORING MAIN SWITCH | ||||
| 90010-01089 |
ANH1#,MNH1#..4FC 14V 0.63W,ｷｬｯﾌﾟ付き,ﾊﾞｯｸﾓﾆﾀｰ&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ有り |
1 | ||
| 90010-01061 |
ANH1#,MNH1#..4FC 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ﾊﾞｯｸﾓﾆﾀｰ有り |
1 | ||
| 90010-01089 |
ANH1#,MNH1#..4FC 14V 0.63W,ｷｬｯﾌﾟ付き,ﾊﾞｯｸﾓﾆﾀｰ有り |
1 | ||
| 90010-01061 |
ANH1#,MNH1# 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟ[ｶ) |
1 | ||
| 90010-01061 |
ANH1#,MNH1# 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰJ) |
1 | ||
| 90010-01061 |
ANH1#,MNH1#..4FC 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ﾊﾞｯｸﾓﾆﾀｰ&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀ[有り |
1 | ||
| 90010-01089 |
ANH1#,MNH1# 14V 0.63W,ｷｬｯﾌﾟ付き,ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ) |
1 | ||
| 90010-01089 |
ANH1#,MNH1# 14V 0.63W,ｷｬｯﾌﾟ付き,ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 84480 - SWITCH ASSY, MAIN | ||||
| 84480-44010 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 84480-44010 |
ANH1#,MNH1#..4FC ｱｸｾｻﾘｰｺﾈｸﾀｰ−有り(AC100V=ｲﾝﾊﾞｰﾀ付/2個) |
1 | ||
| 84480-44010 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ) |
1 | ||
| 84480B - BULB, MAIN SWITCH ASSY | ||||
| 84999-10310 |
ANH1#,MNH1# 14V 0.91W,ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ) |
1 | ||
| 84999-10310 |
ANH1#,MNH1# 14V 0.91W,ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 84999-10310 |
ANH1#,MNH1#..4FC 14V 0.91W,ｱｸｾｻﾘｰｺﾈｸﾀｰ−有り(AC100V=ｲﾝﾊﾞｰﾀ付/2個j |
1 | ||
| 90010-01062 |
ANH1#,MNH1#..4FC 14V0.63W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ｱｸｾｻﾘｰｺﾈｸﾀｰ−有り(AC100u=ｲﾝﾊﾞｰﾀ付/2個) |
1 | ||
| 90010-01062 |
ANH1#,MNH1# 14V0.63W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰJ) |
1 | ||
| 90010-01062 |
ANH1#,MNH1# 14V0.63W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟ[ｶ) |
1 | ||
| 84480B - BULB, MAIN SWITCH ASSY | ||||
| 84999-10310 |
ANH1#,MNH1# 14V 0.91W,ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ) |
1 | ||
| 84999-10310 |
ANH1#,MNH1# 14V 0.91W,ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 84999-10310 |
ANH1#,MNH1#..4FC 14V 0.91W,ｱｸｾｻﾘｰｺﾈｸﾀｰ−有り(AC100V=ｲﾝﾊﾞｰﾀ付/2個j |
1 | ||
| 90010-01062 |
ANH1#,MNH1#..4FC 14V0.63W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ｱｸｾｻﾘｰｺﾈｸﾀｰ−有り(AC100u=ｲﾝﾊﾞｰﾀ付/2個) |
1 | ||
| 90010-01062 |
ANH1#,MNH1# 14V0.63W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰJ) |
1 | ||
| 90010-01062 |
ANH1#,MNH1# 14V0.63W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟ[ｶ) |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-52040 |
ANH1#,MNH1# |
1 | ||
| 84930J - SWITCH ASSY, AUTO SLIDE DOOR MAIN | ||||
| 84930-58030 |
ANH1#,MNH1#..AS,MS ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)有り |
1 | ||
| 84930-58030 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り |
1 | ||
| 84930K - SWITCH ASSY, AUTO SLIDE DOOR CONTROL | ||||
| 84930-58021 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り,左側 |
1 | ||
| 84930-58020 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)有り |
1 | ||
| 84930-58021 |
ANH1#,MNH1#..AS,MS ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)有り,左側 |
1 | ||
| 84930-28080 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り,右側 |
1 | ||
| 84930K - SWITCH ASSY, AUTO SLIDE DOOR CONTROL | ||||
| 84930-58021 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り,左側 |
1 | ||
| 84930-58020 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)有り |
1 | ||
| 84930-58021 |
ANH1#,MNH1#..AS,MS ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)有り,左側 |
1 | ||
| 84930-28080 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り,右側 |
1 | ||
| 84930L - BULB, AUTO SLIDE DOOR CONTROL SWITCH | ||||
| 90010-01061 |
ANH1#,MNH1#..AS,AX,MS,MX 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)Lり |
2 | ||
| 90010-01061 |
ANH1#,MNH1#..AS,MS 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)有り |
1 | ||
| 90010-01062 |
ANH1#,MNH1#..AS,AX,MS,MX 14V0.63W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)有り |
1 | ||
| 84930L - BULB, AUTO SLIDE DOOR CONTROL SWITCH | ||||
| 90010-01061 |
ANH1#,MNH1#..AS,AX,MS,MX 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)Lり |
2 | ||
| 90010-01061 |
ANH1#,MNH1#..AS,MS 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)有り |
1 | ||
| 90010-01062 |
ANH1#,MNH1#..AS,AX,MS,MX 14V0.63W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)有り |
1 | ||
| 84931M - BULB, DOOR CONTROL SWITCH | ||||
| 90010-01061 |
ANH1#,MNH1#..AS,AX,MS,MX 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)Lり |
1 | ||
| 90010-01061 |
ANH1#,MNH1#..AS,MS 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)有り |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-24050 |
ANH1#,MNH1# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11018 |
ANH1#,MNH1# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 85500F - CAP, CIGARETTE LIGHTER BULB | ||||
| 84998-10510 |
ANH1#,MNH1# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-89101 |
ANH1#,MNH1# |
1 | ||
| Common parts | ||||
| 93540-10512 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8419 | ||||

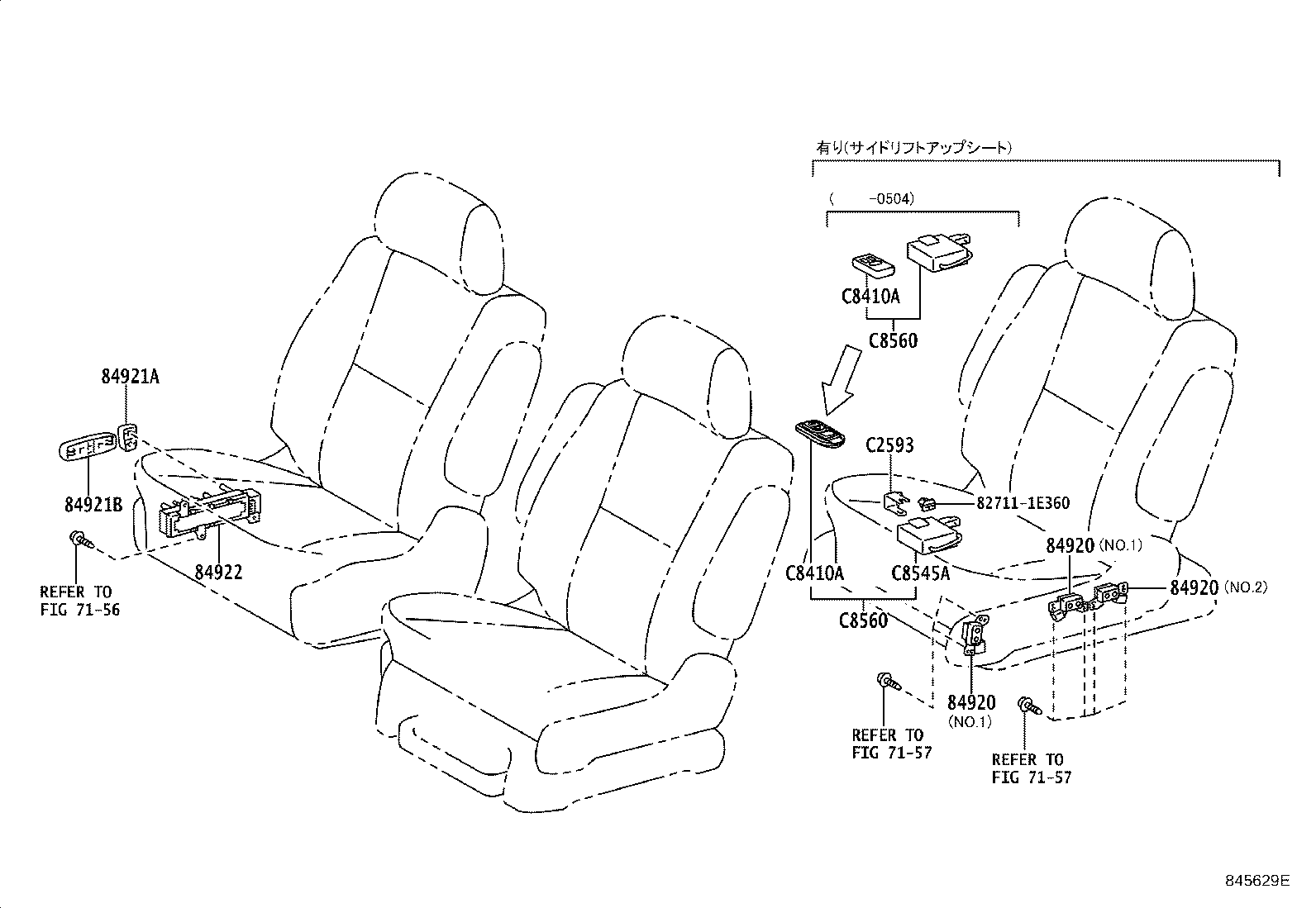

ILLUST NO. 8 OF 9(0205- )
ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1E360 | ||||
| Linked diagrams | ||||
| 7156 | ||||
| 7157 | ||||

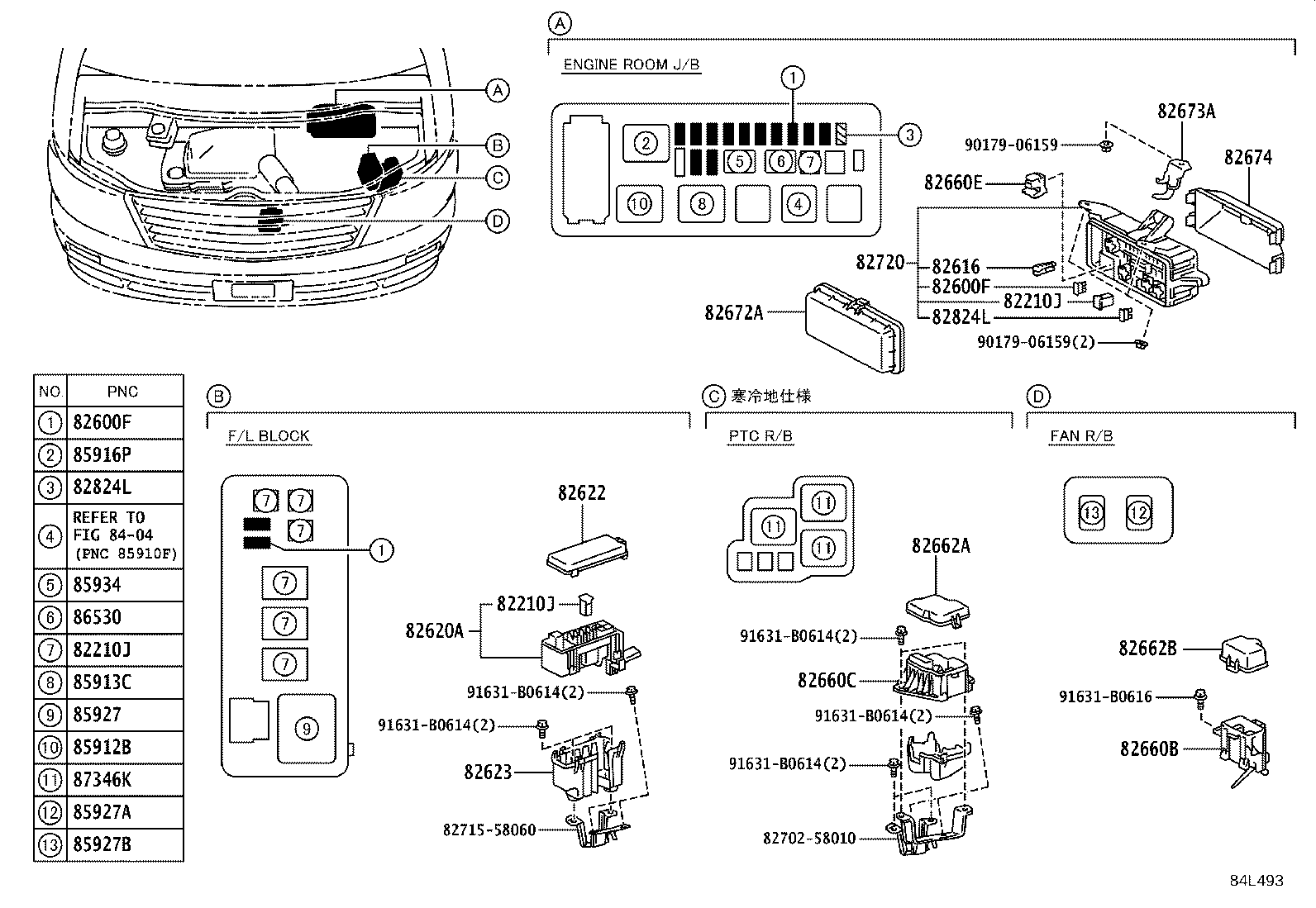

ILLUST NO. 3 OF 9(0205- )ANH1#
ｴﾝｼﾞﾝﾙｰﾑ ﾘﾚｰﾌﾞﾛｯｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210J - FUSIBLE LINK | ||||
| 90982-08282 |
ANH1#,MNH1# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08281 |
ANH1#,MNH1# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08280 |
ANH1#,MNH1# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08203 |
ANH1#,MNH1# 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08246 |
ANH1#,MNH1# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08286 |
ANH1#,MNH1# 140A,ｵｽ端子,赤茶 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08282 |
ANH1#,MNH1# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08281 |
ANH1#,MNH1# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08280 |
ANH1#,MNH1# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08203 |
ANH1#,MNH1# 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08246 |
ANH1#,MNH1# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08286 |
ANH1#,MNH1# 140A,ｵｽ端子,赤茶 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08282 |
ANH1#,MNH1# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08281 |
ANH1#,MNH1# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08280 |
ANH1#,MNH1# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08203 |
ANH1#,MNH1# 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08246 |
ANH1#,MNH1# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08286 |
ANH1#,MNH1# 140A,ｵｽ端子,赤茶 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09011 |
ANH1#,MNH1# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄,ｴﾝｼﾞﾝﾙｰﾑJ/B,運転席側 J/B |
1 | ||
| 90982-09009 |
ANH1#,MNH1# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤,ｴﾝｼﾞﾝﾙｰﾑJ/B,運転席側 J/B |
1 | ||
| 90982-09007 |
ANH1#,MNH1# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09012 |
ANH1#,MNH1# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09013 |
ANH1#,MNH1# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑,ｴﾝｼﾞﾝﾙｰﾑJ/B,運転席側 J/B |
1 | ||
| 90080-82052 |
ANH1#,MNH1# 15A,ﾐﾆ ﾋｭｰｽﾞ,青,ﾊﾟﾂｾﾝｼﾞﾔ− ｻｲﾄﾞ J/B |
1 | ||
| 90080-82050 |
ANH1#,MNH1# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90080-82051 |
ANH1#,MNH1# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤,ﾊﾟﾂｾﾝｼﾞﾔ− ｻｲﾄﾞ J/B |
1 | ||
| 90982-09010 |
ANH1#,MNH1# 15A,ﾐﾆ ﾋｭｰｽﾞ,青,ｴﾝｼﾞﾝﾙｰﾑJ/B,運転席側 J/B |
1 | ||
| 90080-82054 |
ANH1#,MNH1# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑,ﾊﾟﾂｾﾝｼﾞﾔ− ｻｲﾄﾞ J/B |
1 | ||
| 90080-82053 |
ANH1#,MNH1# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄,ﾊﾟﾂｾﾝｼﾞﾔ− ｻｲﾄﾞ J/B |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09011 |
ANH1#,MNH1# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄,ｴﾝｼﾞﾝﾙｰﾑJ/B,運転席側 J/B |
1 | ||
| 90982-09009 |
ANH1#,MNH1# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤,ｴﾝｼﾞﾝﾙｰﾑJ/B,運転席側 J/B |
1 | ||
| 90982-09007 |
ANH1#,MNH1# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09012 |
ANH1#,MNH1# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09013 |
ANH1#,MNH1# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑,ｴﾝｼﾞﾝﾙｰﾑJ/B,運転席側 J/B |
1 | ||
| 90080-82052 |
ANH1#,MNH1# 15A,ﾐﾆ ﾋｭｰｽﾞ,青,ﾊﾟﾂｾﾝｼﾞﾔ− ｻｲﾄﾞ J/B |
1 | ||
| 90080-82050 |
ANH1#,MNH1# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90080-82051 |
ANH1#,MNH1# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤,ﾊﾟﾂｾﾝｼﾞﾔ− ｻｲﾄﾞ J/B |
1 | ||
| 90982-09010 |
ANH1#,MNH1# 15A,ﾐﾆ ﾋｭｰｽﾞ,青,ｴﾝｼﾞﾝﾙｰﾑJ/B,運転席側 J/B |
1 | ||
| 90080-82054 |
ANH1#,MNH1# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑,ﾊﾟﾂｾﾝｼﾞﾔ− ｻｲﾄﾞ J/B |
1 | ||
| 90080-82053 |
ANH1#,MNH1# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄,ﾊﾟﾂｾﾝｼﾞﾔ− ｻｲﾄﾞ J/B |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
ANH1#,MNH1# |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-28220 |
ANH1# |
1 | ||
| 82620-58030 |
ANH1# |
1 | ||
| 82622 - COVER, FUSIBLE LINK, UPPER | ||||
| 82622-28010 |
ANH1#,MNH1# |
1 | ||
| 82623 - COVER, FUSIBLE LINK, LOWER | ||||
| 82623-28020 |
ANH1#,MNH1# |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-28200 |
ANH1# |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-58010 |
ANH1# 寒冷地仕様 |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-20340 |
ANH1#,MNH1# |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-28020 |
ANH1# 寒冷地仕様 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-28010 |
ANH1# |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-58010 |
ANH1#,MNH1# |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-28010 |
ANH1#,MNH1# |
1 | ||
| 82674 - COVER, JUNCTION BLOCK LOWER | ||||
| 82674-28010 |
ANH1#,MNH1# |
1 | ||
| 82720 - BLOCK ASSY, ENGINE ROOM JUNCTION | ||||
| 82720-58020 |
ANH1# |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-20140 |
ANH1#,MNH15;MNH10..MS,MX;MNH10..07S..MZ |
2 | ||
| 82824L - PIN, SHORT | ||||
| 82824-20140 |
ANH1#,MNH15;MNH10..MS,MX;MNH10..07S..MZ |
2 | ||
| 85912B - RELAY, DEFOGGER(FOR FRONT WINDOW) | ||||
| 90987-02024 |
ANH1#,MNH1# 寒冷地仕様 |
1 | ||
| 85913C - RELAY, HEATER, NO.1 | ||||
| 90987-02025 |
ANH1#,MNH1# |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
ANH1#,MNH1# |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02025 |
ANH1#,MNH1# |
1 | ||
| 90987-02025 |
ANH1#,MNH1# |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
ANH1# |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-02012 |
ANH1# |
1 | ||
| 90987-02024 |
ANH1# |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02028 |
ANH1#,MNH1# |
1 | ||
| 90987-02022 |
ANH1#,MNH1# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02022 |
ANH1#,MNH1#..4FC 品番ﾗﾍﾞﾙ=90987−02022 |
1 | ||
| 90987-02024 |
ANH1#,MNH1# 品番ﾗﾍﾞﾙ=90987−02024 |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-02025 |
ANH1# 寒冷地仕様 |
3 | ||
| Common parts | ||||
| 82702-58010 | ||||
| 82715-58060 | ||||
| 90179-06159 | ||||
| 91631-B0614 | ||||
| 91631-B0616 | ||||
| Linked diagrams | ||||
| 8404 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
