ANH10W-PFPSK (2002)
Toyota Alphard G/V

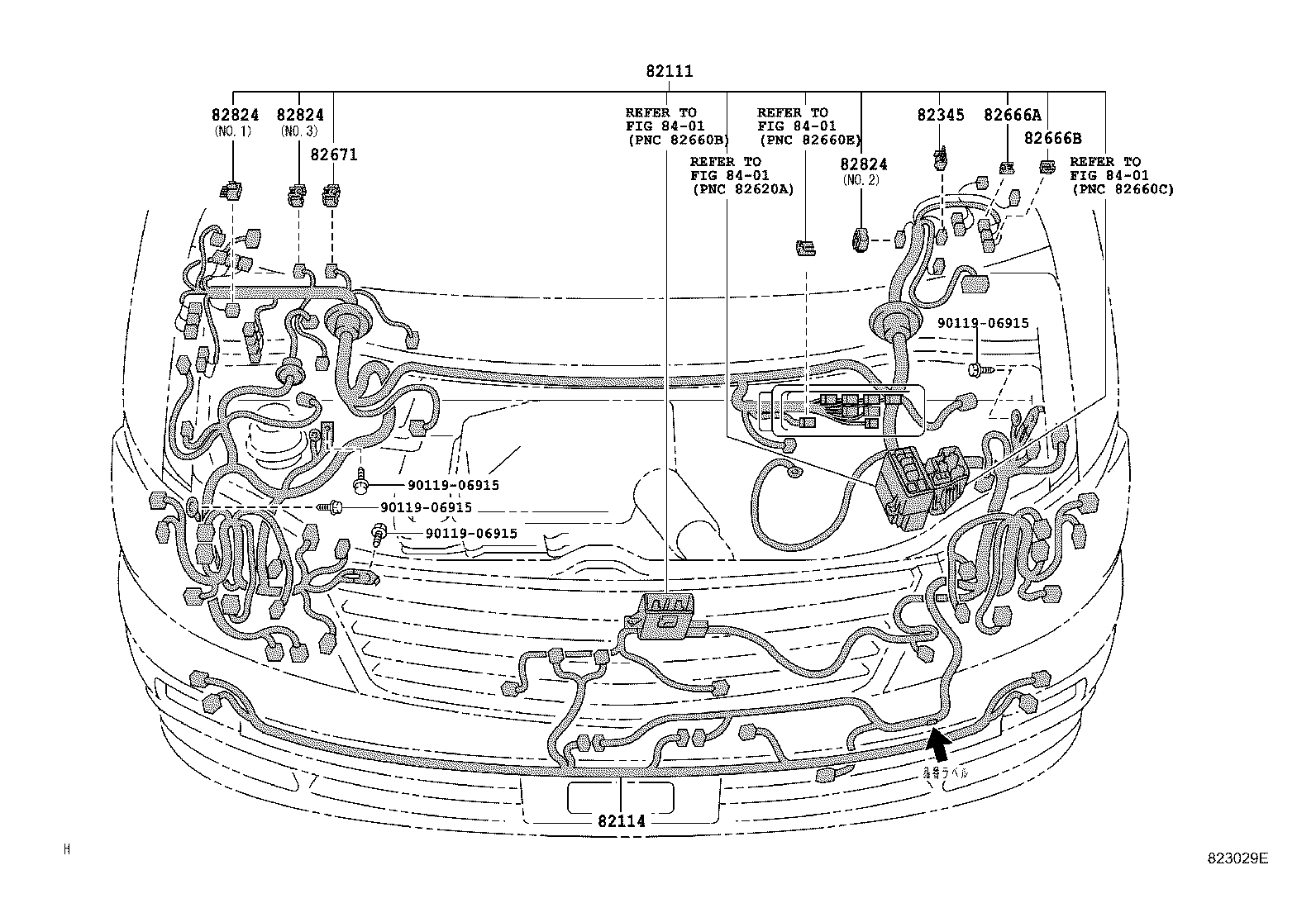

ILLUST NO. 1 OF10(0205- )ANH1#
ｴﾝｼﾞﾝﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-58090 |
ANH1#..AS 寒冷地仕様 |
1 | ||
| 82111-58080 |
ANH1#..AS |
1 | ||
| 82111-58091 |
ANH1#..AS 寒冷地仕様 |
1 | ||
| 82111-58081 |
ANH1#..AS |
1 | ||
| 82111-58080 |
ANH1#..AS 品番ﾗﾍﾞﾙ=82111−58080 |
1 | ||
| 82111-58090 |
ANH1#..AS 品番ﾗﾍﾞﾙ=82111−58090 |
1 | ||
| 82111-58081 |
ANH1#..AS 品番ﾗﾍﾞﾙ=82111−58081 |
1 | ||
| 82111-58091 |
ANH1#..AS 品番ﾗﾍﾞﾙ=82111−58091 |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-58030 |
ANH1#,MNH1#..AS,MS |
1 | ||
| 82345 - DIODE | ||||
| 82345-22051 |
ANH1# ｴﾝｼﾞﾝ ﾙｰﾑ |
1 | ||
| 82345-22051 |
ANH1# ｴﾝｼﾞﾝ ﾙｰﾑ |
1 | ||
| 82345-20060 |
ANH1# ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-21040 |
ANH1#,MNH1# |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-26080 |
ANH1#,MNH1# |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30340 |
ANH1#,MNH1#..AS,AX,MS,MZ ｴﾝｼﾞﾝ ﾙｰﾑ |
1 | ||
| 82671-30340 |
ANH1#,MNH1#..AS,AX,MS,MZ ｴﾝｼﾞﾝ ﾙｰﾑ |
1 | ||
| 82671-30340 |
ANH1#,MNH1# ｴﾝｼﾞﾝ |
1 | ||
| 82671-58020 |
ANH1#,MNH1# ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-30220 |
ANH1#,MNH1# NO.2 |
1 | ||
| 82824-58030 |
ANH1#,MNH1# NO.4 |
1 | ||
| 82824-52080 |
ANH1#,MNH1# NO.3 |
1 | ||
| 82824-30130 |
ANH1#,MNH1# NO.1 |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-30220 |
ANH1#,MNH1# NO.2 |
1 | ||
| 82824-58030 |
ANH1#,MNH1# NO.4 |
1 | ||
| 82824-52080 |
ANH1#,MNH1# NO.3 |
1 | ||
| 82824-30130 |
ANH1#,MNH1# NO.1 |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-30220 |
ANH1#,MNH1# NO.2 |
1 | ||
| 82824-58030 |
ANH1#,MNH1# NO.4 |
1 | ||
| 82824-52080 |
ANH1#,MNH1# NO.3 |
1 | ||
| 82824-30130 |
ANH1#,MNH1# NO.1 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8401 | ||||

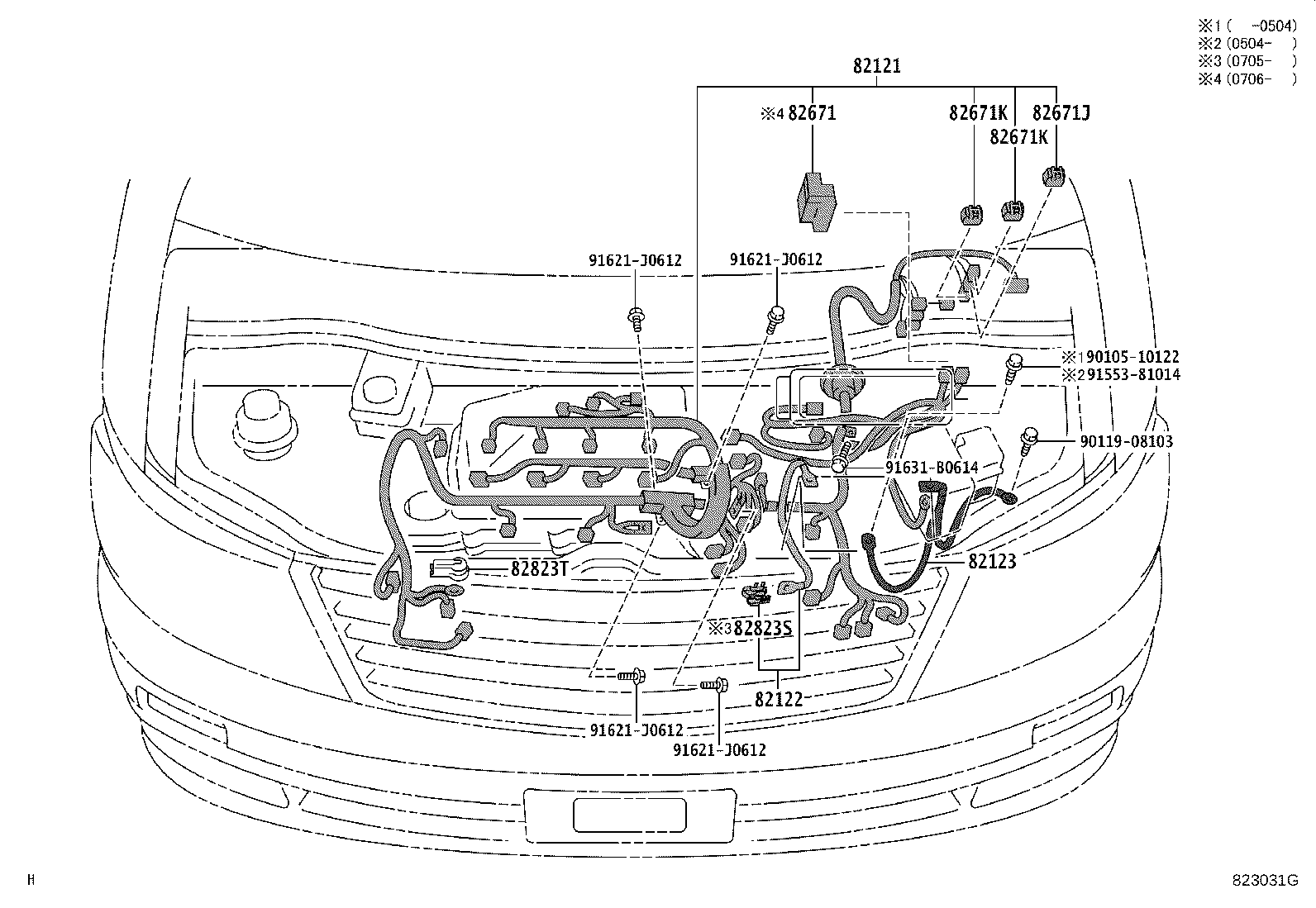

ILLUST NO. 2 OF10(0205- )ANH1#
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-58020 |
ANH1# |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-58030 |
ANH1#,MNH1# |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-58010 |
ANH1#,MNH1# |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30340 |
ANH1#,MNH1#..AS,AX,MS,MZ ｴﾝｼﾞﾝ ﾙｰﾑ |
1 | ||
| 82671-30340 |
ANH1#,MNH1#..AS,AX,MS,MZ ｴﾝｼﾞﾝ ﾙｰﾑ |
1 | ||
| 82671-30340 |
ANH1#,MNH1# ｴﾝｼﾞﾝ |
1 | ||
| 82671-58020 |
ANH1#,MNH1# ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ |
1 | ||
| 82671J - BLOCK, JUNCTION, NO.2 | ||||
| 82671-58030 |
ANH1#,MNH1# ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ |
1 | ||
| 82671-30340 |
ANH1# ｴﾝｼﾞﾝ |
1 | ||
| 82671K - BLOCK, JUNCTION, NO.3 | ||||
| 82671-30370 |
ANH1# ｴﾝｼﾞﾝ |
2 | ||
| 82671-58040 |
ANH1#,MNH1# ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ |
1 | ||
| 82671K - BLOCK, JUNCTION, NO.3 | ||||
| 82671-30370 |
ANH1# ｴﾝｼﾞﾝ |
2 | ||
| 82671-58040 |
ANH1#,MNH1# ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
ANH1#,MNH1# |
1 | ||
| Common parts | ||||
| 90105-10122 | ||||
| 90119-08103 | ||||
| 91553-81014 | ||||
| 91621-J0612 | ||||
| 91631-B0614 | ||||
ILLUST NO. 3 OF10(0205- )
ｶｳﾙ & ｺﾝｿ-ﾙﾎﾞﾂｸｽ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82132 - WIRE, COWL, NO.2 | ||||
| 82132-58010 |
ANH1#,MNH1#..AS,AX,MS,MX |
1 | ||
| 82132-58030 |
ANH1# 寒冷地仕様 |
1 | ||
| 82133 - WIRE, COWL, NO.3 | ||||
| 82133-58020 |
ANH1#,MNH1#..4FC ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 82133-58010 |
ANH1#,MNH1#..4FC ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ) |
1 | ||
| 82133-58030 |
ANH1#,MNH1#..4FC ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 82133-58031 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 82133-58011 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ) |
1 | ||
| 82133-58041 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 82133-58040 |
ANH1#,MNH1#..4FC ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 82166 - WIRE, CONSOLE BOX | ||||
| 82166-58030 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 82166-58020 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 82166-58030 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 82166-58030 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ) |
1 | ||
| 82166-58020 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ) |
1 | ||
| 82166-58060 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) ｱｸｾｻﾘｰｺﾈｸﾀｰ−有り(AC100V=ｲﾝﾊﾞｰﾀ付/2個) |
1 | ||
| 82166-58070 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) ｱｸｾｻﾘｰｺﾈｸﾀｰ−有り(AC100V=ｲﾝﾊﾞｰﾀ付/2個)&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ) |
1 | ||
| 82166-58070 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) ｱｸｾｻﾘｰｺﾈｸﾀｰ−有り(AC100V=ｲﾝﾊﾞｰﾀ付/2個)&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 82166-58080 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｱｸｾｻﾘｰｺﾈｸﾀｰ−有り(AC100V=ｲﾝﾊﾞｰﾀ付/2個)&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ) |
1 | ||
| 82166-58031 |
ANH1#,MNH1#..AS,AX,MS,MX 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 82166-58080 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｱｸｾｻﾘｰｺﾈｸﾀｰ−有り(AC100V=ｲﾝﾊﾞｰﾀ付/2個) |
1 | ||
| 82166-58070 |
ANH1#,MNH1#..AS,AX,MS,MX ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ) |
1 | ||
| 82166-58080 |
ANH1#,MNH1#..AS,AX,MS,MX 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 82166-58070 |
ANH1#,MNH1#..AS,AX,MS,MX ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 82166-58080 |
ANH1#,MNH1#..AS,AX,MS,MX 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ) |
1 | ||
| 82166-58010 |
ANH1#,MNH1#..AS,AX,MS,MX |
1 | ||
| 82166-58080 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｱｸｾｻﾘｰｺﾈｸﾀｰ−有り(AC100V=ｲﾝﾊﾞｰﾀ付/2個)&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-58040 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 82666-58040 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 82666-58040 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ) |
1 | ||
| 82666-58040 |
ANH1#,MNH1#..4FC ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 82666P - HOLDER, CONNECTOR NO.11 | ||||
| 82666-20270 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 82666-20270 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ) |
1 | ||
| 82666-20270 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 82666-20270 |
ANH1#,MNH1#..4FC ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 82825F - CONNECTOR, WIRING HARNESS | ||||
| 82824-22070 |
ANH1#,MNH1# |
1 | ||
| 82825G - CONNECTOR, WIRING HARNESS | ||||
| 82824-30180 |
ANH1#,MNH1#..4FC ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ),NO.2 |
1 | ||
| 82824-30130 |
ANH1#,MNH1#..4FC ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,NO.1 |
1 | ||
| 82824-30130 |
ANH1#,MNH1#..4FC ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ),NO.1 |
1 | ||
| 82824-30180 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ),NO.2 |
1 | ||
| 82824-30130 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,NO.1 |
2 | ||
| 82824-30130 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ),NO.1 |
2 | ||
| 82824-30130 |
ANH1#,MNH1#..4FC ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ),NO.1 |
1 | ||
| 82824-30130 |
ANH1#,MNH1#..4FC ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,NO.1 |
1 | ||
| 82824-30180 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,NO.2 |
1 | ||
| 82824-30180 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,NO.2 |
1 | ||
| 82824-30130 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,NO.1 |
2 | ||
| 82825G - CONNECTOR, WIRING HARNESS | ||||
| 82824-30180 |
ANH1#,MNH1#..4FC ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ),NO.2 |
1 | ||
| 82824-30130 |
ANH1#,MNH1#..4FC ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,NO.1 |
1 | ||
| 82824-30130 |
ANH1#,MNH1#..4FC ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ),NO.1 |
1 | ||
| 82824-30180 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ),NO.2 |
1 | ||
| 82824-30130 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,NO.1 |
2 | ||
| 82824-30130 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ),NO.1 |
2 | ||
| 82824-30130 |
ANH1#,MNH1#..4FC ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ),NO.1 |
1 | ||
| 82824-30130 |
ANH1#,MNH1#..4FC ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,NO.1 |
1 | ||
| 82824-30180 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,NO.2 |
1 | ||
| 82824-30180 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,NO.2 |
1 | ||
| 82824-30130 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,NO.1 |
2 | ||
| 82825K - CONNECTOR, WIRING HARNESS | ||||
| 82824-30180 |
ANH1#,MNH1#..AS,AX,MS,MX |
1 | ||
| Common parts | ||||
| 90159-50327 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 4 OF10(0205- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-58080 |
ANH1#..AS |
1 | ||
| 82141-58140 |
ANH1#..AS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 82141-58130 |
ANH1#..AS |
1 | ||
| 82141-58140 |
ANH1#..AS 寒冷地仕様&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 82141-58140 |
ANH1#..AS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 82141-58140 |
ANH1#..AS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り |
1 | ||
| 82141-58140 |
ANH1#..AS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ETC有り |
1 | ||
| 82141-58140 |
ANH1#..AS 寒冷地仕様 |
1 | ||
| 82141-58140 |
ANH1#..AS ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 82141-58140 |
ANH1#..AS ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 82141-58140 |
ANH1#..AS 寒冷地仕様&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 82141-58140 |
ANH1#..AS 有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 82141-58140 |
ANH1#..AS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 82141-58140 |
ANH1#..AS 寒冷地仕様&ETC有り |
1 | ||
| 82141-58140 |
ANH1#..AS ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り |
1 | ||
| 82141-58140 |
ANH1#..AS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 82141-58140 |
ANH1#..AS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 82141-58140 |
ANH1#..AS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 82141-58140 |
ANH1#..AS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ)&ETC有り |
1 | ||
| 82141-58140 |
ANH1#..AS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 82141-58140 |
ANH1#..AS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り |
1 | ||
| 82141-58140 |
ANH1#..AS 寒冷地仕様&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ETC有り |
1 | ||
| 82141-58140 |
ANH1#..AS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ETC有り |
1 | ||
| 82141-58140 |
ANH1#..AS 寒冷地仕様&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 82141-58140 |
ANH1#..AS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 82141-58140 |
ANH1#..AS ETC有り |
1 | ||
| 82141-58140 |
ANH1#..AS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ETC有り |
1 | ||
| 82141-58140 |
ANH1#..AS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ETC有り |
1 | ||
| 82141-58140 |
ANH1#..AS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ)&ETC有り |
1 | ||
| 82141-58140 |
ANH1#..AS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 82141-58140 |
ANH1#..AS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ)&ETC有り |
1 | ||
| 82141-58140 |
ANH1#..AS 寒冷地仕様&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 82141-58140 |
ANH1#..AS ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ)&ETC有り |
1 | ||
| 82141-58140 |
ANH1#..AS ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 82141-58140 |
ANH1#..AS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ)&ETC有り |
1 | ||
| 82141-58140 |
ANH1#..AS 寒冷地仕様&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ)&ETC有り |
1 | ||
| 82141-58140 |
ANH1#..AS 寒冷地仕様&有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 82141-58140 |
ANH1#..AS 寒冷地仕様&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ)&ETC有り |
1 | ||
| 82141-58140 |
ANH1#..AS 有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ)&ETC有り |
1 | ||
| 82141-58140 |
ANH1#..AS 寒冷地仕様&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り |
1 | ||
| 82141-58140 |
ANH1#..AS ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ETC有り |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-58020 |
ANH1#,MNH1# |
1 | ||
| 82214A - WIRE, LAMP | ||||
| 82214-58010 |
ANH1#,MNH1# |
1 | ||
| 82345 - DIODE | ||||
| 82345-22051 |
ANH1# ｴﾝｼﾞﾝ ﾙｰﾑ |
1 | ||
| 82345-22051 |
ANH1# ｴﾝｼﾞﾝ ﾙｰﾑ |
1 | ||
| 82345-20060 |
ANH1# ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ |
1 | ||
| 82345 - DIODE | ||||
| 82345-22051 |
ANH1# ｴﾝｼﾞﾝ ﾙｰﾑ |
1 | ||
| 82345-22051 |
ANH1# ｴﾝｼﾞﾝ ﾙｰﾑ |
1 | ||
| 82345-20060 |
ANH1# ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ |
1 | ||
| 82345 - DIODE | ||||
| 82345-22051 |
ANH1# ｴﾝｼﾞﾝ ﾙｰﾑ |
1 | ||
| 82345-22051 |
ANH1# ｴﾝｼﾞﾝ ﾙｰﾑ |
1 | ||
| 82345-20060 |
ANH1# ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ |
1 | ||
| 82345A - DIODE | ||||
| 82345-32010 |
ANH1#,MNH1# |
1 | ||
| 82345B - DIODE | ||||
| 82345-32020 |
ANH1#,MNH1# |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-22080 |
ANH1#,MNH1# ﾄﾞｱ |
1 | ||
| 82660-58020 |
ANH1#,MNH1# ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30340 |
ANH1#,MNH1#..AS,AX,MS,MZ ｴﾝｼﾞﾝ ﾙｰﾑ |
1 | ||
| 82671-30340 |
ANH1#,MNH1#..AS,AX,MS,MZ ｴﾝｼﾞﾝ ﾙｰﾑ |
1 | ||
| 82671-30340 |
ANH1#,MNH1# ｴﾝｼﾞﾝ |
1 | ||
| 82671-58020 |
ANH1#,MNH1# ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ |
1 | ||
| 82671J - BLOCK, JUNCTION, NO.2 | ||||
| 82671-58030 |
ANH1#,MNH1# ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ |
1 | ||
| 82671-30340 |
ANH1# ｴﾝｼﾞﾝ |
1 | ||
| 82671K - BLOCK, JUNCTION, NO.3 | ||||
| 82671-30370 |
ANH1# ｴﾝｼﾞﾝ |
2 | ||
| 82671-58040 |
ANH1#,MNH1# ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8601 | ||||
| 8610 | ||||
ILLUST NO. 5 OF10(0205- )
ﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46431 - BOLT, WIRE | ||||
| 46431-58010 |
ANH1#,MNH1# |
4 | ||
| 46431 - BOLT, WIRE | ||||
| 46431-58010 |
ANH1#,MNH1# |
4 | ||
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-58010 |
ANH1#,MNH1#..AS,AX,MS,MX |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-58010 |
ANH1#,MNH1#..AS,AX,MS,MX |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82053-58010 |
ANH1#,MNH1#..4FC |
1 | ||
| 82053-58011 |
ANH1#,MNH1#..AS,AX,MS,MX |
1 | ||
| 82053-58030 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82054-58010 |
ANH1#,MNH1#..AS,AX,MS,MX |
1 | ||
| 82054-58020 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)有り |
1 | ||
| 82054-58021 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-58020 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) ﾊﾞｯｸﾓﾆﾀｰ&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ有り |
1 | ||
| 82184-58020 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀｰ&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ有り |
1 | ||
| 82184-58020 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様 |
1 | ||
| 82184-58020 |
ANH1#,MNH1#..AS,AX,MS,MX ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 82184-58010 |
ANH1#,MNH1#..AS,AX,MS,MX |
1 | ||
| 82184-58020 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 82184-58020 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ) |
1 | ||
| 82184-58020 |
ANH1#,MNH1#..AS,AX,MS,MX ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ) |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-58010 |
ANH1#,MNH1# |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82186-58020 |
ANH1#,MNH1# |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-22080 |
ANH1#,MNH1# ﾄﾞｱ |
1 | ||
| 82660-58020 |
ANH1#,MNH1# ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-22080 |
ANH1#,MNH1# |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-22080 |
ANH1#,MNH1# |
1 | ||
| 82666N - HOLDER, CONNECTOR NO.10 | ||||
| 82666-22080 |
ANH1#,MNH1# |
1 | ||
| 82671L - BLOCK, JUNCTION, NO.4 | ||||
| 82671-30340 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り |
1 | ||
| 82671-30340 |
ANH1#,MNH1#..4FC..(AS,MS) ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)有り |
1 | ||
| 82672 - COVER, JUNKTION BLOCK | ||||
| 82671-30370 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀｰ&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ有り |
1 | ||
| 82671-30370 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) ﾊﾞｯｸﾓﾆﾀｰ&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ有り |
1 | ||
| 82671-30370 |
ANH1#,MNH1#..AS,AX,MS,MX ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ) |
1 | ||
| 82671-30370 |
ANH1#,MNH1#..AS,AX,MS,MX ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 82671-30370 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様 |
1 | ||
| 82671-30370 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 82671-30370 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ) |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-58030 |
ANH1#,MNH1# NO.4 |
1 | ||
| 82824-30220 |
ANH1#,MNH1# NO.2 |
1 | ||
| 82824-52080 |
ANH1#,MNH1# NO.3 |
1 | ||
| 82824-30130 |
ANH1#,MNH1# NO.1 |
1 | ||
| 82825D - CONNECTOR, WIRING HARNESS | ||||
| 82824-12210 |
ANH1#,MNH1#..AS,AX,MS,MX NO.1 |
1 | ||
| 82824-51010 |
ANH1#,MNH1#..AS,AX,MS,MX NO.2 |
1 | ||
| 82825D - CONNECTOR, WIRING HARNESS | ||||
| 82824-12210 |
ANH1#,MNH1#..AS,AX,MS,MX NO.1 |
1 | ||
| 82824-51010 |
ANH1#,MNH1#..AS,AX,MS,MX NO.2 |
1 | ||
| 82825H - CONNECTOR, WIRING HARNESS | ||||
| 82824-20060 |
ANH1#,MNH1# |
1 | ||
| 82825J - CONNECTOR, WIRING HARNESS | ||||
| 82824-20060 |
ANH1#,MNH1# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91641-80818 | ||||
ILLUST NO. 6 OF10(0205- )
ﾌﾛｱ,ﾌﾚ-ﾑ & ﾙ-ﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-58020 |
ANH1#,MNH1#..4FC..(AS,MS) |
1 | ||
| 82161-58030 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 82161-58040 |
ANH1#,MNH1#..4FC SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 82161-58050 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 82161-58011 |
ANH1#,MNH1#..AS,AX,MS,MX |
1 | ||
| 82161-58021 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 82161-58021 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り |
1 | ||
| 82161-58021 |
ANH1#,MNH1#..AS,MS ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 82161-58021 |
ANH1#,MNH1#..AS,MS ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 82161-58021 |
ANH1#,MNH1#..AS,MS ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 82161-58021 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 82161-58021 |
ANH1#,MNH1#..AS,MS ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 82161-58031 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 82161-58031 |
ANH1#,MNH1#..AS,AX,MS,MX 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 82161-58031 |
ANH1#,MNH1#..AS,AX,MS,MX 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 82161-58031 |
ANH1#,MNH1#..AS,AX,MS,MX 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り |
1 | ||
| 82161-58031 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 82161-58031 |
ANH1#,MNH1#..AS,AX,MS,MX 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 82161-58031 |
ANH1#,MNH1#..AS,AX,MS,MX 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 82161-58031 |
ANH1#,MNH1#..AS,AX,MS,MX 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 82161-58041 |
ANH1#,MNH1#..AS,AX,MS,MX SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 82161-58041 |
ANH1#,MNH1#..AS,AX,MS,MX SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 82161-58041 |
ANH1#,MNH1# SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 82161-58041 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 82161-58041 |
ANH1#,MNH1# SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 82161-58041 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 82161-58041 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 82161-58041 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 82161-58051 |
ANH1#,MNH1#..AS,AX,MS,MX 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 82161-58051 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 82161-58051 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 82161-58051 |
ANH1#,MNH1#..AS,AX,MS,MX 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 82161-58051 |
ANH1#,MNH1#..AS,AX,MS,MX 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 82161-58051 |
ANH1#,MNH1#..AS,AX,MS,MX 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 82161-58051 |
ANH1#,MNH1#..AS,AX,MS,MX 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 82161-58051 |
ANH1#,MNH1#..AS,AX,MS,MX 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 82161-58020 |
ANH1#,MNH1#..4FC..(AS,MS) 品番ﾗﾍﾞﾙ=82161−58020 |
1 | ||
| 82161-58030 |
ANH1#,MNH1#..4FC 品番ﾗﾍﾞﾙ=82161−58030 |
1 | ||
| 82161-58040 |
ANH1#,MNH1#..4FC 品番ﾗﾍﾞﾙ=82161−58040 |
1 | ||
| 82161-58050 |
ANH1#,MNH1#..4FC 品番ﾗﾍﾞﾙ=82161−58050 |
1 | ||
| 82161-58011 |
ANH1#,MNH1#..AS,AX,MS,MX 品番ﾗﾍﾞﾙ=82161−58011 |
1 | ||
| 82161-58021 |
ANH1#,MNH1#..AS,MS 品番ﾗﾍﾞﾙ=82161−58021 |
1 | ||
| 82161-58021 |
ANH1#,MNH1#..AS,AX,MS,MX 品番ﾗﾍﾞﾙ=82161−58021 |
1 | ||
| 82161-58021 |
ANH1#,MNH1# 品番ﾗﾍﾞﾙ=82161−58021 |
1 | ||
| 82161-58041 |
ANH1#,MNH1#..AS,AX,MS,MX 品番ﾗﾍﾞﾙ=82161−58041 |
1 | ||
| 82161-58031 |
ANH1#,MNH1#..AS,AX,MS,MX 品番ﾗﾍﾞﾙ=82161−58031 |
1 | ||
| 82161-58041 |
ANH1#,MNH1# 品番ﾗﾍﾞﾙ=82161−58041 |
1 | ||
| 82161-58051 |
ANH1#,MNH1#..AS,AX,MS,MX 品番ﾗﾍﾞﾙ=82161−58051 |
1 | ||
| 82161-58031 |
ANH1#,MNH1# 品番ﾗﾍﾞﾙ=82161−58031 |
1 | ||
| 82161-58051 |
ANH1#,MNH1# 品番ﾗﾍﾞﾙ=82161−58051 |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-58020 |
ANH1#,MNH1#..4FC..(AS,MS) |
1 | ||
| 82162-58050 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 82162-58050 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 82162-58080 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 82162-58110 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 82162-58110 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 82162-58011 |
ANH1#,MNH1#..AS,AX,MS,MX |
1 | ||
| 82162-58021 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ) |
1 | ||
| 82162-58021 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り |
1 | ||
| 82162-58021 |
ANH1#,MNH1#..AS,AX,MS,MX ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ) |
1 | ||
| 82162-58051 |
ANH1#,MNH1#..AS,AX,MS,MX ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 82162-58051 |
ANH1#,MNH1#..AS,AX,MS,MX ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 82162-58051 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 82162-58051 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 82162-58081 |
ANH1#,MNH1#..AS,AX,MS,MX SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 82162-58081 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 82162-58081 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ) |
1 | ||
| 82162-58081 |
ANH1#,MNH1#..AS,AX,MS,MX SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ) |
1 | ||
| 82162-58111 |
ANH1#,MNH1#..AS,AX,MS,MX SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 82162-58111 |
ANH1#,MNH1#..AS,AX,MS,MX SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 82162-58111 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 82162-58111 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 82162-58050 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) 品番ﾗﾍﾞﾙ=82162−58050 |
1 | ||
| 82162-58020 |
ANH1#,MNH1#..4FC..(AS,MS) 品番ﾗﾍﾞﾙ=82162−58020 |
1 | ||
| 82162-58080 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) 品番ﾗﾍﾞﾙ=82162−58080 |
1 | ||
| 82162-58011 |
ANH1#,MNH1#..AS,AX,MS,MX 品番ﾗﾍﾞﾙ=82162−58011 |
1 | ||
| 82162-58110 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) 品番ﾗﾍﾞﾙ=82162−58110 |
1 | ||
| 82162-58021 |
ANH1#,MNH1#..AS,AX,MS,MX 品番ﾗﾍﾞﾙ=82162−58021 |
1 | ||
| 82162-58051 |
ANH1#,MNH1#..AS,AX,MS,MX 品番ﾗﾍﾞﾙ=82162−58051 |
1 | ||
| 82162-58111 |
ANH1#,MNH1#..AS,AX,MS,MX 品番ﾗﾍﾞﾙ=82162−58111 |
1 | ||
| 82162-58081 |
ANH1#,MNH1#..AS,AX,MS,MX 品番ﾗﾍﾞﾙ=82162−58081 |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-58030 |
ANH10 |
1 | ||
| 82165 - WIRE, FRAME, NO.2 | ||||
| 82165-58010 |
ANH1# |
1 | ||
| 82169 - WIRE FRAME, NO.3 | ||||
| 82169-58010 |
ANH1#,MNH1#..AS,MS,MX,MZ |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-58040 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 82171-58040 |
ANH1#,MNH1# 品番ﾗﾍﾞﾙ=82171−58040 |
1 | ||
| 82171-58040 |
ANH1#,MNH1#..4FC 品番ﾗﾍﾞﾙ=82171−58040 |
1 | ||
| 82171-58030 |
ANH1#,MNH1# |
1 | ||
| 82171-58030 |
ANH1#,MNH1# 品番ﾗﾍﾞﾙ=82171−58030 |
1 | ||
| 82171-58040 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-58010 |
ANH1#,MNH1#..AS,AX,MS,MX ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 82182-58020 |
ANH1#,MNH1#..AS,AX,MS,MX 有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-58020 |
ANH1#,MNH1#..AS,AX,MS,MX |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-58010 |
ANH1#,MNH1#..AS,MS |
1 | ||
| 82666Q - HOLDER, CONNECTOR NO.12 | ||||
| 82666-22080 |
ANH1#,MNH1#..AS,MS |
1 | ||
| 82671M - BLOCK, JUNCTION, NO.5 | ||||
| 82671-30370 |
ANH1#,MNH1# |
1 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-20130 |
ANH1#,MNH1# |
1 | ||
| Common parts | ||||
| 82817-12400 | ||||
| 90119-06915 | ||||
| 90179-06274 | ||||
| 91631-B0614 | ||||
ILLUST NO. 7 OF10(0205- )
ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-58010 |
ANH1#,MNH1#..AS,AX,MS,MX |
1 | ||
| 82191-58030 |
ANH1#,MNH1#..AS,AX,MS,MX SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-58010 |
ANH1#,MNH1# |
1 | ||
| 82192-58020 |
ANH1#,MNH1# SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
ILLUST NO. 8 OF10(0205- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-14110 | ||||
| 82711-2A730 | ||||
| 82711-34310 | ||||
| 82711-3F230 | ||||
| 82715-2J050 | ||||
| 82715-2J060 | ||||
| 82715-2J070 | ||||
| 82715-2J080 | ||||
| 82715-2J120 | ||||
| 82715-2J130 | ||||
| 82715-2J150 | ||||
| 82715-33200 | ||||
| 82715-33210 | ||||
| 82715-48320 | ||||
| 82715-58010 | ||||
| 82715-58030 | ||||
| 82715-58040 | ||||
| 82715-58070 | ||||
| 82715-58080 | ||||
| 82715-58090 | ||||
| 82715-58110 | ||||
| 82715-58130 | ||||
| 82715-58240 | ||||
| 82715-58250 | ||||
| 82715-95D04 | ||||
| 85371-58010 | ||||
| 90179-06274 | ||||
| 91553-81014 | ||||
| 91621-40814 | ||||
| 91621-B0816 | ||||
| 91621-J0612 | ||||
| 91631-J0612 | ||||
| 93568-55014 | ||||
| 94150-80600 | ||||
ILLUST NO. 9 OF10(0205- )
ｹ-ﾌﾞﾙﾎﾞﾝﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07280 |
ANH1# |
1 | ||
| 82001C - CABLE, BOND, NO.2 | ||||
| 90980-07292 |
ANH1# |
1 | ||
| 82001C - CABLE, BOND, NO.2 | ||||
| 90980-07292 |
ANH1# |
1 | ||
| Common parts | ||||
| 82711-1A750 | ||||
| 87616-35010 | ||||
| 90119-06915 | ||||
| 91553-80608 | ||||
| 91553-81014 | ||||
ILLUST NO.10 OF10(0205- )
ｺﾈｸﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90080-98298 | ||||
| 90980-10428 | ||||
| 90980-10481 | ||||
| 90980-10619 | ||||
| 90980-10908 | ||||
| 90980-11019 | ||||
| 90980-11028 | ||||
| 90980-11075 | ||||
| 90980-11144 | ||||
| 90980-11148 | ||||
| 90980-11149 | ||||
| 90980-11156 | ||||
| 90980-11659 | ||||
| 90980-11660 | ||||
ILLUST NO.10 OF10(0205- )
ｺﾈｸﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10795 | ||||
| 90980-10906 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
