ANH10W-PFPSK (2002)

Toyota Alphard G/V

Production May 2002 - Apr 2005
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0205-0504)AS,MS

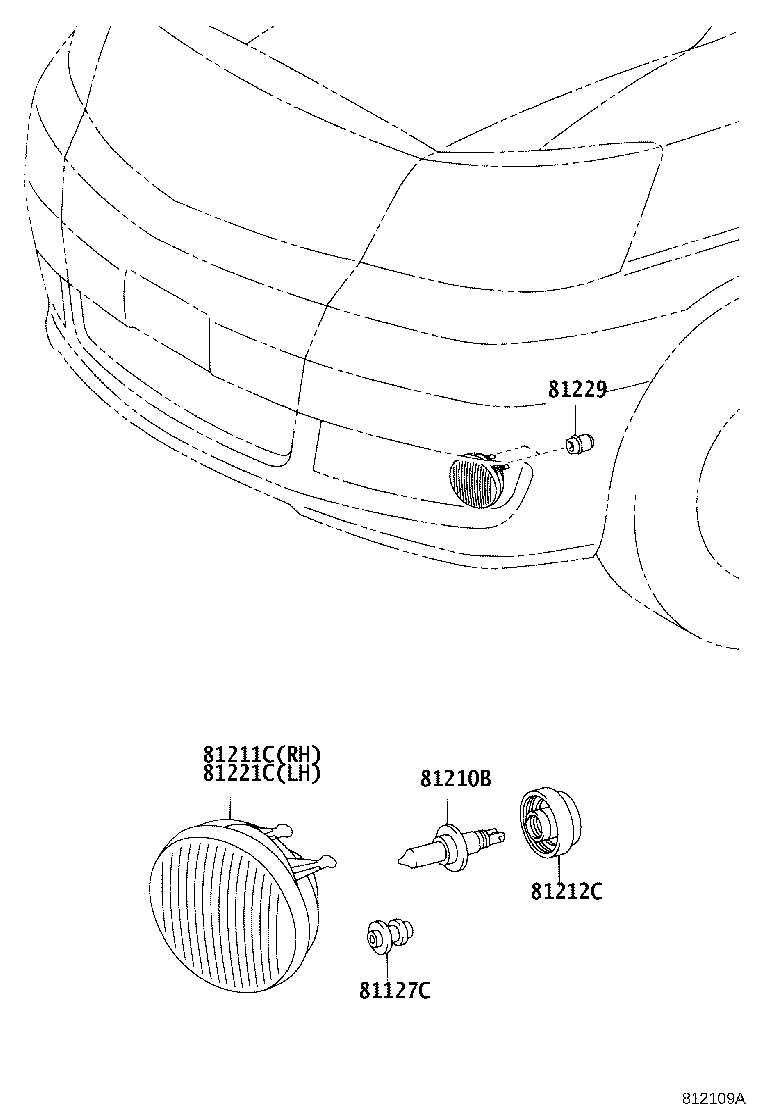

Click highlighted areas on diagram

diagram 81127C 81210B 81211C 81212C 81221C 81229
Part # Description Qty Price
81127C - BEARING FOG LAMP
90075-10811

ANH1#,MNH1#..AS,MS

 2
81210B - BULB, FOG LAMP
90981-13057

ANH1#,MNH1#..AS,MS

12V 35W

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-13040

ANH1#,MNH1#..AS,MS

 1
81212C - COVER, FOG LAMP
90075-65003

ANH1#,MNH1#..AS,MS

 2
81221C - LAMP UNIT, FOG LAMP, LH
81221-13040

ANH1#,MNH1#..AS,MS

 1
81229 - BRACKET, FOG LAMP
81481-10030

ANH1#,MNH1#..AS,MS

 4
