ANH10W-PFPSK (2002)

Toyota Alphard G/V

Production May 2002 - Apr 2005
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

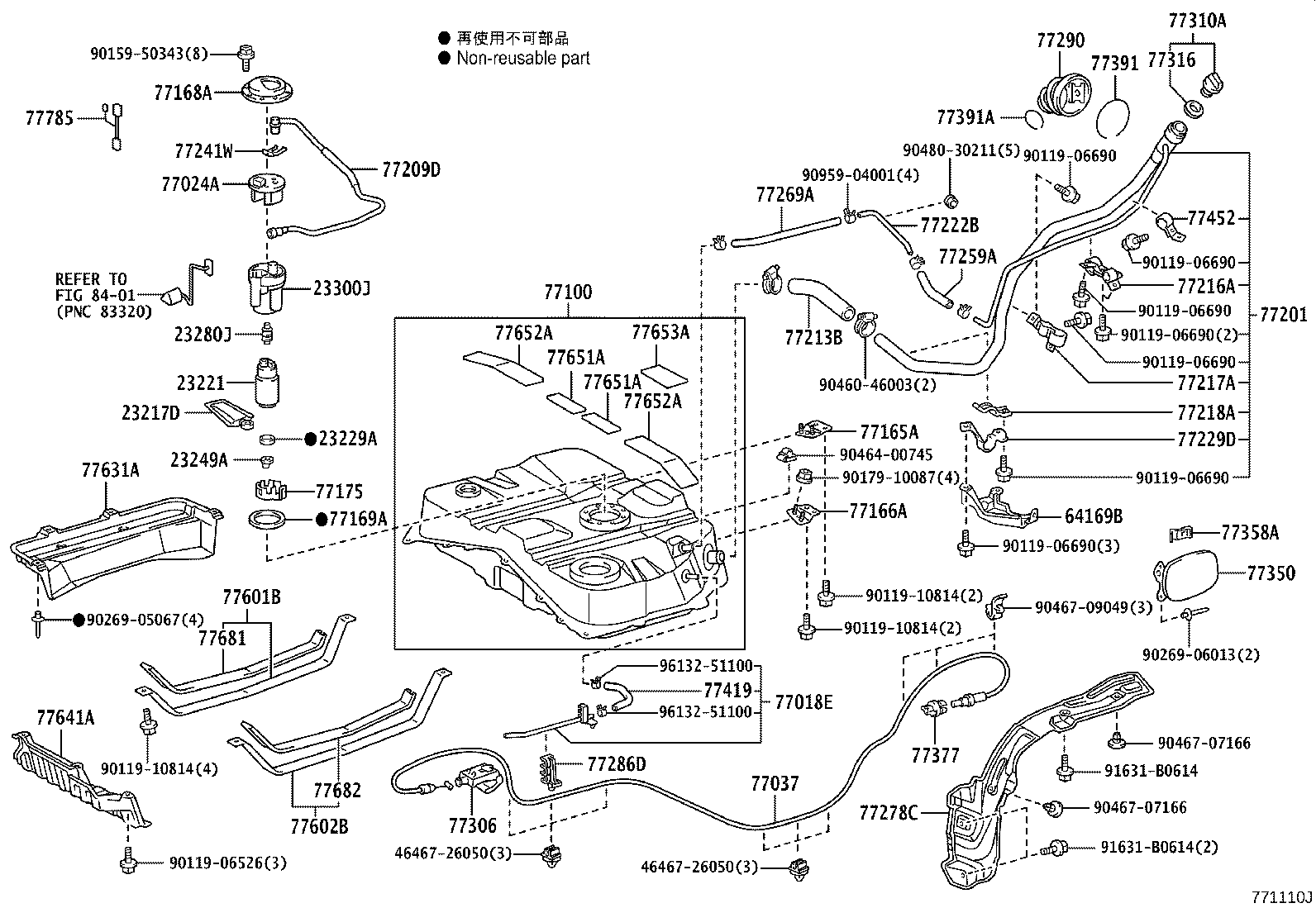

ILLUST NO. 1 OF 2(0205- )ANH10,MNH10

Click highlighted areas on diagram

ﾌﾕ-ｴﾙ ﾀﾝｸ

diagram 23217D 23221 23229A 23249A 23280J 23300J 4646726050 4646726050 64169B 77018E 77024A 77037 77100 77165A 77166A 77168A 77169A 77175 77201 77209D 77213B 77216A 77217A 77218A 77222B 77229D 77241W 77259A 77269A 77278C 77286D 77290 77306 77310A 77316 77350 77358A 77377 77391 77391A 77419 77452 77601B 77602B 77631A 77641A 77651A 77651A 77652A 77652A 77653A 77681 77682 77785 8401 9011906526 9011906690 9011906690 9011906690 9011906690 9011906690 9011906690 9011906690 9011910814 9011910814 9011910814 9015950343 9017910087 9026905067 9026906013 9046046003 9046400745 9046707166 9046707166 9046709049 9048030211 9095904001 91631B0614 91631B0614 9613251100 9613251100
Part # Description Qty Price
23217D - FILTER, FUEL PUMP
23217-76040

2AZFE,1MZFE..ANH1#,MNH1#

 1
23221 - PUMP, FUEL
23221-28020

2AZFE..ANH1#

 1
23229A - CLIP(FOR FUEL PUMP FILTER)
23229-16010

2AZFE,1MZFE..ANH1#,MNH1#

 1
23249A - RUBBER, CUSHION(FOR FUEL PUMP)
23249-46180

2AZFE,1MZFE..ANH1#,MNH1#

 1
23280J - REGULATOR ASSY, FUEL PRESSURE
23280-22010

2AZFE,1MZFE..ANH10,MNH10

 1
23300J - FILTER ASSY, FUEL
23300-21010

2AZFE,1MZFE..ANH1#,MNH1#

 1
64169B - PROTECTOR, FUEL INLET
64169-58010

ANH1#,MNH1#

 1
77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT
77018-28101

ANH1#,MNH1#

 1
77024A - PLATE SUB-ASSY, FUEL SUCTION
77024-30070

ANH1#,MNH1#

 1
77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID
77037-58010

ANH1#,MNH1#

 1
77100 - TANK ASSY, FUEL
77001-28481

ANH10,MNH10

 1
77165A - BRACKET, FUEL TANK MOUNTING, REAR NO.2 RH
77165-28020

ANH1#,MNH1#

 1
77166A - BRACKET, FUEL TANK MOUNTING, REAR NO.2 LH
77166-28040

ANH1#,MNH1#

 1
77168A - PLATE, FUEL TANK VENT TUBE SET
77168-12240

ANH1#,MNH1#

 1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-33020

ANH1#,MNH1#

 1
77175 - SUPPORT, FUEL SUCTION, NO.2
77175-47010

ANH10

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-58020

ANH1#,MNH1#

 1
77209D - TUBE SUB-ASSY, FUEL TANK MAIN
77209-28021

ANH10,MNH10

 1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-28030

ANH1#,MNH1#..4FC

ﾏｰｸ=NBR+PVC

 1
77213-58010

ANH1#,MNH1#

ﾏｰｸ=MBR+PVC

 1
77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1
77216-58020

ANH1#,MNH1#

 1
77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2
77217-58020

ANH1#,MNH1#

 1
77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3
77218-28030

ANH1#,MNH1#

 1
77222B - TUBE, FUEL TANK BREATHER, NO.2
77222-28060

ANH1#,MNH1#

 1
77229D - SUPPORT, FUEL TANK FILLER PIPE, NO.4
77229-28050

ANH1#,MNH1#

 1
77241W - CLIP, TUBE JOINT
77241-33011

ANH1#,MNH1#

 1
77259A - HOSE, FUEL(FOR BREATHER TUBE)
77259-28060

ANH1#,MNH1#

長さ=104

 1
77269A - HOSE, FUEL TANK BREATHER
77269-28010

ANH1#,MNH1#

 1
77278C - PROTECTOR, FUEL TANK FILLER PIPE, NO.2
77278-58010

ANH1#,MNH1#

 1
77286D - CLAMP, FUEL TUBE, NO.2
77286-28020

ANH1#,MNH1#

 1
77290 - SHIELD ASSY, FUEL TANK FILLER PIPE
77291-28030

ANH1#,MNH1#

 1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306-58010B0

ANH1#,MNH1#..AS,MS

STONE,TRIM1#

 1
77310A - CAP ASSY, FUEL TANK
77310-48010

ANH1#,MNH1#

 1
77316 - GASKET, FUEL TANK CAP
77316-16010

ANH1#,MNH1#

 1
77350 - LID ASSY, FUEL FILLER OPENING
77350-58010

ANH1#,MNH1#

 1
77358A - STOPPER, FUEL FILLER OPENING LID
77358-30060

ANH1#,MNH1#

 1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-12050

ANH1#,MNH1#

 1
77391 - RING, FUEL INLET BOX
77391-28010

ANH1#,MNH1#

 1
77391A - RING, FUEL INLET BOX
77391-28020

ANH1#,MNH1#

 1
77419 - HOSE, FUEL, NO.3
77419-28010

ANH1#,MNH1#

 1
77452 - SUPPORT, FUEL INLET HOSE PROTECTOR, NO.1
77452-28010

ANH1#,MNH1#

 1
77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH
77601-28080

ANH10,MNH10

 1
77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH
77602-28010

ANH10,MNH10

 1
77631A - PROTECTOR, FUEL TANK, LOWER CENTER
77631-28010

ANH10,MNH10

 1
77641A - PROTECTOR, FUEL TANK, NO.1
77641-28080

ANH10,MNH10

 1
77651A - CUSHION, FUEL TANK, NO.1
77651-44010

ANH1#,MNH1#

 2
77651A - CUSHION, FUEL TANK, NO.1
77651-44010

ANH1#,MNH1#

 2
77652A - CUSHION, FUEL TANK, NO.2
77652-28020

ANH1#,MNH1#

 2
77652A - CUSHION, FUEL TANK, NO.2
77652-28020

ANH1#,MNH1#

 2
77653A - CUSHION, FUEL TANK, NO.3
77653-60060

ANH1#,MNH1#

 1
77681 - SEAT, FUEL TANK BAND, RH
77682-16010

ANH1#,MNH1#

 1
77682 - SEAT, FUEL TANK BAND, LH
77682-16010

ANH1#,MNH1#

 1
77785 - HARNESS, FUEL PUMP
77785-52020

ANH1#,MNH1#

 1
Common parts
46467-26050
90119-06526
90119-06690
90119-10814
90159-50343
90179-10087
90269-05067
90269-06013
90460-46003
90464-00745
90467-07166
90467-09049
90480-30211
90959-04001
91631-B0614
96132-51100
Linked diagrams
8401

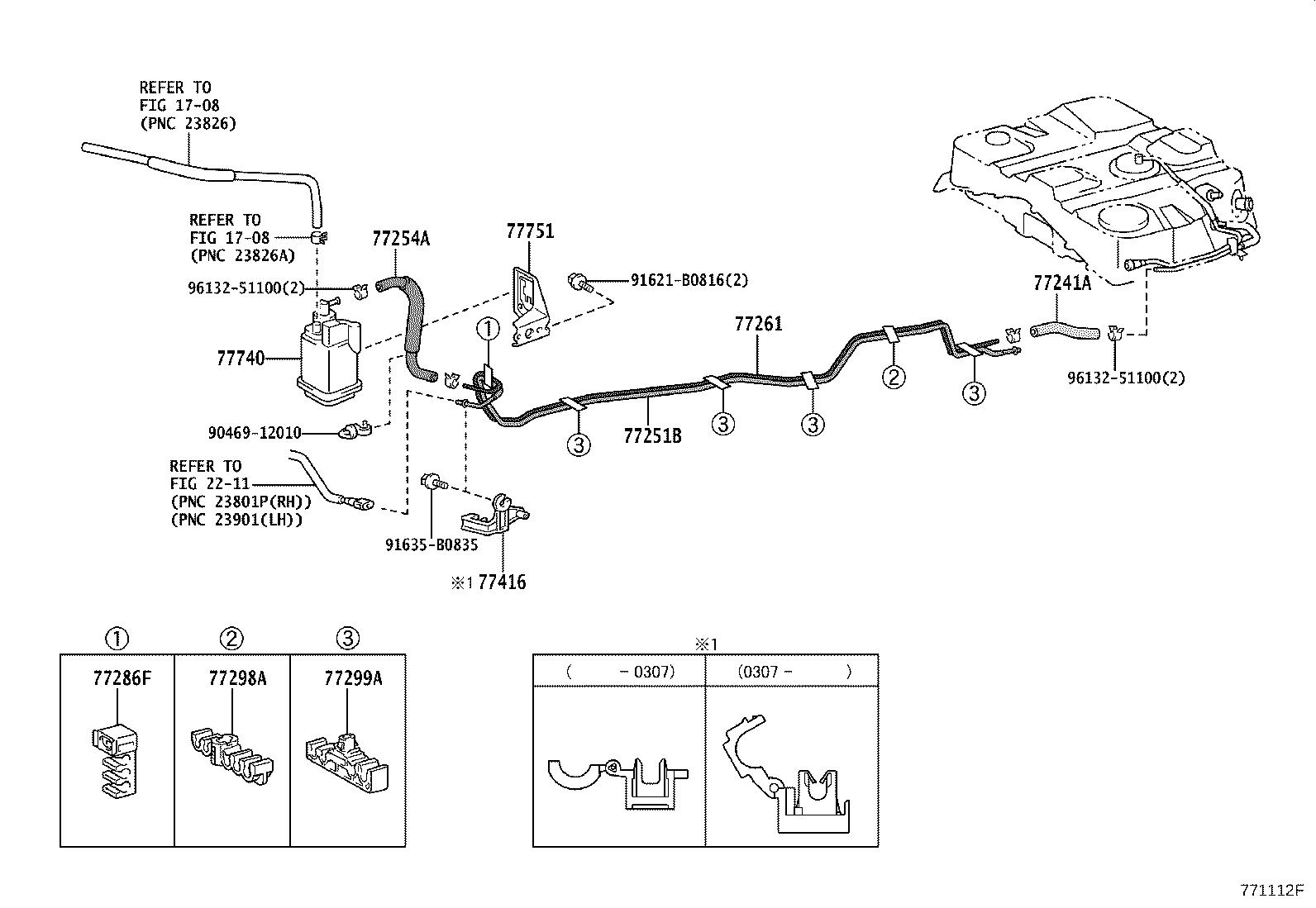

ILLUST NO. 2 OF 2(0205- )

Click highlighted areas on diagram

ﾌﾕ-ｴﾙ ﾁﾕ-ﾌﾞ

diagram 1708 1708 2211 77241A 77251B 77254A 77261 77286F 77298A 77299A 77416 77740 77751 9046912010 91621B0816 91635B0835 9613251100 9613251100
Part # Description Qty Price
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95337-06020

ANH1#,MNH1#

長さ=190

 1
77251B - TUBE, FUEL MAIN
77251-58010

ANH1#,MNH1#

 1
77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)
77259-58010

ANH1#,MNH1#

長さ=340

 1
77261 - TUBE SUB-ASSY, FUEL EMISSION
77261-58010

ANH1#,MNH1#

 1
77286F - CLAMP, FUEL TUBE, NO.2
77286-44010

ANH1#,MNH1#

 1
77298A - CLAMP, FUEL TUBE, NO.4
77298-32030

ANH1#,MNH1#

 1
77299A - CLAMP, FUEL TUBE, NO.5
77299-58010

ANH1#,MNH1#

 4
77416 - SUPPORT, FUEL TUBE GROMMET, NO.6
77416-28010

ANH1#,MNH1#

 1
77416-58020

ANH1#,MNH1#

 1
77740 - CANISTER ASSY, CHARCOAL
77740-28192

ANH1#,MNH1#

 1
77751 - BRACKET, CHARCOAL CANISTER BASE
77751-28150

ANH1#,MNH1#

 1
Common parts
90469-12010
91621-B0816
91635-B0835
96132-51100
Linked diagrams
1708
2211
