ANH10W-PFPSK (2002)
Toyota Alphard G/V

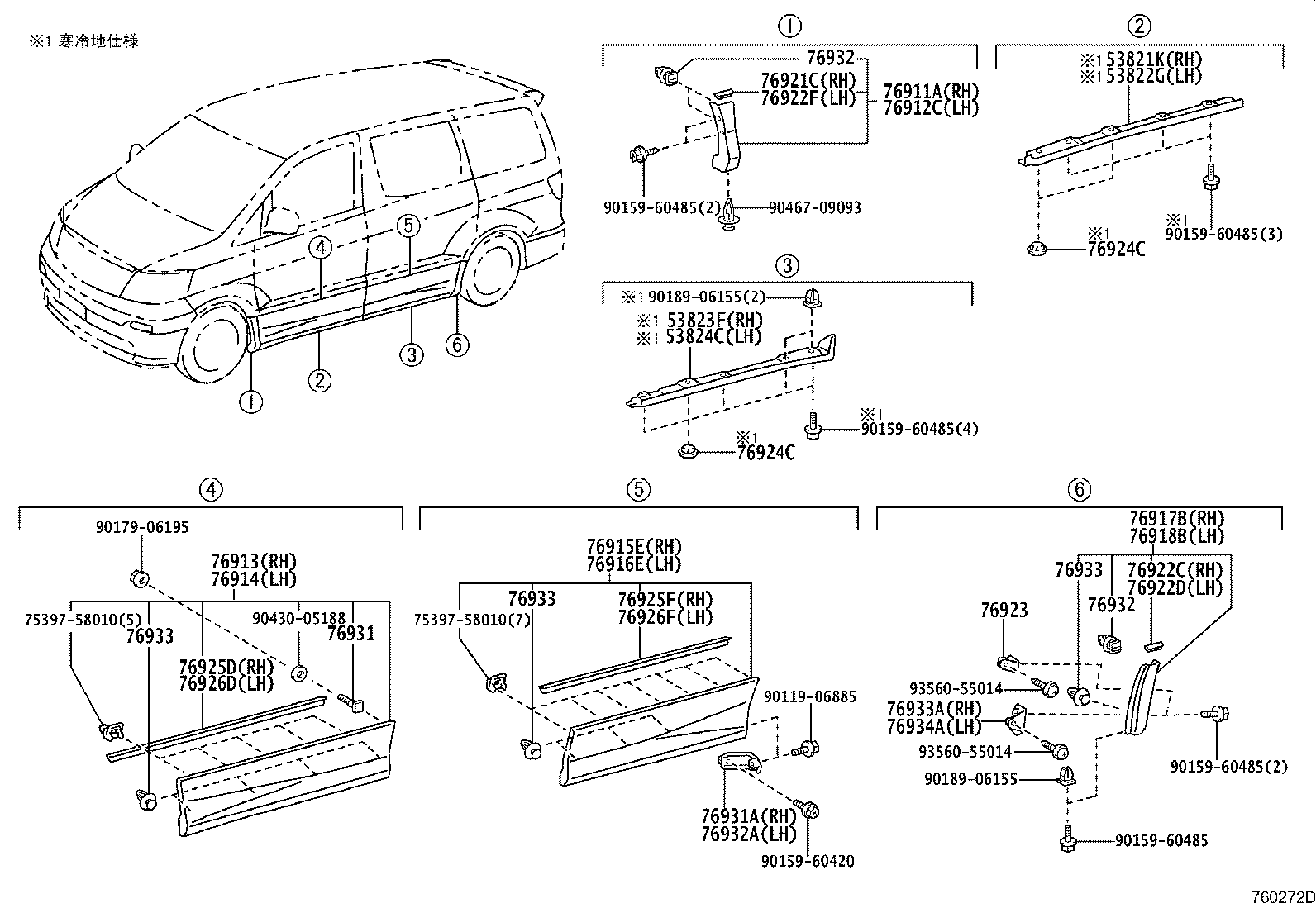

ILLUST NO. 1 OF 2(0205- )AS,MS
ｻｲﾄﾞ ﾏｯﾄﾞｶﾞｰﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53821K - PROTECTOR, FRONT SIDE PANEL, NO.1 RH | ||||
| 53821-58010 |
ANH1#,MNH1#..AS,MS 寒冷地仕様 |
1 | ||
| 53822G - PROTECTOR, FRONT SIDE PANEL, NO.1 LH | ||||
| 53822-58010 |
ANH1#,MNH1#..AS,MS 寒冷地仕様 |
1 | ||
| 53823F - PROTECTOR, FRONT SIDE PANEL, NO.2 RH | ||||
| 53823-58010 |
ANH1#,MNH1#..AS,MS 寒冷地仕様 |
1 | ||
| 53824C - PROTECTOR, FRONT SIDE PANEL, NO.2 LH | ||||
| 53824-58010 |
ANH1#,MNH1#..AS,MS 寒冷地仕様 |
1 | ||
| 76911A - MUDGUARD, FENDER PANEL, RH | ||||
| 76901-58010B1 |
ANH1#,MNH1#..AS,MS GRAY M.M.,1E8 |
1 | ||
| 76901-58010B0 |
ANH1#,MNH1#..AS,MS SILVER ME.,1C0 |
1 | ||
| 76901-58010A0 |
ANH1#,MNH1#..AS,MS WHITE PM.,042 |
1 | ||
| 76901-58010J0 |
ANH1#,MNH1#..AS,MS DK.BLUE MC.,8K8 |
1 | ||
| 76901-58010C0 |
ANH1#,MNH1#..AS,MS BLACK MC.,209 |
1 | ||
| 76912C - MUDGUARD, FENDER PANEL, LH | ||||
| 76902-58010C0 |
ANH1#,MNH1#..AS,MS BLACK MC.,209 |
1 | ||
| 76902-58010J0 |
ANH1#,MNH1#..AS,MS DK.BLUE MC.,8K8 |
1 | ||
| 76902-58010B0 |
ANH1#,MNH1#..AS,MS SILVER ME.,1C0 |
1 | ||
| 76902-58010A0 |
ANH1#,MNH1#..AS,MS WHITE PM.,042 |
1 | ||
| 76902-58010B1 |
ANH1#,MNH1#..AS,MS GRAY M.M.,1E8 |
1 | ||
| 76913 - MUDGUARD, FRONT DOOR, RH | ||||
| 76903-58010B1 |
ANH1#,MNH1#..AS,MS GRAY M.M.,1E8 |
1 | ||
| 76903-58010J0 |
ANH1#,MNH1#..AS,MS DK.BLUE MC.,8K8 |
1 | ||
| 76903-58010C0 |
ANH1#,MNH1#..AS,MS BLACK MC.,209 |
1 | ||
| 76903-58010B0 |
ANH1#,MNH1#..AS,MS SILVER ME.,1C0 |
1 | ||
| 76903-58010A0 |
ANH1#,MNH1#..AS,MS WHITE PM.,042 |
1 | ||
| 76914 - MUDGUARD, FRONT DOOR, LH | ||||
| 76904-58010J0 |
ANH1#,MNH1#..AS,MS DK.BLUE MC.,8K8 |
1 | ||
| 76904-58010A0 |
ANH1#,MNH1#..AS,MS WHITE PM.,042 |
1 | ||
| 76904-58010B0 |
ANH1#,MNH1#..AS,MS SILVER ME.,1C0 |
1 | ||
| 76904-58010B1 |
ANH1#,MNH1#..AS,MS GRAY M.M.,1E8 |
1 | ||
| 76904-58010C0 |
ANH1#,MNH1#..AS,MS BLACK MC.,209 |
1 | ||
| 76915E - MUDGUARD, SLIDE DOOR, RH | ||||
| 76905-58010C0 |
ANH1#,MNH1#..AS,MS BLACK MC.,209 |
1 | ||
| 76905-58010B1 |
ANH1#,MNH1#..AS,MS GRAY M.M.,1E8 |
1 | ||
| 76905-58010J0 |
ANH1#,MNH1#..AS,MS DK.BLUE MC.,8K8 |
1 | ||
| 76905-58010A0 |
ANH1#,MNH1#..AS,MS WHITE PM.,042 |
1 | ||
| 76905-58010B0 |
ANH1#,MNH1#..AS,MS SILVER ME.,1C0 |
1 | ||
| 76916E - MUDGUARD, SLIDE DOOR, LH | ||||
| 76906-58010J0 |
ANH1#,MNH1#..AS,MS DK.BLUE MC.,8K8 |
1 | ||
| 76906-58010B0 |
ANH1#,MNH1#..AS,MS SILVER ME.,1C0 |
1 | ||
| 76906-58010B1 |
ANH1#,MNH1#..AS,MS GRAY M.M.,1E8 |
1 | ||
| 76906-58010C0 |
ANH1#,MNH1#..AS,MS BLACK MC.,209 |
1 | ||
| 76906-58010A0 |
ANH1#,MNH1#..AS,MS WHITE PM.,042 |
1 | ||
| 76917B - MUDGUARD, QUARTER PANEL, RH | ||||
| 76907-58010A0 |
ANH1#,MNH1#..AS,MS WHITE PM.,042 |
1 | ||
| 76907-58010J0 |
ANH1#,MNH1#..AS,MS DK.BLUE MC.,8K8 |
1 | ||
| 76907-58010B0 |
ANH1#,MNH1#..AS,MS SILVER ME.,1C0 |
1 | ||
| 76907-58010B1 |
ANH1#,MNH1#..AS,MS GRAY M.M.,1E8 |
1 | ||
| 76907-58010C0 |
ANH1#,MNH1#..AS,MS BLACK MC.,209 |
1 | ||
| 76918B - MUDGUARD, QUARTER PANEL, LH | ||||
| 76908-58010C0 |
ANH1#,MNH1#..AS,MS BLACK MC.,209 |
1 | ||
| 76908-58010B1 |
ANH1#,MNH1#..AS,MS GRAY M.M.,1E8 |
1 | ||
| 76908-58010B0 |
ANH1#,MNH1#..AS,MS SILVER ME.,1C0 |
1 | ||
| 76908-58010J0 |
ANH1#,MNH1#..AS,MS DK.BLUE MC.,8K8 |
1 | ||
| 76908-58010A0 |
ANH1#,MNH1#..AS,MS WHITE PM.,042 |
1 | ||
| 76921C - PROTECTOR, SIDE MUDGUARD, RH | ||||
| 76921-58010C0 |
ANH1#,MNH1#..AS,MS BLACK,1E8 ,209 |
1 | ||
| 76921-58010B0 |
ANH1#,MNH1#..AS,MS LT. GRAY,042 ,1C0 |
1 | ||
| 76921-58010C0 |
ANH1#,MNH1#..AS,MS BLACK,209 ,8K8 |
1 | ||
| 76922C - PROTECTOR, SIDE MUDGUARD, NO.2 | ||||
| 76922-58010C0 |
ANH1#,MNH1#..AS,MS BLACK,209 ,8K8 |
1 | ||
| 76922-58010B0 |
ANH1#,MNH1#..AS,MS LT. GRAY,042 ,1C0 |
1 | ||
| 76922-58010C0 |
ANH1#,MNH1#..AS,MS BLACK,1E8 ,209 |
1 | ||
| 76922D - PROTECTOR, SIDE MUDGUARD, NO.2 | ||||
| 76922-58010C0 |
ANH1#,MNH1#..AS,MS BLACK,1E8 ,209 |
1 | ||
| 76922-58010B0 |
ANH1#,MNH1#..AS,MS LT. GRAY,042 ,1C0 |
1 | ||
| 76922-58010C0 |
ANH1#,MNH1#..AS,MS BLACK,209 ,8K8 |
1 | ||
| 76922F - PROTECTOR, SIDE MUDGUARD, LH | ||||
| 76921-58010C0 |
ANH1#,MNH1#..AS,MS BLACK,1E8 ,209 |
1 | ||
| 76921-58010C0 |
ANH1#,MNH1#..AS,MS BLACK,209 ,8K8 |
1 | ||
| 76921-58010B0 |
ANH1#,MNH1#..AS,MS LT. GRAY,042 ,1C0 |
1 | ||
| 76923 - RETAINER, SIDE MUDGUARD | ||||
| 76923-58010 |
ANH1#,MNH1#..AS,MS |
2 | ||
| 76924C - RETAINER, SIDE MUDGUARD, NO.2 | ||||
| 76924-58010 |
ANH1#,MNH1#..AS,MS 寒冷地仕様 |
6 | ||
| 76924C - RETAINER, SIDE MUDGUARD, NO.2 | ||||
| 76924-58010 |
ANH1#,MNH1#..AS,MS 寒冷地仕様 |
6 | ||
| 76925D - PROTECTOR, SIDE MUDGUARD, RH | ||||
| 76965-58010C0 |
ANH1#,MNH1#..AS,MS BLACK,1E8 ,209 |
1 | ||
| 76965-58010C0 |
ANH1#,MNH1#..AS,MS BLACK,209 ,8K8 |
1 | ||
| 76965-58010B0 |
ANH1#,MNH1#..AS,MS LT. GRAY,042 ,1C0 |
1 | ||
| 76925F - PROTECTOR, SIDE MUDGUARD, RH | ||||
| 76966-58010B0 |
ANH1#,MNH1#..AS,MS LT. GRAY,042 ,1C0 |
1 | ||
| 76966-58010C0 |
ANH1#,MNH1#..AS,MS BLACK,209 ,8K8 |
1 | ||
| 76966-58010C0 |
ANH1#,MNH1#..AS,MS BLACK,209 ,8K8 |
1 | ||
| 76966-58010B0 |
ANH1#,MNH1#..AS,MS LT. GRAY,042 ,1C0 |
1 | ||
| 76966-58010B0 |
ANH1#,MNH1#..AS,MS LT. GRAY,042 ,1C0 |
1 | ||
| 76966-58010C0 |
ANH1#,MNH1#..AS,MS BLACK,1E8 ,209 |
1 | ||
| 76926D - PROTECTOR, SIDE MUDGUARD, LH | ||||
| 76965-58010C0 |
ANH1#,MNH1#..AS,MS BLACK,209 ,8K8 |
1 | ||
| 76965-58010B0 |
ANH1#,MNH1#..AS,MS LT. GRAY,042 ,1C0 |
1 | ||
| 76965-58010C0 |
ANH1#,MNH1#..AS,MS BLACK,1E8 ,209 |
1 | ||
| 76926F - PROTECTOR, SIDE MUDGUARD, LH | ||||
| 76966-58010B0 |
ANH1#,MNH1#..AS,MS LT. GRAY,042 ,1C0 |
1 | ||
| 76966-58010C0 |
ANH1#,MNH1#..AS,MS BLACK,1E8 ,209 |
1 | ||
| 76966-58010B0 |
ANH1#,MNH1#..AS,MS LT. GRAY,042 ,1C0 |
1 | ||
| 76966-58010C0 |
ANH1#,MNH1#..AS,MS BLACK,209 ,8K8 |
1 | ||
| 76966-58010C0 |
ANH1#,MNH1#..AS,MS BLACK,209 ,8K8 |
1 | ||
| 76966-58010B0 |
ANH1#,MNH1#..AS,MS LT. GRAY,042 ,1C0 |
1 | ||
| 76931 - RETAINER, SIDE MUDGUARD, NO.3 | ||||
| 75392-58010 |
ANH1#,MNH1#..AS,MS |
2 | ||
| 76931A - BRACKET, SIDE MUDGUARD, NO.1 RH | ||||
| 76931-58011 |
ANH1#,MNH1#..AS,MS |
1 | ||
| 76931-58010 |
ANH1#,MNH1#..AS,MS |
1 | ||
| 76932 - RETAINER, SIDE MUDGUARD, NO.4 | ||||
| 76932-28030 |
ANH1#,MNH1#..AS,MS |
6 | ||
| 76932 - RETAINER, SIDE MUDGUARD, NO.4 | ||||
| 76932-28030 |
ANH1#,MNH1#..AS,MS |
6 | ||
| 76932A - BRACKET, SIDE MUDGUARD, NO.1 LH | ||||
| 76932-58021 |
ANH1#,MNH1#..AS,MS |
1 | ||
| 76932-58020 |
ANH1#,MNH1#..AS,MS |
1 | ||
| 76933 - RETAINER, SIDE MUDGUARD, NO.5 | ||||
| 76932-58010 |
ANH1#,MNH1#..AS,MS |
16 | ||
| 76933 - RETAINER, SIDE MUDGUARD, NO.5 | ||||
| 76932-58010 |
ANH1#,MNH1#..AS,MS |
16 | ||
| 76933 - RETAINER, SIDE MUDGUARD, NO.5 | ||||
| 76932-58010 |
ANH1#,MNH1#..AS,MS |
16 | ||
| 76933A - BRACKET, SIDE MUDGUARD, NO.2 RH | ||||
| 76933-58010 |
ANH1#,MNH1#..AS,MS |
1 | ||
| 76934A - BRACKET, SIDE MUDGUARD, NO.2 LH | ||||
| 76934-58010 |
ANH1#,MNH1#..AS,MS |
1 | ||
| Common parts | ||||
| 75397-58010 | ||||
| 90119-06885 | ||||
| 90159-60420 | ||||
| 90159-60485 | ||||
| 90179-06195 | ||||
| 90189-06155 | ||||
| 90430-05188 | ||||
| 90467-09093 | ||||
| 93560-55014 | ||||
ILLUST NO. 2 OF 2(0205- )
ﾘﾔ ｽﾎﾟｲﾗ-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76871 - SPOILER, REAR | ||||
| 76871-58900 |
ANH1#,MNH1# 要塗装 |
1 | ||
| 76871-58901 |
ANH1#,MNH1# 要塗装,ﾘﾔｱﾝﾀﾞｰﾐﾗｰ−無し |
1 | ||
| 76872 - PROTECTOR, REAR SPOILER, NO.1 | ||||
| 76872-58010 |
ANH1#,MNH1# |
1 | ||
| 76873B - PROTECTOR, REAR SPOILER, NO.2 | ||||
| 76873-58010 |
ANH1#,MNH1# |
3 | ||
| 76873B - PROTECTOR, REAR SPOILER, NO.2 | ||||
| 76873-58010 |
ANH1#,MNH1# |
3 | ||
| 76873B - PROTECTOR, REAR SPOILER, NO.2 | ||||
| 76873-58010 |
ANH1#,MNH1# |
3 | ||
| 76874 - PROTECTOR, REAR SPOILER, NO.3 | ||||
| 76874-58010 |
ANH1#,MNH1# |
2 | ||
| 76874 - PROTECTOR, REAR SPOILER, NO.3 | ||||
| 76874-58010 |
ANH1#,MNH1# |
2 | ||
| 76887 - SEAL, REAR SPOILER | ||||
| 76887-58010 |
ANH1#,MNH1# |
7 | ||
| 76887F - SEAL, REAR SPOILER, NO.2 | ||||
| 76889-58020 |
ANH1#,MNH1# |
1 | ||
| 76889B - SEAL, REAR SPOILER, NO.1 | ||||
| 76889-58010 |
ANH1#,MNH1# |
1 | ||
| 76889B - SEAL, REAR SPOILER, NO.1 | ||||
| 76889-58010 |
ANH1#,MNH1# |
1 | ||
| 76889D - CLIP, REAR SPOILER, NO.2 | ||||
| 76889-44020 |
ANH1#,MNH1# |
1 | ||
| 76893 - COVER, REAR SPOILER, NO.1 | ||||
| 76893-58010B1 |
ANH1#,MNH1# GRAY M.M.,1E8 |
1 | ||
| 76893-58010A0 |
ANH1#,MNH1#..AS,MS WHITE PM.,042 |
1 | ||
| 76893-58010J1 |
ANH1#,MNH1#..AS,MS DK.BLUE MC.,8K8 |
1 | ||
| 76893-58010C0 |
ANH1#,MNH1# BLACK MC.,209 |
1 | ||
| 76893-58010B0 |
ANH1#,MNH1# SILVER ME.,1C0 |
1 | ||
| Common parts | ||||
| 90179-06115 | ||||
| Linked diagrams | ||||
| 8117 | ||||
