ANH10W-PFPSK (2002)
Toyota Alphard G/V
(0205- )

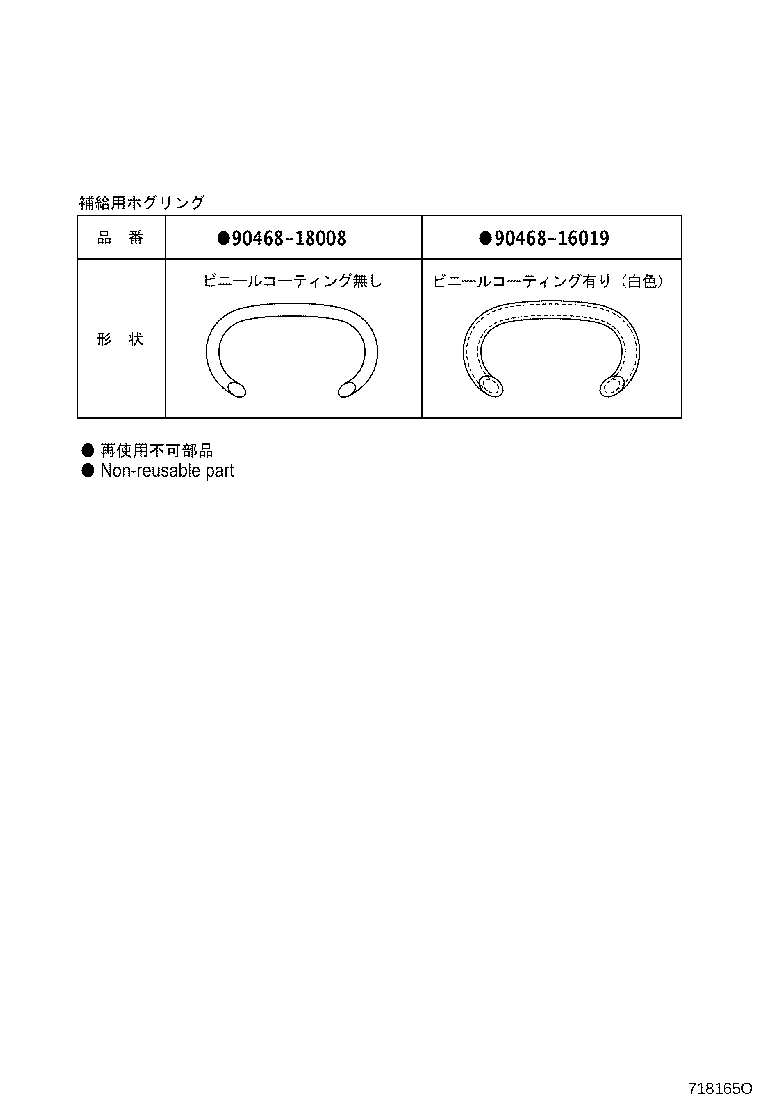

ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||

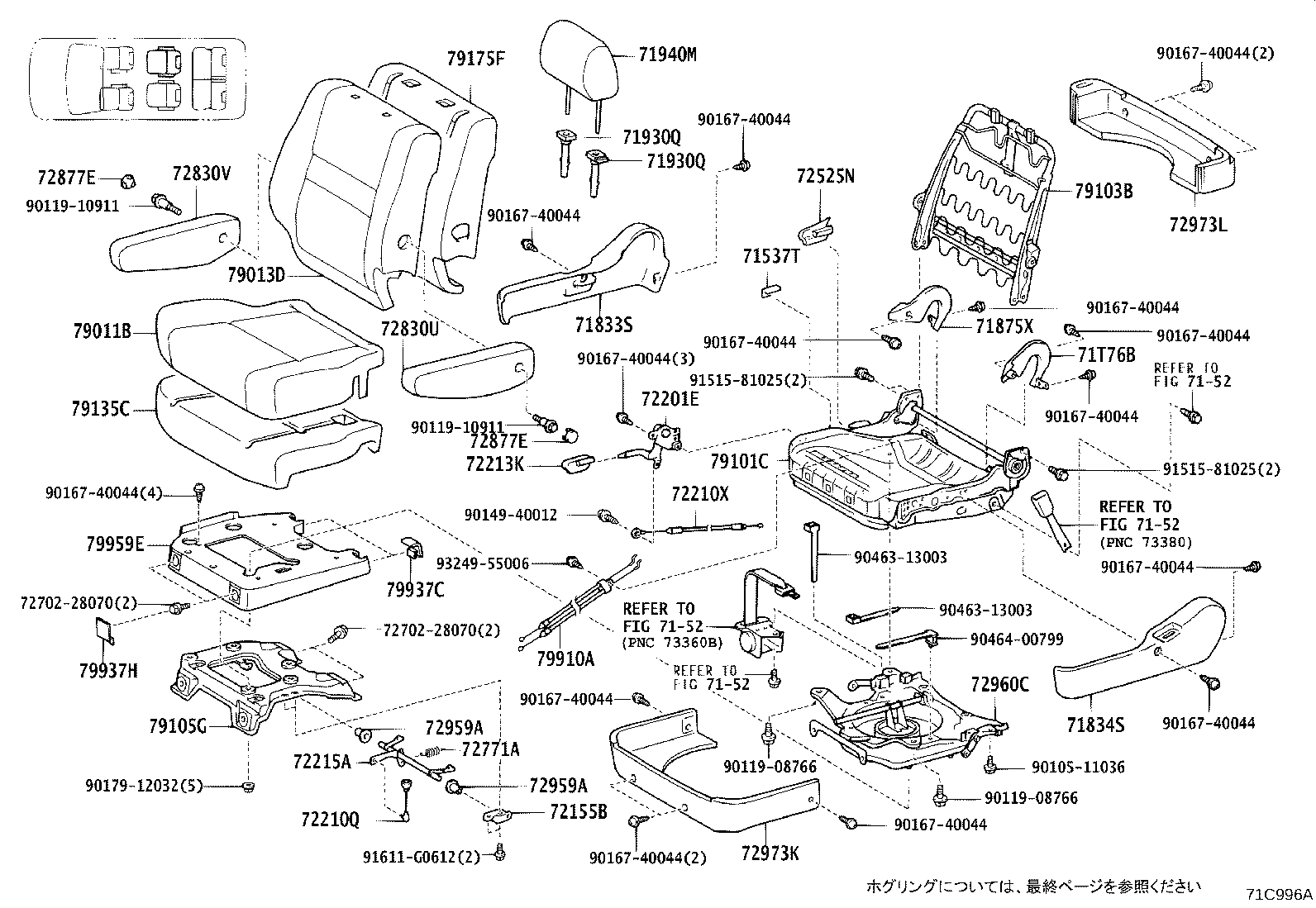

(0205- )07S..AS,AX,MS,MX
ﾘﾔNO.1ｼｰﾄ(ﾗｲﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71537T - PROTECTOR, REAR SEAT CUSHION, NO.1 | ||||
| 71537-28070 |
ANH1#,MNH1#..07S |
2 | ||
| 71833S - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71811-58050B0 |
ANH1#,MNH1#..07S..(AS,MS) DK.GRAY,TRIM1# |
1 | ||
| 71834S - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71812-58050B0 |
ANH1#,MNH1#..07S..(AS,MS) DK.GRAY,TRIM1# |
1 | ||
| 71875X - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-28040B2 |
ANH1#,MNH1#..07S..(AS,MS) DK.GRAY,TRIM1# |
2 | ||
| 71930Q - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71931-42020B4 |
ANH1#,MNH1#..AS,MS ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71930-42020B4 |
ANH1#,MNH1#..AS,MS ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71930Q - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71931-42020B4 |
ANH1#,MNH1#..AS,MS ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71930-42020B4 |
ANH1#,MNH1#..AS,MS ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71940M - HEADREST ASSY, REAR SEAT | ||||
| 71910-58030B1 |
ANH1#,MNH1#..AS,MS DARK GRAY,TRIM1# |
2 | ||
| 71T76B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-28040B2 |
ANH1#,MNH1#..07S..(AS,MS) DK.GRAY,TRIM1# |
1 | ||
| 72155B - BRACKET, SEAT TRACK HANDLE SUPPORT | ||||
| 72155-58020 |
ANH1#,MNH1#..07S..(AS,AX,MS,MX) |
2 | ||
| 72201E - HANDLE SUB-ASSY, SEAT TRACK RH | ||||
| 72201-58030 |
ANH1#,MNH1#..07S..(AS,AX,MS,MX) |
1 | ||
| 72210X - CABLE ASSY, NO.1 SEAT TRACK CONTROL, RH | ||||
| 72210-58050 |
ANH1#,MNH1#..07S..(AS,AX,MS,MX) |
1 | ||
| 72213K - KNOB, SEAT TRACK ADJUSTING HANDLE, RH | ||||
| 72213-28060B2 |
ANH1#,MNH1#..07S..(AS,MS) DK.GRAY,TRIM1# |
1 | ||
| 72215A - LEVER, NO.1 SEAT TRACK HANDLE CONTROL, RH | ||||
| 72203-58030 |
ANH1#,MNH1#..07S..(AS,AX,MS,MX) |
1 | ||
| 72525N - HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-44010B4 |
ANH1#,MNH1#..07S..(AS,MS) DK.GRAY,TRIM1# |
1 | ||
| 72771A - SPRING, REAR SEAT TURN NO.1 | ||||
| 71650-58010 |
ANH1#,MNH1#..07S..(AS,AX,MS,MX) |
1 | ||
| 72830U - ARMREST ASSY, REAR SEAT, RH | ||||
| 72890-58100B0 |
ANH1#,MNH1#..07S..(AS,MS) DARK GRAY,TRIM1# |
1 | ||
| 72890-58101B0 |
ANH1#,MNH1#..07S..(AS,MS) DARK GRAY,TRIM1# |
1 | ||
| 72830V - ARMREST ASSY, REAR NO.1 SEAT, RH | ||||
| 72880-58120B0 |
ANH1#,MNH1#..07S..(AS,MS) DARK GRAY,TRIM1# |
1 | ||
| 72880-58121B0 |
ANH1#,MNH1#..07S..(AS,MS) DARK GRAY,TRIM1# |
1 | ||
| 72877E - COVER, NO.1 SEAT ARMREST, RH | ||||
| 72848-28030B5 |
ANH1#,MNH1#..07S..(AS,MS) DK.GRAY,TRIM1# |
4 | ||
| 72877E - COVER, NO.1 SEAT ARMREST, RH | ||||
| 72848-28030B5 |
ANH1#,MNH1#..07S..(AS,MS) DK.GRAY,TRIM1# |
4 | ||
| 72959A - SPACER, REAR SEAT TURN SIDE | ||||
| 72959-26010 |
ANH1#;MNH1#..08S;MNH1#..07S..(MS,MX) |
4 | ||
| 72959A - SPACER, REAR SEAT TURN SIDE | ||||
| 72959-26010 |
ANH1#;MNH1#..08S;MNH1#..07S..(MS,MX) |
4 | ||
| 72960C - TABLE ASSY, NO.1 SEAT TURN, RH | ||||
| 72960-58020 |
ANH1#,MNH1#..07S..(AS,AX,MS,MX) |
1 | ||
| 72973K - COVER, REAR SEAT TURN TABLE, RH | ||||
| 72973-58010B0 |
ANH1#,MNH1#..07S..(AS,MS) DK.GRAY,TRIM1# |
1 | ||
| 72973L - COVER, REAR SEAT TURN TABLE, NO.1 | ||||
| 72973-58020B0 |
ANH1#,MNH1#..07S..(AS,MS) DK.GRAY,TRIM1# |
1 | ||
| 79011B - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79011-58060B1 |
ANH1#,MNH1#..07S..(AS,MS) DARK GRAY,TRIM1# |
1 | ||
| 79013D - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79013-58090B1 |
ANH1#,MNH1#..07S..(AS,MS) DARK GRAY,TRIM1# |
1 | ||
| 79101C - FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79101-58020 |
ANH1#,MNH1#..07S..(AS,AX,MS,MX) |
1 | ||
| 79103B - FRAME SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79103-58020 |
ANH1#,MNH1#..07S..(AS,MS) |
2 | ||
| 79105G - LEG SUB-ASSY, NO.1 SEAT, RH | ||||
| 79105-58020 |
ANH1#,MNH1#..07S..(AS,AX,MS,MX) |
1 | ||
| 79135C - PAD, NO.1 SEAT CUSHION, RH | ||||
| 79135-58030 |
ANH1#,MNH1#..07S |
1 | ||
| 79175F - PAD, NO.1 SEAT BACK, RH | ||||
| 79175-58030 |
ANH1#,MNH1#..07S |
1 | ||
| 79910A - CABLE ASSY, REAR SEAT TURN, NO.1 | ||||
| 72688-58030 |
ANH1#,MNH1#..07S..(AS,AX,MS,MX) |
1 | ||
| 79937C - COVER, NO.1 SEAT LEG, NO.1(FOR RH SEAT) | ||||
| 79937-28060B2 |
ANH1#,MNH1#..07S..(AS,MS) STONE,TRIM1# |
4 | ||
| 79937H - COVER, REAR SEAT LEG, NO.2 | ||||
| 79937-28050B2 |
ANH1#,MNH1#..07S..(AS,MS) STONE,TRIM1# |
4 | ||
| 79959E - COVER, NO.1 SEAT LEG, RH | ||||
| 79959-58050B0 |
ANH1#,MNH1#..07S..(AS,MS) STONE,TRIM1# |
1 | ||
| Common parts | ||||
| 72702-28070 | ||||
| 90105-11036 | ||||
| 90119-08766 | ||||
| 90119-10911 | ||||
| 90149-40012 | ||||
| 90167-40044 | ||||
| 90179-12032 | ||||
| 90463-13003 | ||||
| 90464-00799 | ||||
| 91515-81025 | ||||
| 91611-G0612 | ||||
| 93249-55006 | ||||
| Linked diagrams | ||||
| 7152 | ||||

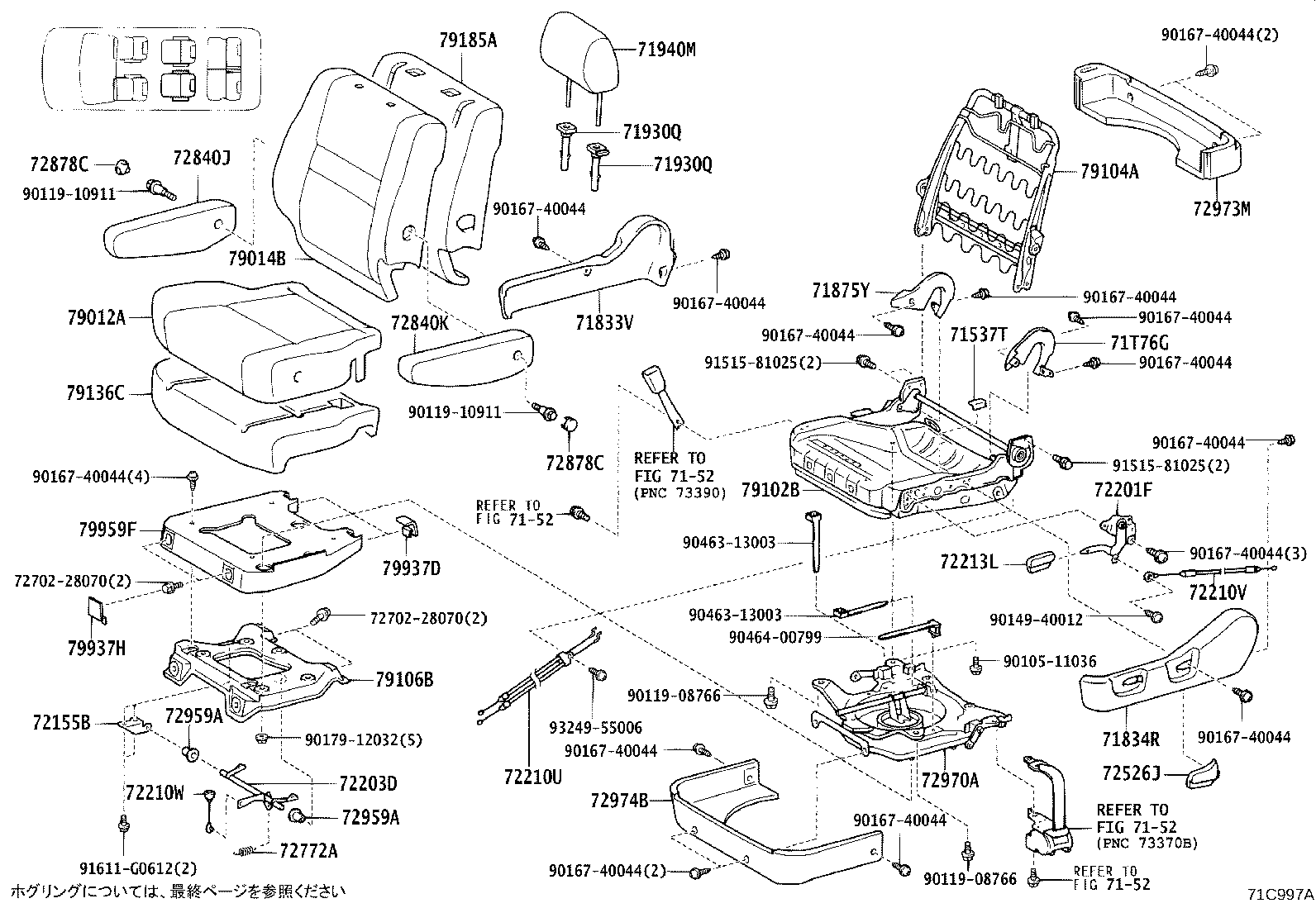

(0205-0504)07S..AS,AX,MS,MX ; (0504- )07S..AS,MS
ﾘﾔNO.1ｼｰﾄ(ﾚﾌﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71537T - PROTECTOR, REAR SEAT CUSHION, NO.1 | ||||
| 71537-28070 |
ANH1#,MNH1#..07S |
2 | ||
| 71833V - COVER, NO.1 SEAT RECLINING, NO.2 RH | ||||
| 71811-58060B0 |
ANH1#,MNH1#..07S..(AS,MS) DK.GRAY,TRIM1# |
1 | ||
| 71834R - COVER, REAR SEAT RECLINING, LH | ||||
| 71812-58070B0 |
ANH1#,MNH1#..07S..(AS,MS) DK.GRAY,TRIM1# |
1 | ||
| 71930Q - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71931-42020B4 |
ANH1#,MNH1#..AS,MS ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71930-42020B4 |
ANH1#,MNH1#..AS,MS ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71930Q - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71931-42020B4 |
ANH1#,MNH1#..AS,MS ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71930-42020B4 |
ANH1#,MNH1#..AS,MS ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71940M - HEADREST ASSY, REAR SEAT | ||||
| 71910-58030B1 |
ANH1#,MNH1#..AS,MS DARK GRAY,TRIM1# |
2 | ||
| 71T76G - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-28040B2 |
ANH1#,MNH1#..07S..(AS,MS) DK.GRAY,TRIM1# |
1 | ||
| 72155B - BRACKET, SEAT TRACK HANDLE SUPPORT | ||||
| 72155-58020 |
ANH1#,MNH1#..07S..(AS,AX,MS,MX) |
2 | ||
| 72201F - HANDLE SUB-ASSY, SEAT TRACK LH | ||||
| 72202-58030 |
ANH1#,MNH1#..07S..(AS,AX,MS,MX) |
1 | ||
| 72203D - HANDLE SUB-ASSY, REAR SEAT TRACK, LH | ||||
| 72203-58040 |
ANH1#,MNH1#..07S..(AS,AX,MS,MX) |
1 | ||
| 72210U - CABLE ASSY, NO.1 SEAT TRACK CONTROL, LH | ||||
| 72688-58040 |
ANH1#,MNH1#..07S..(AS,AX,MS,MX) |
1 | ||
| 72210V - CABLE ASSY, NO.1 SEAT TRACK CONTROL, LH NO.1 | ||||
| 72210-58060 |
ANH1#,MNH1#..07S..(AS,AX,MS,MX) |
1 | ||
| 72210W - CABLE ASSY, NO.1 SEAT TRACK CONTROL, LH NO.2 | ||||
| 72210-58070 |
ANH1#,MNH1#..07S..(AS,AX,MS,MX) |
1 | ||
| 72213L - KNOB, SEAT TRACK ADJUSTING HANDLE, LH | ||||
| 72213-28070B2 |
ANH1#,MNH1#..07S..(AS,MS) DK.GRAY,TRIM1# |
1 | ||
| 72526J - HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-44010B4 |
ANH1#,MNH1#..07S..(AS,MS) DK.GRAY,TRIM1# |
1 | ||
| 72772A - SPRING, REAR SEAT TURN NO.2 | ||||
| 71650-58010 |
ANH1#,MNH1#..07S..(AS,AX,MS,MX) |
1 | ||
| 72840J - ARMREST ASSY, REAR SEAT, LH | ||||
| 72880-58120B0 |
ANH1#,MNH1#..07S..(AS,MS) DARK GRAY,TRIM1# |
1 | ||
| 72880-58121B0 |
ANH1#,MNH1#..07S..(AS,MS) DARK GRAY,TRIM1# |
1 | ||
| 72840K - ARMREST ASSY, REAR NO.1 SEAT, LH | ||||
| 72890-58100B0 |
ANH1#,MNH1#..07S..(AS,MS) DARK GRAY,TRIM1# |
1 | ||
| 72890-58101B0 |
ANH1#,MNH1#..07S..(AS,MS) DARK GRAY,TRIM1# |
1 | ||
| 72959A - SPACER, REAR SEAT TURN SIDE | ||||
| 72959-26010 |
ANH1#;MNH1#..08S;MNH1#..07S..(MS,MX) |
4 | ||
| 72959A - SPACER, REAR SEAT TURN SIDE | ||||
| 72959-26010 |
ANH1#;MNH1#..08S;MNH1#..07S..(MS,MX) |
4 | ||
| 72970A - TABLE ASSY, NO.1 SEAT TURN, LH | ||||
| 72970-58020 |
ANH1#,MNH1#..07S..(AS,AX,MS,MX) |
1 | ||
| 72973M - COVER, REAR SEAT TURN TABLE, NO.2 | ||||
| 72973-58030B0 |
ANH1#,MNH1#..07S..(AS,MS) DK.GRAY,TRIM1# |
1 | ||
| 72974B - COVER, REAR SEAT TURN TABLE, LH | ||||
| 72973-58010B0 |
ANH1#,MNH1#..07S..(AS,MS) DK.GRAY,TRIM1# |
1 | ||
| 79012A - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79012-58090B1 |
ANH1#,MNH1#..07S..(AS,MS) DARK GRAY,TRIM1# |
1 | ||
| 79014B - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79013-58120B1 |
ANH1#,MNH1#..07S..(AS,MS) DARK GRAY,TRIM1# |
1 | ||
| 79102B - FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79102-58030 |
ANH1#,MNH1#..07S..(AS,AX,MS,MX) |
1 | ||
| 79106B - LEG SUB-ASSY, NO.1 SEAT, LH | ||||
| 79106-58020 |
ANH1#,MNH1#..07S..(AS,AX,MS,MX) |
1 | ||
| 79136C - PAD, NO.1 SEAT CUSHION, LH | ||||
| 79135-58030 |
ANH1#,MNH1#..07S |
1 | ||
| 79185A - PAD, NO.1 SEAT BACK, LH | ||||
| 79175-58030 |
ANH1#,MNH1#..07S |
1 | ||
| 79937H - COVER, REAR SEAT LEG, NO.2 | ||||
| 79937-28050B2 |
ANH1#,MNH1#..07S..(AS,MS) STONE,TRIM1# |
4 | ||
| 79959F - COVER, NO.1 SEAT LEG, LH | ||||
| 79959-58060B0 |
ANH1#,MNH1#..07S..(AS,MS) STONE,TRIM1# |
1 | ||
| Common parts | ||||
| 72702-28070 | ||||
| 90105-11036 | ||||
| 90119-08766 | ||||
| 90119-10911 | ||||
| 90149-40012 | ||||
| 90167-40044 | ||||
| 90179-12032 | ||||
| 90463-13003 | ||||
| 90464-00799 | ||||
| 91515-81025 | ||||
| 91611-G0612 | ||||
| 93249-55006 | ||||
| Linked diagrams | ||||
| 7152 | ||||
(0205- )
ﾘﾔNO.2ｼｰﾄ(ﾗｲﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71303E - HINGE SUB-ASSY, REAR NO.2 SEAT, RH | ||||
| 71303-58010 |
ANH1#,MNH1# |
1 | ||
| 71691Q - COVER, REAR NO.2 SEAT LOCK, UPPER NO.1 RH | ||||
| 71692-58020B0 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1#,左側ｼｰﾄ用 |
1 | ||
| 71691-58020B0 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1#,右側ｼｰﾄ用 |
1 | ||
| 71693F - COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER RH NO.1 | ||||
| 71693-58010B0 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1# |
1 | ||
| 71695T - PROTECTOR, REAR SEAT, NO.2 | ||||
| 71695-26030 |
ANH1#,MNH1# |
2 | ||
| 71878G - COVER, NO.3 SEAT RECLINING, INNER RH | ||||
| 71878-58030B0 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1# |
1 | ||
| 71878H - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71879-58010B0 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1# |
1 | ||
| 71878J - COVER, REAR NO.1 SEAT RECLINING, INNER RH | ||||
| 71878-58010B0 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1# |
1 | ||
| 71878K - COVER, REAR NO.2 SEAT RECLINING, INNER RH | ||||
| 71879-58030B0 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1# |
1 | ||
| 71931G - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71931-42020B4 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1#,ﾛｯｸ付(ﾎﾞﾀﾝ無し) |
2 | ||
| 71930-42020B4 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1#,ﾛｯｸ付(ﾎﾞﾀﾝ有り) |
2 | ||
| 71931G - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71931-42020B4 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1#,ﾛｯｸ付(ﾎﾞﾀﾝ無し) |
2 | ||
| 71930-42020B4 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1#,ﾛｯｸ付(ﾎﾞﾀﾝ有り) |
2 | ||
| 71940N - HEADREST ASSY, REAR SEAT, NO.2 | ||||
| 71910-58030B1 |
ANH1#,MNH1#..AS,MS DARK GRAY,TRIM1# |
2 | ||

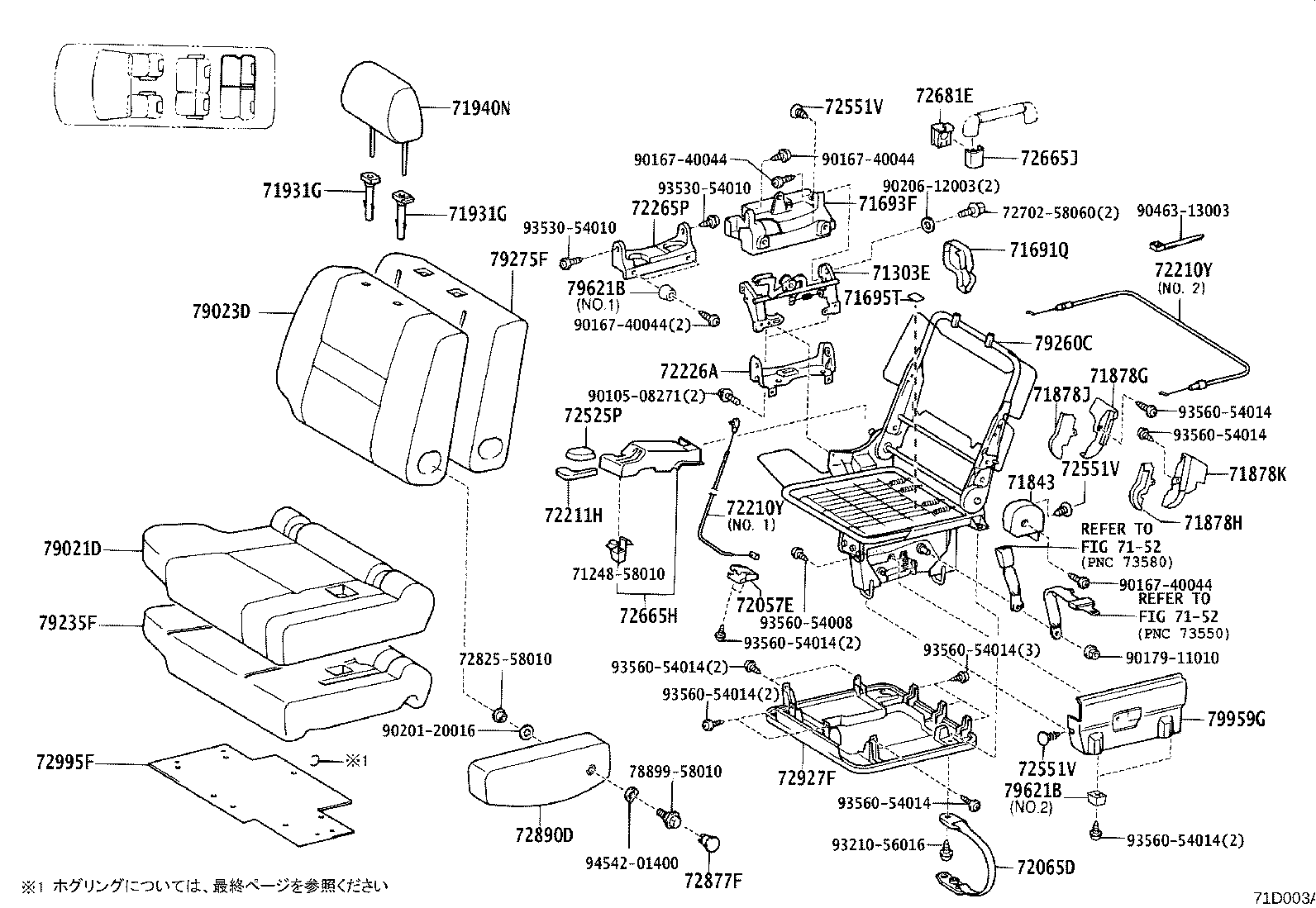

| 72057E - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH NO.1 | ||||
| 72057-58010B0 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1# |
1 | ||
| 72065D - HOOK SUB-ASSY, REAR NO.2 SEAT CUSHION LOCK, RH | ||||
| 72065-58010B0 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1# |
1 | ||
| 72210Y - CABLE ASSY, NO.1 SEAT TRACK CONTROL, RH NO.1 | ||||
| 72210-58030 |
ANH1#,MNH1#..AS,MS,MZ NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 72210-58020 |
ANH1#,MNH1#..AS,MS,MZ NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 72210Y - CABLE ASSY, NO.1 SEAT TRACK CONTROL, RH NO.1 | ||||
| 72210-58030 |
ANH1#,MNH1#..AS,MS,MZ NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 72210-58020 |
ANH1#,MNH1#..AS,MS,MZ NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 72211H - HANDLE, SEAT TRACK ADJUSTING, RH | ||||
| 72211-58010B0 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1# |
1 | ||
| 72226A - BRACKET, SEAT TRACK, NO.1 | ||||
| 72226-58010 |
ANH1#,MNH1# |
1 | ||
| 72265P - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-58010B0 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1# |
1 | ||
| 72525P - HANDLE, NO.2 SEAT RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-58010B0 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1# |
1 | ||
| 72665H - COVER, REAR SEAT BACK LOCK | ||||
| 71691-58010B0 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1#,右側ｼｰﾄ |
1 | ||
| 71692-58010B0 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1#,左側ｼｰﾄ |
1 | ||
| 72681E - HOOK, REAR SEAT | ||||
| 72681-58010B0 |
ANH1#,MNH1#..AS,MS LT.GRAY,TRIM1# |
2 | ||
| 72877F - COVER, SEAT ARMREST | ||||
| 72877-32070B1 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1# |
2 | ||
| 72890D - ARMREST ASSY, NO.2 SEAT, C LH(FOR RH SEAT) | ||||
| 72890-58140B0 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1# |
1 | ||
| 72890-58140B1 |
ANH1#,MNH1#..AS,MS DARK GRAY,TRIM1# |
1 | ||
| 72927F - COVER, REAR SEAT CUSHION UNDER, RH | ||||
| 72927-58010B0 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1# |
1 | ||
| 72995F - COVER, REAR SEAT CUSHION, RH | ||||
| 72995-58010 |
ANH1#,MNH1# |
1 | ||
| 79021D - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79021-58020B1 |
ANH1#,MNH1#..AS,MS DARK GRAY,TRIM1# |
1 | ||
| 79021-58020B0 |
ANH1#,MNH1#..AS,MS DARK GRAY,TRIM1# |
1 | ||
| 79021-58021B0 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1# |
1 | ||
| 79023D - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79023-58030B1 |
ANH1#,MNH1#..AS,MS DARK GRAY,TRIM1# |
1 | ||
| 79235F - PAD, NO.2 SEAT CUSHION, RH | ||||
| 79235-58010 |
ANH1#,MNH1# |
1 | ||
| 79260C - SPRING ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79260-58020 |
ANH1#,MNH1# |
1 | ||
| 79275F - PAD, NO.2 SEAT BACK, RH | ||||
| 79275-58020 |
ANH1#,MNH1# |
1 | ||
| 79621B - STOPPER, NO.2 SEAT CUSHION | ||||
| 79226-58010 |
ANH1#,MNH1# NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 79226-58020 |
ANH1#,MNH1# NO.2:ｲﾗｽﾄ参照 |
4 | ||
| 79621B - STOPPER, NO.2 SEAT CUSHION | ||||
| 79226-58010 |
ANH1#,MNH1# NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 79226-58020 |
ANH1#,MNH1# NO.2:ｲﾗｽﾄ参照 |
4 | ||
| 79959G - COVER, NO.2 SEAT LEG, RH NO.1 | ||||
| 79959-58030B1 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1#,右側ｼｰﾄ用 |
1 | ||
| 79959-58040B1 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1#,左側ｼｰﾄ用 |
1 | ||
| Common parts | ||||
| 71248-58010 | ||||
| 72702-58060 | ||||
| 72825-58010 | ||||
| 78899-58010 | ||||
| 90105-08271 | ||||
| 90167-40044 | ||||
| 90179-11010 | ||||
| 90201-20016 | ||||
| 90206-12003 | ||||
| 90463-13003 | ||||
| 93210-56016 | ||||
| 93530-54010 | ||||
| 93560-54008 | ||||
| 93560-54014 | ||||
| 94542-01400 | ||||
| Linked diagrams | ||||
| 7152 | ||||

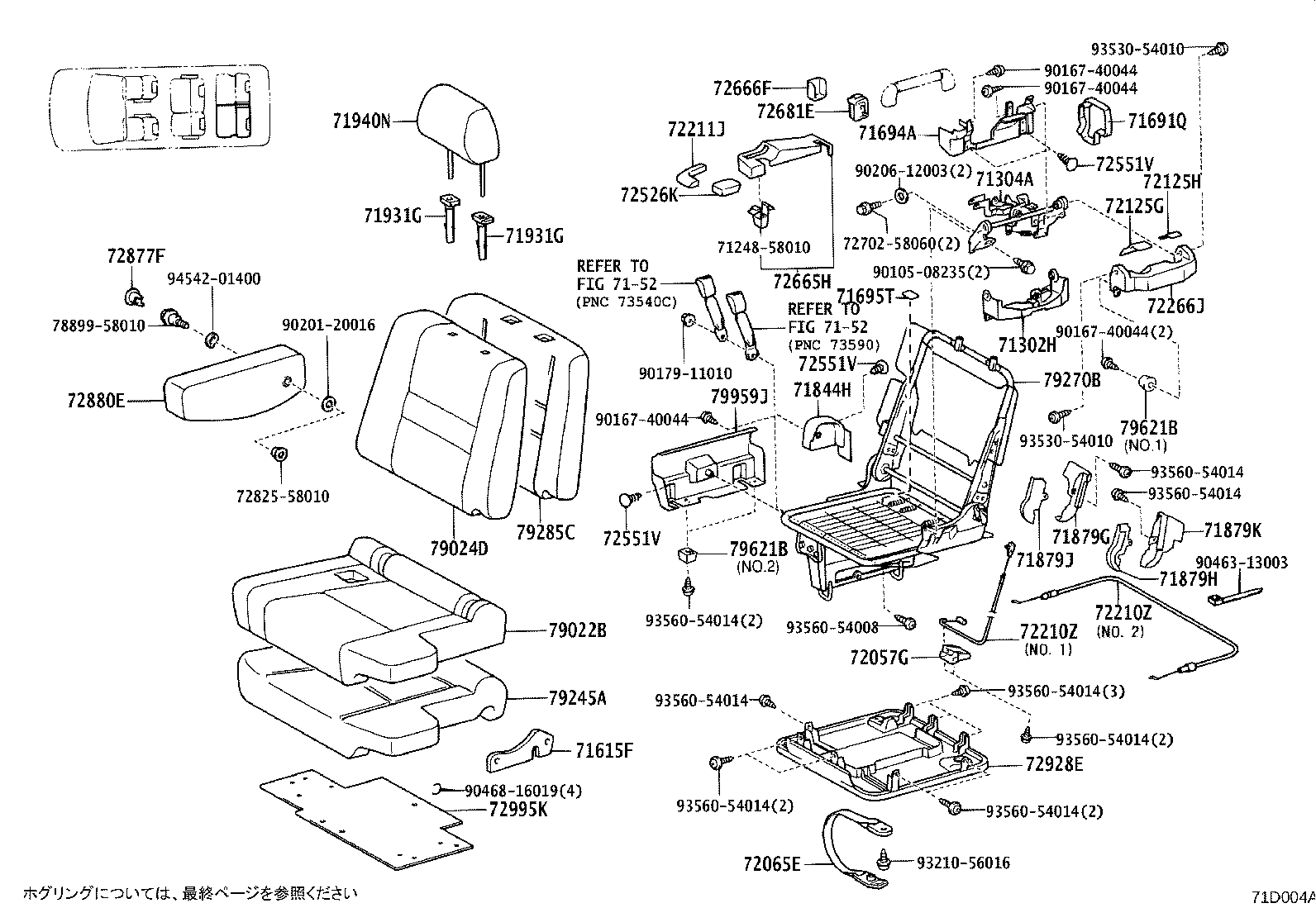

(0205- )
ﾘﾔNO.2ｼｰﾄ(ﾚﾌﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71302H - STOPPER SUB-ASSY, REAR SEAT LEG | ||||
| 71302-58010 |
ANH1#,MNH1# |
1 | ||
| 71304A - HINGE SUB-ASSY, REAR NO.2 SEAT, LH | ||||
| 71304-58010 |
ANH1#,MNH1# |
1 | ||
| 71615F - PAD, REAR SEAT CUSHION, E | ||||
| 71615-58010 |
ANH1#,MNH1# |
1 | ||
| 71691Q - COVER, REAR NO.2 SEAT LOCK, UPPER NO.1 RH | ||||
| 71692-58020B0 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1#,左側ｼｰﾄ用 |
1 | ||
| 71691-58020B0 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1#,右側ｼｰﾄ用 |
1 | ||
| 71694A - COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER LH NO.1 | ||||
| 71694-58010B0 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1# |
1 | ||
| 71695T - PROTECTOR, REAR SEAT, NO.2 | ||||
| 71695-26030 |
ANH1#,MNH1# |
2 | ||
| 71844H - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71844-58010B0 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1# |
1 | ||
| 71879G - COVER, NO.3 SEAT RECLINING, INNER LH | ||||
| 71878-58030B0 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1# |
1 | ||
| 71879H - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-58010B0 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1# |
1 | ||
| 71879J - COVER, REAR NO.1 SEAT RECLINING, INNER LH | ||||
| 71878-58010B0 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1# |
1 | ||
| 71879K - COVER, REAR NO.2 SEAT RECLINING, INNER LH | ||||
| 71879-58030B0 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1# |
1 | ||
| 71931G - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71931-42020B4 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1#,ﾛｯｸ付(ﾎﾞﾀﾝ無し) |
2 | ||
| 71930-42020B4 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1#,ﾛｯｸ付(ﾎﾞﾀﾝ有り) |
2 | ||
| 71931G - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71931-42020B4 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1#,ﾛｯｸ付(ﾎﾞﾀﾝ無し) |
2 | ||
| 71930-42020B4 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1#,ﾛｯｸ付(ﾎﾞﾀﾝ有り) |
2 | ||
| 71940N - HEADREST ASSY, REAR SEAT, NO.2 | ||||
| 71910-58030B1 |
ANH1#,MNH1#..AS,MS DARK GRAY,TRIM1# |
2 | ||
| 72057G - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH NO.1 | ||||
| 72057-58010B0 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1# |
1 | ||
| 72065E - HOOK SUB-ASSY, REAR NO.2 SEAT CUSHION LOCK, LH | ||||
| 72065-58010B0 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1# |
1 | ||
| 72125G - COVER, SEAT TRACK LOCK PLATE, NO.1 | ||||
| 72125-58010B0 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1# |
1 | ||
| 72125H - COVER, SEAT TRACK LOCK PLATE, NO.2 | ||||
| 72125-58020B0 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1# |
1 | ||
| 72210Z - CABLE ASSY, NO.1 SEAT TRACK CONTROL, RH NO.2 | ||||
| 72210-58040 |
ANH1#,MNH1# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 72210-58020 |
ANH1#,MNH1#..AS,MS,MZ NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 72210Z - CABLE ASSY, NO.1 SEAT TRACK CONTROL, RH NO.2 | ||||
| 72210-58040 |
ANH1#,MNH1# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 72210-58020 |
ANH1#,MNH1#..AS,MS,MZ NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 72211J - HANDLE, SEAT TRACK ADJUSTING, LH | ||||
| 72212-58010B0 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1# |
1 | ||
| 72266J - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72266-58010B0 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1# |
1 | ||
| 72526K - HANDLE, NO.2 SEAT RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-58010B0 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1# |
1 | ||
| 72665H - COVER, REAR SEAT BACK LOCK | ||||
| 71691-58010B0 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1#,右側ｼｰﾄ |
1 | ||
| 71692-58010B0 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1#,左側ｼｰﾄ |
1 | ||
| 72666F - COVER, REAR SEAT LOCK, LH | ||||
| 72665-58010B0 |
ANH1#,MNH1#..AS,MS LT.GRAY,TRIM1# |
1 | ||
| 72681E - HOOK, REAR SEAT | ||||
| 72681-58010B0 |
ANH1#,MNH1#..AS,MS LT.GRAY,TRIM1# |
2 | ||
| 72877F - COVER, SEAT ARMREST | ||||
| 72877-32070B1 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1# |
2 | ||
| 72880E - ARMREST ASSY, NO.2 SEAT, C RH(FOR LH SEAT) | ||||
| 72880-58140B0 |
ANH1#,MNH1#..AS,MS DARK GRAY,TRIM1# |
1 | ||
| 72928E - COVER, REAR SEAT CUSHION UNDER, LH | ||||
| 72928-58010B0 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1# |
1 | ||
| 72995K - COVER, REAR NO.2 SEAT CUSHION | ||||
| 72995-58010 |
ANH1#,MNH1# |
1 | ||
| 79022B - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79022-58020B0 |
ANH1#,MNH1#..AS,MS DARK GRAY,TRIM1# |
1 | ||
| 79022-58020B1 |
ANH1#,MNH1#..AS,MS DARK GRAY,TRIM1# |
1 | ||
| 79022-58021B0 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1# |
1 | ||
| 79024D - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79024-58030B1 |
ANH1#,MNH1#..AS,MS DARK GRAY,TRIM1# |
1 | ||
| 79245A - PAD, NO.2 SEAT CUSHION, LH | ||||
| 79245-58010 |
ANH1#,MNH1# |
1 | ||
| 79270B - SPRING ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79270-58020 |
ANH1#,MNH1# |
1 | ||
| 79285C - PAD, NO.2 SEAT BACK, LH | ||||
| 79285-58020 |
ANH1#,MNH1# |
1 | ||
| 79621B - STOPPER, NO.2 SEAT CUSHION | ||||
| 79226-58010 |
ANH1#,MNH1# NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 79226-58020 |
ANH1#,MNH1# NO.2:ｲﾗｽﾄ参照 |
4 | ||
| 79621B - STOPPER, NO.2 SEAT CUSHION | ||||
| 79226-58010 |
ANH1#,MNH1# NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 79226-58020 |
ANH1#,MNH1# NO.2:ｲﾗｽﾄ参照 |
4 | ||
| Common parts | ||||
| 71248-58010 | ||||
| 72702-58060 | ||||
| 72825-58010 | ||||
| 78899-58010 | ||||
| 90105-08235 | ||||
| 90167-40044 | ||||
| 90179-11010 | ||||
| 90201-20016 | ||||
| 90206-12003 | ||||
| 90463-13003 | ||||
| 90468-16019 | ||||
| 93210-56016 | ||||
| 93530-54010 | ||||
| 93560-54008 | ||||
| 93560-54014 | ||||
| 94542-01400 | ||||
| Linked diagrams | ||||
| 7152 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
