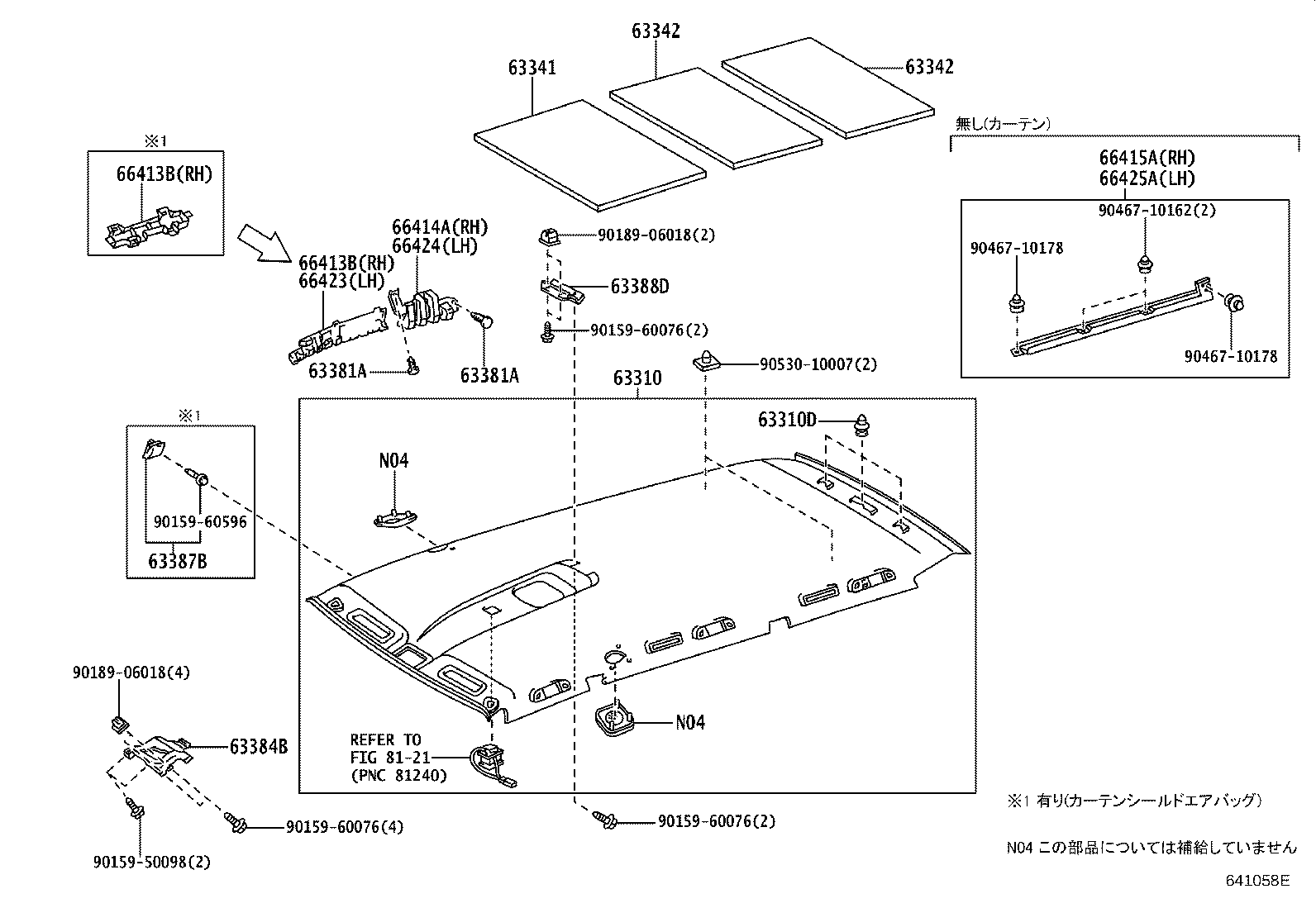

ANH10W-PFPSK (2002)
Toyota Alphard G/V
(0205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-58030B1 |
ANH1#,MNH1#..4FC..(AS,MS) ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ),LT.GRAY,TRIM1# |
1 | ||
| 63310-58050B1 |
ANH1#,MNH1#..4FC..(AS,MS) ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63310-58090B1 |
ANH1#,MNH1#..4FC..(AS,MS) SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ),LT.GRAY,TRIM1# |
1 | ||
| 63310-58100B1 |
ANH1#,MNH1#..4FC..(AS,MS) ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63310-58110B1 |
ANH1#,MNH1#..4FC..(AS,MS) SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63310-58200B1 |
ANH1#,MNH1#..4FC..(AS,MS) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ,LT.GRAY,TRIM1# |
1 | ||
| 63310-58190B1 |
ANH1#,MNH1#..4FC..(AS,MS) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ),LT.GRAY,TRIM1# |
1 | ||
| 63310-58150B1 |
ANH1#,MNH1#..4FC..(AS,MS) SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63310-58170B1 |
ANH1#,MNH1#..4FC..(AS,MS) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ),LT.GRAY,TRIM1# |
1 | ||
| 63310-58250B1 |
ANH1#,MNH1#..4FC..(AS,MS) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ),LT.GRAY,TRIM1# |
1 | ||
| 63310-58260B1 |
ANH1#,MNH1#..4FC..(AS,MS) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63310-58210B1 |
ANH1#,MNH1#..4FC..(AS,MS) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63310-58310B1 |
ANH1#,MNH1#..4FC..(AS,MS) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63310-58270B1 |
ANH1#,MNH1#..4FC..(AS,MS) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63310-58010B1 |
ANH1#,MNH1#..4FC..(AS,MS) LT.GRAY,TRIM1# |
1 | ||
| 63310-58350B0 |
ANH1#,MNH1#..4FC..(AS,MS) ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63310-58040B1 |
ANH1#,MNH1#..4FC..(AS,MS) SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ,LT.GRAY,TRIM1# |
1 | ||
| 63310-58170B1 |
ANH1#,MNH1#..4FC..(AS,MS) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ),LT.GRAY,TRIM1# |
1 | ||
| 63310-58330B0 |
ANH1#,MNH1#..4FC..(AS,MS) ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63310-58360B0 |
ANH1#,MNH1#..4FC..(AS,MS) SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63310-58200B1 |
ANH1#,MNH1#..4FC..(AS,MS) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ,LT.GRAY,TRIM1# |
1 | ||
| 63310-58440B0 |
ANH1#,MNH1#..4FC..(AS,MS) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63310-58390B0 |
ANH1#,MNH1#..4FC..(AS,MS) SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63310-58410B0 |
ANH1#,MNH1#..4FC..(AS,MS) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63301-58050B0 |
ANH1#,MNH1#..AS,MS ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63310-58470B0 |
ANH1#,MNH1#..4FC..(AS,MS) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63301-58010B0 |
ANH1#,MNH1#..AS,MS LT.GRAY,TRIM1# |
1 | ||
| 63301-58030B0 |
ANH1#,MNH1#..AS,MS SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ,LT.GRAY,TRIM1# |
1 | ||
| 63301-58080B0 |
ANH1#,MNH1#..AS,MS SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63301-58070B0 |
ANH1#,MNH1#..AS,MS ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63301-58130B0 |
ANH1#,MNH1#..AS,MS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ),LT.GRAY,TRIM1# |
1 | ||
| 63310-58430B0 |
ANH1#,MNH1#..4FC..(AS,MS) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63301-58150B0 |
ANH1#,MNH1#..AS,MS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ,LT.GRAY,TRIM1# |
1 | ||
| 63301-58190B0 |
ANH1#,MNH1#..AS,MS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT. GRAY,TRIM1# |
1 | ||
| 63301-58110B0 |
ANH1#,MNH1#..AS,MS SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63301-58170B0 |
ANH1#,MNH1#..AS,MS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63301-58200B0 |
ANH1#,MNH1#..AS,MS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63301-58230B0 |
ANH1#,MNH1#..AS,MS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 75396-28070 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
3 | ||
| 75396-28070 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
3 | ||
| 75396-28070 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り |
3 | ||
| 75396-28070 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り |
3 | ||
| 75396-28070 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
3 | ||
| 75396-28070 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
3 | ||
| 75396-28070 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
3 | ||
| 75396-28070 |
ANH1#,MNH1#..AS,AX,MS,MX |
6 | ||
| 75396-28070 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り |
3 | ||
| 75396-28070 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り |
3 | ||
| 75396-28070 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
3 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-58010 |
ANH1#,MNH1# |
1 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63343-58010 |
ANH1#,MNH1# |
2 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63343-58010 |
ANH1#,MNH1# |
2 | ||
| 63381A - CLIP, HEADLINING RETAINER | ||||
| 90467-05021A1 |
ANH1#,MNH1#..AS,MS IVORY,TRIM1# |
4 | ||
| 63381A - CLIP, HEADLINING RETAINER | ||||
| 90467-05021A1 |
ANH1#,MNH1#..AS,MS IVORY,TRIM1# |
4 | ||
| 63384B - BRACKET, ROOF HEADLINING TRIM RETAINER | ||||
| 63384-58010 |
ANH1#,MNH1# |
1 | ||
| 63387B - BRACKET, ROOF HEADLINING RETAINER | ||||
| 63387-58030B0 |
ANH1#,MNH1#..4FC..(AS,MS) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ,LT.GRAY,TRIM1# |
1 | ||
| 63387-58030B0 |
ANH1#,MNH1#..4FC..(AS,MS) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ),LT.GRAY,TRIM1# |
1 | ||
| 63387-58030B0 |
ANH1#,MNH1#..4FC..(AS,MS) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63387-58030B0 |
ANH1#,MNH1#..4FC..(AS,MS) SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63387-58030B0 |
ANH1#,MNH1#..4FC..(AS,MS) SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63387-58030B0 |
ANH1#,MNH1#..4FC..(AS,MS) SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ),LT.GRAY,TRIM1# |
1 | ||
| 63387-58030B0 |
ANH1#,MNH1#..4FC..(AS,MS) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63387-58030B0 |
ANH1#,MNH1#..AS,MS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ,LT.GRAY,TRIM1# |
1 | ||
| 63387-58030B0 |
ANH1#,MNH1#..AS,MS SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63387-58030B0 |
ANH1#,MNH1#..AS,MS SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63387-58030B0 |
ANH1#,MNH1#..AS,MS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63387-58030B0 |
ANH1#,MNH1#..AS,MS SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ,LT.GRAY,TRIM1# |
1 | ||
| 63387-58030B0 |
ANH1#,MNH1#..AS,MS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63388D - BRACKET, ROOF HEADLINING RETAINER, NO.2 | ||||
| 63388-58010 |
ANH1#,MNH1# |
1 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-58010 |
ANH1#,MNH1# |
1 | ||
| 66413-58020 |
ANH1#,MNH1# SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 66413-58020 |
ANH1#,MNH1# SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-58010 |
ANH1#,MNH1# |
1 | ||
| 66413-58020 |
ANH1#,MNH1# SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 66413-58020 |
ANH1#,MNH1# SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 66414A - SPACER, SIDE RAIL, REAR RH | ||||
| 66414-58020 |
ANH1#,MNH1# |
1 | ||
| 66415A - SPACER, SIDE RAIL, REAR NO.2 RH | ||||
| 66415-58010 |
ANH1#,MNH1#..AS,AX,MS,MX |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-58010 |
ANH1#,MNH1# |
1 | ||
| 66424 - SPACER, SIDE RAIL, REAR LH | ||||
| 66424-58020 |
ANH1#,MNH1# |
1 | ||
| 66425A - SPACER, SIDE RAIL, REAR NO.2 LH | ||||
| 66425-58010 |
ANH1#,MNH1#..AS,AX,MS,MX |
1 | ||
| Common parts | ||||
| 90159-50098 | ||||
| 90159-60076 | ||||
| 90159-60596 | ||||
| 90189-06018 | ||||
| 90467-10162 | ||||
| 90467-10178 | ||||
| 90530-10007 | ||||
| Linked diagrams | ||||
| 8121 | ||||

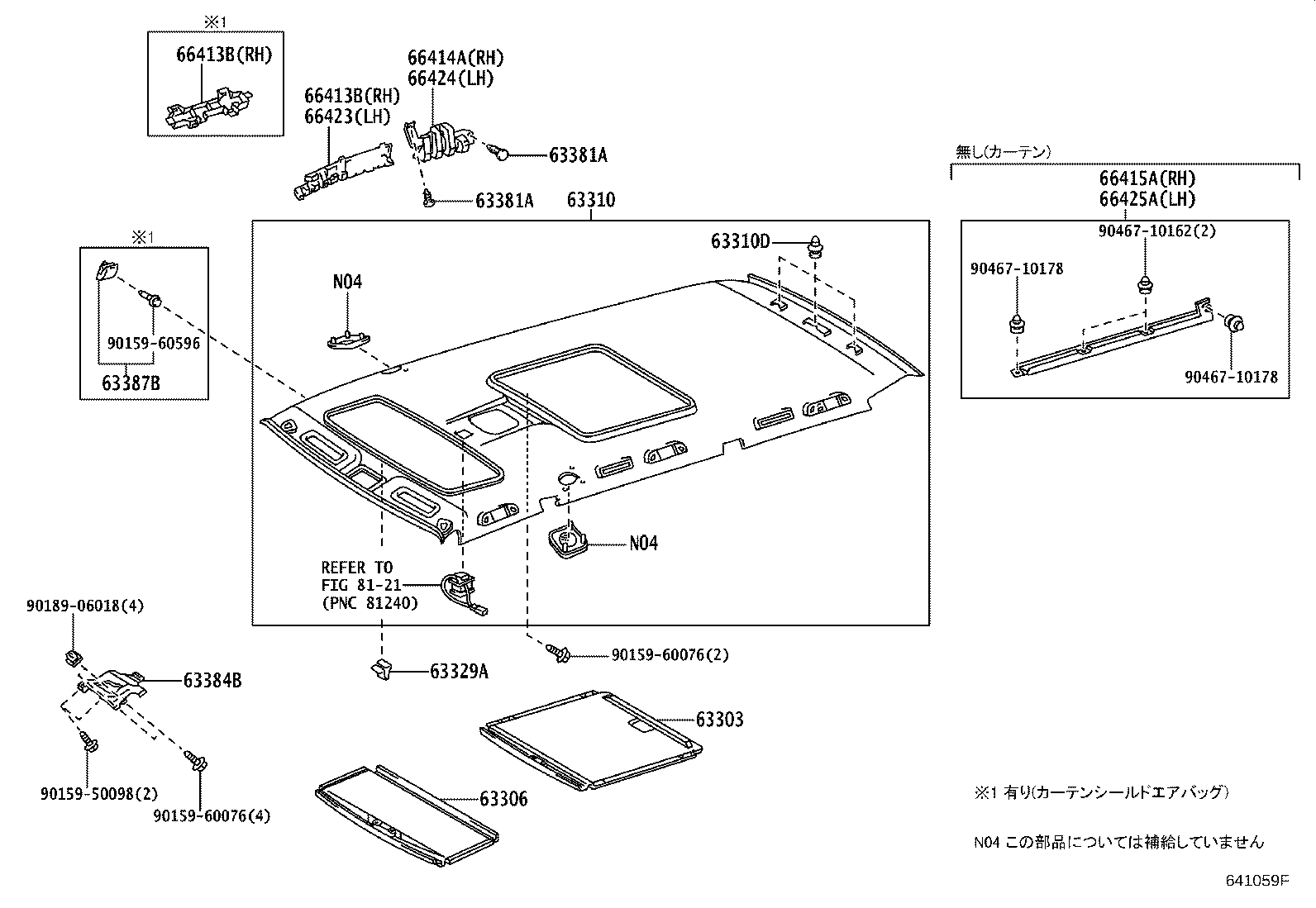

(0205- )
ﾑ-ﾝﾙ-ﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63303 - TRIM SUB-ASSY, SUNSHADE, NO.2 | ||||
| 63303-58010B0 |
ANH1#,MNH1#..AS,MS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ),LT.GRAY,TRIM1# |
1 | ||
| 63303-58010B0 |
ANH1#,MNH1#..AS,MS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ),LT.GRAY,TRIM1# |
1 | ||
| 63306 - TRIM SUB-ASSY, SUNSHADE | ||||
| 63306-58010B0 |
ANH1#,MNH1#..4FC..(AS,MS) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ),LT.GRAY,TRIM1# |
1 | ||
| 63306-58010B0 |
ANH1#,MNH1#..AS,MS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ),LT.GRAY,TRIM1# |
1 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-58030B1 |
ANH1#,MNH1#..4FC..(AS,MS) ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ),LT.GRAY,TRIM1# |
1 | ||
| 63310-58050B1 |
ANH1#,MNH1#..4FC..(AS,MS) ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63310-58090B1 |
ANH1#,MNH1#..4FC..(AS,MS) SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ),LT.GRAY,TRIM1# |
1 | ||
| 63310-58100B1 |
ANH1#,MNH1#..4FC..(AS,MS) ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63310-58110B1 |
ANH1#,MNH1#..4FC..(AS,MS) SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63310-58200B1 |
ANH1#,MNH1#..4FC..(AS,MS) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ,LT.GRAY,TRIM1# |
1 | ||
| 63310-58190B1 |
ANH1#,MNH1#..4FC..(AS,MS) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ),LT.GRAY,TRIM1# |
1 | ||
| 63310-58150B1 |
ANH1#,MNH1#..4FC..(AS,MS) SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63310-58170B1 |
ANH1#,MNH1#..4FC..(AS,MS) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ),LT.GRAY,TRIM1# |
1 | ||
| 63310-58250B1 |
ANH1#,MNH1#..4FC..(AS,MS) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ),LT.GRAY,TRIM1# |
1 | ||
| 63310-58260B1 |
ANH1#,MNH1#..4FC..(AS,MS) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63310-58210B1 |
ANH1#,MNH1#..4FC..(AS,MS) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63310-58310B1 |
ANH1#,MNH1#..4FC..(AS,MS) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63310-58270B1 |
ANH1#,MNH1#..4FC..(AS,MS) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63310-58010B1 |
ANH1#,MNH1#..4FC..(AS,MS) LT.GRAY,TRIM1# |
1 | ||
| 63310-58350B0 |
ANH1#,MNH1#..4FC..(AS,MS) ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63310-58040B1 |
ANH1#,MNH1#..4FC..(AS,MS) SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ,LT.GRAY,TRIM1# |
1 | ||
| 63310-58170B1 |
ANH1#,MNH1#..4FC..(AS,MS) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ),LT.GRAY,TRIM1# |
1 | ||
| 63310-58330B0 |
ANH1#,MNH1#..4FC..(AS,MS) ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63310-58360B0 |
ANH1#,MNH1#..4FC..(AS,MS) SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63310-58200B1 |
ANH1#,MNH1#..4FC..(AS,MS) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ,LT.GRAY,TRIM1# |
1 | ||
| 63310-58440B0 |
ANH1#,MNH1#..4FC..(AS,MS) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63310-58390B0 |
ANH1#,MNH1#..4FC..(AS,MS) SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63310-58410B0 |
ANH1#,MNH1#..4FC..(AS,MS) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63301-58050B0 |
ANH1#,MNH1#..AS,MS ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63310-58470B0 |
ANH1#,MNH1#..4FC..(AS,MS) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63301-58010B0 |
ANH1#,MNH1#..AS,MS LT.GRAY,TRIM1# |
1 | ||
| 63301-58030B0 |
ANH1#,MNH1#..AS,MS SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ,LT.GRAY,TRIM1# |
1 | ||
| 63301-58080B0 |
ANH1#,MNH1#..AS,MS SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63301-58070B0 |
ANH1#,MNH1#..AS,MS ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63301-58130B0 |
ANH1#,MNH1#..AS,MS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ),LT.GRAY,TRIM1# |
1 | ||
| 63310-58430B0 |
ANH1#,MNH1#..4FC..(AS,MS) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63301-58150B0 |
ANH1#,MNH1#..AS,MS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ,LT.GRAY,TRIM1# |
1 | ||
| 63301-58190B0 |
ANH1#,MNH1#..AS,MS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT. GRAY,TRIM1# |
1 | ||
| 63301-58110B0 |
ANH1#,MNH1#..AS,MS SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63301-58170B0 |
ANH1#,MNH1#..AS,MS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63301-58200B0 |
ANH1#,MNH1#..AS,MS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63301-58230B0 |
ANH1#,MNH1#..AS,MS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 75396-28070 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
3 | ||
| 75396-28070 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
3 | ||
| 75396-28070 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り |
3 | ||
| 75396-28070 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り |
3 | ||
| 75396-28070 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
3 | ||
| 75396-28070 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
3 | ||
| 75396-28070 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
3 | ||
| 75396-28070 |
ANH1#,MNH1#..AS,AX,MS,MX |
6 | ||
| 75396-28070 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り |
3 | ||
| 75396-28070 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り |
3 | ||
| 75396-28070 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
3 | ||
| 63329A - STOPPER, SUNSHADE LOCK | ||||
| 63329-58010 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 63329-58010 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63329-58010 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 63329-58010 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 63329-58010 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 63329-58010 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63329-58010 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 63329-58010 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 63329-58010 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 63329-58010 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 63329-58010 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 63329-58010 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 63329-58010 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 63329-58010 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 63381A - CLIP, HEADLINING RETAINER | ||||
| 90467-05021A1 |
ANH1#,MNH1#..AS,MS IVORY,TRIM1# |
4 | ||
| 63381A - CLIP, HEADLINING RETAINER | ||||
| 90467-05021A1 |
ANH1#,MNH1#..AS,MS IVORY,TRIM1# |
4 | ||
| 63384B - BRACKET, ROOF HEADLINING TRIM RETAINER | ||||
| 63384-58010 |
ANH1#,MNH1# |
1 | ||
| 63387B - BRACKET, ROOF HEADLINING RETAINER | ||||
| 63387-58030B0 |
ANH1#,MNH1#..4FC..(AS,MS) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ,LT.GRAY,TRIM1# |
1 | ||
| 63387-58030B0 |
ANH1#,MNH1#..4FC..(AS,MS) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ),LT.GRAY,TRIM1# |
1 | ||
| 63387-58030B0 |
ANH1#,MNH1#..4FC..(AS,MS) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63387-58030B0 |
ANH1#,MNH1#..4FC..(AS,MS) SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63387-58030B0 |
ANH1#,MNH1#..4FC..(AS,MS) SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63387-58030B0 |
ANH1#,MNH1#..4FC..(AS,MS) SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ),LT.GRAY,TRIM1# |
1 | ||
| 63387-58030B0 |
ANH1#,MNH1#..4FC..(AS,MS) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63387-58030B0 |
ANH1#,MNH1#..AS,MS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ,LT.GRAY,TRIM1# |
1 | ||
| 63387-58030B0 |
ANH1#,MNH1#..AS,MS SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63387-58030B0 |
ANH1#,MNH1#..AS,MS SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63387-58030B0 |
ANH1#,MNH1#..AS,MS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 63387-58030B0 |
ANH1#,MNH1#..AS,MS SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ,LT.GRAY,TRIM1# |
1 | ||
| 63387-58030B0 |
ANH1#,MNH1#..AS,MS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,LT.GRAY,TRIM1# |
1 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-58010 |
ANH1#,MNH1# |
1 | ||
| 66413-58020 |
ANH1#,MNH1# SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 66413-58020 |
ANH1#,MNH1# SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-58010 |
ANH1#,MNH1# |
1 | ||
| 66413-58020 |
ANH1#,MNH1# SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 66413-58020 |
ANH1#,MNH1# SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 66414A - SPACER, SIDE RAIL, REAR RH | ||||
| 66414-58020 |
ANH1#,MNH1# |
1 | ||
| 66415A - SPACER, SIDE RAIL, REAR NO.2 RH | ||||
| 66415-58010 |
ANH1#,MNH1#..AS,AX,MS,MX |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-58010 |
ANH1#,MNH1# |
1 | ||
| 66424 - SPACER, SIDE RAIL, REAR LH | ||||
| 66424-58020 |
ANH1#,MNH1# |
1 | ||
| 66425A - SPACER, SIDE RAIL, REAR NO.2 LH | ||||
| 66425-58010 |
ANH1#,MNH1#..AS,AX,MS,MX |
1 | ||
| Common parts | ||||
| 90159-50098 | ||||
| 90159-60076 | ||||
| 90159-60596 | ||||
| 90189-06018 | ||||
| 90467-10162 | ||||
| 90467-10178 | ||||
| Linked diagrams | ||||
| 8121 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
