ANH10W-PFPSK (2002)

Toyota Alphard G/V

Production May 2002 - Apr 2005
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0205- )

Click highlighted areas on diagram

U140E,U140F,U241E,U151E,U151F

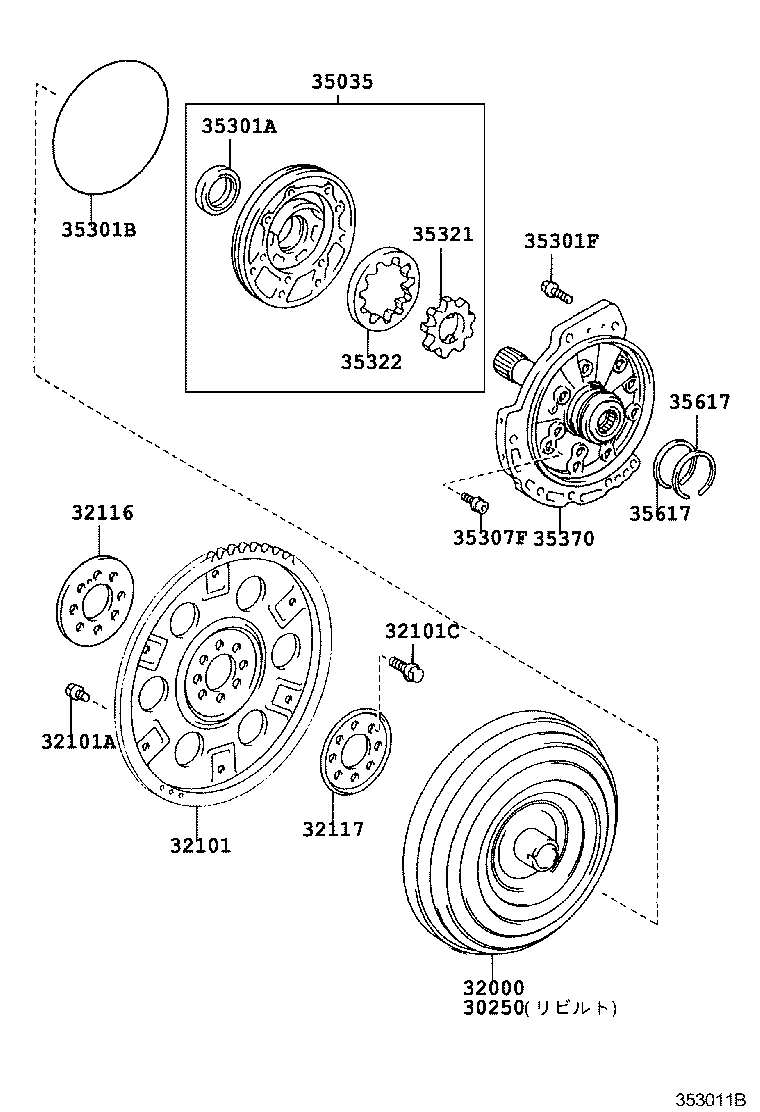

diagram 30250 32000 32101 32101A 32101C 32116 32117 35035 35301A 35301B 35301F 35307F 35321 35322 35370 35617 35617
Part # Description Qty Price
30250 - CONVERTER ASSY, TORQUE, REBUILT
30250-28150

ANH1#

 1
32000 - CONVERTER ASSY, TORQUE
32000-44030

ANH10

 1
32000-28150

ANH10

 1
32101 - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-28040

ANH1#

 1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90119-09025

ANH1#,MNH1#

*9−1.25PX12.4−8.4,ｲｴﾛｰ

 1
90109-09001

ANH1#,MNH1#

*9−1.25PX12.4−7.3,ｸﾞﾘｰﾝ

 1
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90105-12184

ANH1#

*12−1.25PX22−16

 1
32116 - SPACER, DRIVE PLATE, FRONT
32116-20050

ANH1#

 1
32117 - SPACER, DRIVE PLATE, REAR
32117-20060

ANH1#

 1
35035 - BODY SUB-ASSY, FR OIL PUMP & GEAR
35035-21020

ANH10

 1
35035-28010

ANH10,MNH1#..4FC

 1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90311-38083

ANH1#,MNH1#

 1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90301-99099

ANH1#,MNH1#

 1
35301F - BOLT (FOR FRONT OIL PUMP SETTING)
90105-08050

ANH10

*8−1.25PX28−28

 7
35307F - BOLT (FOR STATOR SHAFT)
90148-60027

ANH1#,MNH1#

 11
35321 - GEAR, FRONT OIL PUMP DRIVE
35321-28070

ANH10,MNH1#

厚さ=10.715,ﾏｰｸ 2

 1
35321-28080

ANH10,MNH1#

厚さ=10.715,ﾏｰｸ 3

 1
35321-28100

ANH10,MNH1#

厚さ=10.715,ﾏｰｸ 5

 1
35321-28090

ANH10,MNH1#

厚さ=10.715,ﾏｰｸ 4

 1
35321-21060

ANH10

厚さ=10.690−10.699

 1
35321-21070

ANH10

厚さ=10.700−10.709

 1
35321-28060

ANH10,MNH1#

厚さ=10.715,ﾏｰｸ 1

 1
35321-21080

ANH10

厚さ=10.710−10.720

 1
35321-21090

ANH10

厚さ=10.721−10.730

 1
35321-21100

ANH10

厚さ=10.731−10.740

 1
35322 - GEAR, FRONT OIL PUMP DRIVEN
35322-28060

ANH10,MNH1#

厚さ=10.715,ﾏｰｸ 1

 1
35322-28100

ANH10,MNH1#

厚さ=10.715,ﾏｰｸ 5

 1
35322-28070

ANH10,MNH1#

厚さ=10.715,ﾏｰｸ 2

 1
35322-21080

ANH10

厚さ=10.710−10.720

 1
35322-28090

ANH10,MNH1#

厚さ=10.715,ﾏｰｸ 4

 1
35322-21060

ANH10

厚さ=10.690−10.699

 1
35322-28080

ANH10,MNH1#

厚さ=10.715,ﾏｰｸ 3

 1
35322-21070

ANH10

厚さ=10.700−10.709

 1
35322-21090

ANH10

厚さ=10.721−10.730

 1
35322-21100

ANH10

厚さ=10.731−10.740

 1
35370 - SHAFT ASSY, STATOR
35370-28010

ANH10,MNH1#..4FC

 1
35370-21020

ANH10

 1
35617 - RING, CLUTCH DRUM OIL SEAL
35613-21010

ANH1#,MNH1#

 2
35617 - RING, CLUTCH DRUM OIL SEAL
35613-21010

ANH1#,MNH1#

 2
