ANH10W-PFPGK (2002)

Toyota Alphard G/V

Production May 2002 - Apr 2005
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

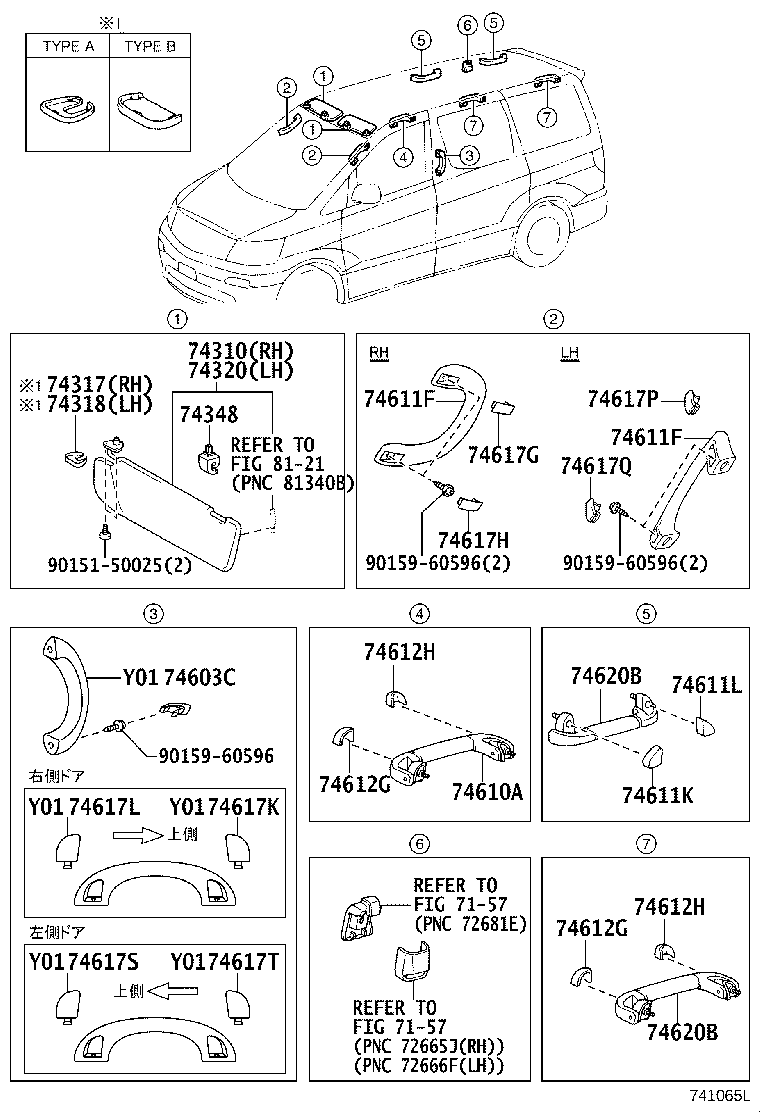

ILLUST NO. 1 OF 2(0205- )

Click highlighted areas on diagram

diagram 7157 7157 74310 74317 74318 74320 74348 74603C 74610A 74611F 74611F 74611K 74611L 74612G 74612G 74612H 74612H 74617G 74617H 74617K 74617L 74617P 74617Q 74617S 74617T 74620B 74620B 8121 9015150025 9015960596 9015960596 9015960596
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-58020A0

ANH1#,MNH1#..AX,MX,MZ

IVORY,TRIM0#

 1
74317 - COVER, VISOR BRACKET, RH
74317-58010A0

ANH1#,MNH1#..AX,MX,MZ

IVORY,TRIM0#

 1
74318 - COVER, VISOR BRACKET, LH
74317-58010A0

ANH1#,MNH1#..AX,MX,MZ

IVORY,TRIM0#

 1
74320 - VISOR ASSY, LH
74320-58020A0

ANH1#,MNH1#..AX,MX,MZ

IVORY,TRIM0#

 1
74348 - HOLDER, VISOR
74348-12040A0

ANH1#,MNH1#..AX,MX,MZ

IVORY,TRIM0#

 2
74603C - GRIP SUB-ASSY, ASSIST
74603-44020A1

ANH1#,MNH1#..AX,MX,MZ

IVORY,TRIM0#

 2
74610A - GRIP SUB-ASSY, ASSIST
74610-58010A0

ANH1#,MNH1#..AX,MX,MZ

IVORY,TRIM0#

 1
74611F - GRIP, ASSIST, NO.1
74610-60010A2

ANH1#,MNH1#..AX,MX,MZ

IVORY,TRIM0#

 2
74611F - GRIP, ASSIST, NO.1
74610-60010A2

ANH1#,MNH1#..AX,MX,MZ

IVORY,TRIM0#

 2
74611K - COVER, ASSIST GRIP, RH FRONT SIDE
74611-58010A0

ANH1#,MNH1#..AX,MX,MZ

IVORY,TRIM0#

 2
74611L - COVER, ASSIST GRIP, RH REAR SIDE
74612-58010A0

ANH1#,MNH1#..AX,MX,MZ

IVORY,TRIM0#

 2
74612G - COVER, ASSIST GRIP, LH FRONT SIDE
74611-58010A0

ANH1#,MNH1#..AX,MX,MZ

IVORY,TRIM0#

 3
74612G - COVER, ASSIST GRIP, LH FRONT SIDE
74611-58010A0

ANH1#,MNH1#..AX,MX,MZ

IVORY,TRIM0#

 3
74612H - COVER, ASSIST GRIP, LH REAR SIDE
74612-58010A0

ANH1#,MNH1#..AX,MX,MZ

IVORY,TRIM0#

 3
74612H - COVER, ASSIST GRIP, LH REAR SIDE
74612-58010A0

ANH1#,MNH1#..AX,MX,MZ

IVORY,TRIM0#

 3
74617G - PLUG, ASSIST GRIP, NO.3 RH
74616-60010A2

ANH1#,MNH1#..AX,MX,MZ

IVORY,TRIM0#

 1
74617H - PLUG, ASSIST GRIP, NO.4 RH
74615-60010A2

ANH1#,MNH1#..AX,MX,MZ

IVORY,TRIM0#

 1
74617K - PLUG, ASSIST GRIP, NO.6 RH
74617-44020A1

ANH1#,MNH1#..AX,MX,MZ

IVORY,TRIM0#

 1
74617L - PLUG, ASSIST GRIP, NO.7 RH
74617-44010A1

ANH1#,MNH1#..AX,MX,MZ

IVORY,TRIM0#

 1
74617P - PLUG, ASSIST GRIP, NO.3 LH
74615-60010A2

ANH1#,MNH1#..AX,MX,MZ

IVORY,TRIM0#

 1
74617Q - PLUG, ASSIST GRIP, NO.4 LH
74616-60010A2

ANH1#,MNH1#..AX,MX,MZ

IVORY,TRIM0#

 1
74617S - PLUG, ASSIST GRIP, NO.6 LH
74617-44010A1

ANH1#,MNH1#..AX,MX,MZ

IVORY,TRIM0#

 1
74617T - PLUG, ASSIST GRIP, NO.7 LH
74617-44020A1

ANH1#,MNH1#..AX,MX,MZ

IVORY,TRIM0#

 1
74620B - GRIP ASSY, ASSIST, REAR
74610-58010A0

ANH1#,MNH1#..AX,MX,MZ

IVORY,TRIM0#

 4
74620B - GRIP ASSY, ASSIST, REAR
74610-58010A0

ANH1#,MNH1#..AX,MX,MZ

IVORY,TRIM0#

 4
Common parts
90151-50025
90159-60596
Linked diagrams
7157
8121

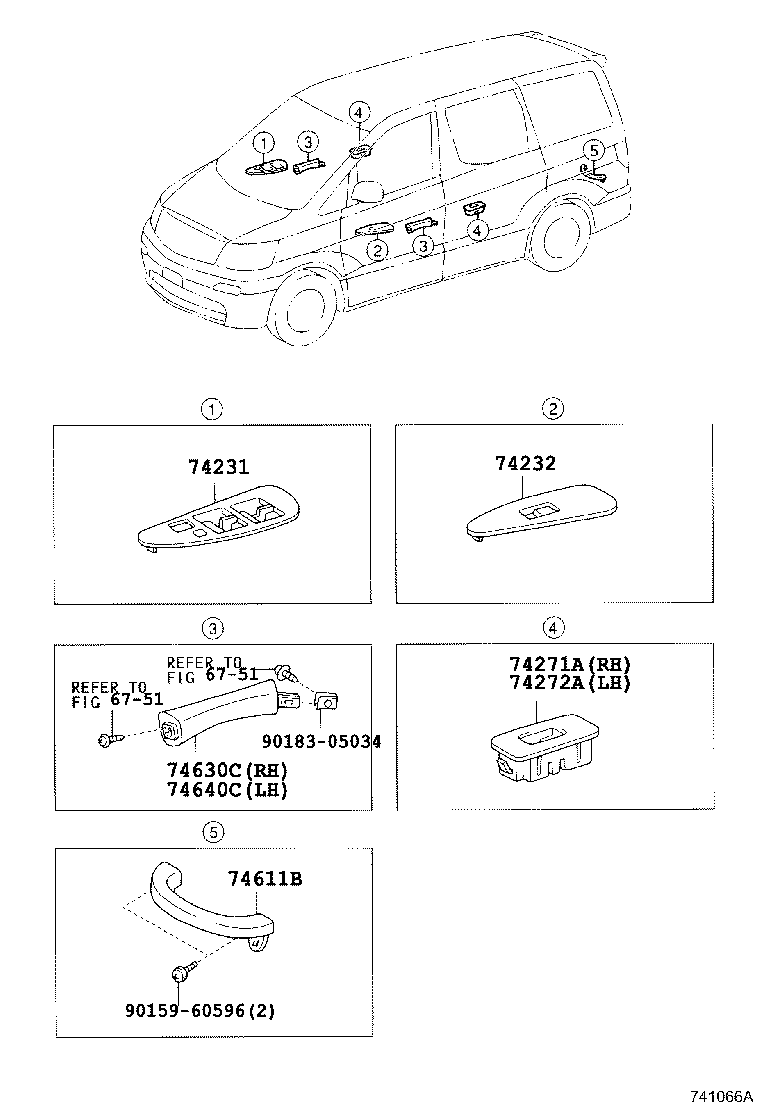

ILLUST NO. 2 OF 2(0205- )

Click highlighted areas on diagram

diagram 6751 6751 74231 74232 74271A 74272A 74611B 74630C 74640C 9015960596 9018305034
Part # Description Qty Price
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-58010E0

ANH1#,MNH1#..AX,MX,MZ

ORCHID BROWN,TRIM0#

 1
74231-58020E0

ANH1#,MNH1#..AX,MX,MZ

有り(ﾂｲﾝﾑｰﾝﾙｰﾌ),ORCHID BROWN,TRIM0#

 1
74231-58020E0

ANH1#,MNH1#..AX,MX,MZ

有り(ﾂｲﾝﾑｰﾝﾙｰﾌ),ORCHID BROWN,TRIM0#

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-58010E0

ANH1#,MNH1#..AX,MX,MZ

ORCHID BROWN,TRIM0#

 1
74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH
74271-58010E0

ANH1#,MNH1#..AX,MX,MZ

ORCHID BROWN,TRIM0#

 1
74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH
74271-58010E0

ANH1#,MNH1#..AX,MX,MZ

ORCHID BROWN,TRIM0#

 1
74611B - GRIP, ASSIST
74611-20030A1

ANH1#,MNH1#..AX,MX,MZ

IVORY,TRIM0#

 1
74630C - GRIP ASSY, DOOR ASSIST, RH
74630-58010E0

ANH1#,MNH1#..AX,MX,MZ

ORCHID BROWN,TRIM0#

 1
74640C - GRIP ASSY, DOOR ASSIST, LH
74640-58010E0

ANH1#,MNH1#..AX,MX,MZ

ORCHID BROWN,TRIM0#

 1
Common parts
90159-60596
90183-05034
Linked diagrams
6751
