ANH10W-PFPGK (2002)
Toyota Alphard G/V

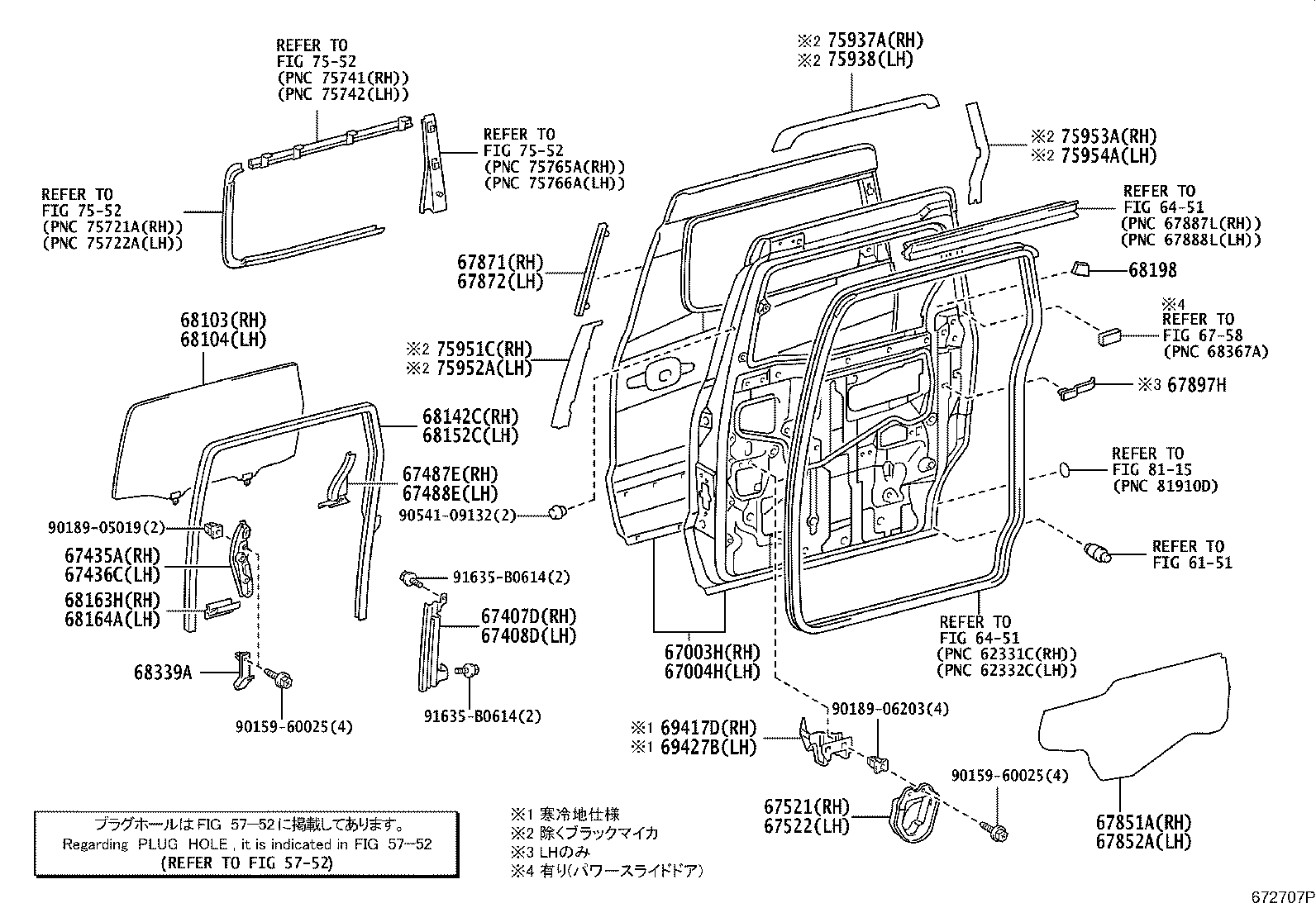

ILLUST NO. 1 OF 2(0205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003H - DOOR SUB-ASSY, SLIDE, RH | ||||
| 67003-58010 |
ANH1#,MNH1#..AX,MX |
1 | ||
| 67003-58030 |
ANH1#,MNH1#..AX,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り |
1 | ||
| 67004H - DOOR SUB-ASSY, SLIDE, LH | ||||
| 67004-58010 |
ANH1#,MNH1#..AX,MX |
1 | ||
| 67004-58020 |
ANH10,MNH10..07S..(AX,MX) ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)&ﾊﾞｯｸﾄﾞｱｲｰｼﾞｰｸﾛｰｻﾞｰ有り |
1 | ||
| 67004-58020 |
ANH1#,MNH1#..AX,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り |
1 | ||
| 67004-58020 |
ANH1#,MNH1#..AX,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)有り |
1 | ||
| 67407D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH | ||||
| 67407-58010 |
ANH1#,MNH1# |
1 | ||
| 67408D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH | ||||
| 67408-58010 |
ANH1#,MNH1# |
1 | ||
| 67435A - GUIDE, REAR DOOR WINDOW, FRONT RH | ||||
| 67435-58010 |
ANH1#,MNH1# |
1 | ||
| 67436C - GUIDE, REAR DOOR WINDOW, FRONT LH | ||||
| 67436-58010 |
ANH1#,MNH1# |
1 | ||
| 67487E - GARNISH, REAR DOOR REAR GUIDE BRACKET, RH | ||||
| 67487-58010 |
ANH1#,MNH1# |
1 | ||
| 67488E - GARNISH, REAR DOOR REAR GUIDE BRACKET, LH | ||||
| 67488-58010 |
ANH1#,MNH1# |
1 | ||
| 67521 - COVER SUB-ASSY, SLIDE DOOR PANEL, RH | ||||
| 67521-58010 |
ANH1#,MNH1# |
1 | ||
| 67522 - COVER SUB-ASSY, SLIDE DOOR PANEL, LH | ||||
| 67522-58010 |
ANH1#,MNH1# |
1 | ||
| 67851A - COVER, SLIDE DOOR SERVICE HOLE, NO.1 | ||||
| 67851-58010 |
ANH1#,MNH1# |
1 | ||
| 67852A - COVER, SLIDE DOOR SERVICE HOLE, NO.2 | ||||
| 67852-58010 |
ANH1#,MNH1# |
1 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67865-58010 |
ANH1#,MNH1# |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67866-58010 |
ANH1#,MNH1# |
1 | ||
| 67897H - CUSHION, REAR DOOR | ||||
| 67897-58010 |
ANH1#,MNH1# |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-58010 |
ANH1#,MNH1# *TEM,厚さ=4.0,ﾀﾞｰｸｸﾞﾚｰ |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-58010 |
ANH1#,MNH1# *TEM,厚さ=4.0,ﾀﾞｰｸｸﾞﾚｰ |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-58010 |
ANH1#,MNH1# |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-58010 |
ANH1#,MNH1# |
1 | ||
| 68163H - WEATHERSTRIP, REAR DOOR GLASS, OUTER RH | ||||
| 68163-58010 |
ANH1#,MNH1# |
1 | ||
| 68164A - WEATHERSTRIP, REAR DOOR GLASS, OUTER LH | ||||
| 68163-58010 |
ANH1#,MNH1# |
1 | ||
| 68198 - SEAL, REAR DOOR BELT, REAR RH | ||||
| 68198-58010 |
ANH1#,MNH1# |
2 | ||
| 68339A - GUIDE, SLIDE DOOR CABLE | ||||
| 68339-58010 |
ANH1#,MNH1# |
2 | ||
| 69417D - COVER, SLIDE DOOR OPEN STOP, RH | ||||
| 69417-58010 |
ANH1#,MNH1# 寒冷地仕様 |
1 | ||
| 69427B - COVER, SLIDE DOOR OPEN STOP, LH | ||||
| 69427-58010 |
ANH1#,MNH1# 寒冷地仕様 |
1 | ||
| 75937A - TAPE, BLACK OUT, INNER UPPER RH | ||||
| 75937-58010 |
ANH1#,MNH1# |
1 | ||
| 75938 - TAPE, BLACK OUT, INNER UPPER LH | ||||
| 75938-58010 |
ANH1#,MNH1# |
1 | ||
| 75951C - TAPE, BLACK OUT, INNER FRONT RH | ||||
| 75951-58010 |
ANH1#,MNH1# |
1 | ||
| 75952A - TAPE, BLACK OUT, INNER FRONT LH | ||||
| 75952-58010 |
ANH1#,MNH1# |
1 | ||
| 75953A - TAPE, BLACK OUT, INNER REAR RH | ||||
| 75953-58010 |
ANH1#,MNH1# |
1 | ||
| 75954A - TAPE, BLACK OUT, INNER REAR LH | ||||
| 75954-58010 |
ANH1#,MNH1# |
1 | ||
| Common parts | ||||
| 90159-60025 | ||||
| 90189-05019 | ||||
| 90189-06203 | ||||
| 90541-09132 | ||||
| 91635-B0614 | ||||
| Linked diagrams | ||||
| 5752 | ||||
| 6151 | ||||
| 6451 | ||||
| 6758 | ||||
| 7552 | ||||
| 8115 | ||||

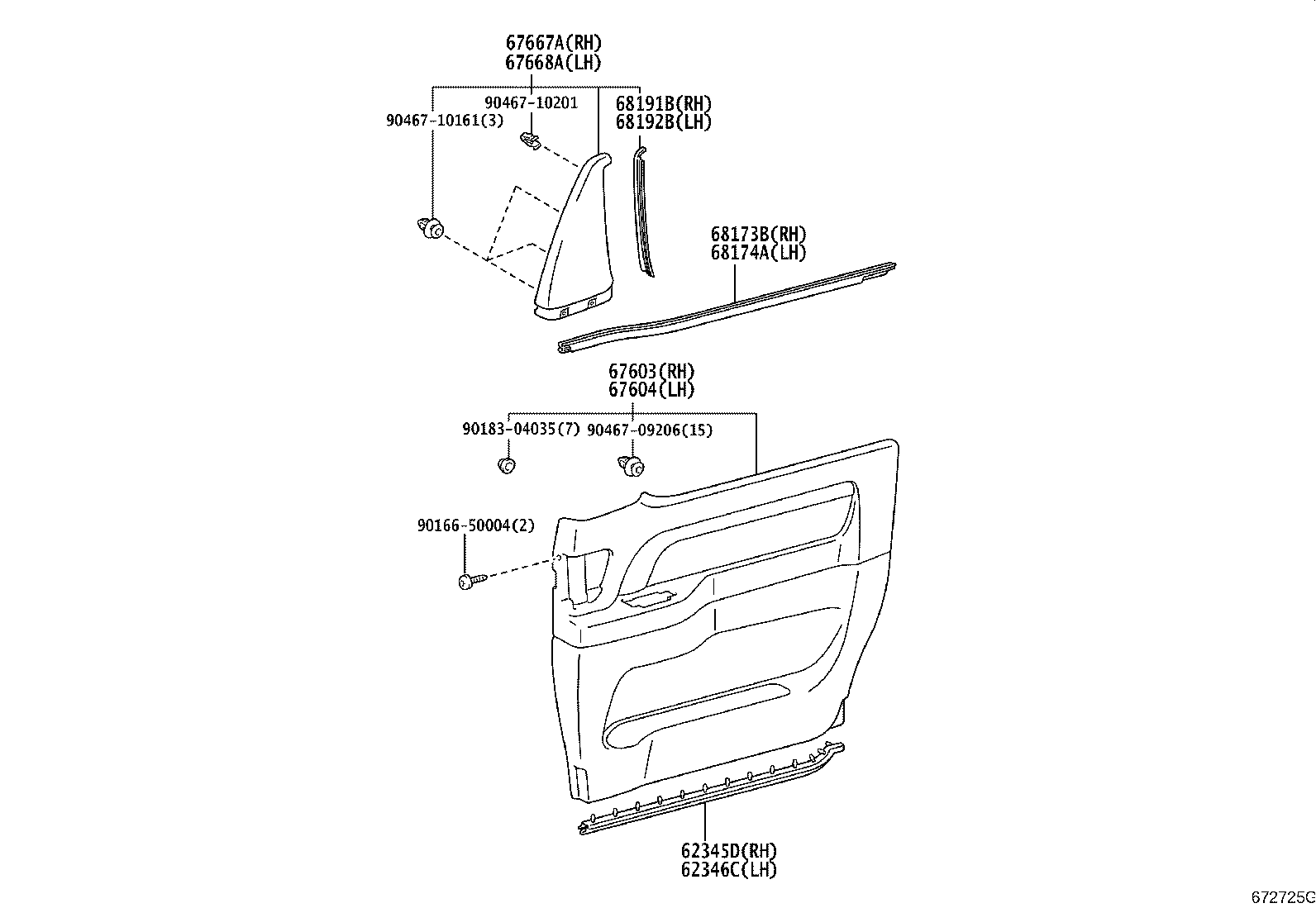

ILLUST NO. 2 OF 2(0205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62345D - WEATHERSTRIP, SLIDE DOOR, NO.3 RH | ||||
| 62345-58010 |
ANH1#,MNH1# |
1 | ||
| 62346C - WEATHERSTRIP, SLIDE DOOR, NO.3 LH | ||||
| 62346-58010 |
ANH1#,MNH1# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67680-58010A1 |
ANH1#,MNH1#..4FC..(AX,MX) IVORY,TRIM0# |
1 | ||
| 67680-58090A0 |
ANH1#,MNH1#..AX,MX IVORY,TRIM0# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67690-58010A1 |
ANH1#,MNH1#..4FC..(AX,MX) IVORY,TRIM0# |
1 | ||
| 67690-58090A0 |
ANH1#,MNH1#..AX,MX IVORY,TRIM0# |
1 | ||
| 67667A - GARNISH, SLIDE DOOR WINDOW, RH | ||||
| 67667-58010A0 |
ANH1#,MNH1#..AX,MX IVORY,TRIM0# |
1 | ||
| 67668A - GARNISH, SLIDE DOOR WINDOW, LH | ||||
| 67668-58010A0 |
ANH1#,MNH1#..AX,MX IVORY,TRIM0# |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-58010 |
ANH1#,MNH1# |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-58010 |
ANH1#,MNH1# |
1 | ||
| 68191B - RUN, REAR DOOR GLASS, NO.2 RH | ||||
| 68191-58010 |
ANH1#,MNH1# |
1 | ||
| 68192B - RUN, REAR DOOR GLASS, NO.2 LH | ||||
| 68192-58010 |
ANH1#,MNH1# |
1 | ||
| Common parts | ||||
| 90166-50004 | ||||
| 90183-04035 | ||||
| 90467-09206 | ||||
| 90467-10161 | ||||
| 90467-10201 | ||||
