ANH10W-PFPGK (2002)
Toyota Alphard G/V
(0205- )

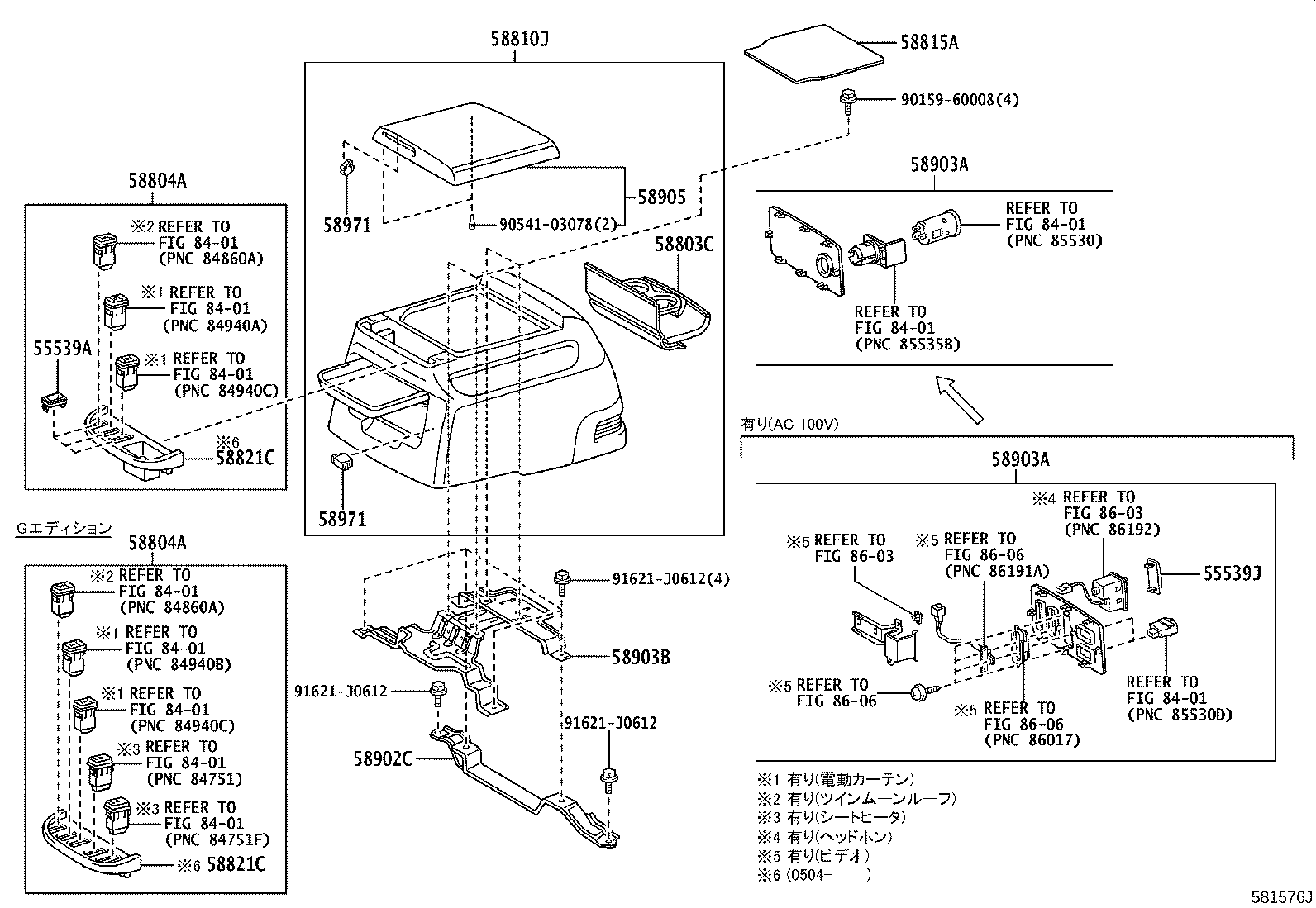

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-58010A0 |
ANH1#,MNH1#..4FC..(AX,MX) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ),IVORY,TRIM0# |
2 | ||
| 55539-58010A0 |
ANH1#,MNH1#..AX,MX 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ),IVORY,TRIM0# |
2 | ||
| 55539-58010A0 |
ANH1#,MNH1#..AX,MX IVORY,TRIM0# |
3 | ||
| 55539J - COVER, SPARE SWITCH HOLE | ||||
| 55539-58020A0 |
ANH1#,MNH1#..4FC..(AX,MX,MZ) ｱｸｾｻﾘｰｺﾈｸﾀｰ−有り(AC100V=ｲﾝﾊﾞｰﾀ付/2個)&VTR端子有り,IVORY,TRIM0# |
2 | ||
| 55539-58020A0 |
ANH1#,MNH1#..AX,MX,MZ ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ),IVORY,TRIM0# |
2 | ||
| 58803C - BOX SUB-ASSY, CONSOLE CUP HOLDER | ||||
| 58803-58010A0 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM0# |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-58030A0 |
ANH1#,MNH1#..4FC..(AX,MX) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ),IVORY,TRIM0# |
1 | ||
| 58804-58010A0 |
ANH1#,MNH1#..AX,MX IVORY,TRIM0# |
1 | ||
| 58804-58030A0 |
ANH1#,MNH1#..AX,MX 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ),IVORY,TRIM0# |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-58030A0 |
ANH1#,MNH1#..4FC..(AX,MX) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ),IVORY,TRIM0# |
1 | ||
| 58804-58010A0 |
ANH1#,MNH1#..AX,MX IVORY,TRIM0# |
1 | ||
| 58804-58030A0 |
ANH1#,MNH1#..AX,MX 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ),IVORY,TRIM0# |
1 | ||
| 58810J - BOX ASSY, CONSOLE | ||||
| 58810-58010A0 |
ANH1#,MNH1#..AX,MX IVORY,TRIM0# |
1 | ||
| 58815A - CARPET, CONSOLE BOX | ||||
| 58815-58010 |
ANH1#,MNH1# |
1 | ||
| 58902C - BRACKET SUB-ASSY, CONSOLE BOX MOUNTING | ||||
| 58902-58010 |
ANH1#,MNH1# |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-58050A0 |
ANH1#,MNH1#..4FC..(AX,MX,MZ) ｱｸｾｻﾘｰｺﾈｸﾀｰ−有り(AC100V=ｲﾝﾊﾞｰﾀ付/2個)&VTR端子有り,IVORY,TRIM0# |
1 | ||
| 58903-58060A0 |
ANH1#,MNH1#..AX,MX,MZ ｱｸｾｻﾘｰｺﾈｸﾀｰ−有り(AC100V=ｲﾝﾊﾞｰﾀ付/2個)&VTR端子&ﾍｯﾄﾞﾎｰﾝ端子有り,IVORY,TRIM0# |
1 | ||
| 58903-58020A0 |
ANH1#,MNH1#..4FC..(AX,MX,MZ) ｱｸｾｻﾘｰｺﾈｸﾀｰ−有り(AC100V=ｲﾝﾊﾞｰﾀ付/2個),IVORY,TRIM0# |
1 | ||
| 58903-58010A0 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM0# |
1 | ||
| 58903-58060A0 |
ANH1#,MNH1#..AX,MX,MZ ｱｸｾｻﾘｰｺﾈｸﾀｰ−有り(AC100V=ｲﾝﾊﾞｰﾀ付/2個)&VTR端子&ﾜｲﾔﾚｽﾍｯﾄﾞﾎｰﾝ有り,IVORY,TRIM0# |
1 | ||
| 58903-58060A0 |
ANH1#,MNH1#..AX,MX,MZ ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,IVORY,TRIM0# |
1 | ||
| 58903-58050A0 |
ANH1#,MNH1#..AX,MX,MZ ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ),IVORY,TRIM0# |
1 | ||
| 58903-58060A0 |
ANH1#,MNH1#..AX,MX,MZ ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,IVORY,TRIM0# |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-58050A0 |
ANH1#,MNH1#..4FC..(AX,MX,MZ) ｱｸｾｻﾘｰｺﾈｸﾀｰ−有り(AC100V=ｲﾝﾊﾞｰﾀ付/2個)&VTR端子有り,IVORY,TRIM0# |
1 | ||
| 58903-58060A0 |
ANH1#,MNH1#..AX,MX,MZ ｱｸｾｻﾘｰｺﾈｸﾀｰ−有り(AC100V=ｲﾝﾊﾞｰﾀ付/2個)&VTR端子&ﾍｯﾄﾞﾎｰﾝ端子有り,IVORY,TRIM0# |
1 | ||
| 58903-58020A0 |
ANH1#,MNH1#..4FC..(AX,MX,MZ) ｱｸｾｻﾘｰｺﾈｸﾀｰ−有り(AC100V=ｲﾝﾊﾞｰﾀ付/2個),IVORY,TRIM0# |
1 | ||
| 58903-58010A0 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM0# |
1 | ||
| 58903-58060A0 |
ANH1#,MNH1#..AX,MX,MZ ｱｸｾｻﾘｰｺﾈｸﾀｰ−有り(AC100V=ｲﾝﾊﾞｰﾀ付/2個)&VTR端子&ﾜｲﾔﾚｽﾍｯﾄﾞﾎｰﾝ有り,IVORY,TRIM0# |
1 | ||
| 58903-58060A0 |
ANH1#,MNH1#..AX,MX,MZ ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,IVORY,TRIM0# |
1 | ||
| 58903-58050A0 |
ANH1#,MNH1#..AX,MX,MZ ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ),IVORY,TRIM0# |
1 | ||
| 58903-58060A0 |
ANH1#,MNH1#..AX,MX,MZ ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,IVORY,TRIM0# |
1 | ||
| 58903B - BRACKET SUB-ASSY, CONSOLE BOX HINGE, NO.2 | ||||
| 58902-58020 |
ANH1#,MNH1# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-58010A0 |
ANH1#,MNH1#..AX,MX IVORY,TRIM0# |
1 | ||
| 58971 - LOCK, CONSOLE COMPARTMENT DOOR | ||||
| 58971-26010 |
ANH1#,MNH1# |
2 | ||
| 58971 - LOCK, CONSOLE COMPARTMENT DOOR | ||||
| 58971-26010 |
ANH1#,MNH1# |
2 | ||
| Common parts | ||||
| 90159-60008 | ||||
| 90541-03078 | ||||
| 91621-J0612 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8603 | ||||
| 8606 | ||||
