ANH10W-PFPGK (2002)

Toyota Alphard G/V

Production May 2002 - Apr 2005
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0205- )

Click highlighted areas on diagram

U140E,U140F,U241E,U151E,U151F

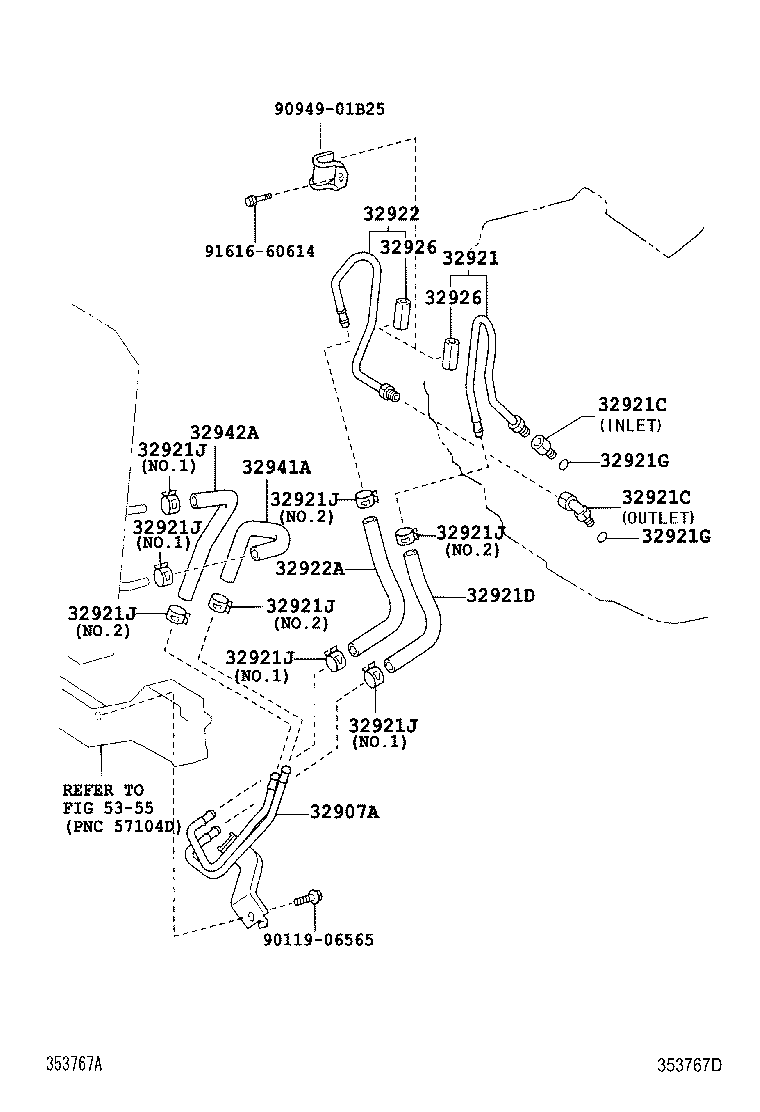

diagram 32907A 32921 32921C 32921C 32921D 32921G 32921G 32921J 32921J 32921J 32921J 32921J 32921J 32921J 32921J 32922 32922A 32926 32926 32941A 32942A 5355 9011906565 9094901B25 9161660614
Part # Description Qty Price
32907A - TUBE, OIL COOLER
32907-58020

ANH1#,MNH1#

 1
32921 - TUBE, OIL COOLER INLET, NO.1
32921-58020

ANH1#,MNH1#

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-16031

ANH1#,MNH1#

ｲﾝﾚｯﾄ

 1
90407-16010

ANH1#,MNH1#

ｱｳﾄﾚｯﾄ

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-16031

ANH1#,MNH1#

ｲﾝﾚｯﾄ

 1
90407-16010

ANH1#,MNH1#

ｱｳﾄﾚｯﾄ

 1
32921D - HOSE(FOR OIL COOLER INLET)
90445-17088

ANH1#,MNH1#

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

ANH1#,MNH1#

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

ANH1#,MNH1#

 2
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

ANH1#,MNH1#

 8
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

ANH1#,MNH1#

 8
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

ANH1#,MNH1#

 8
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

ANH1#,MNH1#

 8
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

ANH1#,MNH1#

 8
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

ANH1#,MNH1#

 8
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

ANH1#,MNH1#

 8
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

ANH1#,MNH1#

 8
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-58020

ANH1#,MNH1#

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
32941-22360

ANH1#,MNH1#

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

ANH1#,MNH1#

長さ=35,内径=10

 2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

ANH1#,MNH1#

長さ=35,内径=10

 2
32941A - HOSE, OIL COOLER INLET, NO.2
32943-58040

ANH1#,MNH1#

 1
32942A - HOSE, OIL COOLER OUTLET, NO.2
32943-58030

ANH1#,MNH1#

 1
Common parts
90119-06565
90949-01B25
91616-60614
Linked diagrams
5355
