ANH10W-PFPGK (2002)

Toyota Alphard G/V

Production May 2002 - Apr 2005
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0205- )2AZFE

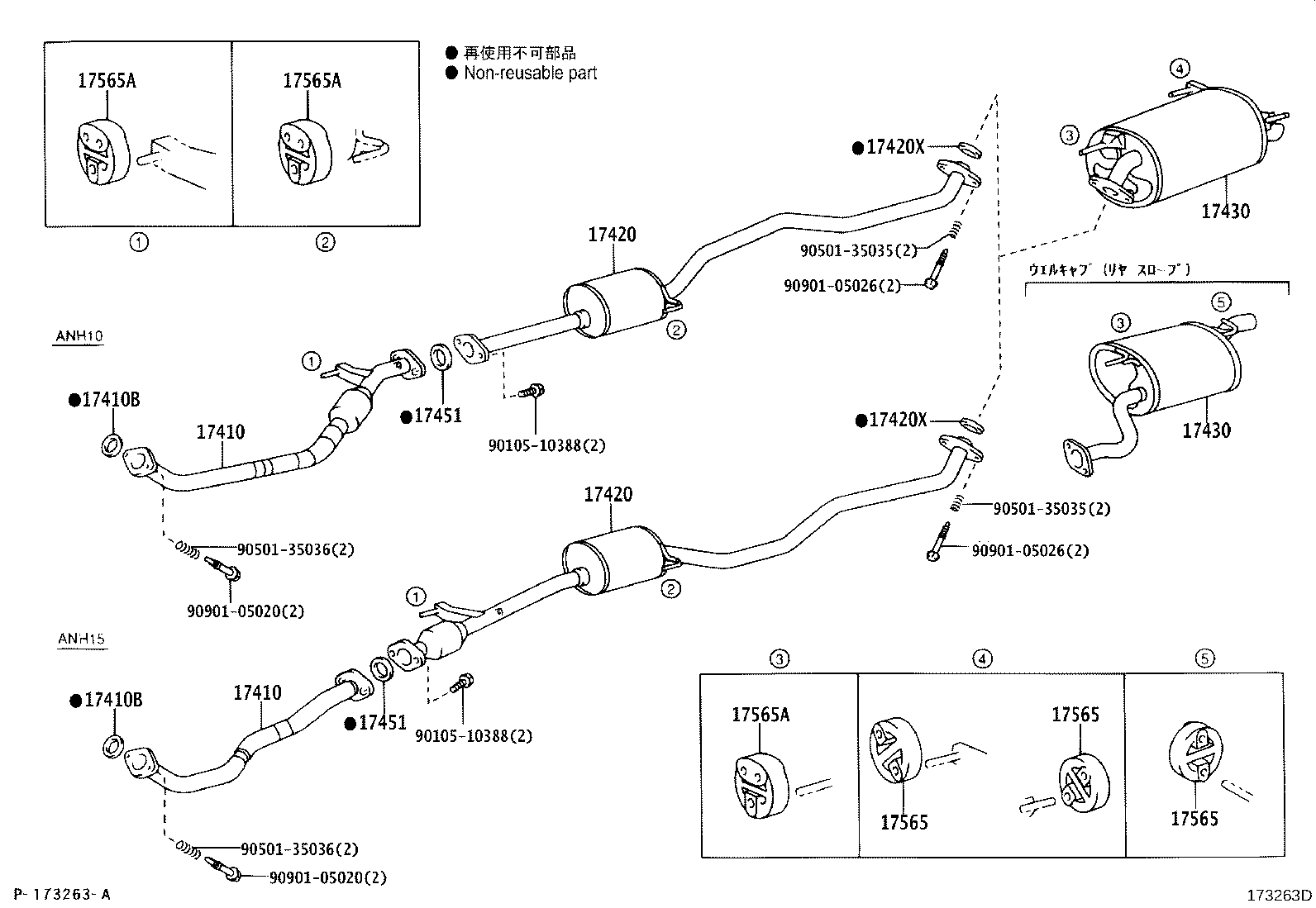

Click highlighted areas on diagram

diagram 17410 17410 17410B 17410B 17420 17420 17420X 17420X 17430 17430 17451 17451 17565 17565 17565 17565A 17565A 17565A 9010510388 9010510388 9050135035 9050135035 9050135036 9050135036 9090105020 9090105020 9090105026 9090105026
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17401-28060

2AZFE..ANH10

 1
17401-28080

2AZFE..ANH10

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17401-28060

2AZFE..ANH10

 1
17401-28080

2AZFE..ANH10

 1
17410B - GASKET, EXHAUST PIPE
17451-22070

2AZFE..ANH1#

 1
17451-22070

2AZFE..ANH10..07S..AX

ﾘﾔｽﾛｰﾌﾟﾀｲﾌﾟ1

 1
17410B - GASKET, EXHAUST PIPE
17451-22070

2AZFE..ANH1#

 1
17451-22070

2AZFE..ANH10..07S..AX

ﾘﾔｽﾛｰﾌﾟﾀｲﾌﾟ1

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-28260

2AZFE..ANH10..07S..AX

ﾘﾔｽﾛｰﾌﾟﾀｲﾌﾟ1

 1
17403-28060

2AZFE..ANH10

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-28260

2AZFE..ANH10..07S..AX

ﾘﾔｽﾛｰﾌﾟﾀｲﾌﾟ1

 1
17403-28060

2AZFE..ANH10

 1
17420X - GASKET, EXHAUST PIPE, CENTER
17451-54010

2AZFE,1MZFE..ANH1#,MNH1#

 1
17451-54010

2AZFE,1MZFE..ANH10,MNH10..07S..(AX,MX,MZ)

ﾘﾔｽﾛｰﾌﾟﾀｲﾌﾟ1

 1
17420X - GASKET, EXHAUST PIPE, CENTER
17451-54010

2AZFE,1MZFE..ANH1#,MNH1#

 1
17451-54010

2AZFE,1MZFE..ANH10,MNH10..07S..(AX,MX,MZ)

ﾘﾔｽﾛｰﾌﾟﾀｲﾌﾟ1

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-20030

2AZFE,1MZFE..ANH10,MNH10..07S..(AX,MX,MZ)

ﾘﾔｽﾛｰﾌﾟﾀｲﾌﾟ1

 1
17430-20090

2AZFE,1MZFE..ANH10,MNH10..07S..(AX,MX,MZ)

ﾘﾔｽﾛｰﾌﾟﾀｲﾌﾟ1

 1
17405-20030

2AZFE,1MZFE..ANH1#,MNH1#..AX,MX,MZ

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-20030

2AZFE,1MZFE..ANH10,MNH10..07S..(AX,MX,MZ)

ﾘﾔｽﾛｰﾌﾟﾀｲﾌﾟ1

 1
17430-20090

2AZFE,1MZFE..ANH10,MNH10..07S..(AX,MX,MZ)

ﾘﾔｽﾛｰﾌﾟﾀｲﾌﾟ1

 1
17405-20030

2AZFE,1MZFE..ANH1#,MNH1#..AX,MX,MZ

 1
17451 - GASKET, EXHAUST PIPE
90917-06047

2AZFE,1MZFE..ANH10,MNH10..07S..(AX,MX,MZ)

ﾘﾔｽﾛｰﾌﾟﾀｲﾌﾟ1

 1
90917-06047

2AZFE,1MZFE..ANH10,MNH1#

 1
17451 - GASKET, EXHAUST PIPE
90917-06047

2AZFE,1MZFE..ANH10,MNH10..07S..(AX,MX,MZ)

ﾘﾔｽﾛｰﾌﾟﾀｲﾌﾟ1

 1
90917-06047

2AZFE,1MZFE..ANH10,MNH1#

 1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-15140

2AZFE,1MZFE..ANH1#,MNH1#

 2
17565-20060

2AZFE,1MZFE..ANH10,MNH10..07S..(AX,MX,MZ)

ﾘﾔｽﾛｰﾌﾟﾀｲﾌﾟ1

 1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-15140

2AZFE,1MZFE..ANH1#,MNH1#

 2
17565-20060

2AZFE,1MZFE..ANH10,MNH10..07S..(AX,MX,MZ)

ﾘﾔｽﾛｰﾌﾟﾀｲﾌﾟ1

 1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-15140

2AZFE,1MZFE..ANH1#,MNH1#

 2
17565-20060

2AZFE,1MZFE..ANH10,MNH10..07S..(AX,MX,MZ)

ﾘﾔｽﾛｰﾌﾟﾀｲﾌﾟ1

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-74320

2AZFE,1MZFE..ANH10,MNH10..07S..(AX,MX,MZ)

ﾘﾔｽﾛｰﾌﾟﾀｲﾌﾟ1

 3
17565-74320

2AZFE,1MZFE..ANH1#,MNH1#

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-74320

2AZFE,1MZFE..ANH10,MNH10..07S..(AX,MX,MZ)

ﾘﾔｽﾛｰﾌﾟﾀｲﾌﾟ1

 3
17565-74320

2AZFE,1MZFE..ANH1#,MNH1#

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-74320

2AZFE,1MZFE..ANH10,MNH10..07S..(AX,MX,MZ)

ﾘﾔｽﾛｰﾌﾟﾀｲﾌﾟ1

 3
17565-74320

2AZFE,1MZFE..ANH1#,MNH1#

 3
Common parts
90105-10388
90501-35035
90501-35036
90901-05020
90901-05026
