GGH35W-PFZVK (2020)
Toyota Alphard/Vellfire/Hv

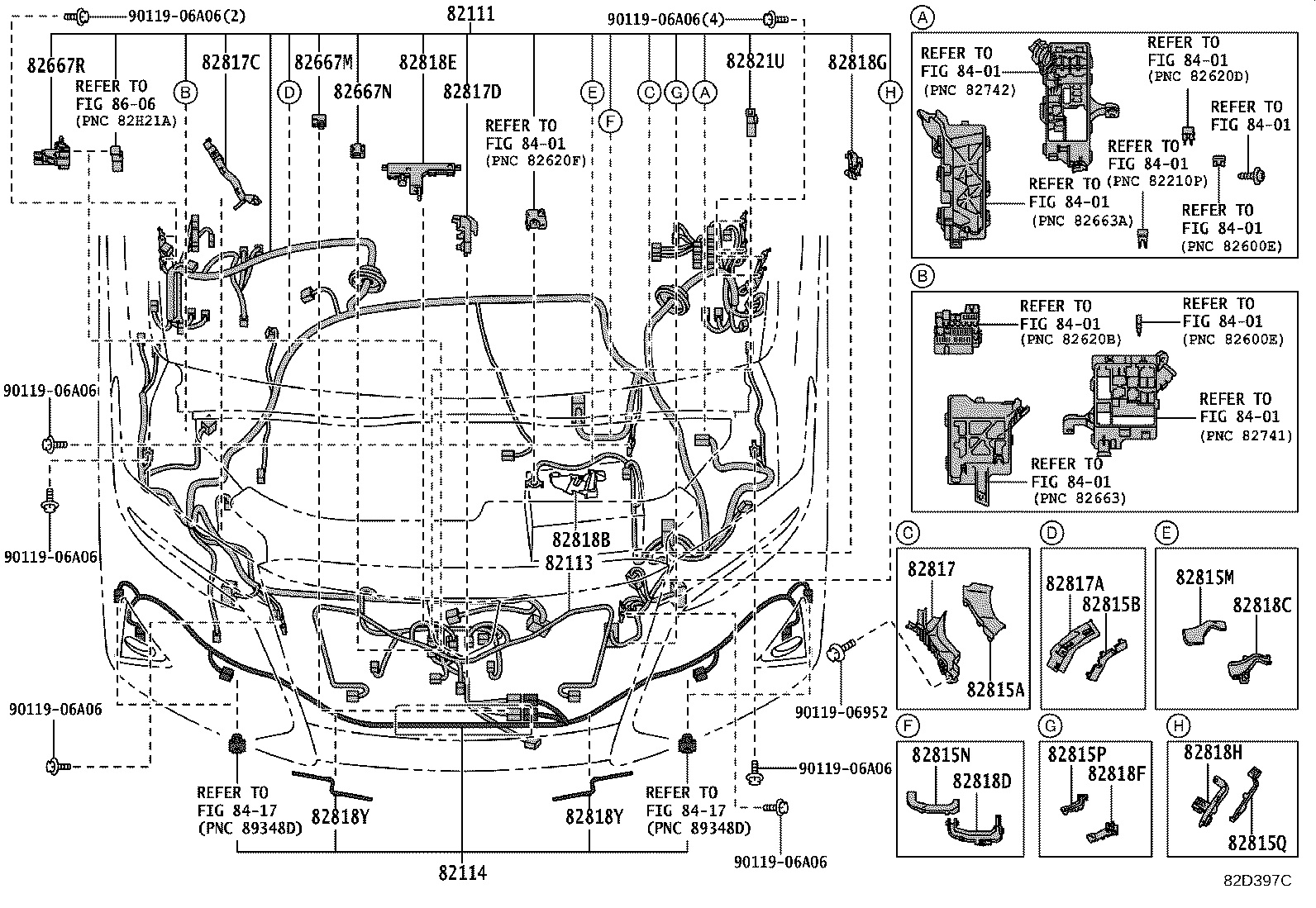

ILLUST NO. 1 OF12(2001- )GGH3#
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-58B40 |
GGH3#..ALPHD..(EL,ELS) 寒冷地仕様 |
1 | ||
| 82111-58B30 |
GGH3#..ALPHD..(EL,ELS) |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-58530 |
AYH30,GGH3#..ALPHD..(EL,ELS) |
1 | ||
| 82113-58520 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X) |
1 | ||
| 82113-58530 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X) ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-58640 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) |
1 | ||
| 82114-58630 |
AYH30,GGH3#..ALPHD..EL |
1 | ||
| 82114-58660 |
AGH3#,AYH30,GGH3#..S,SC,SR |
1 | ||
| 82114-58650 |
AGH3#,AYH30,GGH3#..S,SC,SR ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 82114-58630 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 82667M - HOLDER, CONNECTOR, NO.27 | ||||
| 82666-58620 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 82667N - HOLDER, CONNECTOR, NO.28 | ||||
| 82666-58660 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 82667R - HOLDER, CONNECTOR, NO.29 | ||||
| 82666-58720 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-58650 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-28B20 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 82815M - COVER, WIRING HARNESS PROTECTOR, NO.10 | ||||
| 82815-58A60 |
AGH3#..07S..Z;AGH3#,GGH3#..ALPHD |
1 | ||
| 82815N - COVER, WIRING HARNESS PROTECTOR, NO.11 | ||||
| 82815-58B50 |
GGH3#..ALPHD |
1 | ||
| 82815P - COVER, WIRING HARNESS PROTECTOR, NO.12 | ||||
| 82815-58B80 |
GGH3#..ALPHD..(EL,ELS) |
1 | ||
| 82815-58B80 |
AGH35..07S..Z;AGH35,GGH3#..ALPHD..(G,GF,S,SC,X) ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 82815-58B80 |
AGH35..07S..Z;AGH35,GGH3#..ALPHD..(G,GF,S,SC,X) 寒冷地仕様&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 82815Q - COVER, WIRING HARNESS PROTECTOR, NO.13 | ||||
| 82815-58B90 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-58D10 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-28G20 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-58G80 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-58J00 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 82818B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-58L70 |
AGH3#..07S..Z;AGH3#,GGH3#..ALPHD |
1 | ||
| 82818C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-58J80 |
AGH3#..07S..Z;AGH3#,GGH3#..ALPHD |
1 | ||
| 82818D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-58L80 |
GGH3#..ALPHD |
1 | ||
| 82818E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-58L90 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 82818F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-58M00 |
AGH35..07S..Z;AGH35,GGH3#..ALPHD..(G,GF,S,SC,X) ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 82817-58M00 |
AGH35..07S..Z;AGH35,GGH3#..ALPHD..(G,GF,S,SC,X) 寒冷地仕様&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 82817-58M00 |
GGH3#..ALPHD..(EL,ELS) |
1 | ||
| 82818G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-58M10 |
AGH3#..07S..Z;AGH3#,GGH3#..ALPHD |
1 | ||
| 82818H - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-58M20 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 82821U - COVER, CONNECTOR | ||||
| 82821-58160 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X) ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 82821-58160 |
AYH30,GGH3#..ALPHD..(EL,ELS) |
1 | ||
| Common parts | ||||
| 90119-06952 | ||||
| 90119-06A06 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8417 | ||||
| 8606 | ||||
ILLUST NO. 3 OF12(2001- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82133 - WIRE, COWL, NO.3 | ||||
| 82133-58B80 |
AGH3#,GGH3#..V,VL,ZG;AYH30..VFIRE..(V,X,ZR) |
1 | ||
| 82133-58B60 |
AGH3#,GGH3#..V,VL,ZG;AYH30..VFIRE..(V,X,ZR) ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−13.3ｲﾝﾁﾘﾔﾓﾆﾀ |
1 | ||
| 82133-58C70 |
AGH3#,GGH3#..V,VL,ZG;AYH30..VFIRE..(V,X,ZR) ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−用品ﾌﾞﾗｹｯﾄ |
1 | ||
| 82133-58B80 |
AYH30..Z;AGH3#,GGH3#..G,GF,SC;AYH30..ALPHD..(G,S,SR,X) |
1 | ||
| 82133-58B60 |
AYH30..Z;AGH3#,GGH3#..G,GF,SC;AYH30..ALPHD..(G,S,SR,X) ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−13.3ｲﾝﾁﾘﾔﾓﾆﾀ |
1 | ||
| 82133-58B60 |
AYH30,GGH3#..ALPHD..(EL,ELS) |
1 | ||
| 82133-V2050 |
AYH30,GGH3#..ALPHD..(EL,ELS) |
1 | ||
| 82133-V2050 |
AYH30..Z;AGH3#,GGH3#..G,GF,SC;AYH30..ALPHD..(G,S,SR,X) ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−13.3ｲﾝﾁﾘﾔﾓﾆﾀ |
1 | ||
| 82133-V2070 |
AYH30..Z;AGH3#,GGH3#..G,GF,SC;AYH30..ALPHD..(G,S,SR,X) |
1 | ||
| 82133-58C70 |
AYH30..Z;AGH3#,GGH3#..G,GF,SC;AYH30..ALPHD..(G,S,SR,X) ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−用品ﾌﾞﾗｹｯﾄ |
1 | ||
| 82133-V2120 |
AYH30..Z;AGH3#,GGH3#..G,GF,SC;AYH30..ALPHD..(G,S,SR,X) ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−用品ﾌﾞﾗｹｯﾄ |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-58880 |
AGH35,GGH3#..V,VL,ZG |
1 | ||
| 82141-58880 |
AGH35,GGH3#..EL,ELS,ELZ,G,GF,SC |
1 | ||
| 82141-V2050 |
AGH35,GGH3#..G,GF,SC |
1 | ||
| 82141-V2160 |
GGH3#..ALPHD..(EL,ELS) |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-58260 |
AGH3#,AYH30..07S..Z;AGH3#,GGH3#..G,GF,S,SC;AYH30..ALPHD..(G,S,SR,X) |
1 | ||
| 82142-58280 |
AYH30,GGH3#..ALPHD..(EL,ELS) |
1 | ||
| 82142-58260 |
AGH3#..08S..Z;AGH3#,GGH3#..V,VL,ZG;AYH30..VFIRE..(V,X,ZR) |
1 | ||
| 82142-58280 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X) ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り&ETC−有り(ETC2.0) |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-58020 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 82143 - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82143-58120 |
AYH30,GGH3#..ALPHD..(EL,ELS) |
1 | ||
| 82143-58120 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X) ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 82143-V2010 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X) ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 82143-V2010 |
AYH30,GGH3#..ALPHD..(EL,ELS) |
1 | ||
| 82143-58090 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X) |
1 | ||
| 82144 - WIRE, INSTRUMENT PANEL, NO.4 | ||||
| 82144-V2010 |
AYH30,GGH3#..ALPHD..(EL,ELS) |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-58350 |
AGH3#,GGH3#..V,VL,ZG;AYH30..VFIRE..(V,X,ZR) ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個&ITS Connect−有り |
1 | ||
| 82163-58360 |
AGH3#,GGH3#..V,VL,ZG;AYH30..VFIRE..(V,X,ZR) ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個 |
1 | ||
| 82163-58390 |
AGH3#,GGH3#..V,VL,ZG;AYH30..VFIRE..(V,X,ZR) |
1 | ||
| 82163-58310 |
GGH3#..ALPHD..(EL,ELS) ITS Connect−有り |
1 | ||
| 82163-58350 |
GGH3#..ALPHD..(EL,ELS) ﾛｲﾔﾙﾗｳﾝｼﾞ&ITS Connect−有り |
1 | ||
| 82163-58380 |
AGH3#,GGH3#..V,VL,ZG;AYH30..VFIRE..(V,X,ZR) ITS Connect−有り |
1 | ||
| 82163-58320 |
GGH3#..ALPHD..(EL,ELS) |
1 | ||
| 82163-58350 |
AYH30..Z;AGH3#,GGH3#..G,GF,SC;AYH30..ALPHD..(G,S,SR,X) ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個&ITS Connect−有り |
1 | ||
| 82163-58360 |
AYH30..Z;AGH3#,GGH3#..G,GF,SC;AYH30..ALPHD..(G,S,SR,X) ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個 |
1 | ||
| 82163-58380 |
AYH30..Z;AGH3#,GGH3#..G,GF,SC;AYH30..ALPHD..(G,S,SR,X) ITS Connect−有り |
1 | ||
| 82163-58360 |
GGH3#..ALPHD..(EL,ELS) ﾛｲﾔﾙﾗｳﾝｼﾞ |
1 | ||
| 82163-V2030 |
GGH3#..ALPHD..(EL,ELS) ITS Connect−有り |
1 | ||
| 82163-V2040 |
GGH3#..ALPHD..(EL,ELS) |
1 | ||
| 82163-58390 |
AYH30..Z;AGH3#,GGH3#..G,GF,SC;AYH30..ALPHD..(G,S,SR,X) |
1 | ||
| 82163-V2080 |
AYH30..Z;AGH3#,GGH3#..G,GF,SC;AYH30..ALPHD..(G,S,SR,X) |
1 | ||
| 82163-V2080 |
GGH3#..ALPHD..(EL,ELS) ﾛｲﾔﾙﾗｳﾝｼﾞ |
1 | ||
| 82163-V2070 |
GGH3#..ALPHD..(EL,ELS) ﾛｲﾔﾙﾗｳﾝｼﾞ&ITS Connect−有り |
1 | ||
| 82163-V2070 |
AYH30..Z;AGH3#,GGH3#..G,GF,SC;AYH30..ALPHD..(G,S,SR,X) ITS Connect−有り |
1 | ||
| 82166 - WIRE, CONSOLE BOX | ||||
| 82166-58280 |
AYH30..Z;AYH30..ALPHD;AGH3#,GGH3#..ALPHD..(EL,ELS,G,GF,SC) |
1 | ||
| 82166-58290 |
AYH30,GGH3#..ALPHD..(EL,ELS,G,GF,SC,SR) おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-58390 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-58400 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-58420 |
AGH3#,AYH30..ALPHD;AYH30..VFIRE..(EL,ELZ,V,Z,ZR);AGH3#,GGH3#..07S..(EL,ELS,ELZ,GF,SC,Z) |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-58430 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-26180 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
3 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-26180 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
3 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-26180 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
3 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-60030 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 82667E - HOLDER, CONNECTOR, NO.20 | ||||
| 82666-58350 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 82667F - HOLDER, CONNECTOR, NO.21 | ||||
| 82666-58540 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 82667L - HOLDER, CONNECTOR, NO.26 | ||||
| 82666-58610 |
AYH30..Z;AYH30..ALPHD;AGH3#,GGH3#..ALPHD..(EL,ELS,G,GF,SC) |
1 | ||
| 82667W - HOLDER, CONNECTOR, NO.34 | ||||
| 82666-48370 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 82667X - HOLDER, CONNECTOR, NO.35 | ||||
| 82666-58700 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 82667Z - HOLDER, CONNECTOR, NO.37 | ||||
| 82666-V2010 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 82F66A - HOLDER, CONNECTOR, NO.38 | ||||
| 82666-V2020 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90119-06A06 | ||||
| 91673-80620 | ||||
| 94151-80600 | ||||
ILLUST NO. 4 OF12(2001- )
ﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-58390 |
AGH3#,AYH30,GGH3#..V,VL,ZG,ZR ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 82151-58390 |
AYH30,GGH3#..ALPHD..(EL,ELS) |
1 | ||
| 82151-58400 |
AGH3#,AYH30,GGH3#..V,VL,ZG,ZR |
1 | ||
| 82151-58390 |
AGH3#,AYH30,GGH3#..G,GF,SC,SR ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 82151-58400 |
AGH3#,AYH30,GGH3#..G,GF,SC,SR |
1 | ||
| 82151-V2020 |
AYH30,GGH3#..ALPHD..(EL,ELS) |
1 | ||
| 82151-V2030 |
AGH3#,AYH30,GGH3#..G,GF,SC,SR |
1 | ||
| 82151-V2020 |
AGH3#,AYH30,GGH3#..G,GF,SC,SR ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-58370 |
AGH3#,AYH30,GGH3#..V,VL,ZG,ZR |
1 | ||
| 82152-58360 |
AGH3#,AYH30,GGH3#..V,VL,ZG,ZR ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 82152-58360 |
AYH30,GGH3#..ALPHD..(EL,ELS) |
1 | ||
| 82152-58360 |
AGH3#,AYH30,GGH3#..G,GF,SC,SR ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 82152-V2050 |
AGH3#,AYH30,GGH3#..G,GF,SC,SR |
1 | ||
| 82152-V2040 |
AGH3#,AYH30,GGH3#..G,GF,SC,SR ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 82152-V2040 |
AYH30,GGH3#..ALPHD..(EL,ELS) |
1 | ||
| 82152-58370 |
AGH3#,AYH30,GGH3#..G,GF,SC,SR |
1 | ||
| 82153A - WIRE, REAR DOOR, RH | ||||
| 82053-58090 |
AYH30..Z;AYH30..ALPHD;AGH3#,GGH3#..ALPHD..(EL,ELS,G,GF,SC) |
1 | ||
| 82154A - WIRE, REAR DOOR, LH | ||||
| 82054-58210 |
AGH3#,GGH3#..V,VL;AYH30..VFIRE..07S..(X,ZR) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| 82054-58080 |
AYH30..ALPHD;AGH3#,AYH30..07S..Z;AGH3#..ALPHD..08S..X;AGH3#,GGH3#..ALPHD..(EL,ELS,G,GF,S,SC) |
1 | ||
| 82054-58090 |
AYH30..ALPHD..07S..(SR,X);AGH3#,GGH3#..ALPHD..07S..(GF,S,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| 82054-58090 |
AYH30..ALPHD..07S..(SR,X);AGH3#,GGH3#..ALPHD..07S..(GF,S,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式) |
1 | ||
| 82054-58210 |
AYH30..ALPHD..07S..(SR,X);AGH3#,GGH3#..07S..(G,GF,S,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| 82054-V2030 |
AYH30..ALPHD..07S..(SR,X);AGH3#,GGH3#..07S..(G,GF,S) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-58240 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) |
1 | ||
| 82182-58250 |
AGH3#..S;AGH3#..07S..Z;AYH30,GGH3#..S,SC,SR,Z ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 82182-58230 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 82182-58230 |
AYH30,GGH3#..ALPHD..EL |
1 | ||
| 82182-58260 |
AGH3#..S;AGH3#..07S..Z;AYH30,GGH3#..S,SC,SR,Z |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-58620 |
AGH3#,AYH30,GGH3#..V,VL,ZG |
1 | ||
| 82184-58630 |
AGH3#,AYH30,GGH3#..V,VL,ZG ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 82184-58620 |
AGH3#,AYH30,GGH3#..G,GF,SC |
1 | ||
| 82184-58630 |
AGH3#,AYH30,GGH3#..G,GF,SC ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 82184-58630 |
AYH30,GGH3#..ALPHD..(EL,ELS) |
1 | ||
| 82184-58620 |
AGH3#,AYH30,GGH3#..07S..(G,GF,SC,SR,Z) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 82184-V2010 |
AGH3#,AYH30,GGH3#..07S..(G,GF,SC,SR,Z) |
1 | ||
| 82184-58630 |
AGH3#,AYH30,GGH3#..07S..(G,GF,SC,SR,Z) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SPJBL |
1 | ||
| 82184-V2020 |
AGH3#,AYH30,GGH3#..07S..(G,GF,SC,SR,Z) ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 82505 - WIRING SUB-ASSY, FRONT DOOR, RH | ||||
| 82505-58020 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,ELS,G,GF,SC,SR) |
1 | ||
| 82507 - WIRING SUB-ASSY, REAR DOOR, RH | ||||
| 82507-58010 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 82508 - WIRING SUB-ASSY, REAR DOOR, LH | ||||
| 82507-58010 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 82666Z - HOLDER, CONNECTOR NO.19 | ||||
| 82666-58680 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 82667T - HOLDER, CONNECTOR, NO.31 | ||||
| 82666-58680 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 82712D - SUPPORT, WIRING HARNESS | ||||
| 82712-58281 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 82712D - SUPPORT, WIRING HARNESS | ||||
| 82712-58281 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 82817T - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-58E20 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 82817U - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-58E20 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| Common parts | ||||
| 82711-34490 | ||||
| 82712-60550 | ||||
| 90119-06915 | ||||
| 90119-06A06 | ||||
| 91553-80614 | ||||
| 91553-80620 | ||||
| Linked diagrams | ||||
| 8417 | ||||
ILLUST NO. 5 OF12(2001- )
ﾌﾛｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-58A80 |
GGH3#..ALPHD |
1 | ||
| 82161-V2150 |
GGH3#..ALPHD |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-58A60 |
AGH3#,GGH3#..ALPHD..(EL,ELS,G,GF,SC) |
1 | ||
| 82162-V2090 |
AGH3#,GGH3#..G,GF,SC ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−13.3ｲﾝﾁﾘﾔﾓﾆﾀ |
1 | ||
| 82162-V2090 |
AGH3#,GGH3#..G,GF,SC ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−用品ﾌﾞﾗｹｯﾄ |
1 | ||
| 82162-V2090 |
GGH3#..ALPHD..(EL,ELS) |
1 | ||
| 82162-V2370 |
AGH3#,GGH3#..G,GF,SC |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-58080 |
AGH35..07S..Z;AGH35,GGH35..ALPHD |
1 | ||
| 82666N - HOLDER, CONNECTOR NO.10 | ||||
| 82666-58730 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 82666P - HOLDER, CONNECTOR NO.11 | ||||
| 82666-58340 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 82666Q - HOLDER, CONNECTOR NO.12 | ||||
| 82666-58360 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 82666S - HOLDER, CONNECTOR NO.13 | ||||
| 82666-58740 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 82666T - HOLDER, CONNECTOR NO.14 | ||||
| 82666-58590 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 82666V - HOLDER, CONNECTOR NO.15 | ||||
| 82666-58580 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 82666W - HOLDER, CONNECTOR NO.16 | ||||
| 82666-58330 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 82666Y - HOLDER, CONNECTOR NO.18 | ||||
| 82666-58500 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 82667G - HOLDER, CONNECTOR, NO.22 | ||||
| 82666-58530 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 82667K - HOLDER, CONNECTOR, NO.25 | ||||
| 82666-58600 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 82667V - HOLDER, CONNECTOR, NO.33 | ||||
| 82666-58670 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-58810 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 82824A - CONNECTOR, WIRING HARNESS | ||||
| 82824-58070 |
AYH30..Z;AYH30..ALPHD..(G,S,SR,X);AGH3#,GGH3#..ALPHD..07S..(G,GF,SC,X) |
1 | ||
| 82824-58070 |
AYH30..Z;AYH30..ALPHD..(G,S,SR,X);AGH3#,GGH3#..ALPHD..07S..(G,GF,SC,X) ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 82824-58070 |
AYH30..Z;AYH30..ALPHD..(G,S,SR,X);AGH3#,GGH3#..ALPHD..07S..(G,GF,SC,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 82824-58070 |
AYH30..Z;AYH30..ALPHD..(G,S,SR,X);AGH3#,GGH3#..ALPHD..07S..(G,GF,SC,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SPJBL |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-58070 |
AGH35,AYH30..07S..Z;AGH35,AYH30..ALPHD..(G,S,SR,X);AGH30,GGH3#..ALPHD..07S..(G,GF,SC,X) |
1 | ||
| 82824-58070 |
AGH35,AYH30..07S..Z;AGH35,AYH30..ALPHD..(G,S,SR,X);AGH30,GGH3#..ALPHD..07S..(G,GF,SC,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SPJBL |
1 | ||
| 82824-58070 |
AGH35,AYH30..07S..Z;AGH35,AYH30..ALPHD..(G,S,SR,X);AGH30,GGH3#..ALPHD..07S..(G,GF,SC,X) ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 82824-58070 |
AGH35,AYH30..07S..Z;AGH35,AYH30..ALPHD..(G,S,SR,X);AGH30,GGH3#..ALPHD..07S..(G,GF,SC,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 890C0 - WIRE ASSY, PARKING BRAKE, NO.1 | ||||
| 890C0-58010 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 890C0A - WIRE ASSY, PARKING BRAKE, NO.2 | ||||
| 890C0-58020 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| Common parts | ||||
| 8826A-58010 | ||||
| 8826A-58020 | ||||
| 90119-06A06 | ||||
| 91673-A0616 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
