GGH35W-PFZRK (2018)

Toyota Alphard/Vellfire/Hv

Production Jan 2018 - Jan 2020
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1801- )AGH3#,GGH3#..G,GF,V,VL

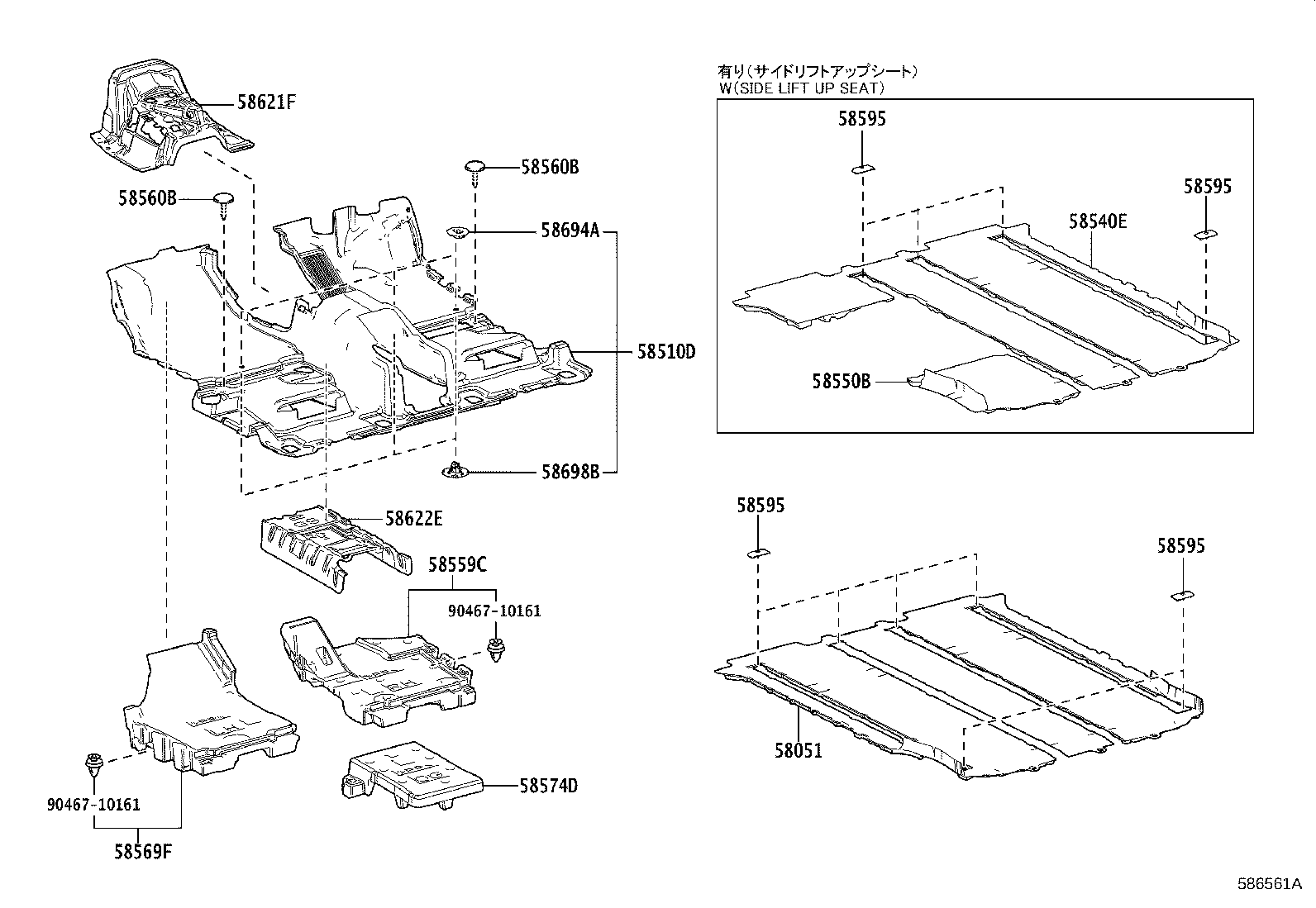

Click highlighted areas on diagram

diagram 58051 58510D 58540E 58550B 58559C 58560B 58560B 58569F 58574D 58595 58595 58595 58595 58621F 58622E 58694A 58698B 9046710161 9046710161
Part # Description Qty Price
58051 - MAT SET, FLOOR
58051-58330B1

AYH30..07S..(G,V,X);AGH3#,GGH3#..G,GF,V,VL

DK. GREY,TRIM0#

 1
58051-58340B1

GGH3#..SC,ZG

DK. GREY,TRIM2#

 1
58051-58340B1

AYH30,GGH3#..G,GF,V,VL

“Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,DK. GREY,TRIM0#

 1
58510D - CARPET ASSY, FLOOR, FRONT
58500-58200C1

GGH3#..ELS,ELZ,SC,ZG

DK. GREY,TRIM2#

 1
58500-58200C1

AGH3#,GGH3#..G,GF,V,VL

DK. GREY,TRIM0#

 1
58540E - MAT ASSY, FLOOR, REAR RH
58540-58070B0

AYH30..07S..X;AGH3#,GGH3#..G,GF,V,VL

ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(標準ﾀｲﾌﾟ),DK. GREY,TRIM0#

 1
58550B - MAT ASSY, FLOOR, REAR LH
58550-58020B0

AYH30..07S..X;AGH3#,GGH3#..G,GF,V,VL

ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(標準ﾀｲﾌﾟ),DK. GREY,TRIM0#

 1
58559C - PAD, FRONT FLOOR SIDE, RH
58559-58010

AGH3#,AYH30,GGH3#

 1
58560B - CLIP(FOR FLOOR CARPET, REAR)
90467-05164C7

AGH3#,AYH30,GGH3#

BLACK

 2
58560B - CLIP(FOR FLOOR CARPET, REAR)
90467-05164C7

AGH3#,AYH30,GGH3#

BLACK

 2
58569F - PAD, FRONT FLOOR SIDE, LH
58569-58010

AGH3#,AYH30,GGH3#

 1
58574D - PAD, FRONT FLOOR, CENTER NO.2 RH
58574-58010

AGH3#,GGH3#..EL,ELS,ELZ,G,GF,SC,V,VL,ZG

 1
58595 - MOULDING, FLOOR CARPET, NO.3
58595-28100C0

AYH30..07S..X;AGH3#,GGH3#..G,GF,V,VL

ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(標準ﾀｲﾌﾟ),BLACK,TRIM0#

 4
58595-28100C0

AYH30,GGH3#..G,GF,V,VL

“Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK,TRIM0#

 4
58595-28100C0

AYH30,GGH3#..ELS,ELZ,SC,ZG

BLACK,TRIM2#

 4
58595-28100C0

AGH3#..G,V;AGH3#..08S..X;AYH30,GGH3#..G,GF,V,VL,X

BLACK,TRIM0#

 6
58595 - MOULDING, FLOOR CARPET, NO.3
58595-28100C0

AYH30..07S..X;AGH3#,GGH3#..G,GF,V,VL

ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(標準ﾀｲﾌﾟ),BLACK,TRIM0#

 4
58595-28100C0

AYH30,GGH3#..G,GF,V,VL

“Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK,TRIM0#

 4
58595-28100C0

AYH30,GGH3#..ELS,ELZ,SC,ZG

BLACK,TRIM2#

 4
58595-28100C0

AGH3#..G,V;AGH3#..08S..X;AYH30,GGH3#..G,GF,V,VL,X

BLACK,TRIM0#

 6
58595 - MOULDING, FLOOR CARPET, NO.3
58595-28100C0

AYH30..07S..X;AGH3#,GGH3#..G,GF,V,VL

ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(標準ﾀｲﾌﾟ),BLACK,TRIM0#

 4
58595-28100C0

AYH30,GGH3#..G,GF,V,VL

“Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK,TRIM0#

 4
58595-28100C0

AYH30,GGH3#..ELS,ELZ,SC,ZG

BLACK,TRIM2#

 4
58595-28100C0

AGH3#..G,V;AGH3#..08S..X;AYH30,GGH3#..G,GF,V,VL,X

BLACK,TRIM0#

 6
58595 - MOULDING, FLOOR CARPET, NO.3
58595-28100C0

AYH30..07S..X;AGH3#,GGH3#..G,GF,V,VL

ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(標準ﾀｲﾌﾟ),BLACK,TRIM0#

 4
58595-28100C0

AYH30,GGH3#..G,GF,V,VL

“Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK,TRIM0#

 4
58595-28100C0

AYH30,GGH3#..ELS,ELZ,SC,ZG

BLACK,TRIM2#

 4
58595-28100C0

AGH3#..G,V;AGH3#..08S..X;AYH30,GGH3#..G,GF,V,VL,X

BLACK,TRIM0#

 6
58621F - SILENCER, CENTER CONSOLE, NO.1
58621-58010

AGH3#,AYH30,GGH3#..EL,ELS,ELZ,G,GF,SC,SR,V,VL,ZG,ZR

 1
58622E - SILENCER, CENTER CONSOLE, NO.2
58622-58010

AGH3#,GGH3#..EL,ELS,ELZ,G,GF,SC,V,VL,ZG

 1
58694A - PLATE, MAT SET, UPPER
58694-78010

AGH3#,AYH30,GGH3#

 3
58698B - PLATE, MAT SET, LOWER
58698-78010

AGH3#,AYH30,GGH3#

 3
Common parts
90467-10161
