GGH35W-PFZQK (2018)

Toyota Alphard/Vellfire/Hv

Production Jan 2018 - Jan 2020
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1801- )GGH3#

Click highlighted areas on diagram

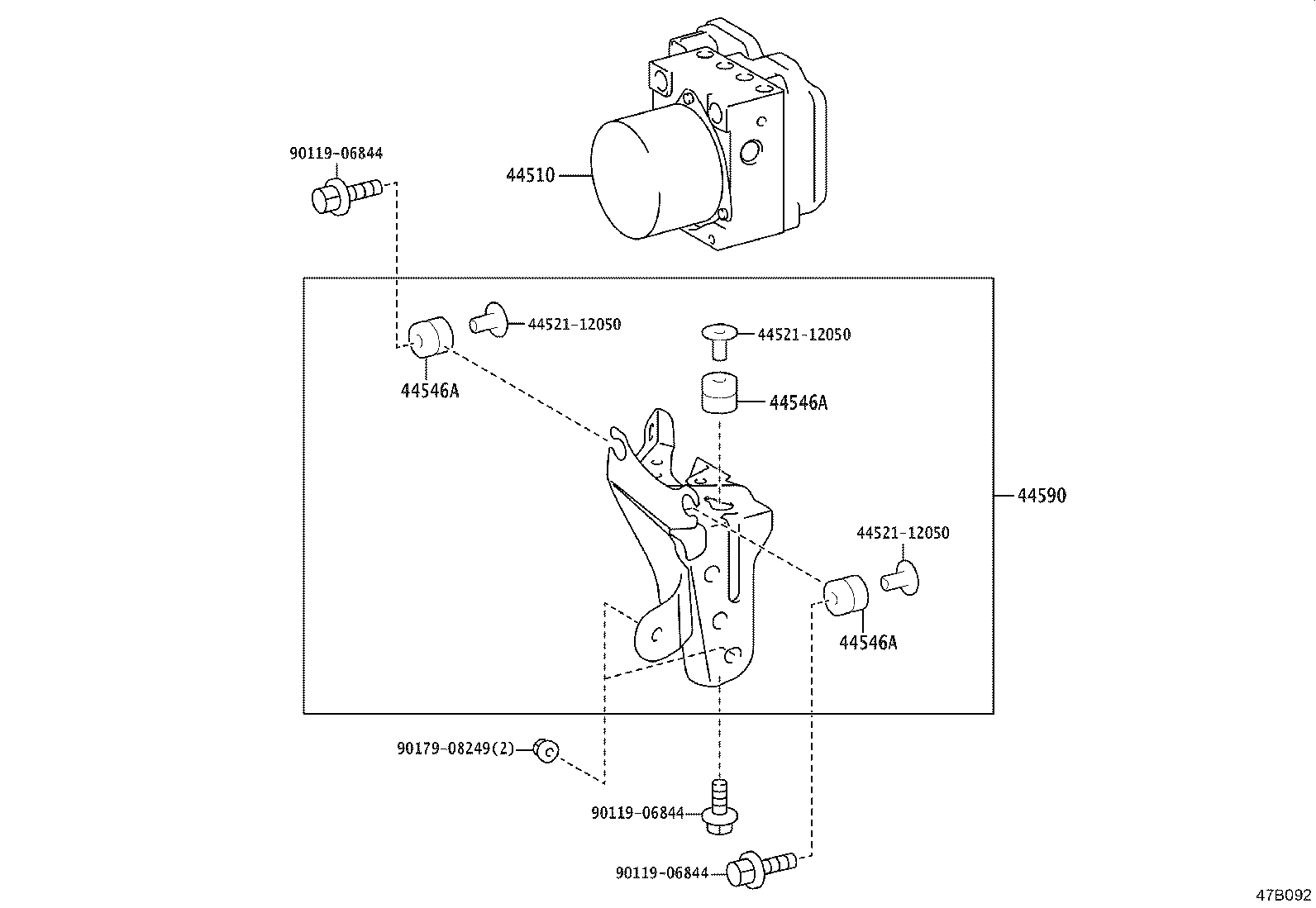

diagram 44510 4452112050 4452112050 4452112050 44546A 44546A 44546A 44590 9011906844 9011906844 9011906844 9017908249
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-58270

GGH3#..GF,SC,VL,ZG

 1
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

AGH3#,GGH3#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

AGH3#,GGH3#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

AGH3#,GGH3#

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-58040

GGH3#

 1
Common parts
44521-12050
90119-06844
90179-08249
