GGH35W-PFTVK (2015)

Toyota Alphard/Vellfire/Hv

Production Jan 2015 - Jan 2018
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1501- )AGH35 ; (1501- )GGH35..6FC ; (1801- )GGH35

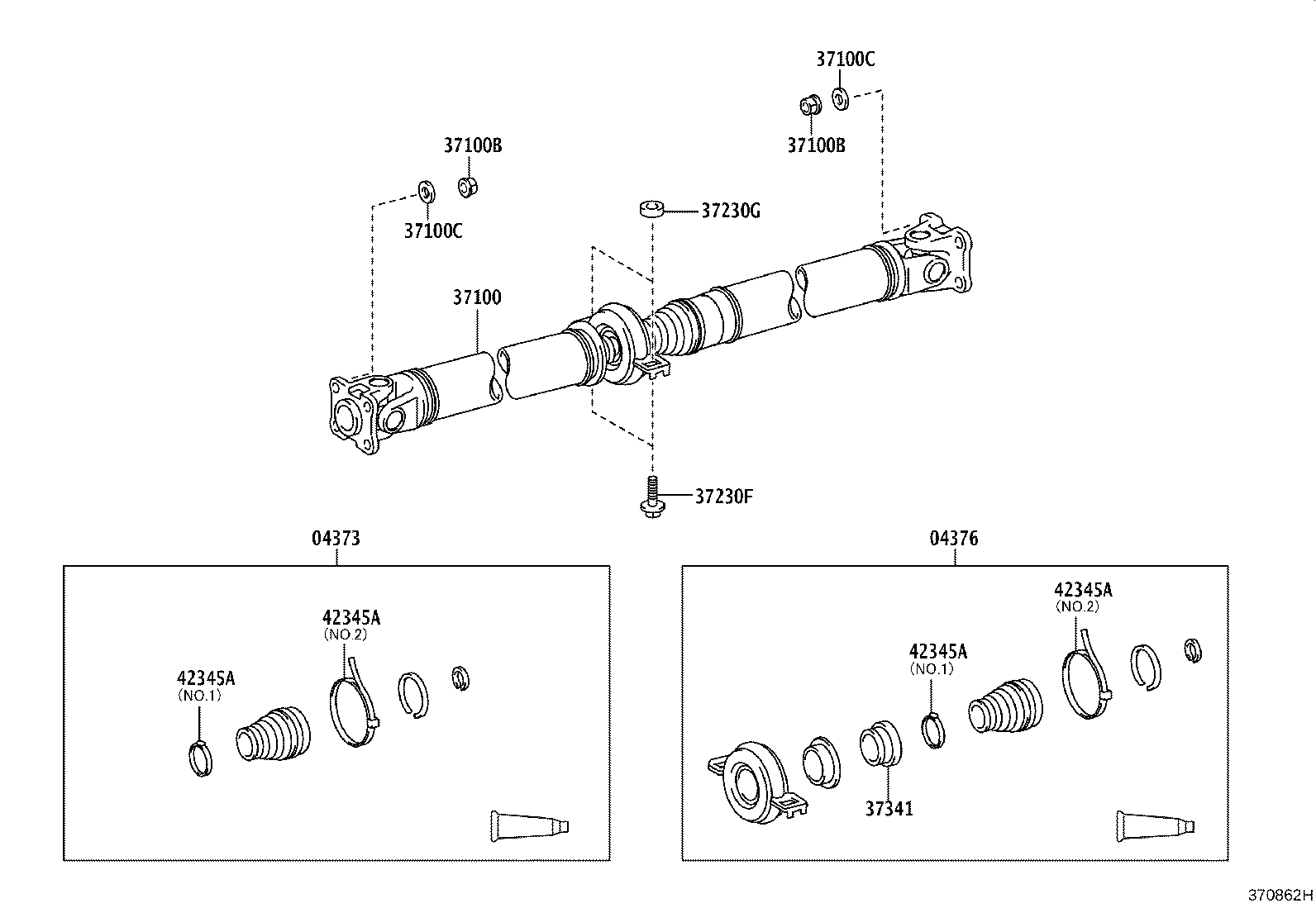

Click highlighted areas on diagram

diagram 04373 04376 37100 37100B 37100B 37100C 37100C 37230F 37230G 37341 42345A 42345A 42345A 42345A
Part # Description Qty Price
04373 - BOOT KIT, UNIVERSAL
04373-58010

AGH35,GGH35

 1
04376 - BEARING KIT, CENTER SUPPORT
04376-58010

AGH35,GGH35

 1
37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING
37100-58050

AGH35,GGH35

 1
37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90178-08017

AGH35,GGH35

 8
37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90178-08017

AGH35,GGH35

 8
37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN
90201-08098

AGH35,GGH35

 8
37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN
90201-08098

AGH35,GGH35

 8
37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING)
90119-10444

AGH35,GGH35

 2
37230G - WASHER, NO.2 (FOR CENTER SUPPORT BEARING)
90201-10083

AGH35,GGH35

厚さ=6.5

 2
90201-10081

AGH35,GGH35

厚さ=4.5

 2
90201-10123

AGH35,GGH35

厚さ=2.0

 2
37341 - DEFLECTOR, PROPELLER SHAFT DUST, NO.1
37341-52010

AGH35,GGH35

 1
42345A - CLAMP, REAR PROPELLER SHAFT BOOT
42345-52220

AGH35,GGH35

NO.1

 1
42345-58010

AGH35,GGH35

NO.2

 1
42345A - CLAMP, REAR PROPELLER SHAFT BOOT
42345-52220

AGH35,GGH35

NO.1

 1
42345-58010

AGH35,GGH35

NO.2

 1
42345A - CLAMP, REAR PROPELLER SHAFT BOOT
42345-52220

AGH35,GGH35

NO.1

 1
42345-58010

AGH35,GGH35

NO.2

 1
42345A - CLAMP, REAR PROPELLER SHAFT BOOT
42345-52220

AGH35,GGH35

NO.1

 1
42345-58010

AGH35,GGH35

NO.2

 1
