Toyota Alphard/vellfire/hv GGH35 HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

Manufacturers Home
Toyota
JP
ALPHARD/VELLFIRE/HV
GGH35W-PFTQK (2015)
8715 - HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

GGH35W-PFTQK (2015)

Toyota Alphard/Vellfire/Hv

Production Jan 2015 - Jan 2018

Engine 2GRFE

Transmission 6FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(1501- )

Click highlighted areas on diagram

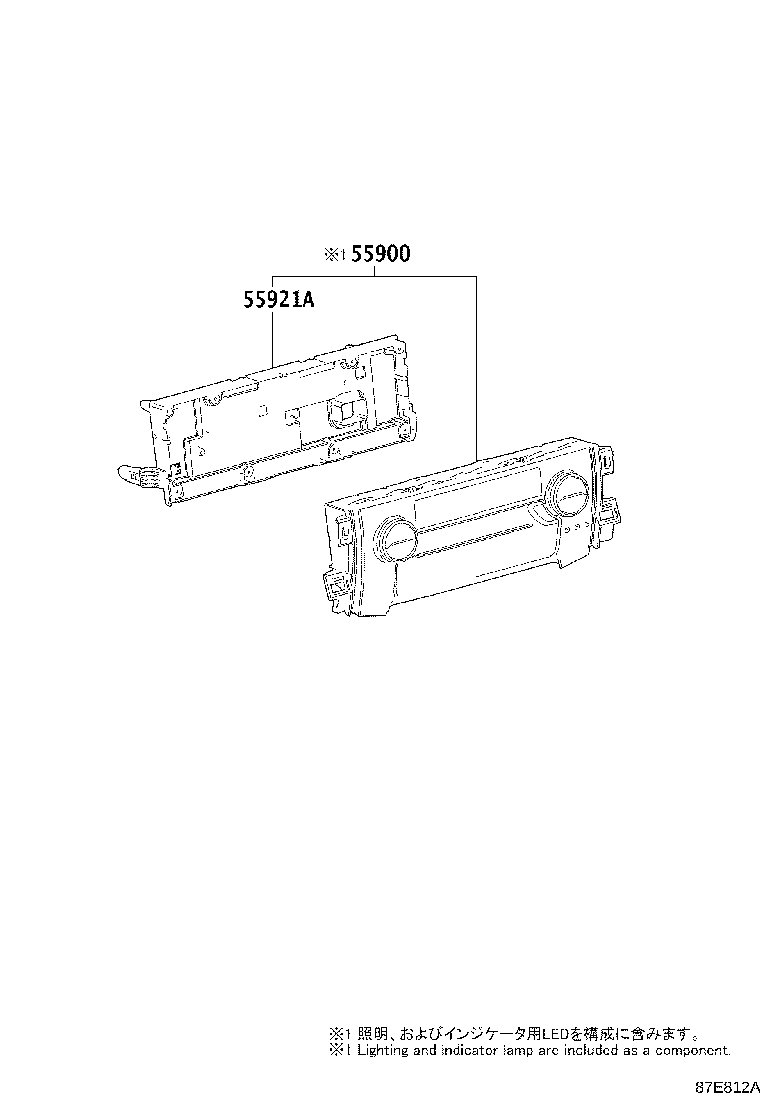

ｺﾝﾄﾛｰﾙﾊﾟﾈﾙ---ﾌﾛﾝﾄ

Part #	Description	Period	Qty
55900 - CONTROL ASSY, AIR CONDITIONER
55900-58360	AGH3#,GGH3#..EL,G,GF,SA,V,VL,ZA	01/2015 - 01/2018	1
55921A - RETAINER, HEATER CONTROL
55921-58010	AGH3#,AYH30,GGH3#	01/2015 - 01/2018	1

(1501- )

Click highlighted areas on diagram

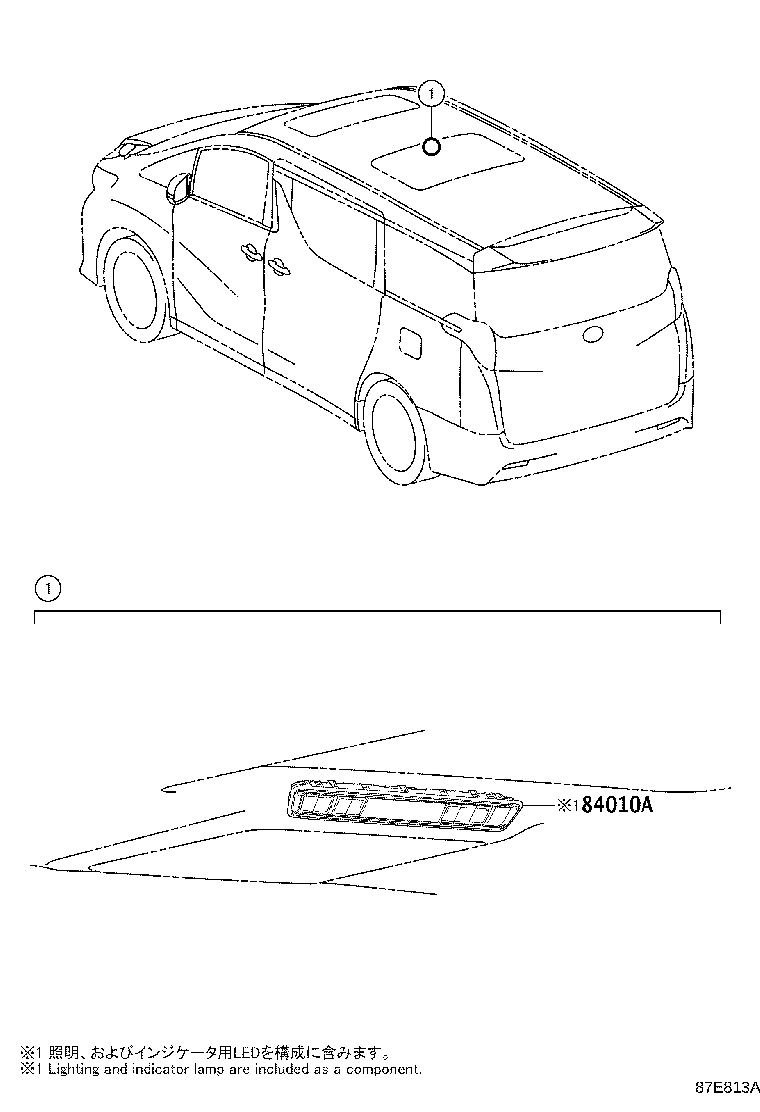

ｺﾝﾄﾛｰﾙﾊﾟﾈﾙ---ﾘﾔ

Part #	Description	Period	Qty
84010A - CONTROL & PANEL ASSY, INTEGRATION
84010-58260A0	AGH3#,AYH30,GGH3#..EL,G,GF,V,VL FLAXEN,TRIM0#	01/2015 - 01/2018	1
84010-58270A0	AGH30,AYH30,GGH3#..EL,G,GF,V,VL ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ),FLAXEN,TRIM0#	01/2015 - 01/2018	1

Part #

Description

Qty

Price

84010A - CONTROL & PANEL ASSY, INTEGRATION

84010-58260A0

AGH3#,AYH30,GGH3#..EL,G,GF,V,VL

FLAXEN,TRIM0#

84010-58270A0

AGH30,AYH30,GGH3#..EL,G,GF,V,VL

ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ),FLAXEN,TRIM0#

(1501-2001)AGH3#,GGH3# ; (2001- )AGH3#,GGH3#

Click highlighted areas on diagram

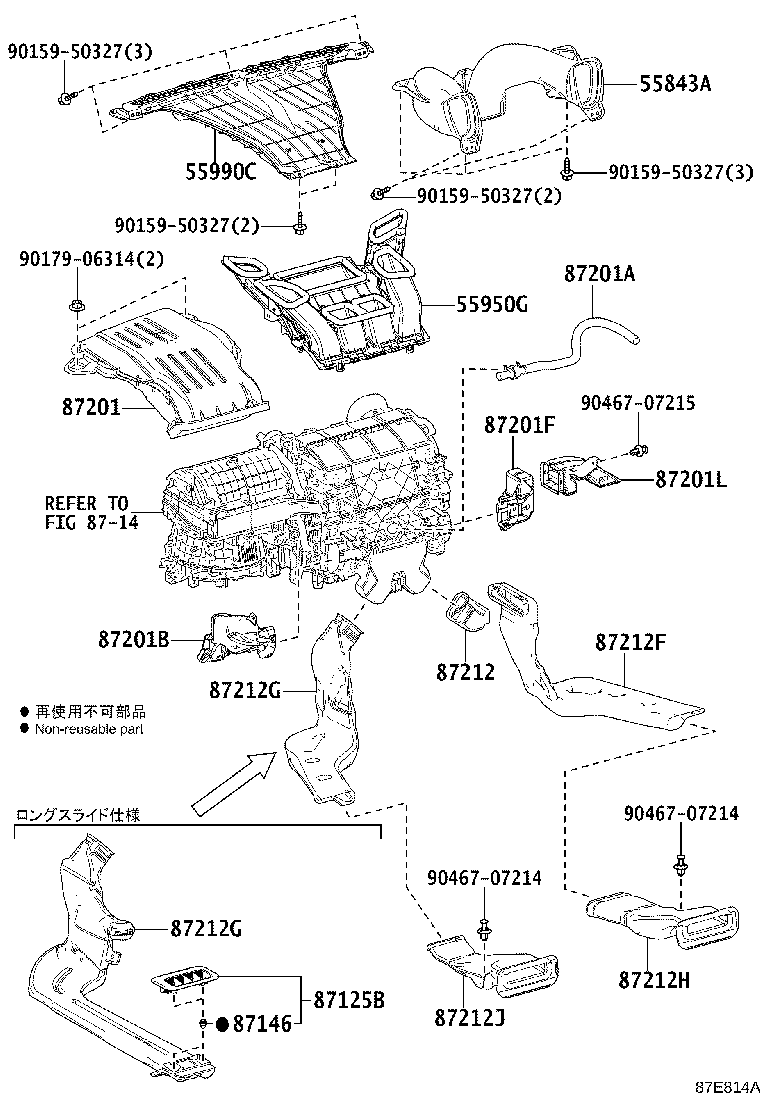

ｴｱﾀﾞｸﾄ---ﾌﾛﾝﾄ

Part #	Description	Period	Qty
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-58070	AGH3#,AYH30,GGH3#	01/2015 - 01/2018	1
55950G - NOZZLE ASSY, DEFROSTER
55950-58060	AGH3#,GGH3#	01/2015 - 01/2018	1
55990C - NOZZLE ASSY, CENTER DEFROSTER
55990-58020	AGH3#,AYH30,GGH3#	01/2015 - 01/2018	1
87125B - GRILLE, HEATER AIR OUTLET
87125-58010C0	AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA) BLACK,TRIM0#,2#	01/2015 - 01/2018	1
87146 - RETAINER, GRILLE
67771-12060	AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA)	01/2015 - 01/2018	2
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-58160	AGH3#,GGH3#	01/2015 - 01/2018	1
87201A - DUCT SUB-ASSY, AIR
87201-58140	AGH3#,AYH30,GGH3#	01/2015 - 01/2018	1
87201B - DUCT SUB-ASSY, AIR, NO.2
87211-58110	AGH3#,AYH30,GGH3#	01/2015 - 01/2018	1
87201F - DUCT SUB-ASSY, AIR, NO.3
87211-58090	AGH3#,AYH30,GGH3#	01/2015 - 01/2018	1
87201L - DUCT SUB-ASSY, AIR, NO.4
87211-58100	AGH3#,AYH30,GGH3#	01/2015 - 01/2018	1
87212 - DUCT, AIR, REAR NO.1
87212-58110	AGH3#,AYH30,GGH3#	01/2015 - 01/2018	1
87212F - DUCT, AIR, REAR NO.2
87212-58130	AGH3#,AYH30,GGH3#	01/2015 - 01/2018	1
87212G - DUCT, AIR, REAR NO.3
87212-58140	AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR	01/2015 - 01/2018	1
87212-58190	AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA)	01/2015 - 01/2018	1
87212-58140	GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式)	04/2015 - 01/2018	1
87212-58140	AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)	01/2015 - 01/2018	1
87212-58140	GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”(B)or“Lｴﾃﾞｨｼｮﾝ”(B)/GForVL	01/2015 - 01/2018	1
87212-58140	GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式)	04/2015 - 01/2018	1
87212G - DUCT, AIR, REAR NO.3
87212-58140	AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR	01/2015 - 01/2018	1
87212-58190	AGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA)	01/2015 - 01/2018	1
87212-58140	GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式)	04/2015 - 01/2018	1
87212-58140	AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)	01/2015 - 01/2018	1
87212-58140	GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”(B)or“Lｴﾃﾞｨｼｮﾝ”(B)/GForVL	01/2015 - 01/2018	1
87212-58140	GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式)	04/2015 - 01/2018	1
87212H - DUCT, AIR, REAR NO.4
87212-58220	AGH3#,GGH3#	01/2015 - 01/2018	1
87212J - DUCT, AIR, REAR NO.5
87212-58230	AGH3#..08S..(G,V);AGH3#,GGH3#..EL,S,X,Z	01/2015 - 01/2018	1
87212-58230	GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ手動式)	04/2015 - 01/2018	1
87212-58230	GGH3#..GF,VL “Fﾊﾟｯｹｰｼﾞ”(B)or“Lｴﾃﾞｨｼｮﾝ”(B)/GForVL	01/2015 - 01/2018	1
87212-58230	GGH3#..GF,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ電動式)	04/2015 - 01/2018	1
87212-58230	AGH3#,GGH3#..07S..(G,GF,V,VL) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)	01/2015 - 01/2018	1
Common parts
90159-50327
90179-06314
90467-07214
90467-07215
Linked diagrams
8714

(1501- )

Click highlighted areas on diagram

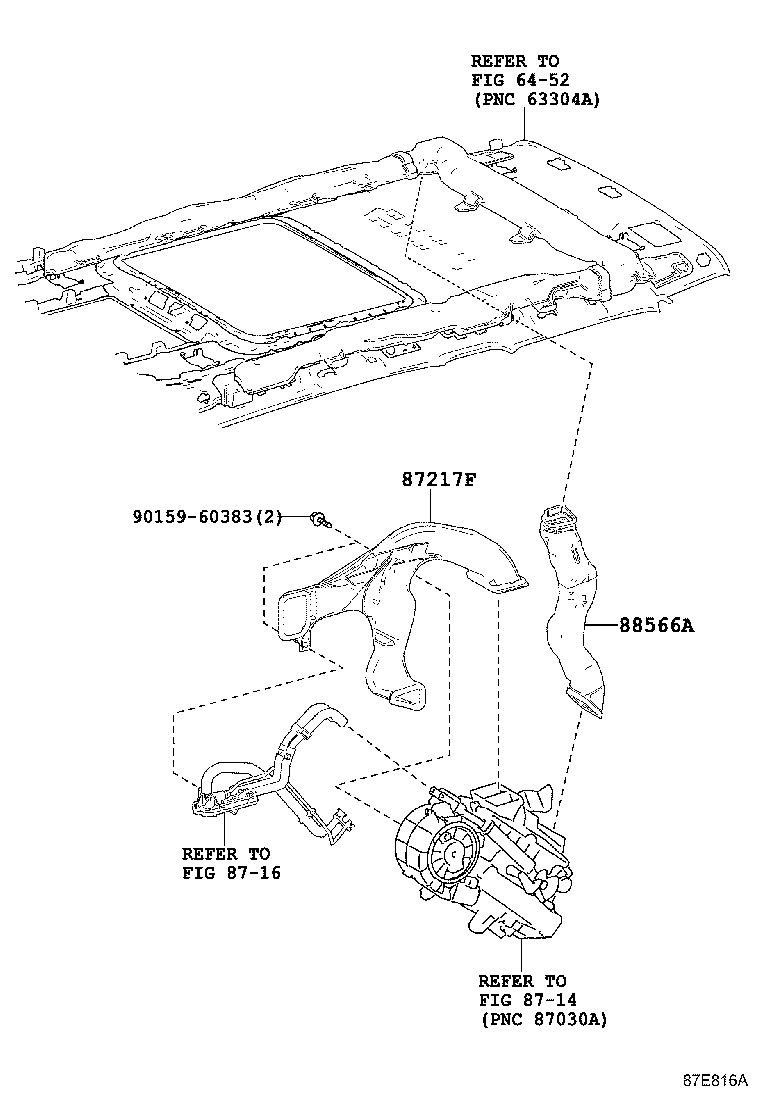

ｴｱﾀﾞｸﾄ---ﾘﾔ

Part #	Description	Period	Qty
87217F - DUCT, AIR, REAR SIDE NO.3
87215-58040	AGH3#,AYH30,GGH3#	01/2015 - 01/2018	1
88566A - DUCT, COOLER AIR, NO.1
88566-58140	AGH3#,AYH30,GGH3#	01/2015 - 01/2018	1
Common parts
90159-60383
Linked diagrams
6452
8714
8716

(1501-1801)

Click highlighted areas on diagram

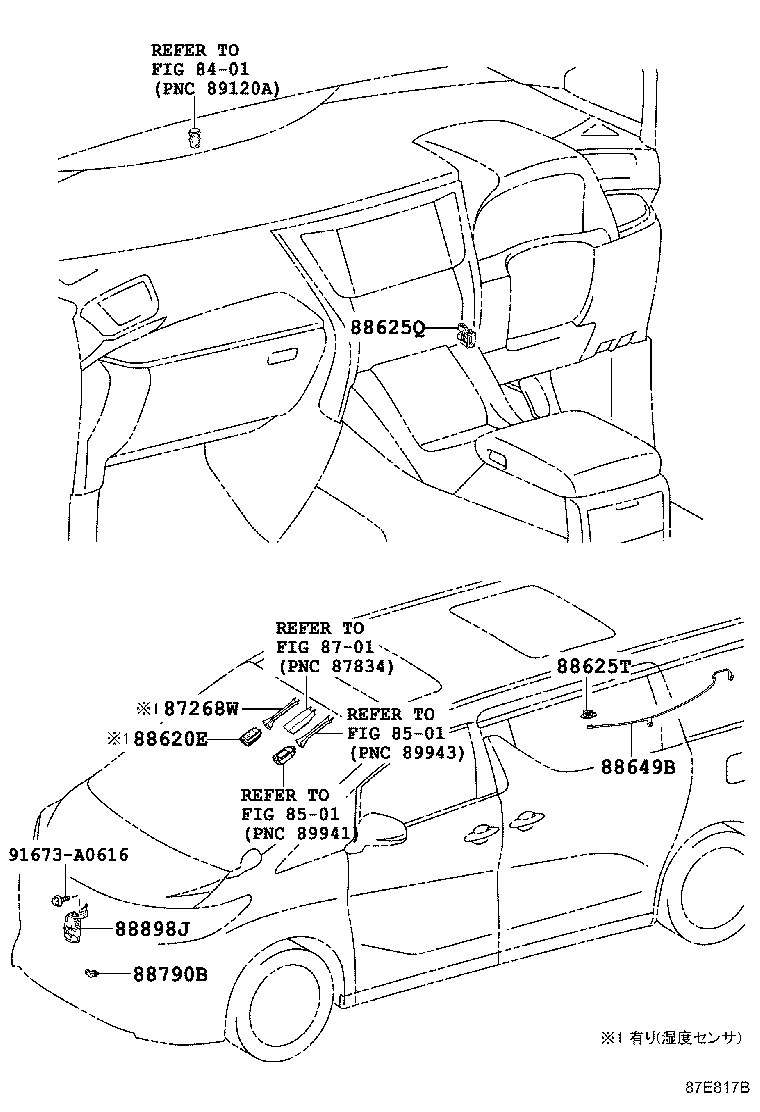

ｾﾝｻ

Part #	Description	Period	Qty
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88625-47021	AGH3#,AYH30,GGH3#	01/2015 - 01/2018	1
88625T - THERMISTOR, COOLER (ROOM TEMP. SENSOR NO.2)
88625-45020C0	AGH3#,AYH30,GGH3# BLACK,TRIM0#,2#	01/2015 - 01/2018	1
88649B - WIRING, COOLER
88649-58010	AGH3#,AYH30,GGH3#	01/2015 - 01/2018	1
88790B - THERMISTOR ASSY
88790-28100	AGH3#,AYH30,GGH3#	01/2015 - 01/2018	1
88898J - SENSOR, SMOG VENTILATION
88898-58031	AGH3#,AYH30,GGH3#..EL,G,GF,SA,SR,V,VL,ZA,ZR	01/2015 - 01/2018	1
Common parts
91673-A0616
Linked diagrams
8401
8501
8701
