GGH35W-PFTQK (2015)

Toyota Alphard/Vellfire/Hv

Production Jan 2015 - Jan 2018
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1501- )

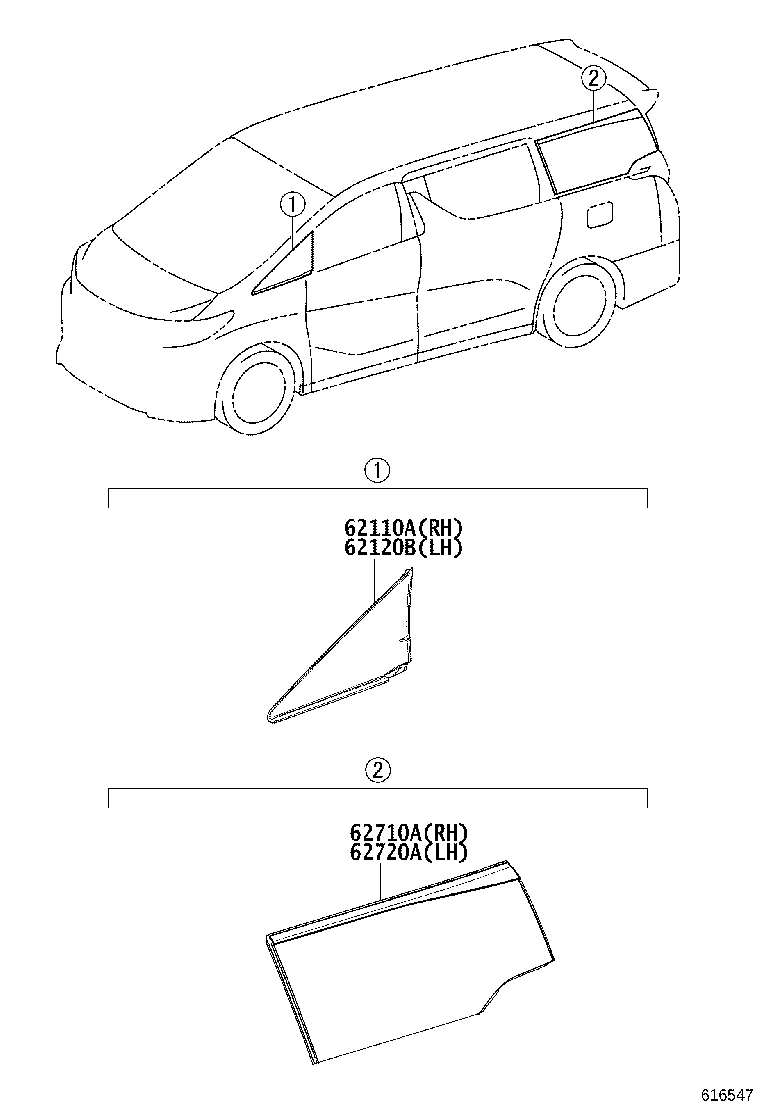

Click highlighted areas on diagram

diagram 62110A 62120B 62710A 62720A
Part # Description Qty Price
62110A - WINDOW ASSY, FRONT SIDE FIX, RH
62110-58040

AGH3#,AYH30,GGH3#

 1
62120B - WINDOW ASSY, FRONT SIDE FIX, LH
62120-58040

AGH3#,AYH30,GGH3#

 1
62710A - WINDOW ASSY, QUARTER, RH
62710-58160

AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR

ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL

 1
62710-58150

AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR

 1
62720A - WINDOW ASSY, QUARTER, LH
62720-58250

AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR

 1
62720-58260

AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR

ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL

 1
