GGH35W-PFTQK (2015)

Toyota Alphard/Vellfire/Hv

Production Jan 2015 - Jan 2018
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1501- )

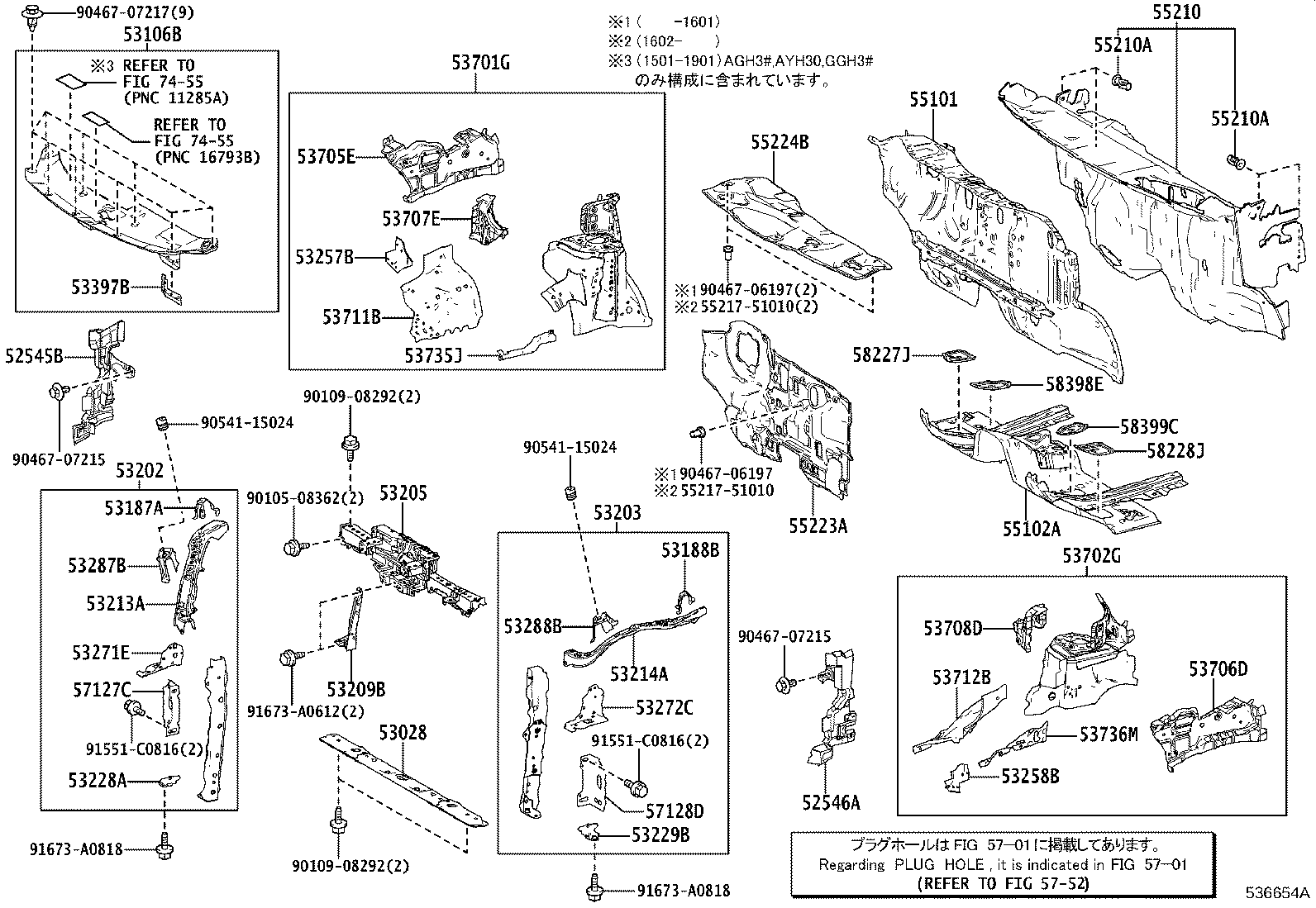

Click highlighted areas on diagram

diagram 52545B 52546A 53028 53106B 53187A 53188B 53202 53203 53205 53209B 53213A 53214A 53228A 53229B 53257B 53258B 53271E 53272C 53287B 53288B 53397B 53701G 53702G 53705E 53706D 53707E 53708D 53711B 53712B 53735J 53736M 55101 55102A 55210 55210A 55210A 5521751010 5521751010 55223A 55224B 57127C 57128D 5752 58227J 58228J 58398E 58399C 7455 7455 9010508362 9010908292 9010908292 9046706197 9046706197 9046707215 9046707215 9046707217 9054115024 9054115024 91551C0816 91551C0816 91673A0612 91673A0818 91673A0818
Part # Description Qty Price
52545B - SEAL, FRONT BUMPER SIDE, NO.2 RH
52545-58060

AGH3#,AYH30,GGH3#..ALPHD

 1
52546A - SEAL, FRONT BUMPER SIDE, NO.2 LH
52546-58060

AGH3#,AYH30,GGH3#..ALPHD

 1
53028 - SUPPORT SUB-ASSY, RADIATOR, LOWER
53028-28050

AGH3#,AYH30,GGH3#

 1
53106B - COVER SUB-ASSY, RADIATOR
53106-58070

AGH3#,AYH30,GGH3#..ALPHD

 1
53187A - STAY, RADIATOR SUPPORT, RH
53187-58020

AGH3#,AYH30,GGH3#

 1
53188B - STAY, RADIATOR SUPPORT, LH
53188-58020

AGH3#,AYH30,GGH3#

 1
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53202-58050

AGH3#,AYH30,GGH3#

 1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53203-58060

AGH3#,AYH30,GGH3#

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53205-58070

AGH3#,AYH30,GGH3#

 1
53209B - BRACE SUB-ASSY, HOOD LOCK SUPPORT
53209-58040

AGH3#,AYH30,GGH3#

 1
53213A - SUPPORT, RADIATOR, UPPER RH
53213-58030

AGH3#,AYH30,GGH3#

 1
53214A - SUPPORT, RADIATOR, UPPER LH
53214-58030

AGH3#,AYH30,GGH3#

 1
53228A - BRACKET, RADIATOR MOUNTING, LOWER NO.1
53228-28040

AGH3#,AYH30,GGH3#

 1
53229B - BRACKET, RADIATOR MOUNTING, LOWER NO.2
53229-28030

AGH3#,AYH30,GGH3#

 1
53257B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER
53257-58010

AGH3#,AYH30,GGH3#

 1
53258B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH
53258-58010

AGH3#,AYH30,GGH3#

 1
53271E - BRACKET, HEADLAMP MOUNTING, RH
53271-58010

AGH3#,AYH30,GGH3#

 1
53272C - BRACKET, HEADLAMP MOUNTING, LH
53272-58010

AGH3#,AYH30,GGH3#

 1
53287B - EXTENSION, RADIATOR SUPPORT, RH
53287-58020

AGH3#,AYH30,GGH3#

 1
53288B - EXTENSION, RADIATOR SUPPORT, LH
53288-58020

AGH3#,AYH30,GGH3#

 1
53397B - SEAL, RADIATOR, UPPER
53396-58010

AGH3#,AYH30,GGH3#

 1
53701G - APRON SUB-ASSY, FRONT FENDER, RH
53701-58070

AGH3#,AYH30,GGH3#

 1
53702G - APRON SUB-ASSY, FRONT FENDER, LH
53702-58060

AGH3#,AYH30,GGH3#

 1
53705E - MEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH
53705-58030

AGH3#,AYH30,GGH3#

 1
53706D - MEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH
53706-58030

AGH3#,AYH30,GGH3#

 1
53707E - APRON SUB-ASSY, FENDER SIDE, RH
53707-58030

AGH3#,AYH30,GGH3#

 1
53708D - APRON SUB-ASSY, FENDER SIDE, LH
53708-58030

AGH3#,AYH30,GGH3#

 1
53711B - APRON, FRONT FENDER, FRONT RH
53711-28100

AGH3#,AYH30,GGH3#

 1
53712B - APRON, FRONT FENDER, FRONT LH
53712-28080

AGH3#,AYH30,GGH3#

 1
53735J - PATCH, FRONT FENDER APRON, NO.5
53735-28020

AGH3#,AYH30,GGH3#

 1
53736M - PATCH, FRONT FENDER APRON, NO.6
53736-28030

AGH3#,AYH30,GGH3#

 1
55101 - PANEL SUB-ASSY, DASH
55015-58040

AGH3#,GGH3#

 1
55102A - PANEL SUB-ASSY, DASH, LOWER
55102-58040

AGH3#,GGH3#

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-58060

AGH3#,AYH30,GGH3#

 1
55210A - CLIP
90467-13079

AGH3#,AYH30,GGH3#

 4
55210A - CLIP
90467-13079

AGH3#,AYH30,GGH3#

 4
55223A - INSULATOR, DASH PANEL, OUTER
55223-58070

AGH3#,AYH30,GGH3#

 1
55224B - INSULATOR, DASH PANEL, OUTER NO.2
55224-58030

AGH3#,AYH30,GGH3#

 1
57127C - REINFORCEMENT, FRONT SIDE MEMBER, REAR RH
57127-28110

AGH3#,AYH30,GGH3#

 1
57128D - REINFORCEMENT, FRONT SIDE MEMBER, REAR LH
57128-28080

AGH3#,AYH30,GGH3#

 1
58227J - PLATE, FLOOR PANEL SIDE, RH
58227-58010

AGH3#,AYH30,GGH3#

 1
58228J - PLATE, FLOOR PANEL SIDE, LH
58228-58010

AGH3#,AYH30,GGH3#

 1
58398E - COVER, FLOOR UNDER, NO.1
58398-58040

AGH3#,AYH30,GGH3#

 1
58399C - COVER, FLOOR UNDER, NO.2
58399-58030

AGH3#,AYH30,GGH3#

 1
Common parts
55217-51010
90105-08362
90109-08292
90467-06197
90467-07215
90467-07217
90541-15024
91551-C0816
91673-A0612
91673-A0818
