GGH35W-PFTQK (2015)

Toyota Alphard/Vellfire/Hv

Production Jan 2015 - Jan 2018
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1501-1801)2GRFE

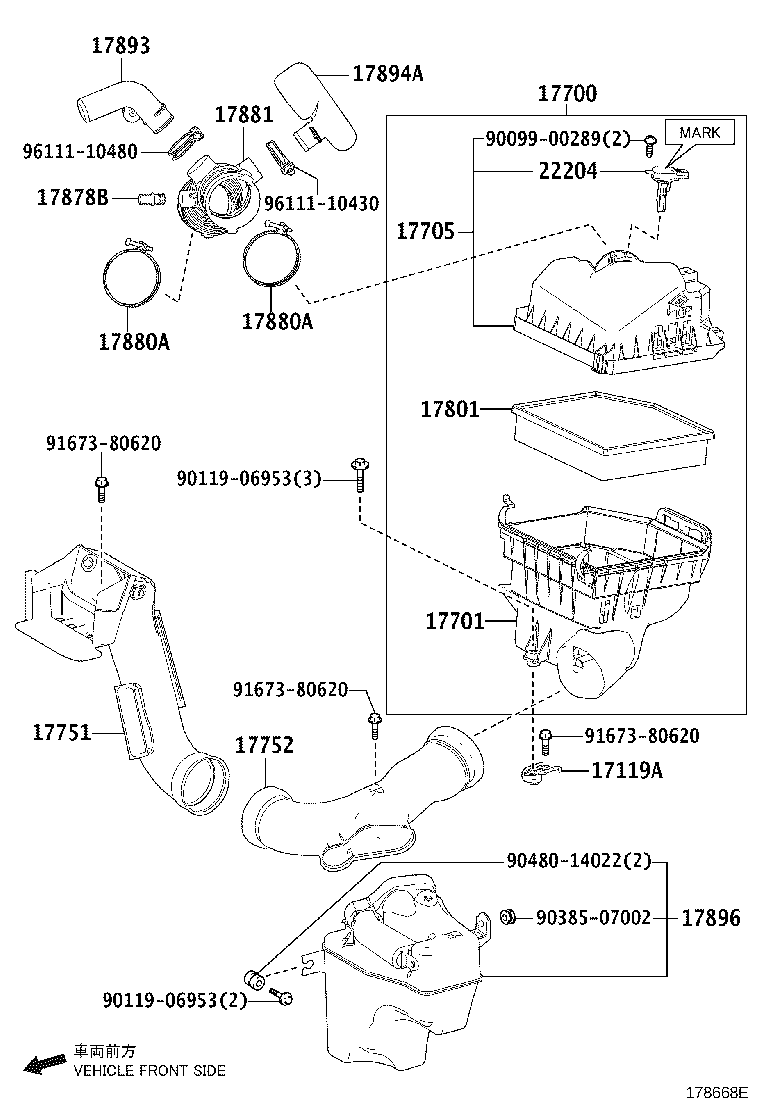

Click highlighted areas on diagram

diagram 17119A 17700 17701 17705 17751 17752 17801 17878B 17880A 17880A 17881 17893 17894A 17896 22204 9009900289 9011906953 9011906953 9038507002 9048014022 9167380620 9167380620 9167380620 9611110430 9611110480
Part # Description Qty Price
17119A - BRACKET, AIR CLEANER
17119-31170

2GRFE..GGH3#

 1
17700 - CLEANER ASSY, AIR
17700-31A90

2GRFE..GGH3#

 1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-31720

2GRFE..GGH3#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-31430

2GRFE..GGH3#

 1
17751 - INLET, AIR CLEANER, NO.1
17751-31380

2GRFE..GGH3#

 1
17752 - INLET, AIR CLEANER, NO.2
17752-31150

2GRFE..GGH3#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-31170

2GRFE..GGH3#

 1
17878B - TUBE, VENTILATION
17878-31010

2GRFE..GGH3#

 1
17880A - CLAMP, HOSE
96111-10900

2GRFE..GGH3#

 2
17880A - CLAMP, HOSE
96111-10900

2GRFE..GGH3#

 2
17881 - HOSE, AIR CLEANER, NO.1
17881-31320

2GRFE..GGH3#

 1
17893 - RESONATOR, INTAKE AIR
17893-31160

2GRFE..GGH3#

 1
17894A - RESONATOR, INTAKE AIR, NO.2
17894-31040

2GRFE..GGH3#

 1
17896 - RESONATOR, INTAKE AIR, NO.3
17896-31030

2GRFE..GGH3#

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-0T040

2GRFE..GGH3#

ﾏｰｸ 22204−0T040

 1
22204-0V010

2GRFE..GGH3#

ﾏｰｸ 22204−0V010

 1
22204-0V020

2GRFE..GGH3#

ﾏｰｸ 22204−0V020

 1
22204-28010

2GRFE..GGH3#

ﾏｰｸ 22204−28010

 1
Common parts
90099-00289
90119-06953
90385-07002
90480-14022
91673-80620
96111-10430
96111-10480
