GGH35W-NFZQK (2018)

Toyota Alphard/Vellfire/Hv

Production Jan 2018 - Jan 2020
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1801-2001)GGH3#

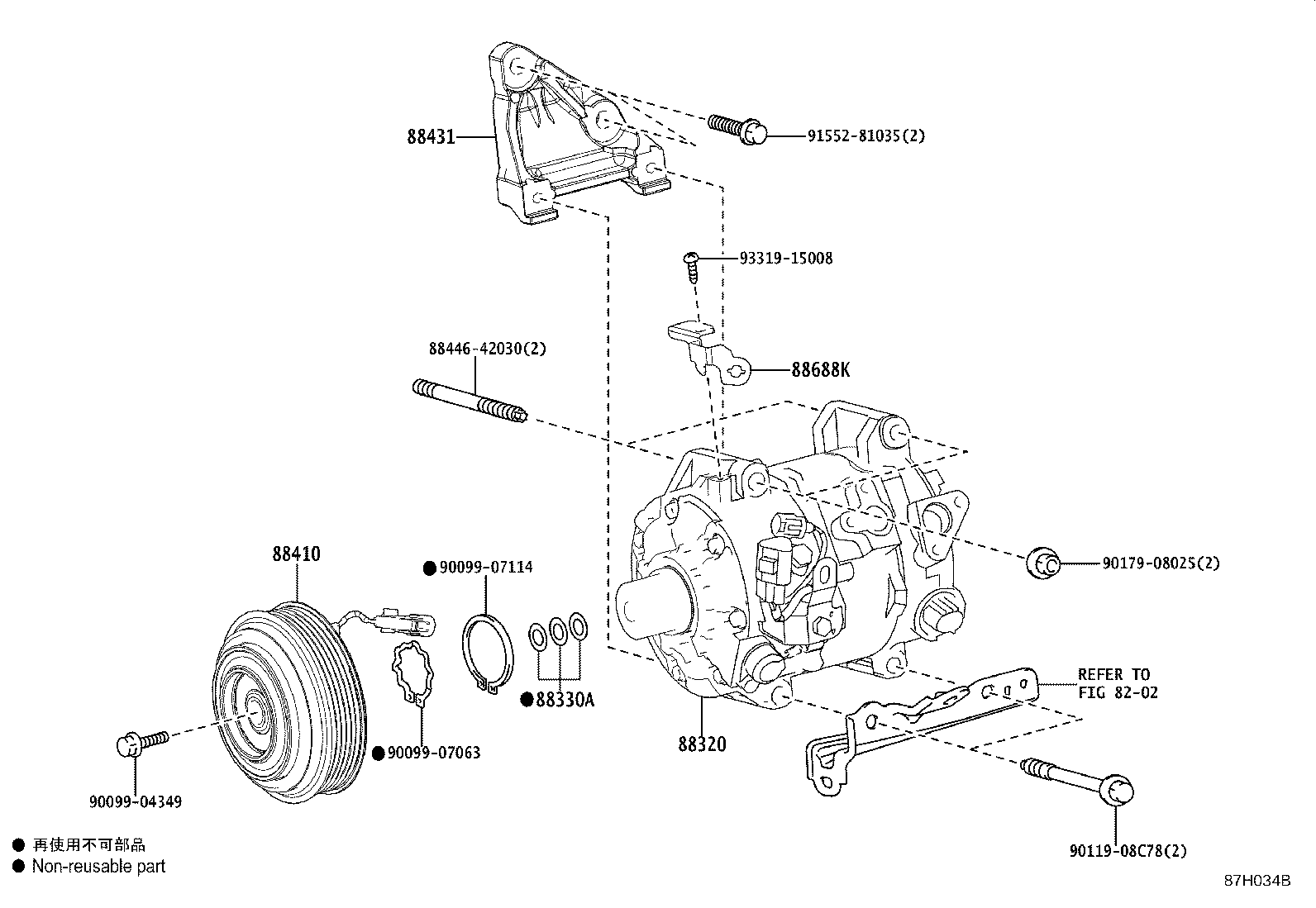

Click highlighted areas on diagram

diagram 8202 88320 88330A 88410 88431 8844642030 88688K 9009904349 9009907063 9009907114 9011908C78 9017908025 9155281035 9331915008
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-58020

GGH3#

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

GGH3#

 1
88410 - CLUTCH ASSY, MAGNET
88410-0N010

GGH3#

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-48050

GGH3#

 1
88688K - BRACKET, COOLER COMPRESSOR
88688-33570

GGH3#

 1
Common parts
88446-42030
90099-04349
90099-07063
90099-07114
90119-08C78
90179-08025
91552-81035
93319-15008
Linked diagrams
8202
