GGH35W-NFZQK (2018)

Toyota Alphard/Vellfire/Hv

Production Jan 2018 - Jan 2020
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1801-2001)

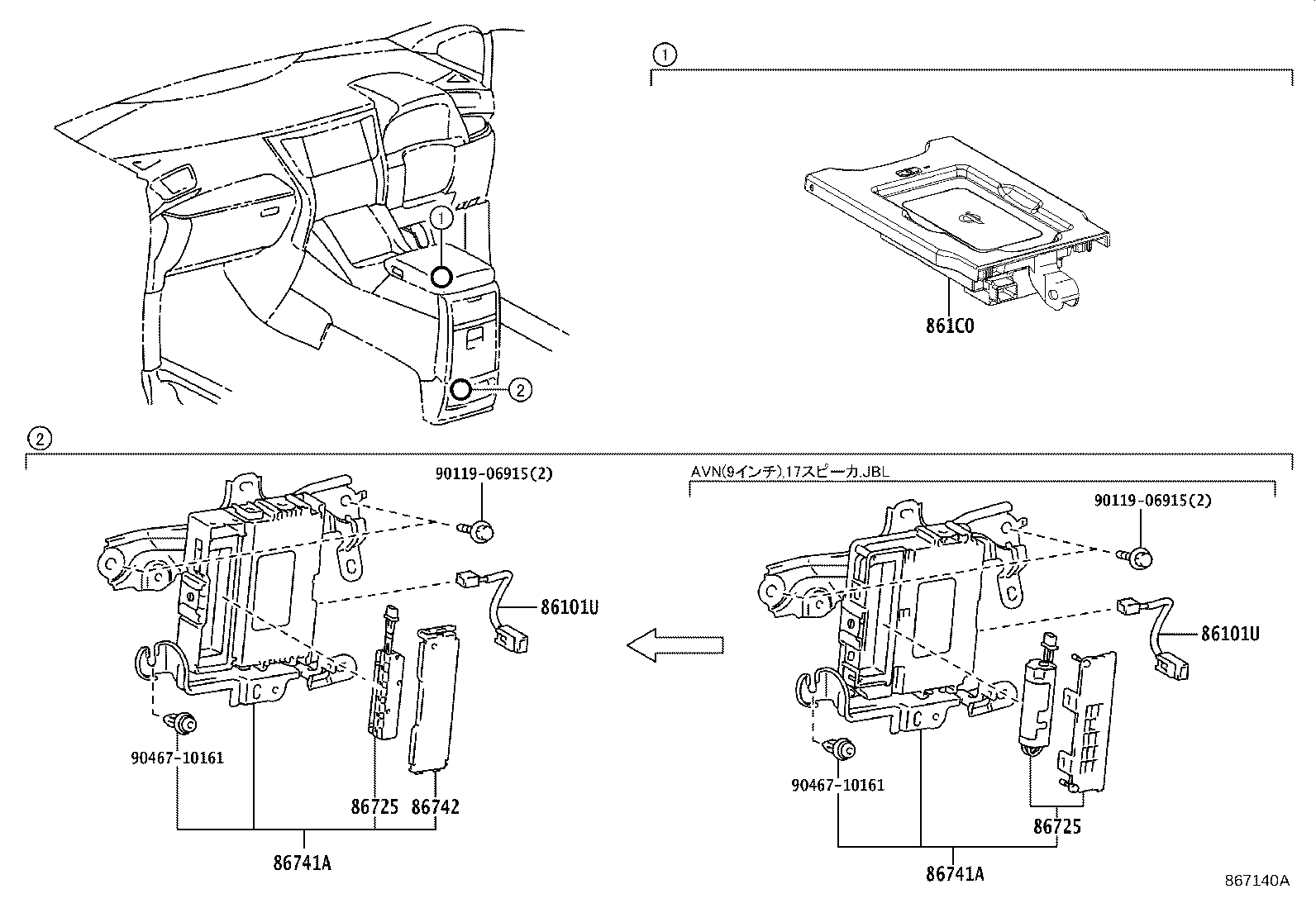

Click highlighted areas on diagram

ｵｵｶﾞﾀ ｽﾀﾝﾀﾞｰﾄﾞORﾊｲｸﾞﾚｰﾄﾞ ｺﾝｿｰﾙﾎﾞｯｸｽ

diagram 86101U 86101U 861C0 86725 86725 86741A 86741A 86742 9011906915 9011906915 9046710161 9046710161
Part # Description Qty Price
86101U - CORD SUB-ASSY, ANTENNA
86101-58810

AYH30;AGH3#,GGH3#..EL,ELS,ELZ,G,GF,SC,V,VL,ZG

 1
86101U - CORD SUB-ASSY, ANTENNA
86101-58810

AYH30;AGH3#,GGH3#..EL,ELS,ELZ,G,GF,SC,V,VL,ZG

 1
861C0 - CRADLE ASSY, MOBILE WIRELESS CHARGER
861C0-48010

AYH30,GGH3#..EL,ELS,ELZ,G,GF,SC,SR,V,VL,ZG,ZR

おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り

 1
86725 - BATTERY, MOBILEPHONE
86725-58010

AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR

 1
86725-48010

AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR

ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL

 1
86725 - BATTERY, MOBILEPHONE
86725-58010

AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR

 1
86725-48010

AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR

ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL

 1
86741A - TRANSCEIVER, TELEMATICS
86740-58130

AYH30..G,S,SR,V,X,Z,ZR;AGH3#,GGH3#..G,GF,SC,V,VL,ZG

 1
86740-58110

AYH30..G,S,SR,V,X,Z,ZR;AGH3#,GGH3#..G,GF,SC,V,VL,ZG

ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL

 1
86741A - TRANSCEIVER, TELEMATICS
86740-58130

AYH30..G,S,SR,V,X,Z,ZR;AGH3#,GGH3#..G,GF,SC,V,VL,ZG

 1
86740-58110

AYH30..G,S,SR,V,X,Z,ZR;AGH3#,GGH3#..G,GF,SC,V,VL,ZG

ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL

 1
86742 - COVER, TRANSCEIVER
86742-58020

AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR

 1
Common parts
90119-06915
90467-10161
