GGH35W-NFZQK (2018)

Toyota Alphard/Vellfire/Hv

Production Jan 2018 - Jan 2020
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

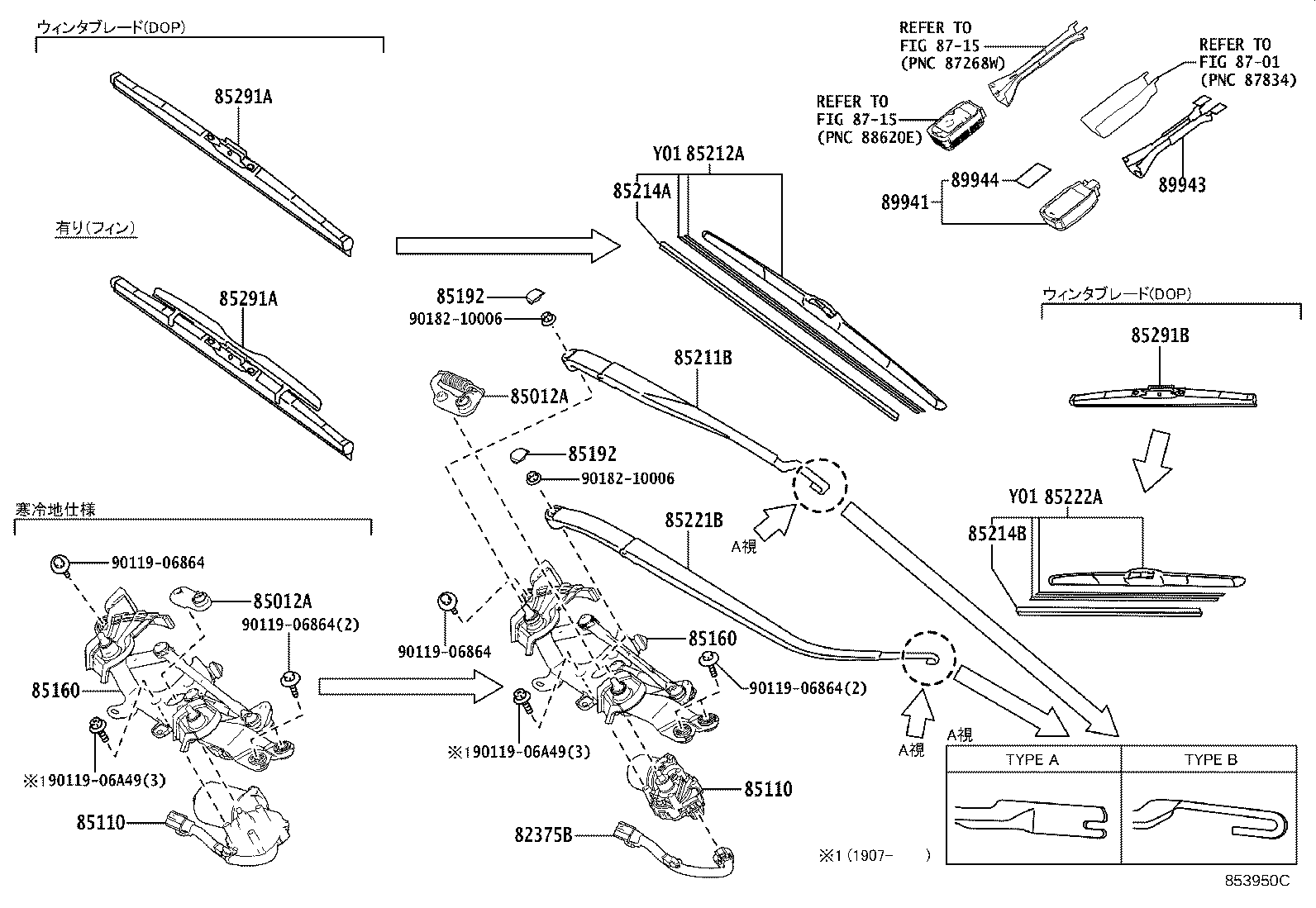

ILLUST NO. 2 OF 2(1501-2001)

Click highlighted areas on diagram

diagram 82375B 85012A 85012A 85110 85110 85160 85160 85192 85192 85211B 85212A 85214A 85214B 85221B 85222A 85291A 85291A 85291B 8701 8715 8715 89941 89943 89944 9011906864 9011906864 9011906864 9011906864 9011906A49 9011906A49 9018210006 9018210006
Part # Description Qty Price
82375B - WIRE, WIPER MOTOR
82375-58010

AGH3#,AYH30,GGH3#

 1
85012A - CRANK SUB-ASSY, FRONT WIPER
85012-58050

AGH3#,AYH30,GGH3#

 1
85012-58080

AGH3#,AYH30,GGH3#

寒冷地仕様

 1
85012A - CRANK SUB-ASSY, FRONT WIPER
85012-58050

AGH3#,AYH30,GGH3#

 1
85012-58080

AGH3#,AYH30,GGH3#

寒冷地仕様

 1
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-58040

AGH3#,AYH30,GGH3#

寒冷地仕様

 1
85110-58030

AGH3#,AYH30,GGH3#

 1
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-58040

AGH3#,AYH30,GGH3#

寒冷地仕様

 1
85110-58030

AGH3#,AYH30,GGH3#

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-58090

AGH3#,AYH30,GGH3#

 1
85150-58100

AGH3#,AYH30,GGH3#

寒冷地仕様

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-58090

AGH3#,AYH30,GGH3#

 1
85150-58100

AGH3#,AYH30,GGH3#

寒冷地仕様

 1
85192 - COVER, WINDSHIELD WIPER ARM
85292-13010

AGH3#,AYH30,GGH3#

 2
85192 - COVER, WINDSHIELD WIPER ARM
85292-13010

AGH3#,AYH30,GGH3#

 2
85211B - ARM, FRONT WIPER, RH
85211-58070

AGH3#,AYH30,GGH3#

ﾀｲﾌﾟ B

 1
85212A - BLADE, FR WIPER, RH
85212-58060

AGH3#,AYH30,GGH3#

ﾀｲﾌﾟ B

 1
85214A - RUBBER, WIPER, RH
85214-58080

AGH3#,AYH30,GGH3#

ﾀｲﾌﾟ B

 1
85214B - RUBBER, WIPER, LH
85214-28110

AGH3#,AYH30,GGH3#

ﾀｲﾌﾟ B

 1
85221B - ARM, FRONT WIPER, LH
85221-58090

AGH3#,AYH30,GGH3#

ﾀｲﾌﾟ B

 1
85222A - BLADE, FR WIPER, LH
85222-58060

AGH3#,AYH30,GGH3#

ﾀｲﾌﾟ B

 1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-58120

AGH3#,AYH30,GGH3#

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),TYPE B 有り(ﾌｨﾝ)

 1
85291-58100

AGH3#,AYH30,GGH3#

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),ﾀｲﾌﾟ B

 1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-58120

AGH3#,AYH30,GGH3#

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),TYPE B 有り(ﾌｨﾝ)

 1
85291-58100

AGH3#,AYH30,GGH3#

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),ﾀｲﾌﾟ B

 1
85291B - BLADE, FRONT WIPER, WINTER, LH
85291-58110

AGH3#,AYH30,GGH3#

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),ﾀｲﾌﾟ B

 1
89941 - SENSOR, RAIN
89941-52010

AGH3#,AYH30,GGH3#..EL,ELS,ELZ,G,GF,SC,SR,V,VL,ZG,ZR

 1
89943 - COVER, RAIN SENSOR
89943-47030

AGH3#,AYH30,GGH3#..EL,ELS,ELZ,G,GF,SC,SR,V,VL,ZG,ZR

 1
89944 - TAPE, RAIN SENSOR
89944-42010

AGH3#,AYH30,GGH3#..EL,ELS,ELZ,G,GF,SC,SR,V,VL,ZG,ZR

 1
Common parts
90119-06864
90119-06A49
90182-10006
Linked diagrams
8701
8715
