GGH35W-NFZQK (2018)
Toyota Alphard/Vellfire/Hv
ILLUST NO.10 OF10(1501-2001)
ﾄﾞｱ,ﾙ-ﾌ,ﾌﾛｱ & ﾗﾂｹﾞ-ｼﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-58040 |
GGH35 |
1 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-48160 |
AGH3#,AYH30,GGH3# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-53010 |
AGH3#,AYH30,GGH3# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-53010 |
AGH3#,AYH30,GGH3# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
AGH3#,AYH30,GGH3# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
AGH3#,AYH30,GGH3# |
2 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-58020C0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391),BLACK,TRIM0# |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-48030 |
AGH3#,AYH30,GGH3# |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-48030 |
AGH3#,AYH30,GGH3# |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-48030 |
AGH3#,AYH30,GGH3# |
2 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-58010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-62010 |
AGH3#,AYH30,GGH3#..EL,ELS,ELZ,G,GF,SC,SR,V,VL,ZG,ZR |
1 | ||
| 84927 - SWITCH, SEAT MEMORY | ||||
| 84927-58030 |
AGH3#,AYH30,GGH3#..EL,ELS,ELZ,G,GF,SC,SR,V,VL,ZG,ZR |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84012-58120 |
AGH30,GGH3#..G,GF,V,VL;AYH30..G,S,SR,V,X,Z,ZR ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 84012-58130 |
AGH30..07S..(G,S,V,Z);AYH30,GGH3#..G,GF,SR,V,VL,ZR ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 84012-58150 |
AGH3#,GGH3#..G,GF,V,VL;AYH30..G,S,SR,V,X,Z,ZR |
1 | ||
| 84012-58160 |
AGH3#..07S..(G,S,V,Z);AYH30,GGH3#..G,GF,SR,V,VL,ZR 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 84930P - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-58080 |
AGH3#..07S..(G,S,V,Z);AYH30,GGH3#..G,GF,SR,V,VL,ZR 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 84931C - SWITCH, BACK DOOR CONTROL | ||||
| 84930-58090 |
AGH3#..07S..(G,S,V,Z);AYH30,GGH3#..G,GF,SR,V,VL,ZR 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 85965 - RELAY, ROOM LAMP CONTROL | ||||
| 85965-58020 |
AGH3#,AYH30,GGH3#..EL,ELS,ELZ,G,GF,SC,SR,V,VL,ZG,ZR |
1 | ||
| 86210A - INVERTER ASSY, VOLTAGE | ||||
| 86210-58060 |
AGH3#..07S..(S,Z);AYH30,GGH3#..G,GF,SC,SR,V,VL,ZG,ZR ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個&ｼｰﾄ:2個 |
1 | ||
| 86210-58060 |
AGH3#..07S..(G,S,V,Z);AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個 |
1 | ||
| 86210A - INVERTER ASSY, VOLTAGE | ||||
| 86210-58060 |
AGH3#..07S..(S,Z);AYH30,GGH3#..G,GF,SC,SR,V,VL,ZG,ZR ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個&ｼｰﾄ:2個 |
1 | ||
| 86210-58060 |
AGH3#..07S..(G,S,V,Z);AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個 |
1 | ||
| 88161 - BRACKET, BLIND SPOT MONITOR, RH | ||||
| 88161-58010 |
AGH3#..07S..(S,Z);AYH30,GGH3#..G,GF,SC,SR,V,VL,ZG,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ)&車線変更支援ｼｽﾃﾑ−有り(ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ&*RCTA) |
1 | ||
| 88161-58010 |
AGH3#..07S..(S,Z);AYH30,GGH3#..G,GF,SC,SR,V,VL,ZG,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ)&車線変更支援ｼｽﾃﾑ−有り(ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ&*RCTA) |
1 | ||
| 88161-58010 |
AGH3#..07S..(S,Z);AYH30,GGH3#..G,GF,SC,SR,V,VL,ZG,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ)&車線変更支援ｼｽﾃﾑ−有り(ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ&*RCTA) |
1 | ||
| 88161-58010 |
AGH3#..07S..(S,Z);AYH30,GGH3#..G,GF,SC,SR,V,VL,ZG,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ)&車線変更支援ｼｽﾃﾑ−有り(ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ&*RCTA) |
1 | ||
| 88161-58010 |
AYH30,GGH3#..G,GF,SC,SR,V,VL,ZG,ZR 車線変更支援ｼｽﾃﾑ−有り(ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ) |
1 | ||
| 88161-58010 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 88161-58010 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 88161-58010 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 88161-58010 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 88161-58010 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 88162 - SENSOR, BLIND SPOT MONITOR, RH | ||||
| 88162-58010 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ)&車線変更支援ｼｽﾃﾑ−有り(ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ&*RCTA) |
1 | ||
| 88162-58020 |
AYH30,GGH3#..G,GF,SC,SR,V,VL,ZG,ZR 車線変更支援ｼｽﾃﾑ−有り(ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ) |
1 | ||
| 88162-58020 |
AGH3#..07S..(S,Z);AYH30,GGH3#..G,GF,SC,SR,V,VL,ZG,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ)&車線変更支援ｼｽﾃﾑ−有り(ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ&*RCTA) |
1 | ||
| 88162-58010 |
AYH30,GGH3#..G,GF,SC,SR,V,VL,ZG,ZR 車線変更支援ｼｽﾃﾑ−有り(ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ) |
1 | ||
| 88162-58010 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ)&車線変更支援ｼｽﾃﾑ−有り(ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ&*RCTA) |
1 | ||
| 88162-58021 |
AGH3#..07S..(S,Z);AYH30,GGH3#..G,GF,SC,SR,V,VL,ZG,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ)&車線変更支援ｼｽﾃﾑ−有り(ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ&*RCTA) |
1 | ||
| 88162-58020 |
AGH3#..07S..(S,Z);AYH30,GGH3#..G,GF,SC,SR,V,VL,ZG,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ)&車線変更支援ｼｽﾃﾑ−有り(ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ&*RCTA) |
1 | ||
| 88162-58022 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 88162-58022 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 88162-58022 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 88162-58022 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 88162-58022 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 88162-58021 |
AYH30,GGH3#..G,GF,SC,SR,V,VL,ZG,ZR 車線変更支援ｼｽﾃﾑ−有り(ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ) |
1 | ||
| 88162-58021 |
AGH3#..07S..(S,Z);AYH30,GGH3#..G,GF,SC,SR,V,VL,ZG,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ)&車線変更支援ｼｽﾃﾑ−有り(ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ&*RCTA) |
1 | ||
| 88171 - BRACKET, BLIND SPOT MONITOR, LH | ||||
| 88171-58010 |
AGH3#..07S..(S,Z);AYH30,GGH3#..G,GF,SC,SR,V,VL,ZG,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ)&車線変更支援ｼｽﾃﾑ−有り(ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ&*RCTA) |
1 | ||
| 88171-58010 |
AYH30,GGH3#..G,GF,SC,SR,V,VL,ZG,ZR 車線変更支援ｼｽﾃﾑ−有り(ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ) |
1 | ||
| 88171-58010 |
AGH3#..07S..(S,Z);AYH30,GGH3#..G,GF,SC,SR,V,VL,ZG,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ)&車線変更支援ｼｽﾃﾑ−有り(ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ&*RCTA) |
1 | ||
| 88171-58010 |
AGH3#..07S..(S,Z);AYH30,GGH3#..G,GF,SC,SR,V,VL,ZG,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ)&車線変更支援ｼｽﾃﾑ−有り(ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ&*RCTA) |
1 | ||
| 88171-58010 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 88171-58010 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 88171-58010 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 88171-58010 |
AGH3#..07S..(S,Z);AYH30,GGH3#..G,GF,SC,SR,V,VL,ZG,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ)&車線変更支援ｼｽﾃﾑ−有り(ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ&*RCTA) |
1 | ||
| 88171-58010 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 88171-58010 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 88172 - SENSOR, BLIND SPOT MONITOR, LH | ||||
| 88162-58010 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ)&車線変更支援ｼｽﾃﾑ−有り(ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ&*RCTA) |
1 | ||
| 88162-58010 |
AYH30,GGH3#..G,GF,SC,SR,V,VL,ZG,ZR 車線変更支援ｼｽﾃﾑ−有り(ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ) |
1 | ||
| 88162-58020 |
AGH3#..07S..(S,Z);AYH30,GGH3#..G,GF,SC,SR,V,VL,ZG,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ)&車線変更支援ｼｽﾃﾑ−有り(ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ&*RCTA) |
1 | ||
| 88162-58020 |
AGH3#..07S..(S,Z);AYH30,GGH3#..G,GF,SC,SR,V,VL,ZG,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ)&車線変更支援ｼｽﾃﾑ−有り(ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ&*RCTA) |
1 | ||
| 88162-58020 |
AYH30,GGH3#..G,GF,SC,SR,V,VL,ZG,ZR 車線変更支援ｼｽﾃﾑ−有り(ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ) |
1 | ||
| 88162-58021 |
AGH3#..07S..(S,Z);AYH30,GGH3#..G,GF,SC,SR,V,VL,ZG,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ)&車線変更支援ｼｽﾃﾑ−有り(ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ&*RCTA) |
1 | ||
| 88162-58010 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ)&車線変更支援ｼｽﾃﾑ−有り(ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ&*RCTA) |
1 | ||
| 88162-58022 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 88162-58022 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 88162-58022 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 88162-58021 |
AGH3#..07S..(S,Z);AYH30,GGH3#..G,GF,SC,SR,V,VL,ZG,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ)&車線変更支援ｼｽﾃﾑ−有り(ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ&*RCTA) |
1 | ||
| 88162-58022 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 88162-58022 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 88162-58021 |
AYH30,GGH3#..G,GF,SC,SR,V,VL,ZG,ZR 車線変更支援ｼｽﾃﾑ−有り(ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ) |
1 | ||
| 89050 - COMPUTER ASSY, PARKING BRAKE | ||||
| 89050-58010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 89222A - COMPUTER, MULTIPLEX NETWORK DOOR | ||||
| 89222-58090 |
AGH3#,GGH3#..G,GF,V,VL;AYH30..G,S,SR,V,X,Z,ZR |
1 | ||
| 89430 - COMPUTER ASSY, OUTER MIRROR CONTROL | ||||
| 89430-58050 |
AGH3#,AYH30,GGH3#..EL,ELS,ELZ,G,GF,SC,SR,V,VL,ZG,ZR 右側 |
1 | ||
| 89430-58060 |
AGH3#,AYH30,GGH3#..EL,ELS,ELZ,G,GF,SC,SR,V,VL,ZG,ZR 左側 |
1 | ||
| 89430 - COMPUTER ASSY, OUTER MIRROR CONTROL | ||||
| 89430-58050 |
AGH3#,AYH30,GGH3#..EL,ELS,ELZ,G,GF,SC,SR,V,VL,ZG,ZR 右側 |
1 | ||
| 89430-58060 |
AGH3#,AYH30,GGH3#..EL,ELS,ELZ,G,GF,SC,SR,V,VL,ZG,ZR 左側 |
1 | ||
| 89747A - BUZZER, POWER SLIDE DOOR WARNING, RH | ||||
| 89747-58020 |
AYH30;AGH3#,GGH3#..EL,ELS,ELZ,G,GF,SC,V,VL,ZG |
1 | ||
| 89747B - BUZZER, POWER SLIDE DOOR WARNING, LH | ||||
| 89747-58020 |
AGH3#,AYH30,GGH3# |
1 | ||
| 89747E - BUZZER, POWER BACK DOOR WARNING | ||||
| 89747-58020 |
AGH3#..07S..(G,S,V,Z);AYH30,GGH3#..G,GF,SR,V,VL,ZR 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-08718 | ||||
| 90159-60303 | ||||
| 90164-40103 | ||||
| 90166-70001 | ||||
| 90179-06178 | ||||
| 90179-06274 | ||||
| 90189-06227 | ||||
| 90901-48003 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 6761 | ||||
| 8715 | ||||

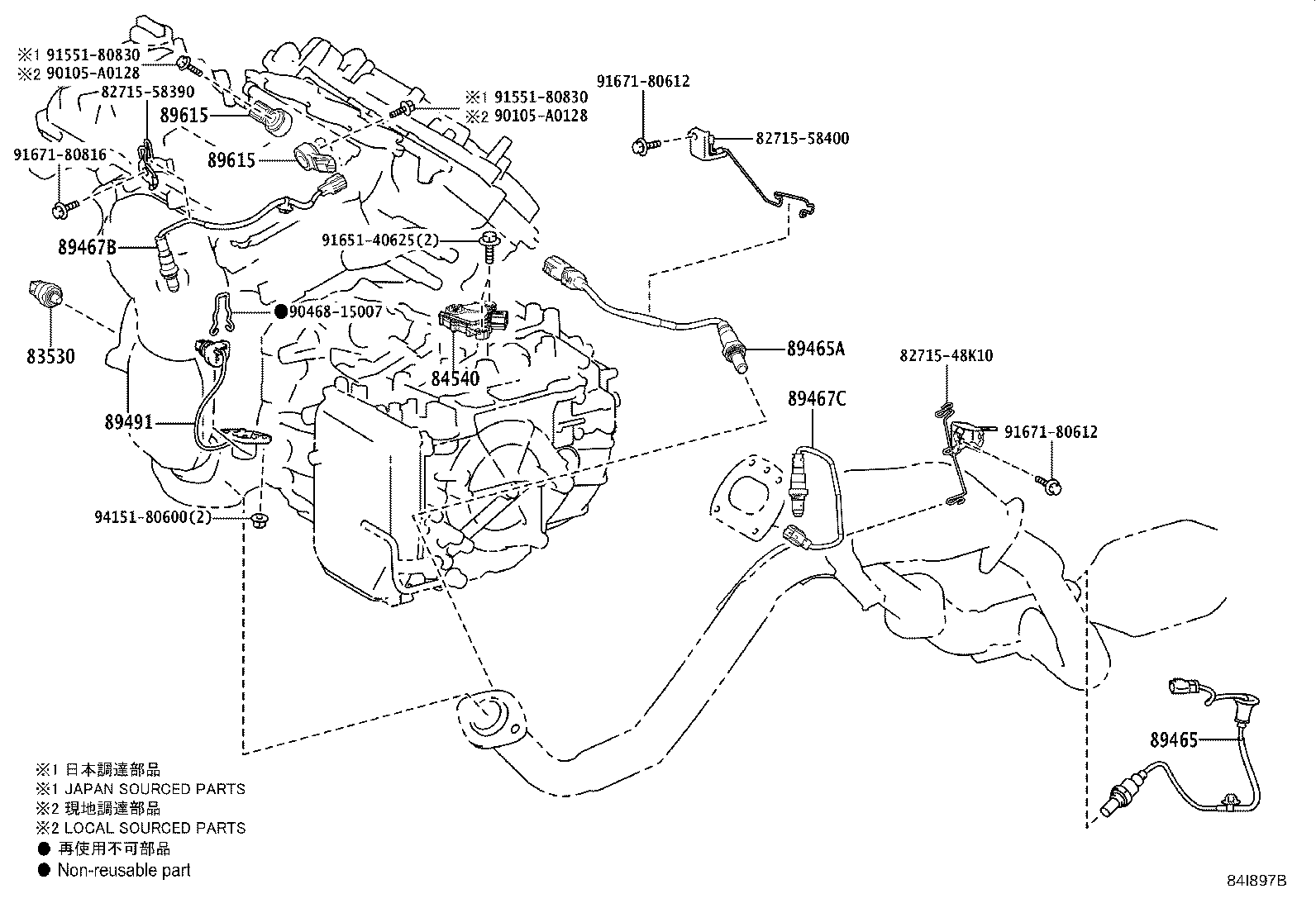

ILLUST NO. 1 OF10(1801- )GGH3#
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60020 |
AGH3#,AYH30,GGH3# YAZAKI |
1 | ||
| 83530-28020 |
AGH3#,AYH30,GGH3# DENSO |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-33020 |
GGH3# |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-58180 |
GGH3# |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-48390 |
GGH3# |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-58070 |
GGH3# |
1 | ||
| 89467C - SENSOR, AIR FUEL RATIO, NO.2 | ||||
| 89467-48320 |
GGH3# |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-48020 |
GGH3# |
1 | ||
| 89491-48021 |
GGH3# |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-06010 |
GGH3# (L) |
2 | ||
| 89615-20090 |
GGH3# (J) |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-06010 |
GGH3# (L) |
2 | ||
| 89615-20090 |
GGH3# (J) |
2 | ||
| Common parts | ||||
| 82715-48K10 | ||||
| 82715-58390 | ||||
| 82715-58400 | ||||
| 90105-A0128 | ||||
| 90468-15007 | ||||
| 91551-80830 | ||||
| 91651-40625 | ||||
| 91671-80612 | ||||
| 91671-80816 | ||||
| 94151-80600 | ||||

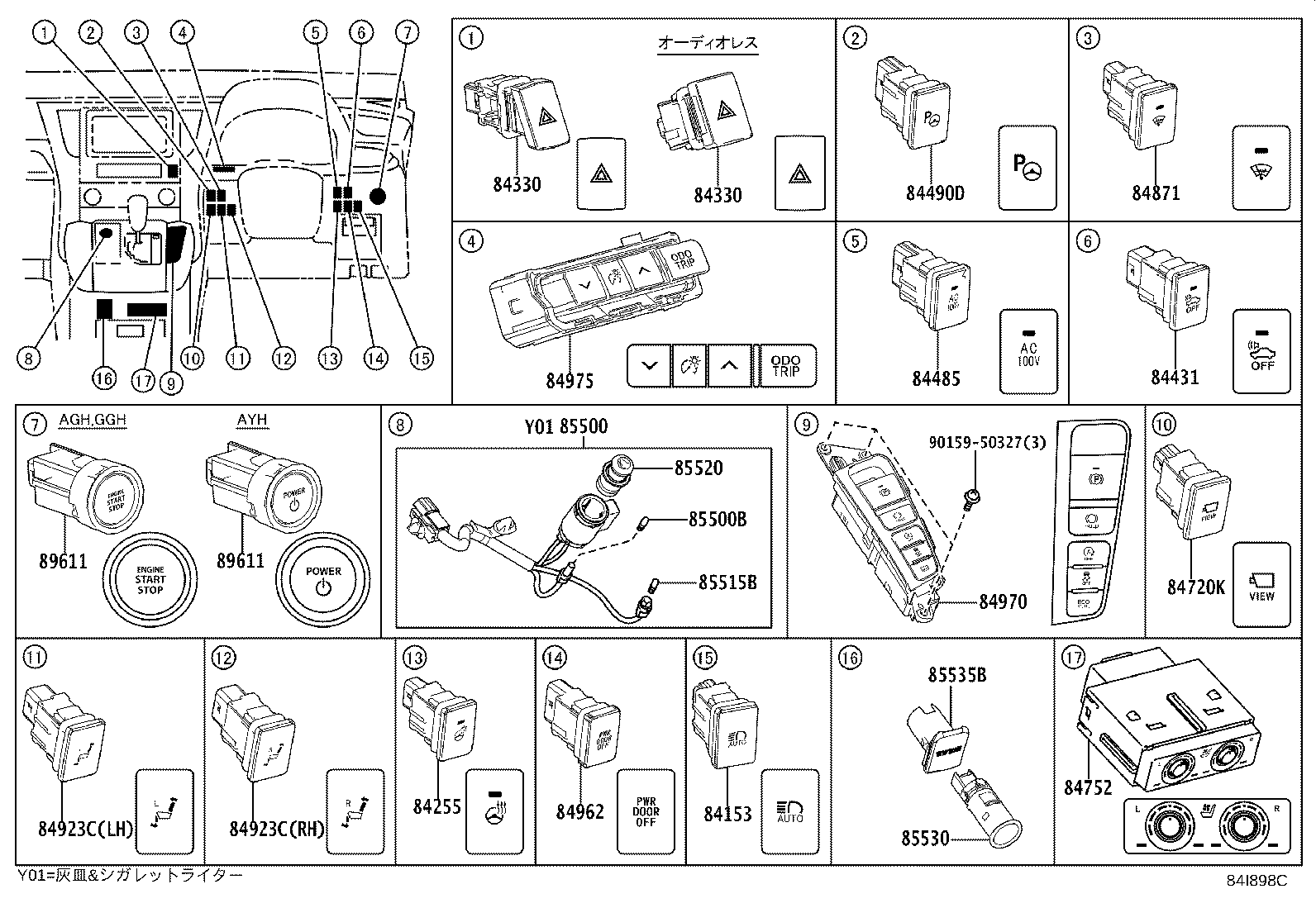

ILLUST NO. 6 OF10(1801- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84153 - SWITCH, AUTO HIGH BEAM | ||||
| 84153-48011 |
AGH3#,AYH30,GGH3# |
1 | ||
| 84255 - SWITCH, STEERING HEATER | ||||
| 84255-58011 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-58031 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR |
1 | ||
| 84332-58041 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-58031 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR |
1 | ||
| 84332-58041 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 84490D - SWITCH ASSY, IPA MAIN | ||||
| 84490-58011 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 84720K - SWITCH ASSY, PATTERN SELECT | ||||
| 84721-58020 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 84752 - SWITCH, REFRESHING SEAT | ||||
| 84752-58010 |
AGH3#,AYH30,GGH3#..EL,ELS,ELZ,G,GF,SC,SR,V,VL,ZG,ZR |
1 | ||
| 84871 - SWITCH ASSY, OUTER MIRROR HEATER | ||||
| 84871-35021 |
AGH3#,AYH30,GGH3# 寒冷地仕様 |
1 | ||
| 84962 - SWITCH, POWER SLIDE DOOR MAIN | ||||
| 84962-58011 |
AGH3#,AYH30,GGH3# |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-58030 |
AGH35,GGH3# |
1 | ||
| 84975 - SWITCH, TRIP | ||||
| 84975-58040 |
AGH3#,AYH30,GGH3# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-58030 |
AGH3#,AYH30,GGH3# ｼｶﾞﾚｯﾄﾗｲﾀ−有り(照明付き) |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90010-01167 |
AGH3#,AYH30,GGH3# 14V 1.4W,ｷｬｯﾌﾟ付き,ｼｶﾞﾚｯﾄﾗｲﾀ−有り(照明付き) |
1 | ||
| 85515B - BULB, CIGARETTE LIGHTER BEZEL STAY | ||||
| 90010-01168 |
AGH3#,AYH30,GGH3# ｼｶﾞﾚｯﾄﾗｲﾀ−有り(照明付き) |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
AGH3#,AYH30,GGH3# ｼｶﾞﾚｯﾄﾗｲﾀ−有り(照明付き) |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-42012 |
AGH3#,GGH3# |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-42012 |
AGH3#,GGH3# |
1 | ||
| Common parts | ||||
| 90159-50327 | ||||

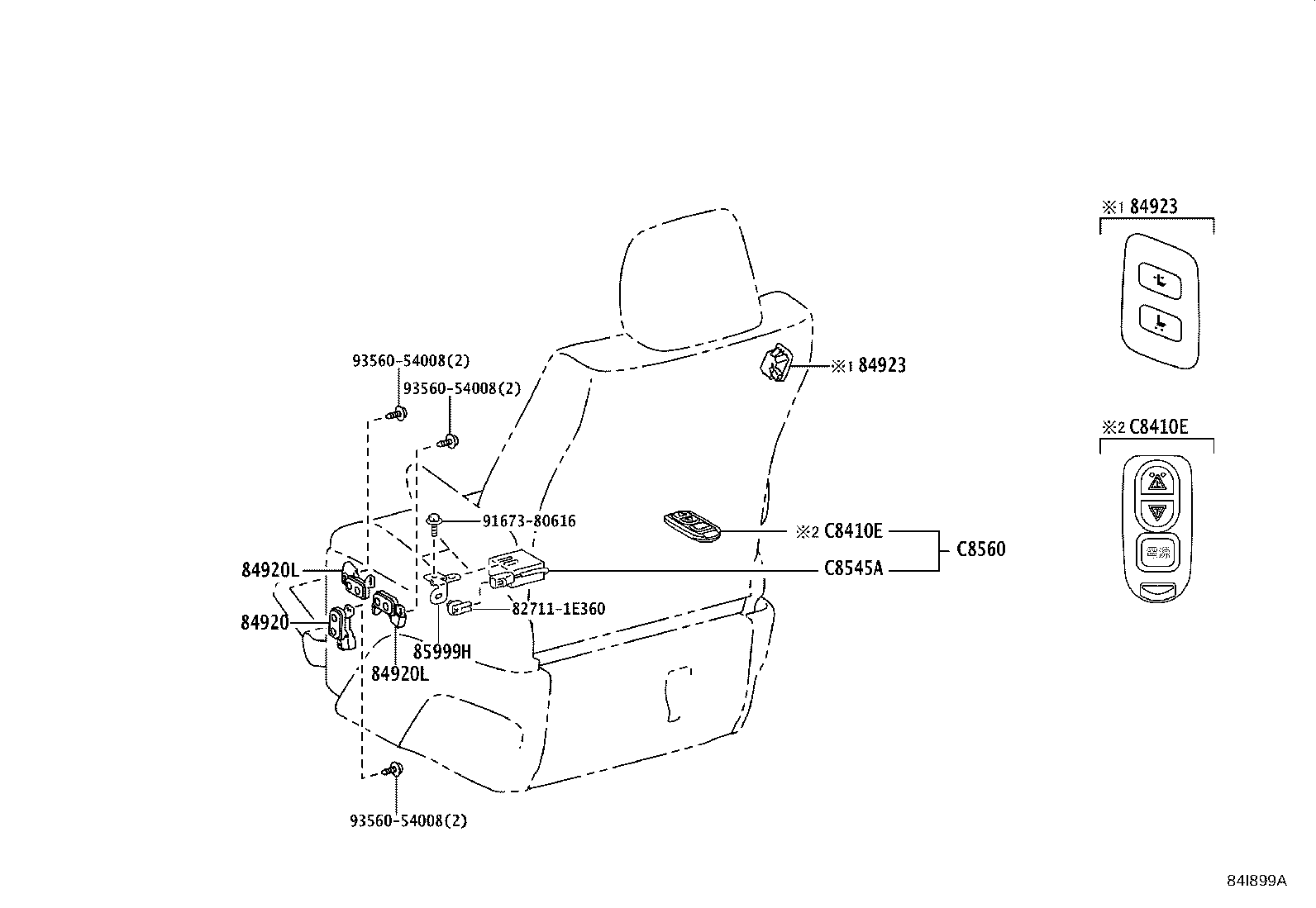

ILLUST NO. 9 OF10(1801- )AYH30..07S..SR,X,ZR ; (1801- )AGH3#,GGH3#..07S..G,GF,S,V,VL,X,Z
ｼｰﾄ(ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟﾁﾙﾄｼｰﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-D1040A2 |
AYH30..07S..X;AGH3#,GGH3#..G,GF,V,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(標準ﾀｲﾌﾟ),FLAXEN,TRIM0# |
1 | ||
| 84920L - SWITCH ASSY, POWER SEAT, NO.2 | ||||
| 84920-D1050A2 |
AYH30..07S..X;AGH3#,GGH3#..G,GF,V,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(標準ﾀｲﾌﾟ),FLAXEN,TRIM0# |
2 | ||
| 84920L - SWITCH ASSY, POWER SEAT, NO.2 | ||||
| 84920-D1050A2 |
AYH30..07S..X;AGH3#,GGH3#..G,GF,V,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(標準ﾀｲﾌﾟ),FLAXEN,TRIM0# |
2 | ||
| 84923 - SWITCH, REAR POWER SEAT | ||||
| 84920-30290A0 |
AYH30..07S..X;AGH3#,GGH3#..G,GF,V,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(標準ﾀｲﾌﾟ),IVORY,TRIM0# |
1 | ||
| 84923 - SWITCH, REAR POWER SEAT | ||||
| 84920-30290A0 |
AYH30..07S..X;AGH3#,GGH3#..G,GF,V,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(標準ﾀｲﾌﾟ),IVORY,TRIM0# |
1 | ||
| 85999H - BRACKET, RELAY | ||||
| 85999-28620 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,V,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(標準ﾀｲﾌﾟ) |
1 | ||
| C8410E - SWITCH ASSY, POWER LIFT CONTROL, NO.1 | ||||
| C8410-D1161 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,V,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(標準ﾀｲﾌﾟ) |
1 | ||
| C8410E - SWITCH ASSY, POWER LIFT CONTROL, NO.1 | ||||
| C8410-D1161 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,V,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(標準ﾀｲﾌﾟ) |
1 | ||
| C8545A - RELAY, POWER LIFT CONTROL | ||||
| C8545-D1400 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,V,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(標準ﾀｲﾌﾟ) |
1 | ||
| C8560 - RELAY ASSY, LIFTER | ||||
| C8560-D1051 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,V,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(標準ﾀｲﾌﾟ) |
1 | ||
| Common parts | ||||
| 82711-1E360 | ||||
| 91673-80616 | ||||
| 93560-54008 | ||||

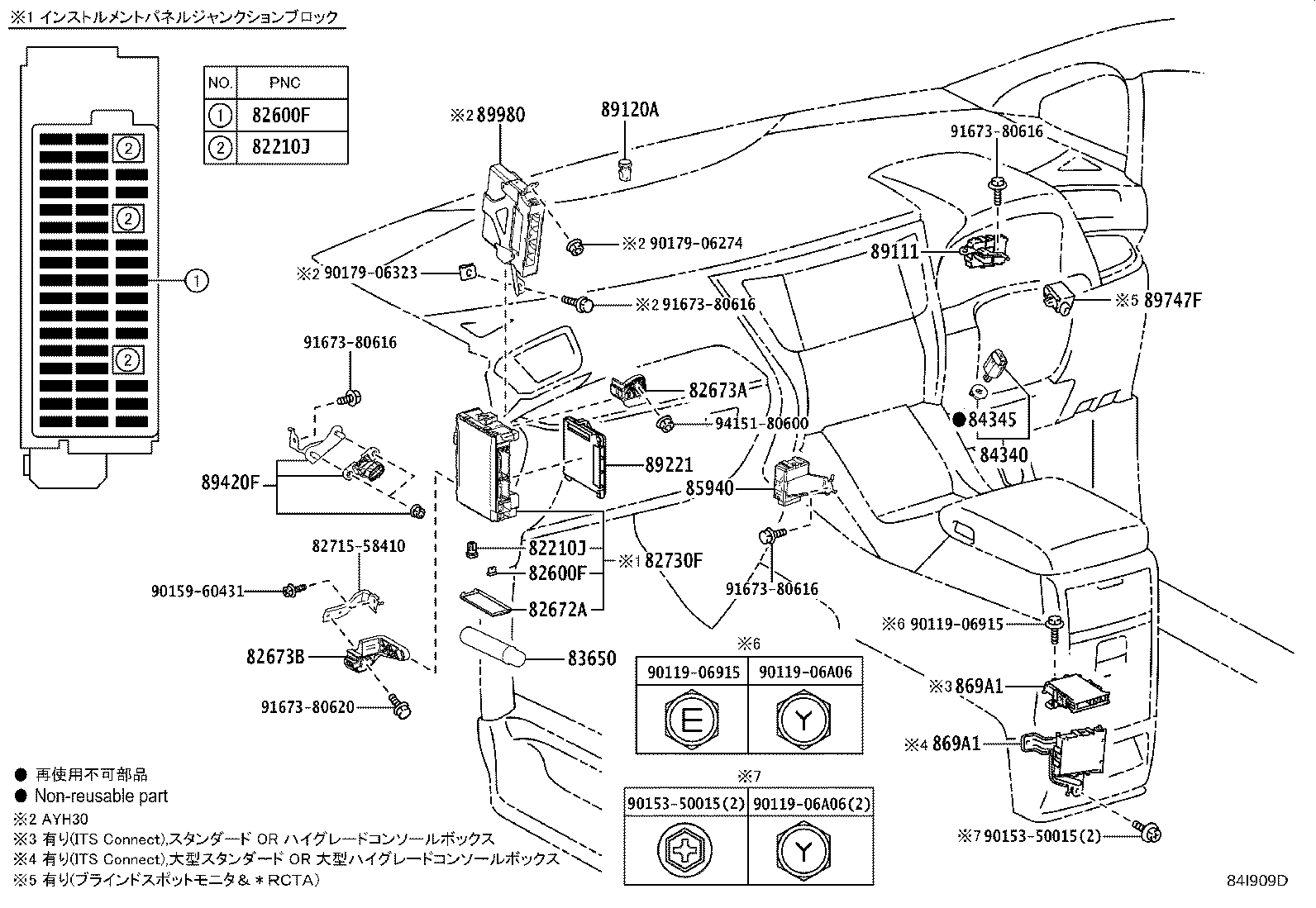

ILLUST NO. 5 OF10(1801- )
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210J - FUSIBLE LINK | ||||
| 90982-08306 |
AGH3#,AYH30,GGH3# 30A,ﾒｽ端子,桃 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08306 |
AGH3#,AYH30,GGH3# 30A,ﾒｽ端子,桃 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
AGH3#,AYH30,GGH3# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09021 |
AGH3#,AYH30,GGH3# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09019 |
AGH3#,AYH30,GGH3# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09022 |
AGH3#,AYH30,GGH3# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09025 |
AGH3#,AYH30,GGH3# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09023 |
AGH3#,AYH30,GGH3# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
AGH3#,AYH30,GGH3# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09021 |
AGH3#,AYH30,GGH3# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09019 |
AGH3#,AYH30,GGH3# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09022 |
AGH3#,AYH30,GGH3# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09025 |
AGH3#,AYH30,GGH3# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09023 |
AGH3#,AYH30,GGH3# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-58090 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-58060 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-58070 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82730F - BLOCK ASSY, JUNCTION, LH | ||||
| 82730-58151 |
AGH3#,AYH30,GGH3# |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
AGH3#,AYH30,GGH3# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-49065 |
AGH3#,AYH30,GGH3# |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-58030 |
AGH3#,AYH30,GGH3#..EL,ELS,ELZ,G,GF,SC,SR,V,VL,ZG,ZR |
1 | ||
| 869A1 - COMPUTER, INTELLIGENT TRANSPORT SYSTEMS COMMUNICATION | ||||
| 869A0-58020 |
AGH3#,GGH3#..EL,ELS,ELZ,G,GF,SC,V,VL,ZG ITS Connect−有り |
1 | ||
| 869A1 - COMPUTER, INTELLIGENT TRANSPORT SYSTEMS COMMUNICATION | ||||
| 869A0-58020 |
AGH3#,GGH3#..EL,ELS,ELZ,G,GF,SC,V,VL,ZG ITS Connect−有り |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89100-58050 |
AGH3#,AYH30,GGH3# |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-30020 |
AGH3#,AYH30,GGH3# |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-58210 |
AGH3#,AYH30,GGH3#..V,VL 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 89220-58210 |
AGH3#,AYH30,GGH3#..G,GF 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 89220-58200 |
AGH3#,AYH30,GGH3#..G,GF,S,SR,V,VL,X,Z,ZR |
1 | ||
| 89220-58210 |
AGH3#,AYH30,GGH3#..G,GF 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 89220-58220 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 89220-58210 |
AGH3#,AYH30,GGH3#..V,VL 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 89220-58220 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 89220-58220 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 89220-58220 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 89220-58230 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 89220-58390 |
AGH3#,AYH30,GGH3#..G,GF 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 89220-58380 |
AGH3#,AYH30,GGH3#..G,GF,S,SR,V,VL,X,Z,ZR |
1 | ||
| 89220-58390 |
AGH3#,AYH30,GGH3#..V,VL 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 89220-58390 |
AGH3#,AYH30,GGH3#..G,GF 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 89220-58400 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 89220-58390 |
AGH3#,AYH30,GGH3#..V,VL 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 89220-58400 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 89220-58410 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 89220-58400 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 89220-58400 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 89747F - BUZZER, BLIND SPOT MONITOR | ||||
| 89747-52010 |
AGH3#..07S..(S,Z);AYH30,GGH3#..G,GF,SC,SR,V,VL,ZG,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ)&車線変更支援ｼｽﾃﾑ−有り(ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ&*RCTA) |
1 | ||
| 89747-52010 |
AGH3#..07S..(S,Z);AYH30,GGH3#..G,GF,SC,SR,V,VL,ZG,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ)&車線変更支援ｼｽﾃﾑ−有り(ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ&*RCTA) |
1 | ||
| 89747-52010 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 89747-52010 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 89747-52010 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 89747-52010 |
AGH3#..07S..(S,Z);AYH30,GGH3#..G,GF,SC,SR,V,VL,ZG,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ)&車線変更支援ｼｽﾃﾑ−有り(ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ&*RCTA) |
1 | ||
| 89747-52010 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 89747-52010 |
AGH3#..07S..(S,Z);AYH30,GGH3#..G,GF,SC,SR,V,VL,ZG,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ)&車線変更支援ｼｽﾃﾑ−有り(ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ&*RCTA) |
1 | ||
| Common parts | ||||
| 82715-58410 | ||||
| 90119-06915 | ||||
| 90119-06A06 | ||||
| 90153-50015 | ||||
| 90159-60431 | ||||
| 90179-06274 | ||||
| 90179-06323 | ||||
| 91673-80616 | ||||
| 91673-80620 | ||||
| 94151-80600 | ||||

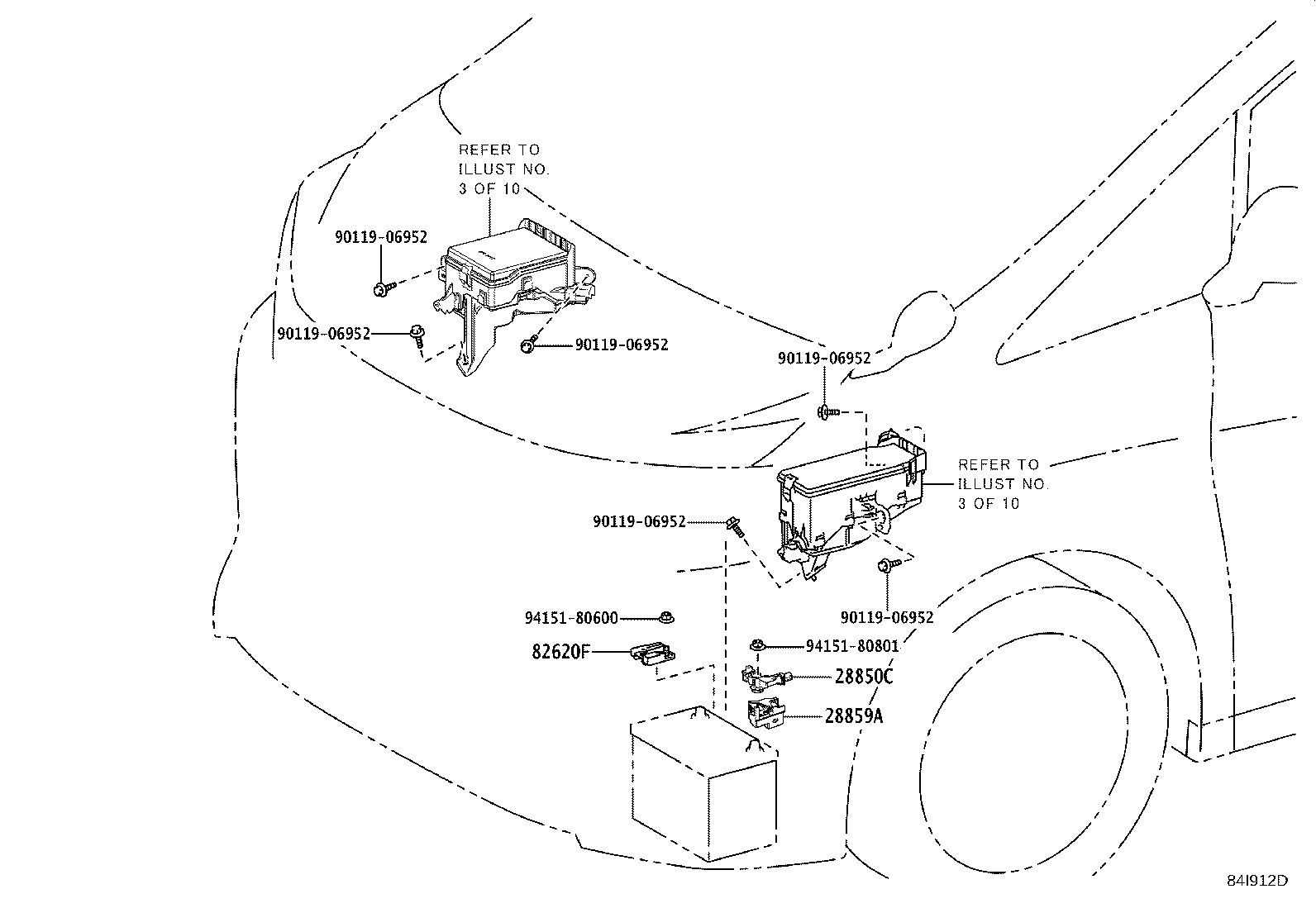

ILLUST NO. 2 OF10(1801- )GGH3#
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28850C - SENSOR ASSY, BATTERY STATE | ||||
| 28850-36030 |
2ARFE,2GRFKS..AGH35,GGH3# |
1 | ||
| 28859A - HOLDER, BATTERY CURRENT SENSOR | ||||
| 28859-36020 |
2ARFE,2GRFKS..AGH35,GGH3# |
1 | ||
| 82620F - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-08040 |
GGH3# |
1 | ||
| Common parts | ||||
| 90119-06952 | ||||
| 94151-80600 | ||||
| 94151-80801 | ||||

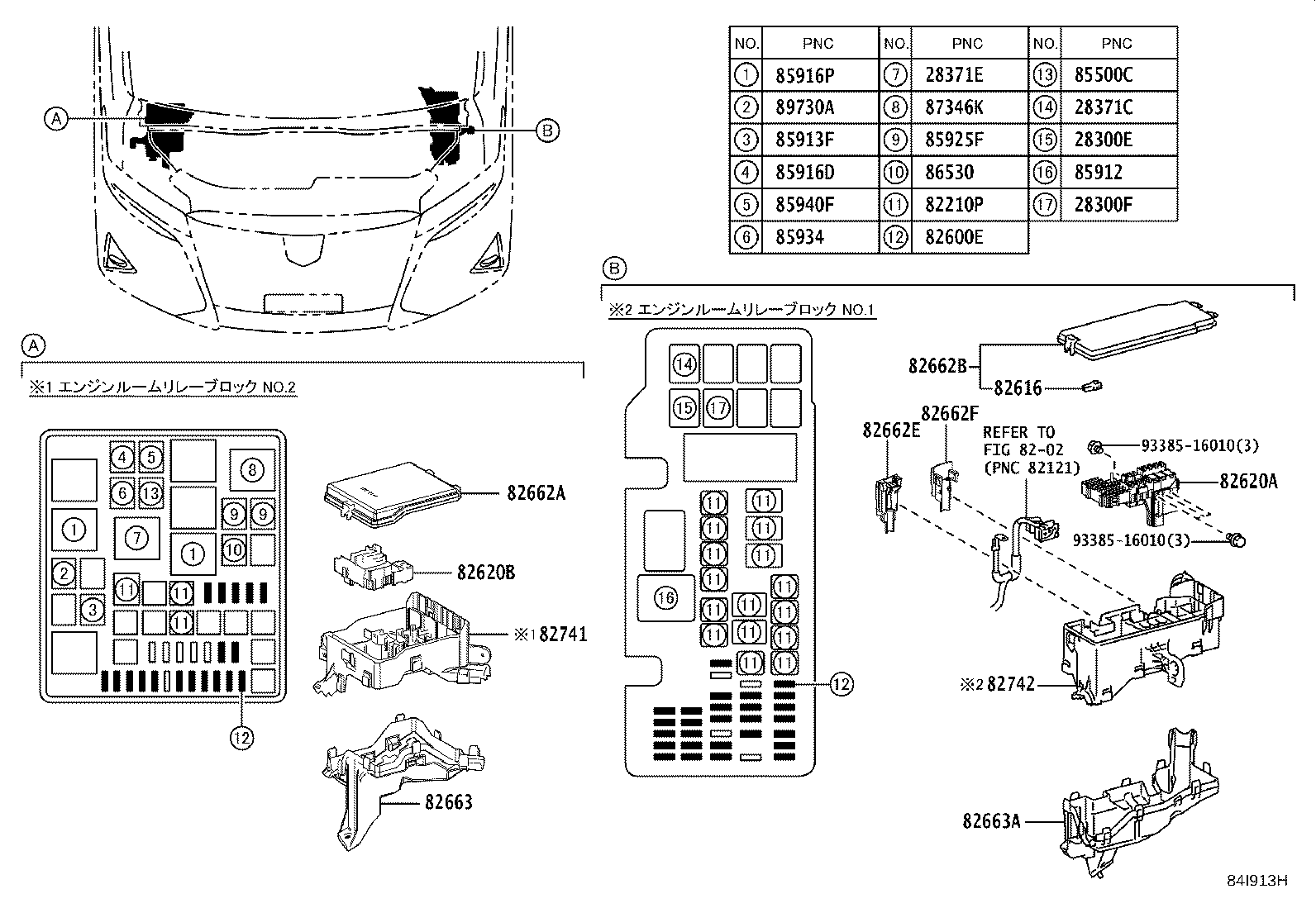

ILLUST NO. 3 OF10(1801- )GGH3#
ｴﾝｼﾞﾝﾙｰﾑ ﾘﾚｰﾌﾞﾛｯｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300E - RELAY ASSY, STARTER, NO.1 | ||||
| 28300-21020 |
2ARFE,2GRFKS..AGH3#,GGH3# |
1 | ||
| 28300F - RELAY ASSY, STARTER, NO.2 | ||||
| 28300-21020 |
2ARFE,2GRFKS..AGH35,GGH3# |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02027 |
2GRFKS..GGH3# |
1 | ||
| 28371E - RELAY, IGNITION, NO.4 | ||||
| 90987-02025 |
2ARFXE,2GRFKS..AYH30,GGH35..EL,ELS,ELZ,GF,SC,VL,ZG;2ARFE,2GRFKS..AGH35,GGH30..EL,ELS,ELZ,G,S,SC,V,X,Z,ZG |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08304 |
AGH3#,AYH30,GGH3# 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08295 |
AGH3#,AYH30,GGH3# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08294 |
AGH3#,AYH30,GGH3# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08286 |
AGH3#,AYH30,GGH3# 140A,ｵｽ端子,赤茶 |
1 | ||
| 90982-08274 |
AGH3#,AYH30,GGH3# 120A,ｵｽ端子,白 |
1 | ||
| 82620-08050 |
GGH3# 180A､TERMINAL:MALE |
1 | ||
| 90982-08296 |
AGH3#,AYH30,GGH3# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08305 |
AGH3#,AYH30,GGH3# 80A,ﾒｽ端子,黒 |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09019 |
AGH3#,AYH30,GGH3# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09025 |
AGH3#,AYH30,GGH3# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09023 |
AGH3#,AYH30,GGH3# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09022 |
AGH3#,AYH30,GGH3# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09020 |
AGH3#,AYH30,GGH3# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09021 |
AGH3#,AYH30,GGH3# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-58070 |
GGH3# |
1 | ||
| 82620B - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-58060 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-58160 |
GGH3# |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-58060 |
GGH3# |
1 | ||
| 82662E - COVER, RELAY BLOCK, UPPER, NO.7 | ||||
| 82661-58070 |
GGH3# |
1 | ||
| 82662F - COVER, RELAY BLOCK, UPPER, NO.8 | ||||
| 82661-58080 |
GGH3# |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-58030 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-58050 |
GGH3# |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-58030 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-58050 |
GGH3# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-04010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 85913F - RELAY, STEERING HEATER | ||||
| 90987-02027 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
GGH3# |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
AGH3#,AYH30,GGH3# |
2 | ||
| 85925F - RELAY, PTC HEATER NO.2 | ||||
| 90987-02027 |
AGH3#,AYH30,GGH3# 寒冷地仕様 |
2 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02028 |
GGH3# |
1 | ||
| 85940F - RELAY ASSY, WINDSHIELD DEICER | ||||
| 90987-02027 |
GGH3# 寒冷地仕様 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
AGH3#,AYH30,GGH3# |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-02025 |
AGH3#,AYH30,GGH3# 寒冷地仕様 |
1 | ||
| 89730A - RELAY(FOR SECURITY WARNING) | ||||
| 90987-02027 |
AGH3#,AYH30,GGH3# |
1 | ||
| Common parts | ||||
| 93385-16010 | ||||
| Linked diagrams | ||||
| 8202 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
