GGH35W-NFZQK (2018)

Toyota Alphard/Vellfire/Hv

Production Jan 2018 - Jan 2020
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1801- )AGH3#..07S..G,S,V ; (1801- )AGH35..ALPHD..08S..X ; (1801- )AYH30,G

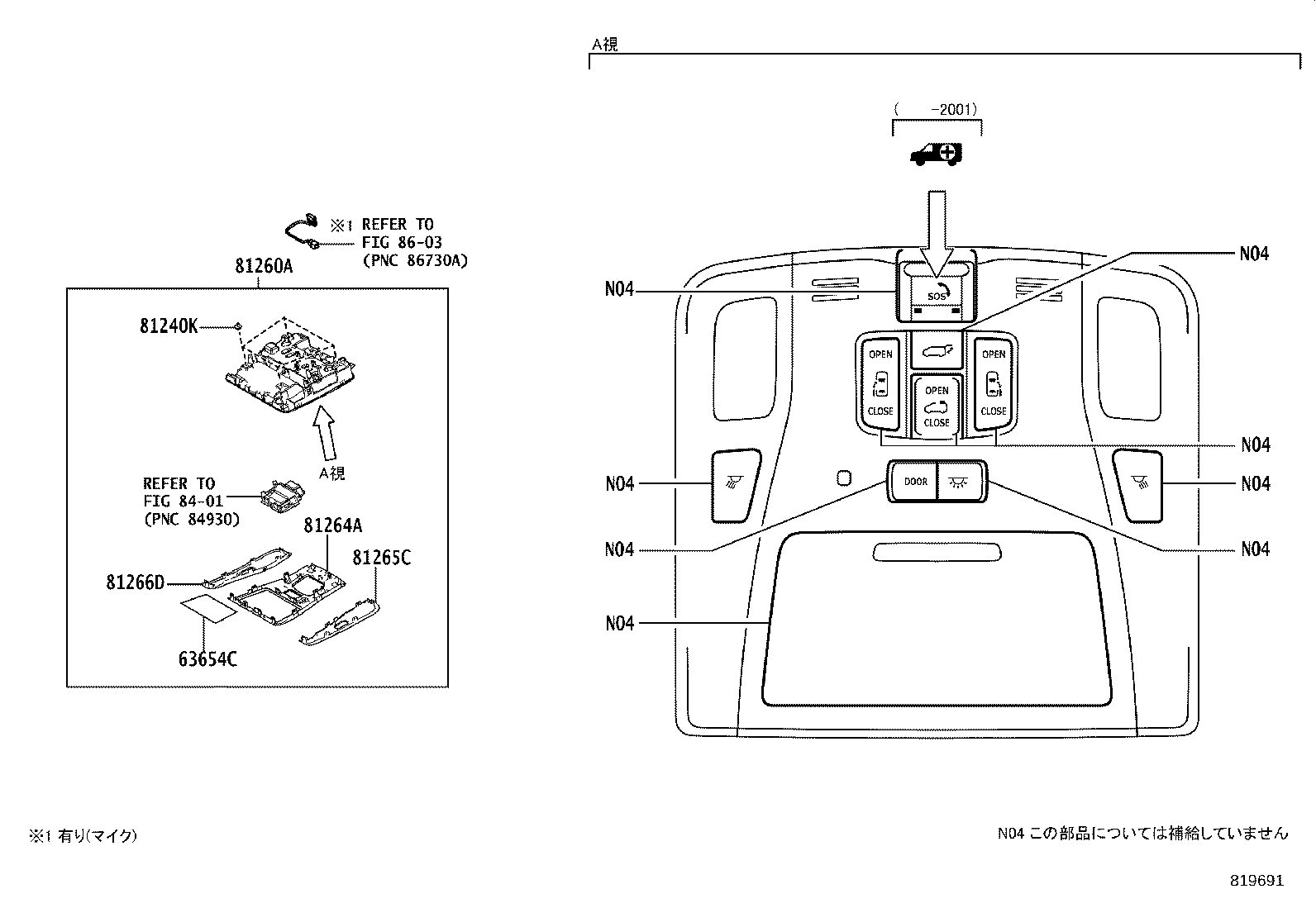

Click highlighted areas on diagram

LED

diagram 63654C 81240K 81260A 81264A 81265C 81266D 8401 8603
Part # Description Qty Price
63654C - COVER, ROOF CONSOLE BOX, INNER
63654-58010

AGH3#,AYH30,GGH3#

 1
81240K - CLIP, ROOM LAMP
90467-09240

AGH3#,AYH30,GGH3#

 4
90467-09245

AGH3#,AYH30,GGH3#

 4
81260A - LAMP ASSY, MAP
81208-58230

AGH30,AYH30,GGH3#..G,GF,SR,V,VL,ZR

ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)

 1
81208-58220

AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR

有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)

 1
81208-58210

AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR

 1
81208-58240

AGH30,AYH30,GGH3#..G,GF,SR,V,VL,ZR

ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)

 1
81264A - COVER, MAP LAMP
81369-58060

AGH3#,AYH30,GGH3#

 1
81265C - LENS, MAP LAMP, NO.1
81361-58100

AGH3#,AYH30,GGH3#..EL,ELS,ELZ,G,GF,SC,SR,V,VL,ZG,ZR

 1
81266D - LENS, MAP LAMP, NO.2
81361-58090

AGH3#,AYH30,GGH3#..EL,ELS,ELZ,G,GF,SC,SR,V,VL,ZG,ZR

 1
Linked diagrams
8401
8603
