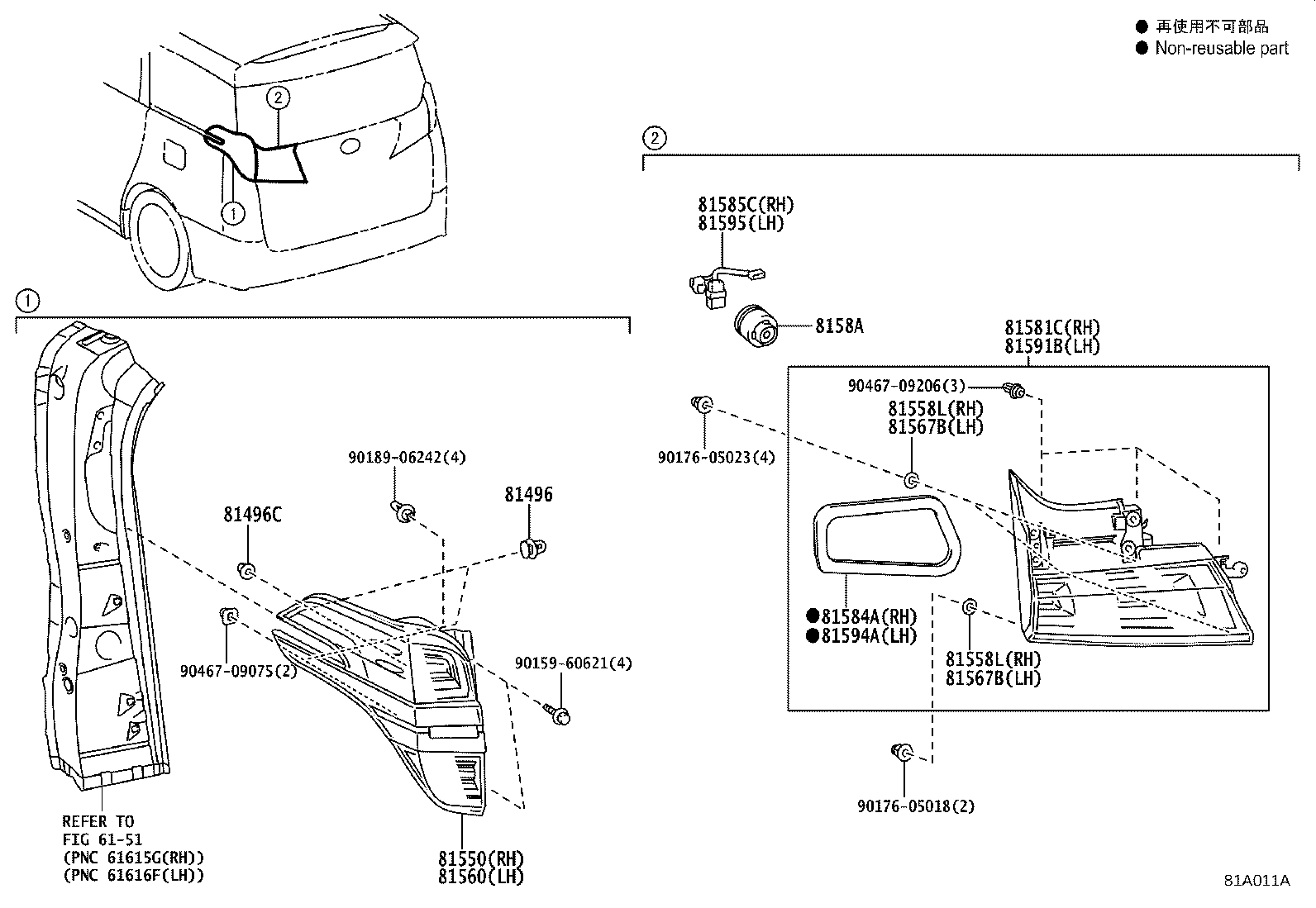

GGH35W-NFZQK (2018)
Toyota Alphard/Vellfire/Hv
(1801- )VFIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-50010 |
AGH3#,AYH30,GGH3# |
4 | ||
| 81496C - GUIDE, REAR COMBINATION LAMP, NO.2 | ||||
| 81496-58010 |
AGH3#,AYH30,GGH3# |
2 | ||
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-58180 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81550-58220 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81550-58220 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 81550-58210 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X,Z,ZG,ZR) |
1 | ||
| 81550-58180 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 81558L - PROTECTOR, REAR COMBINATION LAMP, RH | ||||
| 81558-24040 |
AGH3#,AYH30,GGH3# |
3 | ||
| 81558L - PROTECTOR, REAR COMBINATION LAMP, RH | ||||
| 81558-24040 |
AGH3#,AYH30,GGH3# |
3 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-58180 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 81560-58210 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X,Z,ZG,ZR) |
1 | ||
| 81560-58220 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 81560-58180 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81560-58220 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81567B - PROTECTOR, REAR COMBINATION LAMP, LH | ||||
| 81558-24040 |
AGH3#,AYH30,GGH3# |
3 | ||
| 81567B - PROTECTOR, REAR COMBINATION LAMP, LH | ||||
| 81558-24040 |
AGH3#,AYH30,GGH3# |
3 | ||
| 81581C - LENS AND BODY, REAR LAMP, RH | ||||
| 81581-58330 |
AGH3#,AYH30,GGH3#..G,GF 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81581-58330 |
AGH3#,AYH30,GGH3#..G,GF 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 81581-58400 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81581-58320 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81581-58390 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X,Z,ZG,ZR) 寒冷地仕様 |
1 | ||
| 81581-58320 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 81581-58380 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X,Z,ZG,ZR) |
1 | ||
| 81581-58410 |
AGH3#,AYH30,GGH3#..V,VL 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 81581-58400 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 81581-58410 |
AGH3#,AYH30,GGH3#..V,VL 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81584A - GASKET, REAR LAMP RH | ||||
| 81584-58230 |
AGH3#,AYH30,GGH3# |
1 | ||
| 81585C - SOCKET & WIRE, REAR LAMP, RH | ||||
| 81585-58320 |
AGH3#,AYH30,GGH3#..G,GF 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81585-58320 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 81585-58320 |
AGH3#,AYH30,GGH3#..G,GF 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 81585-58400 |
AGH3#,AYH30,GGH3#..V,VL 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 81585-58400 |
AGH3#,AYH30,GGH3#..V,VL 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81585-58320 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81585-58400 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81585-58400 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 81585-58380 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X,Z,ZG,ZR) |
1 | ||
| 8158A - LED, REAR LAMP | ||||
| 8158A-0D610 |
AGH3#,AYH30,GGH3# |
2 | ||
| 81591B - LENS AND BODY, REAR LAMP, LH | ||||
| 81591-58320 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 81591-58320 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81591-58330 |
AGH3#,AYH30,GGH3#..G,GF 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 81591-58400 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 81591-58330 |
AGH3#,AYH30,GGH3#..G,GF 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81591-58390 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X,Z,ZG,ZR) 寒冷地仕様 |
1 | ||
| 81591-58400 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81591-58410 |
AGH3#,AYH30,GGH3#..V,VL 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81591-58380 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X,Z,ZG,ZR) |
1 | ||
| 81591-58410 |
AGH3#,AYH30,GGH3#..V,VL 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 81594A - GASKET, REAR LAMP LH | ||||
| 81594-58230 |
AGH3#,AYH30,GGH3# |
1 | ||
| 81595 - SOCKET & WIRE, REAR LAMP, LH | ||||
| 81585-58320 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81585-58320 |
AGH3#,AYH30,GGH3#..G,GF 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81585-58320 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 81585-58400 |
AGH3#,AYH30,GGH3#..V,VL 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 81585-58400 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 81585-58380 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X,Z,ZG,ZR) |
1 | ||
| 81585-58400 |
AGH3#,AYH30,GGH3#..V,VL 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81585-58320 |
AGH3#,AYH30,GGH3#..G,GF 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 81585-58400 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| Common parts | ||||
| 90159-60621 | ||||
| 90176-05018 | ||||
| 90176-05023 | ||||
| 90189-06242 | ||||
| 90467-09075 | ||||
| 90467-09206 | ||||
| Linked diagrams | ||||
| 6151 | ||||
