GGH35W-NFZQK (2018)
Toyota Alphard/Vellfire/Hv

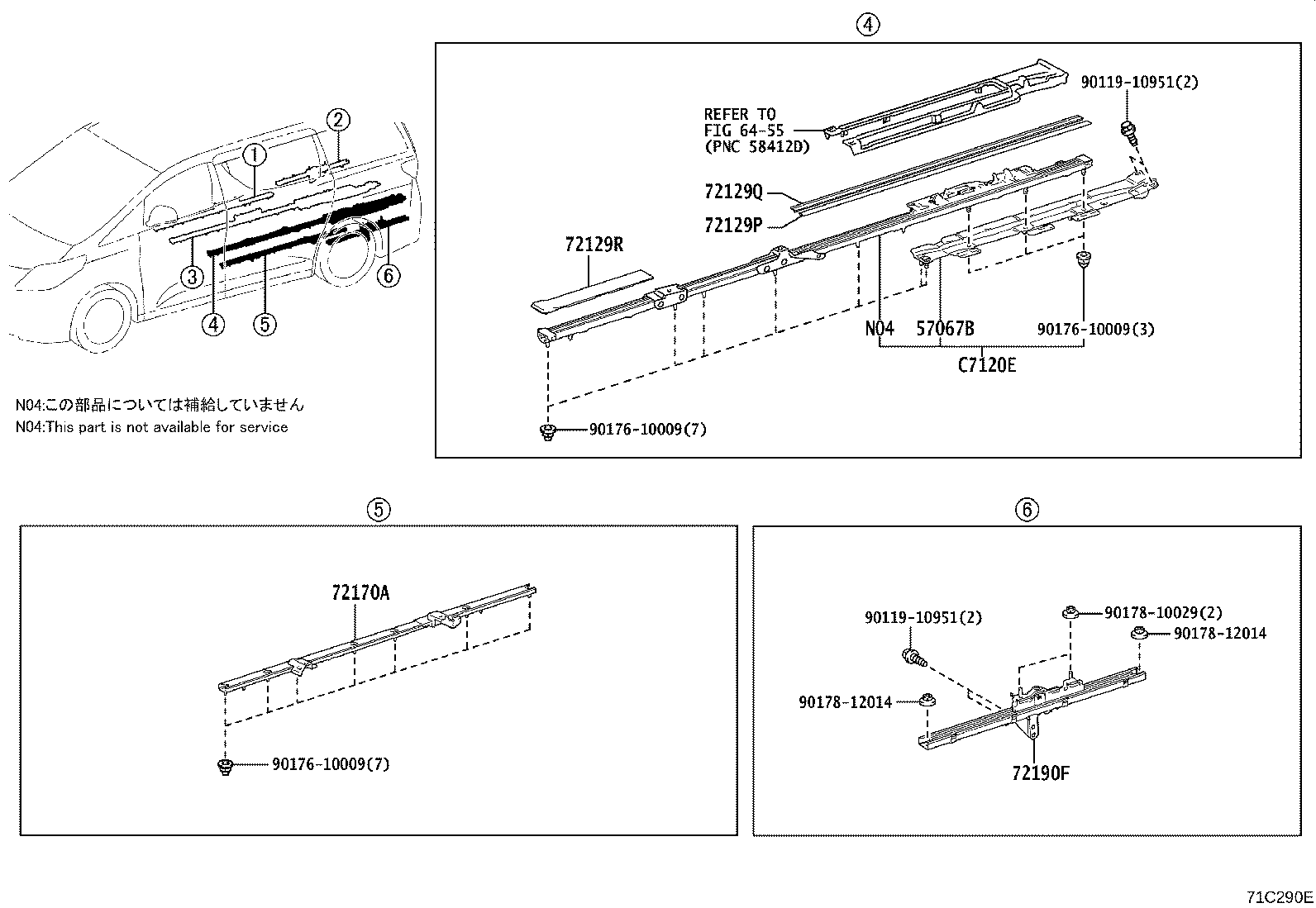

ILLUST NO. 2 OF 2(1801- )AYH30..07S..SR,X,ZR ; (1801- )AGH3#,GGH3#..07S..G,GF,S,V,VL,X,Z
ｳｪﾙｷｬﾌﾞ(ﾚﾌﾄ) ｻｲﾄﾞﾁﾙﾄｱｯﾌﾟｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57067B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57067-58010 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR |
1 | ||
| 72129P - PROTECTOR, SEAT TRACK LOWER RAIL, LH INNER NO.1 | ||||
| 72129-58240C0 |
AGH3#..G,V;AGH3#..08S..X;AYH30,GGH3#..G,GF,V,VL,X BLACK,TRIM0# |
1 | ||
| 72129-58240C0 |
AGH3#,AYH30,GGH3#..S,SC,SR,Z,ZG,ZR BLACK,TRIM2# |
1 | ||
| 72129-58290C0 |
AYH30..07S..X;AGH3#,GGH3#..G,GF,V,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(標準ﾀｲﾌﾟ),BLACK,TRIM0# |
1 | ||
| 72129-58420C0 |
AGH3#,AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(脱着ﾀｲﾌﾟ電動式),BLACK,TRIM0# |
1 | ||
| 72129-58420C0 |
AGH3#,AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(脱着ﾀｲﾌﾟ手動式),BLACK,TRIM0# |
1 | ||
| 72129Q - PROTECTOR, SEAT TRACK LOWER RAIL, LH INNER NO.2 | ||||
| 72129-58240C0 |
AGH3#,AYH30,GGH3#..S,SC,SR,Z,ZG,ZR BLACK,TRIM2# |
1 | ||
| 72129-58240C0 |
AGH3#..G,V;AGH3#..08S..X;AYH30,GGH3#..G,GF,V,VL,X BLACK,TRIM0# |
1 | ||
| 72129-58280C0 |
AYH30..07S..X;AGH3#,GGH3#..G,GF,V,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(標準ﾀｲﾌﾟ),BLACK,TRIM0# |
1 | ||
| 72129-58420C0 |
AGH3#,AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(脱着ﾀｲﾌﾟ手動式),BLACK,TRIM0# |
1 | ||
| 72129-58420C0 |
AGH3#,AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(脱着ﾀｲﾌﾟ電動式),BLACK,TRIM0# |
1 | ||
| 72129R - PROTECTOR, SEAT TRACK LOWER RAIL, LH OUTER NO.1 | ||||
| 72129-58300C0 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK,TRIM0# |
1 | ||
| 72129-28440C0 |
AYH30..07S..X;AGH3#,GGH3#..G,GF,V,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(標準ﾀｲﾌﾟ),BLACK,TRIM0# |
1 | ||
| 72129-58410C0 |
AGH3#,AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(脱着ﾀｲﾌﾟ電動式),BLACK,TRIM0# |
1 | ||
| 72129-58430C0 |
AYH30..07S..(G,V,X);AGH3#,GGH3#..G,GF,V,VL BLACK,TRIM0# |
1 | ||
| 72129-58310C0 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL,BLACK,TRIM0# |
1 | ||
| 72129-58410C0 |
AGH3#,AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(脱着ﾀｲﾌﾟ手動式),BLACK,TRIM0# |
1 | ||
| 72170A - TRACK ASSY, REAR SEAT, OUTER LH | ||||
| 72160-58330 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL |
1 | ||
| 72170-58140 |
AYH30..07S..(G,S,SR,V,X,Z,ZR);AGH3#,GGH3#..07S..(G,GF,S,V,VL,Z) |
1 | ||
| 72170-58210 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,V,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(標準ﾀｲﾌﾟ) |
1 | ||
| 72190F - TRACK ASSY, REAR LH SEAT, OUTER NO.2 | ||||
| 72190-58050 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR |
1 | ||
| C7120E - LEG ASSY, WELCAB SEAT, LH INNER | ||||
| C7120-58120 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(GF,S,VL,X,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(脱着ﾀｲﾌﾟ手動式) |
1 | ||
| C7120-58120 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(GF,S,VL,X,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(脱着ﾀｲﾌﾟ電動式) |
1 | ||
| 72190-58070 |
AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,V,VL,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(標準ﾀｲﾌﾟ) |
1 | ||
| Common parts | ||||
| 90119-10951 | ||||
| 90176-10009 | ||||
| 90178-10029 | ||||
| 90178-12014 | ||||
| Linked diagrams | ||||
| 6455 | ||||
