GGH35W-NFZQK (2018)

Toyota Alphard/Vellfire/Hv

Production Jan 2018 - Jan 2020
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

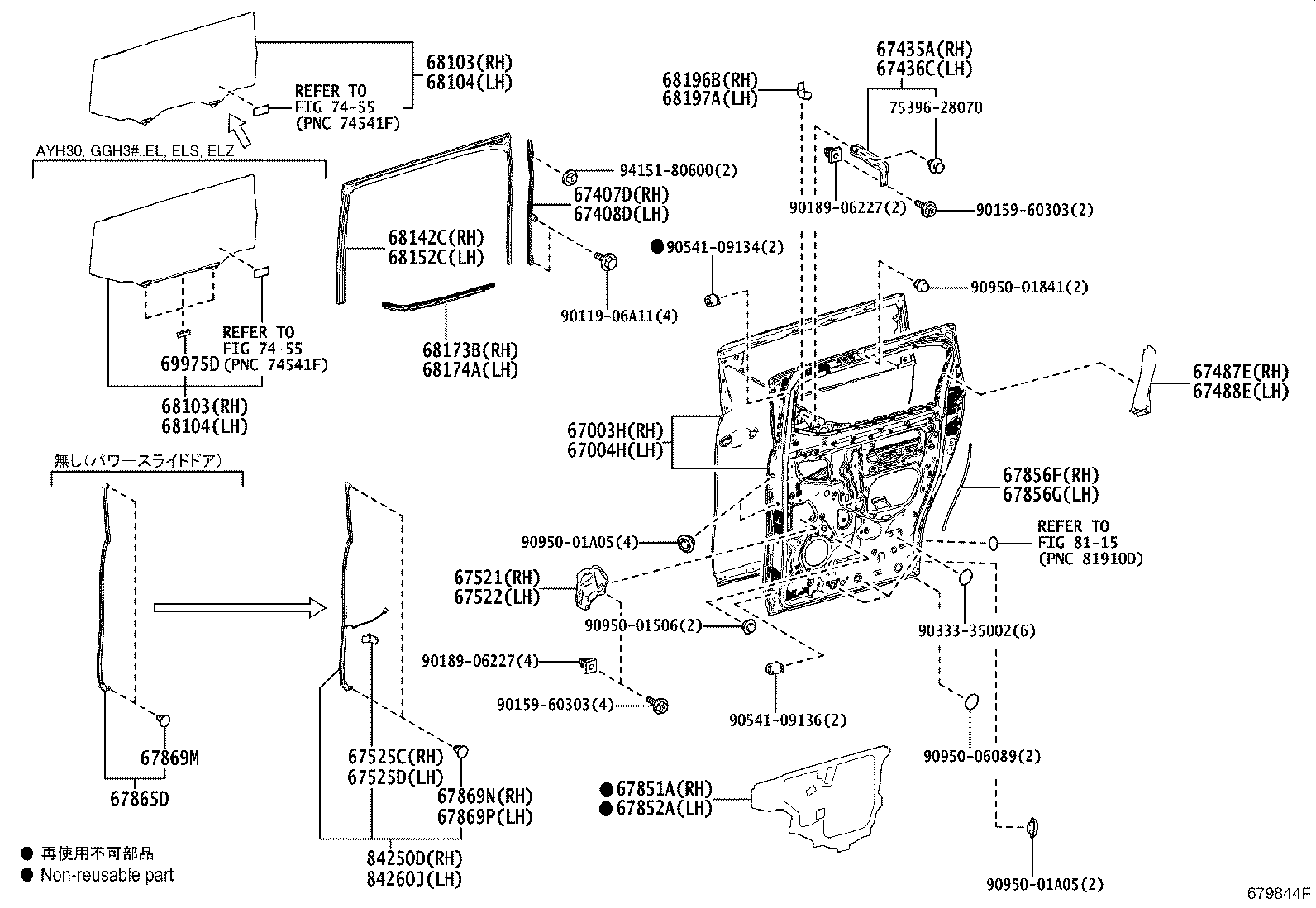

ILLUST NO. 1 OF 2(1801- )

Click highlighted areas on diagram

ﾄﾞｱﾊﾟﾈﾙ

diagram 67003H 67004H 67407D 67408D 67435A 67436C 67487E 67488E 67521 67522 67525C 67525D 67851A 67852A 67856F 67856G 67865D 67869M 67869N 67869P 68103 68103 68104 68104 68142C 68152C 68173B 68174A 68196B 68197A 69975D 7455 7455 7539628070 8115 84250D 84260J 9011906A11 9015960303 9015960303 9018906227 9018906227 9033335002 9054109134 9054109136 9095001506 9095001841 9095001A05 9095001A05 9095006089 9415180600
Part # Description Qty Price
67003H - DOOR SUB-ASSY, SLIDE, RH
67003-58110

AYH30;AGH3#,GGH3#..EL,ELS,ELZ,G,GF,SC,V,VL,ZG

 1
67004H - DOOR SUB-ASSY, SLIDE, LH
67004-58080

AGH3#,AYH30,GGH3#

 1
67407D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH
67407-58030

AGH3#,AYH30,GGH3#

 1
67408D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH
67408-58030

AGH3#,AYH30,GGH3#

 1
67435A - GUIDE, REAR DOOR WINDOW, FRONT RH
67435-58030

AGH3#,AYH30,GGH3#

 1
67436C - GUIDE, REAR DOOR WINDOW, FRONT LH
67436-58030

AGH3#,AYH30,GGH3#

 1
67487E - GARNISH, REAR DOOR REAR GUIDE BRACKET, RH
62583-58010

AGH3#,AYH30,GGH3#

 1
67488E - GARNISH, REAR DOOR REAR GUIDE BRACKET, LH
62584-58010

AGH3#,AYH30,GGH3#

 1
67521 - COVER SUB-ASSY, SLIDE DOOR PANEL, RH
67521-58020

AGH3#,AYH30,GGH3#

 1
67522 - COVER SUB-ASSY, SLIDE DOOR PANEL, LH
67522-58020

AGH3#,AYH30,GGH3#

 1
67525C - COVER, SLIDE DOOR PANEL, LOWER RH
67525-58010

AYH30;AGH3#,GGH3#..EL,ELS,ELZ,G,GF,SC,V,VL,ZG

 1
67525D - COVER, SLIDE DOOR PANEL, LOWER LH
67526-58020

AGH3#,AYH30,GGH3#

 1
67851A - COVER, SLIDE DOOR SERVICE HOLE, NO.1
67851-58040

AGH3#,AYH30,GGH3#

 1
67852A - COVER, SLIDE DOOR SERVICE HOLE, NO.2
67852-58040

AGH3#,AYH30,GGH3#

 1
67856F - WEATHERSTRIP, CENTER DOOR, REAR RH
67856-58020

AGH3#,AYH30,GGH3#

 1
67856G - WEATHERSTRIP, CENTER DOOR, REAR LH
67856-58020

AGH3#,AYH30,GGH3#

 1
67869N - CLIP, REAR DOOR WEATHERSTRIP, RH
67869-28020

AYH30;AGH3#,GGH3#..EL,ELS,ELZ,G,GF,SC,V,VL,ZG

 2
67869P - CLIP, REAR DOOR WEATHERSTRIP, LH
67869-28020

AGH3#,AYH30,GGH3#

 2
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68103-58110

AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR

 1
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68103-58110

AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR

 1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68104-58090

AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR

 1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68104-58090

AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR

 1
68142C - RUN, REAR DOOR GLASS, RH
68142-58050

AGH3#,AYH30,GGH3#

 1
68152C - RUN, REAR DOOR GLASS, LH
68152-58050

AGH3#,AYH30,GGH3#

 1
68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH
68173-58040

AGH3#,AYH30,GGH3#

 1
68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH
68174-58040

AGH3#,AYH30,GGH3#

 1
68196B - SEAL, REAR DOOR BELT, FRONT RH
68196-58010

AGH3#,AYH30,GGH3#

 1
68197A - SEAL, REAR DOOR BELT, FRONT LH
68197-58010

AGH3#,AYH30,GGH3#

 1
84250D - SENSOR ASSY, POWER SLIDE DOOR, RH
84250-58221

AYH30;AGH3#,GGH3#..EL,ELS,ELZ,G,GF,SC,V,VL,ZG

 1
84260J - SENSOR ASSY, POWER SLIDE DOOR, LH
84260-58041

AGH3#,AYH30,GGH3#

 1
Common parts
75396-28070
90119-06A11
90159-60303
90189-06227
90333-35002
90541-09134
90541-09136
90950-01506
90950-01841
90950-01A05
90950-06089
94151-80600
Linked diagrams
7455
8115
