GGH35W-NFZQK (2018)

Toyota Alphard/Vellfire/Hv

Production Jan 2018 - Jan 2020
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

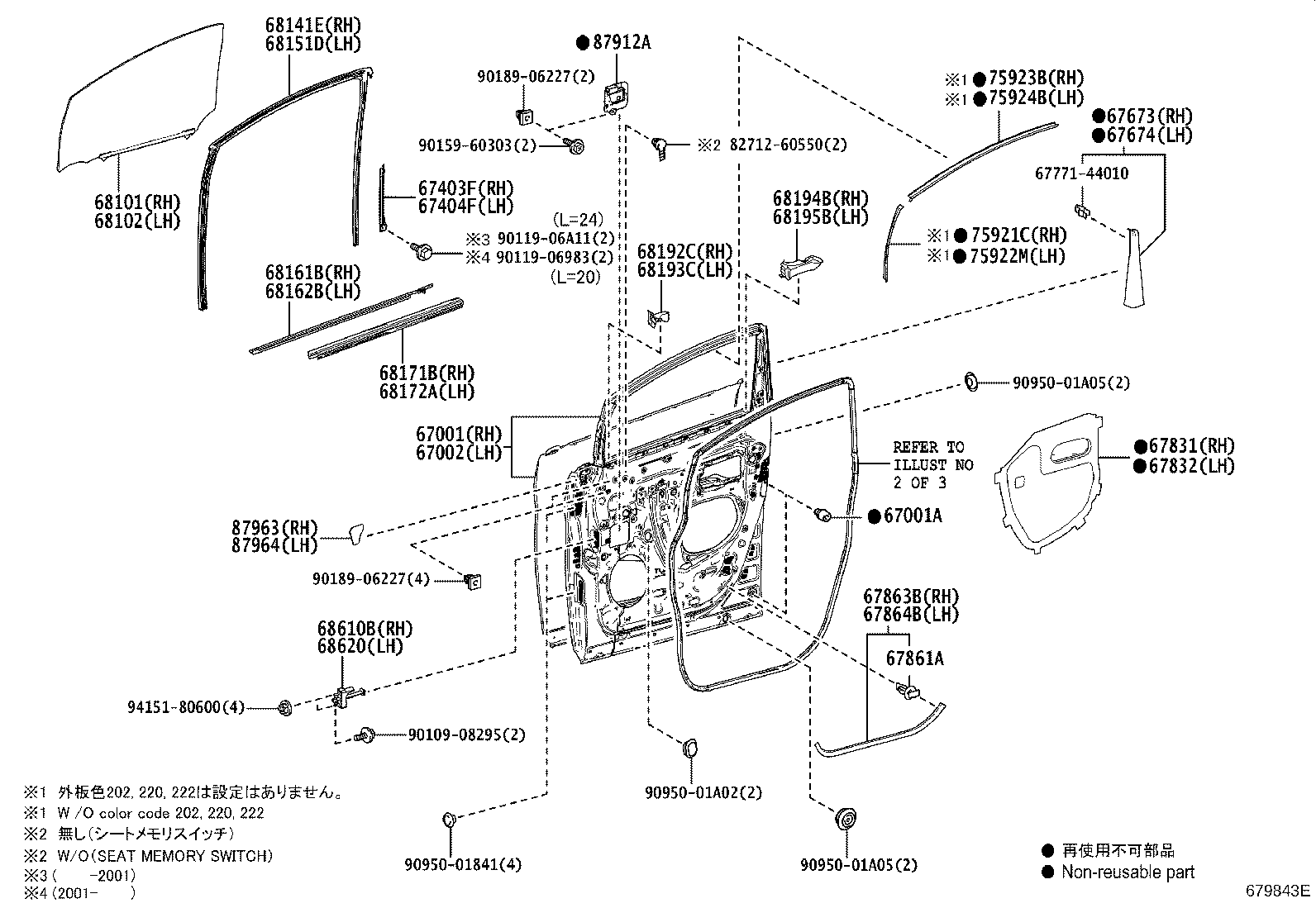

ILLUST NO. 1 OF 3(1801- )

Click highlighted areas on diagram

ﾄﾞｱﾊﾟﾈﾙ

diagram 67001 67001A 67002 67403F 67404F 67673 67674 6777144010 67831 67832 67861A 67863B 67864B 68101 68102 68141E 68151D 68161B 68162B 68171B 68172A 68192C 68193C 68194B 68195B 68610B 68620 75921C 75922M 75923B 75924B 8271260550 87912A 87963 87964 9010908295 9011906983 9011906A11 9015960303 9018906227 9018906227 9095001841 9095001A02 9095001A05 9095001A05 9415180600
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-58070

AGH3#,AYH30,GGH3#

 1
67001A - CUSHION, FRONT DOOR PANEL
90541-09143

AGH3#,AYH30,GGH3#

 4
90541-09124

AGH3#,AYH30,GGH3#

 4
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-58080

AGH3#,AYH30,GGH3#

 1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-58030

AGH3#,AYH30,GGH3#

 1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-58030

AGH3#,AYH30,GGH3#

 1
67673 - GARNISH, DOOR FRAME, LOWER RH
67673-58020

AGH3#,AYH30,GGH3#

 1
67674 - GARNISH, DOOR FRAME, LOWER LH
67674-58020

AGH3#,AYH30,GGH3#

 1
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67801-58020

AGH3#,AYH30,GGH3#

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67802-58020

AGH3#,AYH30,GGH3#

 1
67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP)
67867-12150

AGH3#,AYH30,GGH3#

 12
67863B - WEATHERSTRIP, FRONT DOOR, NO.2 RH
67863-58030

AGH3#,AYH30,GGH3#

 1
67864B - WEATHERSTRIP, FRONT DOOR, NO.2 LH
67863-58030

AGH3#,AYH30,GGH3#

 1
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68101-58100

AYH30..G,S,SR,V,X,Z,ZR;AGH3#,GGH3#..G,GF,SC,V,VL,ZG

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68102-58090

AYH30..G,S,SR,V,X,Z,ZR;AGH3#,GGH3#..G,GF,SC,V,VL,ZG

 1
68141E - RUN, FRONT DOOR GLASS, RH
68141-58051

AGH3#,AYH30,GGH3#

 1
68151D - RUN, FRONT DOOR GLASS, LH
68151-58051

AGH3#,AYH30,GGH3#

 1
68161B - WEATHERSTRIP, FRONT DOOR GLASS, OUTER RH
68161-58030

AGH3#,AYH30,GGH3#

 1
68162B - WEATHERSTRIP, FRONT DOOR GLASS, OUTER LH
68162-58030

AGH3#,AYH30,GGH3#

 1
68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68171-58040

AGH3#,AYH30,GGH3#

 1
68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH
68172-58040

AGH3#,AYH30,GGH3#

 1
68192C - SEAL, FRONT DOOR BELT, FRONT RH
68192-58060

AGH3#,AYH30,GGH3#

 1
68193C - SEAL, FRONT DOOR BELT, FRONT LH
68193-58010

AGH3#,AYH30,GGH3#

 1
68194B - SEAL, FRONT DOOR BELT, REAR RH
68194-58010

AGH3#,AYH30,GGH3#

 1
68195B - SEAL, FRONT DOOR BELT, REAR LH
68195-58010

AGH3#,AYH30,GGH3#

 1
68610B - CHECK ASSY, FRONT DOOR, RH
68610-58030

AGH3#,AYH30,GGH3#

 1
68620 - CHECK ASSY, FRONT DOOR, LH
68620-58030

AGH3#,AYH30,GGH3#

 1
75921C - TAPE, BLACK OUT, NO.1 RH
75921-58010

AGH3#,AYH30,GGH3#

個数0or1個､ｲﾗｽﾄ参照

 1
75922M - TAPE, BLACK OUT, NO.1 LH
75922-58010

AGH3#,AYH30,GGH3#

個数0or1個､ｲﾗｽﾄ参照

 1
75923B - TAPE, BLACK OUT, NO.2 RH
75923-58010

AGH3#,AYH30,GGH3#

個数0or1個､ｲﾗｽﾄ参照

 1
75924B - TAPE, BLACK OUT, NO.2 LH
75924-58010

AGH3#,AYH30,GGH3#

個数0or1個､ｲﾗｽﾄ参照

 1
87912A - PROTECTOR, OUTER MIRROR
87912-58010

AGH3#,AYH30,GGH3#

右側

 1
87912-58020

AGH3#,AYH30,GGH3#

左側

 1
87963 - COVER, OUTER MIRROR INSTALL HOLE, RH
87963-58010

AGH3#,AYH30,GGH3#

 1
87964 - COVER, OUTER MIRROR INSTALL HOLE, LH
87964-58010

AGH3#,AYH30,GGH3#

 1
Common parts
67771-44010
82712-60550
90109-08295
90119-06983
90119-06A11
90159-60303
90189-06227
90950-01841
90950-01A02
90950-01A05
94151-80600
