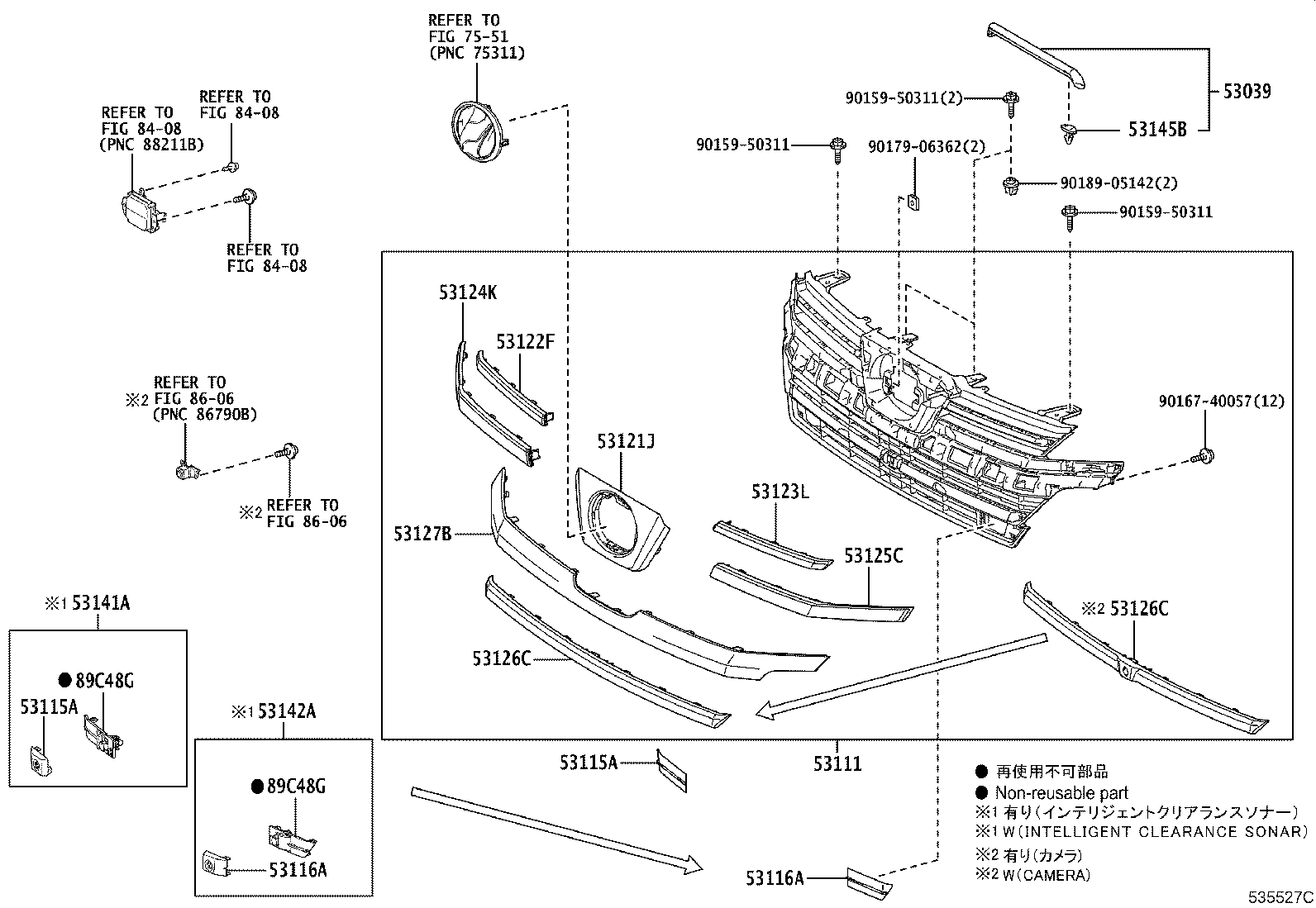

GGH35W-NFZQK (2018)
Toyota Alphard/Vellfire/Hv
(1801-2001)ELS,S,SC,SR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53039 - SEAL, RADIATOR, UPPER | ||||
| 53039-58090 |
AGH3#,AYH30,GGH3#..VFIRE |
1 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53101-58420E1 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),GRAPHITE ME.,4X7 |
1 | ||
| 53101-58410C0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) BLACK,202 |
1 | ||
| 53101-58420E0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),STEEL BLONDE ME.,4X1 |
1 | ||
| 53101-58420C1 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),BURNING BLACK CS.GF,222 |
1 | ||
| 53101-58420A0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),WHITE PEARL CS.,070 |
1 | ||
| 53101-58420C0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),BLACK,202 |
1 | ||
| 53101-58410E1 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) GRAPHITE ME.,4X7 |
1 | ||
| 53101-58410A0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) WHITE PEARL CS.,070 |
1 | ||
| 53101-58460 |
AGH3#,AYH30,GGH3#..S,SC,SR ﾒｯｷ,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰcjﾀ) |
1 | ||
| 53101-58420E0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),STEEL BLONDE ME.,4X1 |
1 | ||
| 53101-58420A0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),WHITE PEARL CS.,070 |
1 | ||
| 53101-58410C2 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) BURNING BLACK CS.GF,222 |
1 | ||
| 53101-58420C0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),BLACK,202 |
1 | ||
| 53101-58420E1 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),GRAPHITE ME.,4X7 |
1 | ||
| 53101-58440 |
AGH3#,AYH30,GGH3#..S,SC,SR ﾒｯｷ |
1 | ||
| 53101-58420C1 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),BURNING BLACK CS.GF,222 |
1 | ||
| 53101-58480D0 |
AGH3#,AYH30,GGH3#..Z,ZG,ZR DK. RED M.M.,3Q3 |
1 | ||
| 53101-58490C0 |
AGH3#,AYH30,GGH3#..Z,ZG,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),BLACK,202 |
1 | ||
| 53101-58480C2 |
AGH3#,AYH30,GGH3#..Z,ZG,ZR BURNING BLACK CS.GF,222 |
1 | ||
| 53101-58460 |
AGH3#,AYH30,GGH3#..S,SC,SR ﾒｯｷ,ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 53101-58480C0 |
AGH3#,AYH30,GGH3#..Z,ZG,ZR BLACK,202 |
1 | ||
| 53101-58480C1 |
AGH3#,AYH30,GGH3#..Z,ZG,ZR SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 53101-58410E0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) STEEL BLONDE ME.,4X1 |
1 | ||
| 53101-58490A0 |
AGH3#,AYH30,GGH3#..Z,ZG,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),WHITE PEARL CS.,070 |
1 | ||
| 53101-58480A0 |
AGH3#,AYH30,GGH3#..Z,ZG,ZR WHITE PEARL CS.,070 |
1 | ||
| 53101-58480E0 |
AGH3#,AYH30,GGH3#..Z,ZG,ZR GRAPHITE ME.,4X7 |
1 | ||
| 53101-58490C1 |
AGH3#,AYH30,GGH3#..Z,ZG,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 53101-58490D0 |
AGH3#,AYH30,GGH3#..Z,ZG,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),DK. RED M.M.,3Q3 |
1 | ||
| 53101-58490C2 |
AGH3#,AYH30,GGH3#..Z,ZG,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),BURNING BLACK CS.GF,222 |
1 | ||
| 53101-58490E0 |
AGH3#,AYH30,GGH3#..Z,ZG,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),GRAPHITE ME.,4X7 |
1 | ||
| 53115A - BRACKET, RADIATOR GRILLE, RH | ||||
| 53115-58040 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 53115-58030 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) |
1 | ||
| 53115-58040 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 53115-58040 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 53115-58040 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 53115-58040 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) |
1 | ||
| 53115-58040 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 53116A - BRACKET, RADIATOR GRILLE, LH | ||||
| 53116-58050 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 53116-58050 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 53116-58040 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) |
1 | ||
| 53116-58050 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 53116-58050 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) |
1 | ||
| 53116-58050 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 53116-58050 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 53117B - BRACKET, RADIATOR GRILLE, LOWER | ||||
| 53117-58110 |
AGH3#,AYH30,GGH3#..S,SC,SR |
1 | ||
| 53117-58100 |
AGH3#,AYH30,GGH3#..S,SC,SR ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 53117-58100 |
AGH3#,AYH30,GGH3#..S,SC,SR ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 53121J - MOULDING, RADIATOR GRILLE, NO.1 | ||||
| 53121-58260 |
AGH3#,AYH30,GGH3#..ELZ,Z,ZG,ZR |
1 | ||
| 53121-58240 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) |
1 | ||
| 53122F - MOULDING, RADIATOR GRILLE, NO.2 | ||||
| 53122-58250 |
AGH3#,AYH30,GGH3#..VFIRE |
1 | ||
| 53123L - MOULDING, RADIATOR GRILLE, NO.3 | ||||
| 53123-58330 |
AGH3#,AYH30,GGH3#..VFIRE |
1 | ||
| 53124K - MOULDING, RADIATOR GRILLE, NO.4 | ||||
| 53124-58310 |
AGH3#,AYH30,GGH3#..ELS,S,SC,SR |
1 | ||
| 53124-58300 |
AGH3#,AYH30,GGH3#..ELZ,Z,ZG,ZR |
1 | ||
| 53124-58260 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) |
1 | ||
| 53125C - MOULDING, RADIATOR GRILLE, NO.5 | ||||
| 53125-58170 |
AGH3#,AYH30,GGH3#..ELZ,Z,ZG,ZR |
1 | ||
| 53125-58180 |
AGH3#,AYH30,GGH3#..ELS,S,SC,SR |
1 | ||
| 53125-58160 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) |
1 | ||
| 53126C - MOULDING, RADIATOR GRILLE, NO.6 | ||||
| 53126-58160 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 53126-58170A0 |
AGH3#,AYH30,GGH3#..ELZ,Z,ZG,ZR WHITE PEARL CS.,070 |
1 | ||
| 53126-58170D0 |
AGH3#,AYH30,GGH3#..ELZ,Z,ZG,ZR DK. RED M.M.,3Q3 |
1 | ||
| 53126-58170C0 |
AGH3#,AYH30,GGH3#..ELZ,Z,ZG,ZR BLACK,202 |
1 | ||
| 53126-58160 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 53126-58170E0 |
AGH3#,AYH30,GGH3#..ELZ,Z,ZG,ZR GRAPHITE ME.,4X7 |
1 | ||
| 53126-58170C2 |
AGH3#,AYH30,GGH3#..ELZ,Z,ZG,ZR BURNING BLACK CS.GF,222 |
1 | ||
| 53126-58150 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) |
1 | ||
| 53126-58170C1 |
AGH3#,AYH30,GGH3#..ELZ,Z,ZG,ZR SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 53127B - MOULDING, RADIATOR GRILLE, NO.7 | ||||
| 53127-58100A0 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) WHITE PEARL CS.,070 |
1 | ||
| 53127-58100E1 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) GRAPHITE ME.,4X7 |
1 | ||
| 53127-58100E0 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) STEEL BLONDE ME.,4X1 |
1 | ||
| 53127-58100C0 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) BLACK,202 |
1 | ||
| 53127-58100C2 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) BURNING BLACK CS.GF,222 |
1 | ||
| 53129B - MOULDING, RADIATOR GRILLE, NO.9 | ||||
| 53129-58010 |
AGH3#,AYH30,GGH3#..ELS,S,SC,SR |
1 | ||
| 53129C - MOULDING, RADIATOR GRILLE, NO.9 | ||||
| 53129-58020 |
AGH3#,AYH30,GGH3#..ELS,S,SC,SR |
1 | ||
| 53145B - CLIP, RADIATOR GRILLE GARNISH | ||||
| 53145-60030 |
AGH3#,AYH30,GGH3#..VFIRE |
9 | ||
| 53145-60030 |
AGH3#,AYH30,GGH3#..VFIRE |
6 | ||
| 89C48G - RETAINER, ULTRASONIC SENSOR, FRONT CENTER | ||||
| 89348-58220 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),右側 |
1 | ||
| 89348-58220 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),右側 |
1 | ||
| 89348-58220 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),右側 |
1 | ||
| 89348-58220 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ,右側 |
1 | ||
| 89348-58230 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ,左側 |
1 | ||
| 89348-58230 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),左側 |
1 | ||
| 89348-58230 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),左側 |
1 | ||
| 89348-58220 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),右側 |
1 | ||
| 89348-58230 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),左側 |
1 | ||
| 89348-58230 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) 左側 |
1 | ||
| 89348-58220 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) 右側 |
1 | ||
| 89348-58230 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),左側 |
1 | ||
| Common parts | ||||
| 90159-50311 | ||||
| 90167-40057 | ||||
| 90167-50063 | ||||
| 90179-06127 | ||||
| 90179-06349 | ||||
| 90179-06362 | ||||
| 90189-05142 | ||||
| 90467-10203 | ||||
| Linked diagrams | ||||
| 7551 | ||||
| 8408 | ||||
| 8606 | ||||

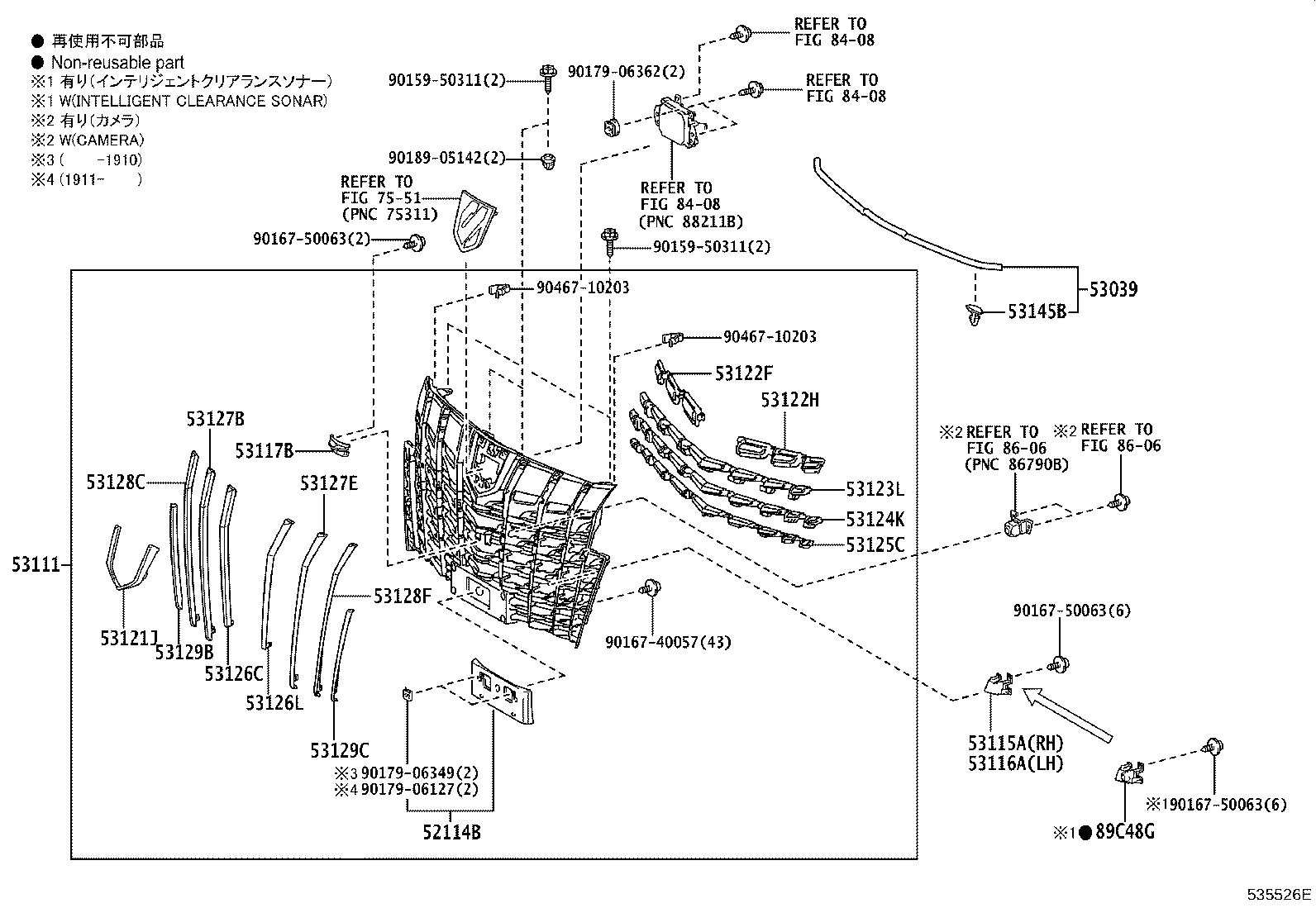

(1801-2001)VFIRE..EL,V,VL,X
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53039 - SEAL, RADIATOR, UPPER | ||||
| 53039-58090 |
AGH3#,AYH30,GGH3#..VFIRE |
1 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53101-58420E1 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),GRAPHITE ME.,4X7 |
1 | ||
| 53101-58410C0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) BLACK,202 |
1 | ||
| 53101-58420E0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),STEEL BLONDE ME.,4X1 |
1 | ||
| 53101-58420C1 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),BURNING BLACK CS.GF,222 |
1 | ||
| 53101-58420A0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),WHITE PEARL CS.,070 |
1 | ||
| 53101-58420C0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),BLACK,202 |
1 | ||
| 53101-58410E1 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) GRAPHITE ME.,4X7 |
1 | ||
| 53101-58410A0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) WHITE PEARL CS.,070 |
1 | ||
| 53101-58460 |
AGH3#,AYH30,GGH3#..S,SC,SR ﾒｯｷ,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰcjﾀ) |
1 | ||
| 53101-58420E0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),STEEL BLONDE ME.,4X1 |
1 | ||
| 53101-58420A0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),WHITE PEARL CS.,070 |
1 | ||
| 53101-58410C2 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) BURNING BLACK CS.GF,222 |
1 | ||
| 53101-58420C0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),BLACK,202 |
1 | ||
| 53101-58420E1 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),GRAPHITE ME.,4X7 |
1 | ||
| 53101-58440 |
AGH3#,AYH30,GGH3#..S,SC,SR ﾒｯｷ |
1 | ||
| 53101-58420C1 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),BURNING BLACK CS.GF,222 |
1 | ||
| 53101-58480D0 |
AGH3#,AYH30,GGH3#..Z,ZG,ZR DK. RED M.M.,3Q3 |
1 | ||
| 53101-58490C0 |
AGH3#,AYH30,GGH3#..Z,ZG,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),BLACK,202 |
1 | ||
| 53101-58480C2 |
AGH3#,AYH30,GGH3#..Z,ZG,ZR BURNING BLACK CS.GF,222 |
1 | ||
| 53101-58460 |
AGH3#,AYH30,GGH3#..S,SC,SR ﾒｯｷ,ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 53101-58480C0 |
AGH3#,AYH30,GGH3#..Z,ZG,ZR BLACK,202 |
1 | ||
| 53101-58480C1 |
AGH3#,AYH30,GGH3#..Z,ZG,ZR SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 53101-58410E0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) STEEL BLONDE ME.,4X1 |
1 | ||
| 53101-58490A0 |
AGH3#,AYH30,GGH3#..Z,ZG,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),WHITE PEARL CS.,070 |
1 | ||
| 53101-58480A0 |
AGH3#,AYH30,GGH3#..Z,ZG,ZR WHITE PEARL CS.,070 |
1 | ||
| 53101-58480E0 |
AGH3#,AYH30,GGH3#..Z,ZG,ZR GRAPHITE ME.,4X7 |
1 | ||
| 53101-58490C1 |
AGH3#,AYH30,GGH3#..Z,ZG,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 53101-58490D0 |
AGH3#,AYH30,GGH3#..Z,ZG,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),DK. RED M.M.,3Q3 |
1 | ||
| 53101-58490C2 |
AGH3#,AYH30,GGH3#..Z,ZG,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),BURNING BLACK CS.GF,222 |
1 | ||
| 53101-58490E0 |
AGH3#,AYH30,GGH3#..Z,ZG,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),GRAPHITE ME.,4X7 |
1 | ||
| 53115A - BRACKET, RADIATOR GRILLE, RH | ||||
| 53115-58040 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 53115-58030 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) |
1 | ||
| 53115-58040 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 53115-58040 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 53115-58040 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 53115-58040 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) |
1 | ||
| 53115-58040 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 53115A - BRACKET, RADIATOR GRILLE, RH | ||||
| 53115-58040 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 53115-58030 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) |
1 | ||
| 53115-58040 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 53115-58040 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 53115-58040 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 53115-58040 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) |
1 | ||
| 53115-58040 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 53116A - BRACKET, RADIATOR GRILLE, LH | ||||
| 53116-58050 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 53116-58050 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 53116-58040 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) |
1 | ||
| 53116-58050 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 53116-58050 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) |
1 | ||
| 53116-58050 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 53116-58050 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 53116A - BRACKET, RADIATOR GRILLE, LH | ||||
| 53116-58050 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 53116-58050 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 53116-58040 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) |
1 | ||
| 53116-58050 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 53116-58050 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) |
1 | ||
| 53116-58050 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 53116-58050 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 53121J - MOULDING, RADIATOR GRILLE, NO.1 | ||||
| 53121-58260 |
AGH3#,AYH30,GGH3#..ELZ,Z,ZG,ZR |
1 | ||
| 53121-58240 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) |
1 | ||
| 53122F - MOULDING, RADIATOR GRILLE, NO.2 | ||||
| 53122-58250 |
AGH3#,AYH30,GGH3#..VFIRE |
1 | ||
| 53123L - MOULDING, RADIATOR GRILLE, NO.3 | ||||
| 53123-58330 |
AGH3#,AYH30,GGH3#..VFIRE |
1 | ||
| 53124K - MOULDING, RADIATOR GRILLE, NO.4 | ||||
| 53124-58310 |
AGH3#,AYH30,GGH3#..ELS,S,SC,SR |
1 | ||
| 53124-58300 |
AGH3#,AYH30,GGH3#..ELZ,Z,ZG,ZR |
1 | ||
| 53124-58260 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) |
1 | ||
| 53125C - MOULDING, RADIATOR GRILLE, NO.5 | ||||
| 53125-58170 |
AGH3#,AYH30,GGH3#..ELZ,Z,ZG,ZR |
1 | ||
| 53125-58180 |
AGH3#,AYH30,GGH3#..ELS,S,SC,SR |
1 | ||
| 53125-58160 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) |
1 | ||
| 53126C - MOULDING, RADIATOR GRILLE, NO.6 | ||||
| 53126-58160 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 53126-58170A0 |
AGH3#,AYH30,GGH3#..ELZ,Z,ZG,ZR WHITE PEARL CS.,070 |
1 | ||
| 53126-58170D0 |
AGH3#,AYH30,GGH3#..ELZ,Z,ZG,ZR DK. RED M.M.,3Q3 |
1 | ||
| 53126-58170C0 |
AGH3#,AYH30,GGH3#..ELZ,Z,ZG,ZR BLACK,202 |
1 | ||
| 53126-58160 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 53126-58170E0 |
AGH3#,AYH30,GGH3#..ELZ,Z,ZG,ZR GRAPHITE ME.,4X7 |
1 | ||
| 53126-58170C2 |
AGH3#,AYH30,GGH3#..ELZ,Z,ZG,ZR BURNING BLACK CS.GF,222 |
1 | ||
| 53126-58150 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) |
1 | ||
| 53126-58170C1 |
AGH3#,AYH30,GGH3#..ELZ,Z,ZG,ZR SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 53126C - MOULDING, RADIATOR GRILLE, NO.6 | ||||
| 53126-58160 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 53126-58170A0 |
AGH3#,AYH30,GGH3#..ELZ,Z,ZG,ZR WHITE PEARL CS.,070 |
1 | ||
| 53126-58170D0 |
AGH3#,AYH30,GGH3#..ELZ,Z,ZG,ZR DK. RED M.M.,3Q3 |
1 | ||
| 53126-58170C0 |
AGH3#,AYH30,GGH3#..ELZ,Z,ZG,ZR BLACK,202 |
1 | ||
| 53126-58160 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 53126-58170E0 |
AGH3#,AYH30,GGH3#..ELZ,Z,ZG,ZR GRAPHITE ME.,4X7 |
1 | ||
| 53126-58170C2 |
AGH3#,AYH30,GGH3#..ELZ,Z,ZG,ZR BURNING BLACK CS.GF,222 |
1 | ||
| 53126-58150 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) |
1 | ||
| 53126-58170C1 |
AGH3#,AYH30,GGH3#..ELZ,Z,ZG,ZR SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 53127B - MOULDING, RADIATOR GRILLE, NO.7 | ||||
| 53127-58100A0 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) WHITE PEARL CS.,070 |
1 | ||
| 53127-58100E1 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) GRAPHITE ME.,4X7 |
1 | ||
| 53127-58100E0 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) STEEL BLONDE ME.,4X1 |
1 | ||
| 53127-58100C0 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) BLACK,202 |
1 | ||
| 53127-58100C2 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) BURNING BLACK CS.GF,222 |
1 | ||
| 53141A - GARNISH, RADIATOR GRILLE, LOWER RH | ||||
| 53141-58040 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 53141-58040 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 53141-58040 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 53141-58040 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) |
1 | ||
| 53141-58040 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 53141-58040 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 53142A - GARNISH, RADIATOR GRILLE, LOWER LH | ||||
| 53142-58040 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 53142-58040 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 53142-58040 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 53142-58040 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 53142-58040 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 53142-58040 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) |
1 | ||
| 53145B - CLIP, RADIATOR GRILLE GARNISH | ||||
| 53145-60030 |
AGH3#,AYH30,GGH3#..VFIRE |
9 | ||
| 53145-60030 |
AGH3#,AYH30,GGH3#..VFIRE |
6 | ||
| 89C48G - RETAINER, ULTRASONIC SENSOR, FRONT CENTER | ||||
| 89348-58220 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),右側 |
1 | ||
| 89348-58220 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),右側 |
1 | ||
| 89348-58220 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),右側 |
1 | ||
| 89348-58220 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ,右側 |
1 | ||
| 89348-58230 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ,左側 |
1 | ||
| 89348-58230 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),左側 |
1 | ||
| 89348-58230 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),左側 |
1 | ||
| 89348-58220 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),右側 |
1 | ||
| 89348-58230 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),左側 |
1 | ||
| 89348-58230 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) 左側 |
1 | ||
| 89348-58220 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) 右側 |
1 | ||
| 89348-58230 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),左側 |
1 | ||
| 89C48G - RETAINER, ULTRASONIC SENSOR, FRONT CENTER | ||||
| 89348-58220 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),右側 |
1 | ||
| 89348-58220 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),右側 |
1 | ||
| 89348-58220 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),右側 |
1 | ||
| 89348-58220 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ,右側 |
1 | ||
| 89348-58230 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ,左側 |
1 | ||
| 89348-58230 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),左側 |
1 | ||
| 89348-58230 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),左側 |
1 | ||
| 89348-58220 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),右側 |
1 | ||
| 89348-58230 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),左側 |
1 | ||
| 89348-58230 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) 左側 |
1 | ||
| 89348-58220 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) 右側 |
1 | ||
| 89348-58230 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),左側 |
1 | ||
| Common parts | ||||
| 90159-50311 | ||||
| 90167-40057 | ||||
| 90179-06362 | ||||
| 90189-05142 | ||||
| Linked diagrams | ||||
| 7551 | ||||
| 8408 | ||||
| 8606 | ||||
(1801-2001)ELZ,Z,ZG,ZR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53039 - SEAL, RADIATOR, UPPER | ||||
| 53039-58090 |
AGH3#,AYH30,GGH3#..VFIRE |
1 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53101-58420E1 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),GRAPHITE ME.,4X7 |
1 | ||
| 53101-58410C0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) BLACK,202 |
1 | ||
| 53101-58420E0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),STEEL BLONDE ME.,4X1 |
1 | ||
| 53101-58420C1 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),BURNING BLACK CS.GF,222 |
1 | ||
| 53101-58420A0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),WHITE PEARL CS.,070 |
1 | ||
| 53101-58420C0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),BLACK,202 |
1 | ||
| 53101-58410E1 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) GRAPHITE ME.,4X7 |
1 | ||
| 53101-58410A0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) WHITE PEARL CS.,070 |
1 | ||
| 53101-58460 |
AGH3#,AYH30,GGH3#..S,SC,SR ﾒｯｷ,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰcjﾀ) |
1 | ||
| 53101-58420E0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),STEEL BLONDE ME.,4X1 |
1 | ||
| 53101-58420A0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),WHITE PEARL CS.,070 |
1 | ||
| 53101-58410C2 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) BURNING BLACK CS.GF,222 |
1 | ||
| 53101-58420C0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),BLACK,202 |
1 | ||
| 53101-58420E1 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),GRAPHITE ME.,4X7 |
1 | ||
| 53101-58440 |
AGH3#,AYH30,GGH3#..S,SC,SR ﾒｯｷ |
1 | ||
| 53101-58420C1 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),BURNING BLACK CS.GF,222 |
1 | ||
| 53101-58480D0 |
AGH3#,AYH30,GGH3#..Z,ZG,ZR DK. RED M.M.,3Q3 |
1 | ||
| 53101-58490C0 |
AGH3#,AYH30,GGH3#..Z,ZG,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),BLACK,202 |
1 | ||
| 53101-58480C2 |
AGH3#,AYH30,GGH3#..Z,ZG,ZR BURNING BLACK CS.GF,222 |
1 | ||
| 53101-58460 |
AGH3#,AYH30,GGH3#..S,SC,SR ﾒｯｷ,ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 53101-58480C0 |
AGH3#,AYH30,GGH3#..Z,ZG,ZR BLACK,202 |
1 | ||
| 53101-58480C1 |
AGH3#,AYH30,GGH3#..Z,ZG,ZR SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 53101-58410E0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) STEEL BLONDE ME.,4X1 |
1 | ||
| 53101-58490A0 |
AGH3#,AYH30,GGH3#..Z,ZG,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),WHITE PEARL CS.,070 |
1 | ||
| 53101-58480A0 |
AGH3#,AYH30,GGH3#..Z,ZG,ZR WHITE PEARL CS.,070 |
1 | ||
| 53101-58480E0 |
AGH3#,AYH30,GGH3#..Z,ZG,ZR GRAPHITE ME.,4X7 |
1 | ||
| 53101-58490C1 |
AGH3#,AYH30,GGH3#..Z,ZG,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 53101-58490D0 |
AGH3#,AYH30,GGH3#..Z,ZG,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),DK. RED M.M.,3Q3 |
1 | ||
| 53101-58490C2 |
AGH3#,AYH30,GGH3#..Z,ZG,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),BURNING BLACK CS.GF,222 |
1 | ||
| 53101-58490E0 |
AGH3#,AYH30,GGH3#..Z,ZG,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),GRAPHITE ME.,4X7 |
1 | ||

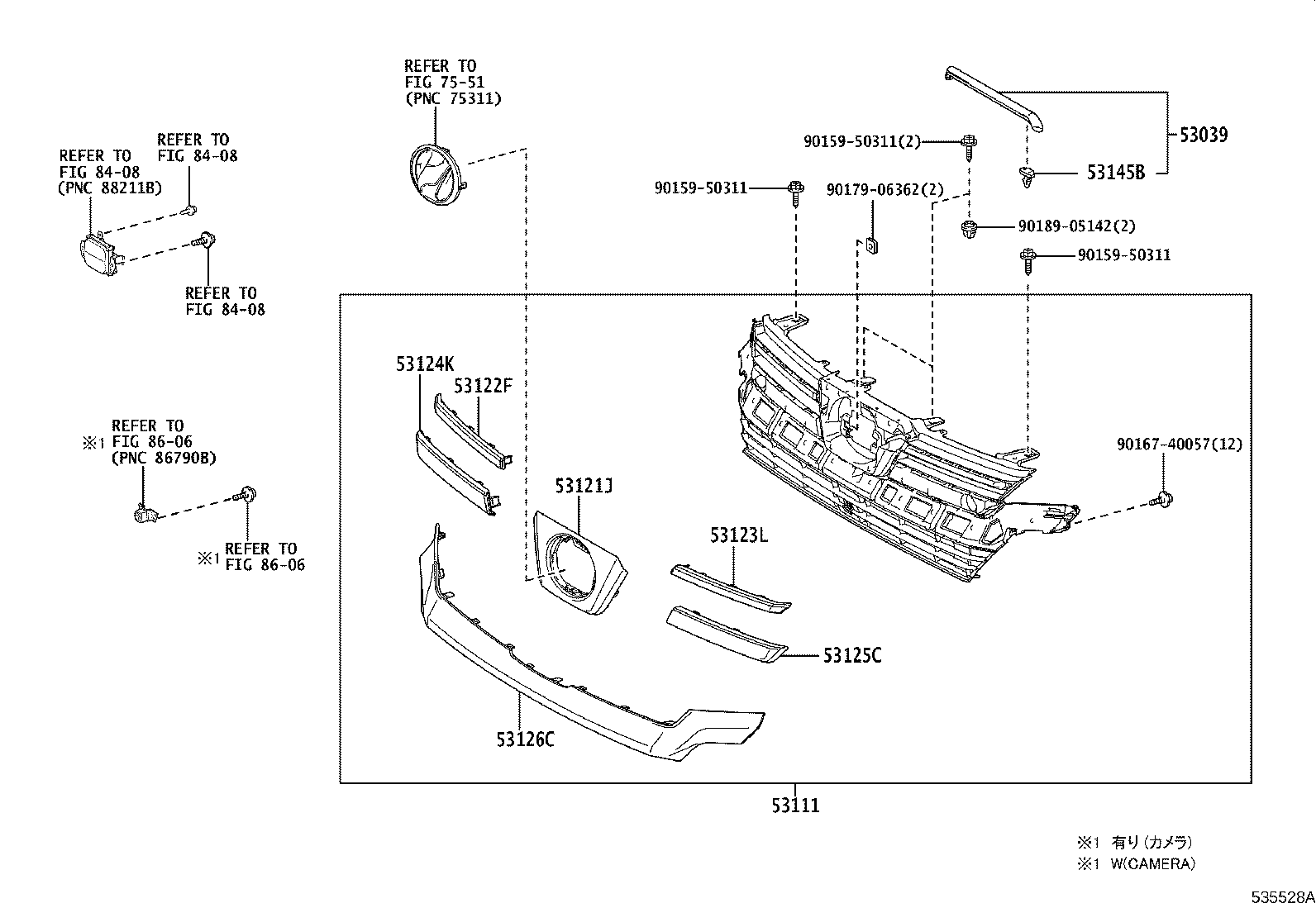

| 53121J - MOULDING, RADIATOR GRILLE, NO.1 | ||||
| 53121-58260 |
AGH3#,AYH30,GGH3#..ELZ,Z,ZG,ZR |
1 | ||
| 53121-58240 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) |
1 | ||
| 53122F - MOULDING, RADIATOR GRILLE, NO.2 | ||||
| 53122-58250 |
AGH3#,AYH30,GGH3#..VFIRE |
1 | ||
| 53123L - MOULDING, RADIATOR GRILLE, NO.3 | ||||
| 53123-58330 |
AGH3#,AYH30,GGH3#..VFIRE |
1 | ||
| 53124K - MOULDING, RADIATOR GRILLE, NO.4 | ||||
| 53124-58310 |
AGH3#,AYH30,GGH3#..ELS,S,SC,SR |
1 | ||
| 53124-58300 |
AGH3#,AYH30,GGH3#..ELZ,Z,ZG,ZR |
1 | ||
| 53124-58260 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) |
1 | ||
| 53125C - MOULDING, RADIATOR GRILLE, NO.5 | ||||
| 53125-58170 |
AGH3#,AYH30,GGH3#..ELZ,Z,ZG,ZR |
1 | ||
| 53125-58180 |
AGH3#,AYH30,GGH3#..ELS,S,SC,SR |
1 | ||
| 53125-58160 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) |
1 | ||
| 53126C - MOULDING, RADIATOR GRILLE, NO.6 | ||||
| 53126-58160 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 53126-58170A0 |
AGH3#,AYH30,GGH3#..ELZ,Z,ZG,ZR WHITE PEARL CS.,070 |
1 | ||
| 53126-58170D0 |
AGH3#,AYH30,GGH3#..ELZ,Z,ZG,ZR DK. RED M.M.,3Q3 |
1 | ||
| 53126-58170C0 |
AGH3#,AYH30,GGH3#..ELZ,Z,ZG,ZR BLACK,202 |
1 | ||
| 53126-58160 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 53126-58170E0 |
AGH3#,AYH30,GGH3#..ELZ,Z,ZG,ZR GRAPHITE ME.,4X7 |
1 | ||
| 53126-58170C2 |
AGH3#,AYH30,GGH3#..ELZ,Z,ZG,ZR BURNING BLACK CS.GF,222 |
1 | ||
| 53126-58150 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) |
1 | ||
| 53126-58170C1 |
AGH3#,AYH30,GGH3#..ELZ,Z,ZG,ZR SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 53145B - CLIP, RADIATOR GRILLE GARNISH | ||||
| 53145-60030 |
AGH3#,AYH30,GGH3#..VFIRE |
9 | ||
| 53145-60030 |
AGH3#,AYH30,GGH3#..VFIRE |
6 | ||
| Common parts | ||||
| 90159-50311 | ||||
| 90167-40057 | ||||
| 90179-06362 | ||||
| 90189-05142 | ||||
| Linked diagrams | ||||
| 7551 | ||||
| 8408 | ||||
| 8606 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
