GGH35W-NFZQK (2018)
Toyota Alphard/Vellfire/Hv
Production
Jan 2018
-
Jan 2020
Engine
2GRFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1801- )GGH3#

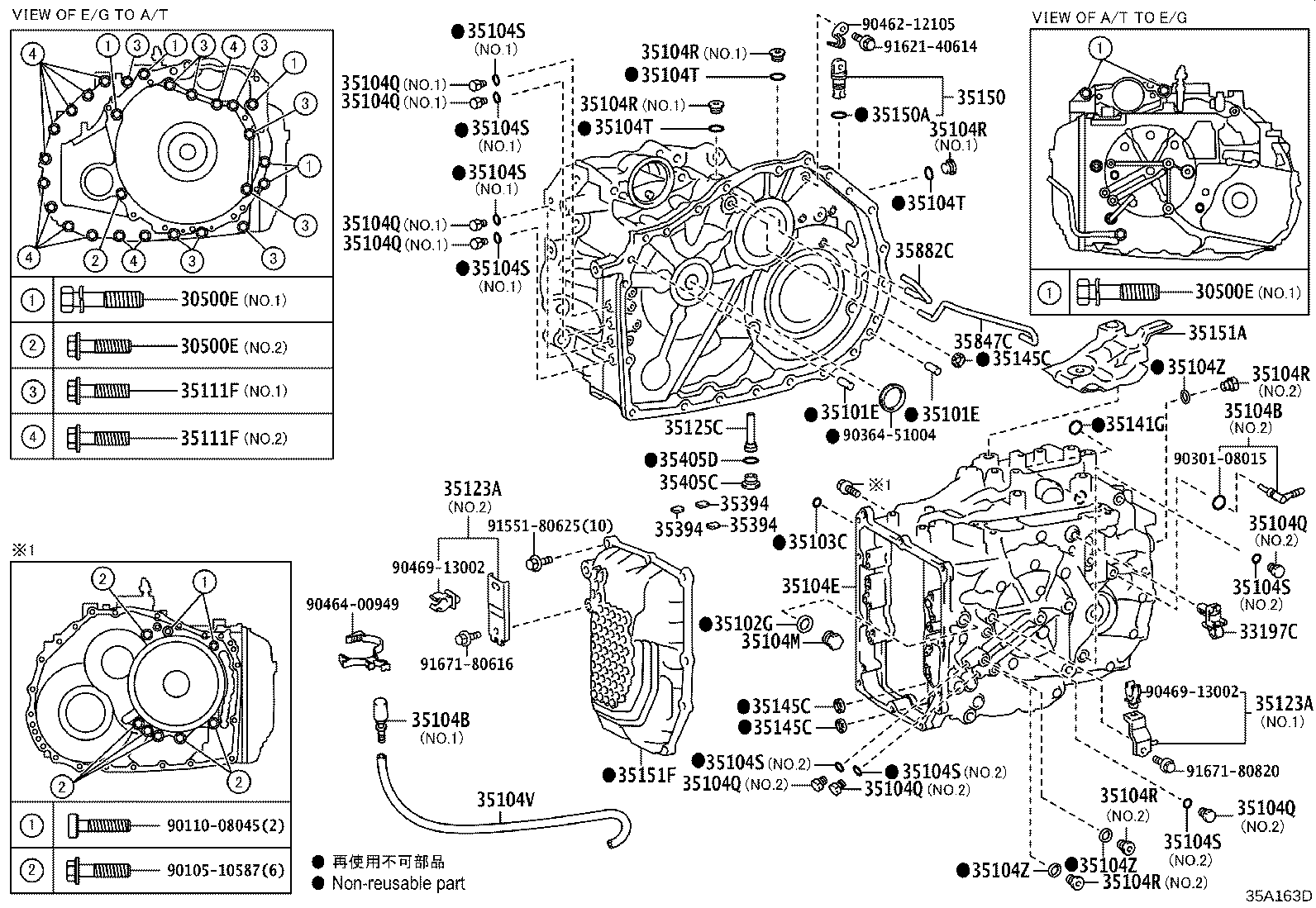

Click highlighted areas on diagram
UA80E,UA80F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 90119-12168 |
GGH3# *12−1.25PX55−30,NO.1 |
7 | ||
| 90105-10425 |
GGH3# *10−1.25PX41−28,NO.3 |
1 | ||
| 30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 90119-12168 |
GGH3# *12−1.25PX55−30,NO.1 |
7 | ||
| 90105-10425 |
GGH3# *10−1.25PX41−28,NO.3 |
1 | ||
| 30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 90119-12168 |
GGH3# *12−1.25PX55−30,NO.1 |
7 | ||
| 90105-10425 |
GGH3# *10−1.25PX41−28,NO.3 |
1 | ||
| 33197C - CLAMP, TRANSMISSION BREATHER | ||||
| 33197-58010 |
GGH3# |
1 | ||
| 35101E - PIN, STRAIGHT (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90250-10017 |
GGH3# |
2 | ||
| 35101E - PIN, STRAIGHT (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90250-10017 |
GGH3# |
2 | ||
| 35102G - GASKET (FOR TRANSAXLE REAR COVER ) | ||||
| 90430-18008 |
GGH3# |
1 | ||
| 35103C - RING, O | ||||
| 90301-06021 |
GGH3# |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03230 |
GGH3# NO.2 |
1 | ||
| 90930-03216 |
GGH3# NO.1 |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03230 |
GGH3# NO.2 |
1 | ||
| 90930-03216 |
GGH3# NO.1 |
1 | ||
| 35104E - CASE SUB-ASSY, AUTOMATIC TRANSAXLE | ||||
| 35104-48030 |
GGH3# |
1 | ||
| 35104M - PLUG, REFILL(ATM) | ||||
| 90341-18064 |
GGH3# |
1 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
GGH3# NO.1 |
4 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
GGH3# NO.1 |
4 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
GGH3# NO.1 |
4 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
GGH3# NO.1 |
4 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
GGH3# NO.1 |
4 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
GGH3# NO.1 |
4 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
GGH3# NO.1 |
4 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
GGH3# NO.1 |
4 | ||
| 35104R - PLUG, NO.2 (FOR TRANSAXLE CASE) | ||||
| 90341-14015 |
GGH3# NO.1 |
3 | ||
| 35104R - PLUG, NO.2 (FOR TRANSAXLE CASE) | ||||
| 90341-14015 |
GGH3# NO.1 |
3 | ||
| 35104R - PLUG, NO.2 (FOR TRANSAXLE CASE) | ||||
| 90341-14015 |
GGH3# NO.1 |
3 | ||
| 35104R - PLUG, NO.2 (FOR TRANSAXLE CASE) | ||||
| 90341-14015 |
GGH3# NO.1 |
3 | ||
| 35104R - PLUG, NO.2 (FOR TRANSAXLE CASE) | ||||
| 90341-14015 |
GGH3# NO.1 |
3 | ||
| 35104R - PLUG, NO.2 (FOR TRANSAXLE CASE) | ||||
| 90341-14015 |
GGH3# NO.1 |
3 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
GGH3# NO.1 |
4 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
GGH3# NO.1 |
4 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
GGH3# NO.1 |
4 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
GGH3# NO.1 |
4 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
GGH3# NO.1 |
4 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
GGH3# NO.1 |
4 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
GGH3# NO.1 |
4 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
GGH3# NO.1 |
4 | ||
| 35104T - RING, O (FOR TRANSAXLE CASE PLUG NO.2) | ||||
| 90430-14008 |
GGH3# |
3 | ||
| 35104T - RING, O (FOR TRANSAXLE CASE PLUG NO.2) | ||||
| 90430-14008 |
GGH3# |
3 | ||
| 35104T - RING, O (FOR TRANSAXLE CASE PLUG NO.2) | ||||
| 90430-14008 |
GGH3# |
3 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 35121-58030 |
GGH3# |
1 | ||
| 35104Z - GASKET (FOR TRANSAXLE CASE) | ||||
| 90430-14008 |
GGH3# |
3 | ||
| 35104Z - GASKET (FOR TRANSAXLE CASE) | ||||
| 90430-14008 |
GGH3# |
3 | ||
| 35104Z - GASKET (FOR TRANSAXLE CASE) | ||||
| 90430-14008 |
GGH3# |
3 | ||
| 35111F - BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING) | ||||
| 91551-00840 |
GGH3# *8−1.25P×40−22,NO.1 |
9 | ||
| 91551-00835 |
GGH3# *8−1.25P×35−22,NO.2 |
12 | ||
| 35111F - BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING) | ||||
| 91551-00840 |
GGH3# *8−1.25P×40−22,NO.1 |
9 | ||
| 91551-00835 |
GGH3# *8−1.25P×35−22,NO.2 |
12 | ||
| 35123A - SKIRT, TRANSMISSION BREATHER | ||||
| 35123-58010 |
GGH3# NO.1 |
1 | ||
| 35123-58020 |
GGH3# NO.2 |
1 | ||
| 35123A - SKIRT, TRANSMISSION BREATHER | ||||
| 35123-58010 |
GGH3# NO.1 |
1 | ||
| 35123-58020 |
GGH3# NO.2 |
1 | ||
| 35125C - TUBE, TRANSMISSION OIL FILLER, NO.1 | ||||
| 35125-48090 |
GGH3# |
1 | ||
| 35141G - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-10018 |
GGH3# |
1 | ||
| 35145C - GASKET, TRANSAXLE CASE | ||||
| 35145-33010 |
GGH3# |
3 | ||
| 35145C - GASKET, TRANSAXLE CASE | ||||
| 35145-33010 |
GGH3# |
3 | ||
| 35145C - GASKET, TRANSAXLE CASE | ||||
| 35145-33010 |
GGH3# |
3 | ||
| 35150 - PLUG ASSY, TRANSMISSION CASE | ||||
| 35150-48010 |
GGH3# |
1 | ||
| 35150A - RING, O (FOR AUTOMATIC TRANSMISSION CASE PLUG) | ||||
| 90301-09173 |
GGH3# |
1 | ||
| 35151A - COVER, TRANSAXLE CASE, UPPER | ||||
| 35151-45020 |
GGH3# |
1 | ||
| 35151F - COVER, TRANSMISSION CASE, SIDE | ||||
| 35151-33160 |
GGH3# |
1 | ||
| 35151-33161 |
GGH3# |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-48010 |
GGH3# |
3 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-48010 |
GGH3# |
3 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-48010 |
GGH3# |
3 | ||
| 35405C - PLUG SUB-ASSY, W/HEAD STRAIGHT SCREW | ||||
| 90341-18023 |
GGH3# |
1 | ||
| 35405D - RING, O (FOR STRAIGHT SCREW PLUG) | ||||
| 90430-18008 |
GGH3# |
1 | ||
| 35847C - TUBE, TRANSMISSION LUBE APPLY | ||||
| 35847-48020 |
GGH3# |
1 | ||
| 35882C - TUBE, DIFFERENTIAL GEAR LUBE APPLY | ||||
| 35882-48020 |
GGH3# |
1 | ||
| Common parts | ||||
| 90105-10587 | ||||
| 90110-08045 | ||||
| 90301-08015 | ||||
| 90364-51004 | ||||
| 90462-12105 | ||||
| 90464-00949 | ||||
| 90469-13002 | ||||
| 91551-80625 | ||||
| 91621-40614 | ||||
| 91671-80616 | ||||
| 91671-80820 | ||||
