GGH35W-NFZQK (2018)

Toyota Alphard/Vellfire/Hv

Production Jan 2018 - Jan 2020
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1801- )2GRFKS

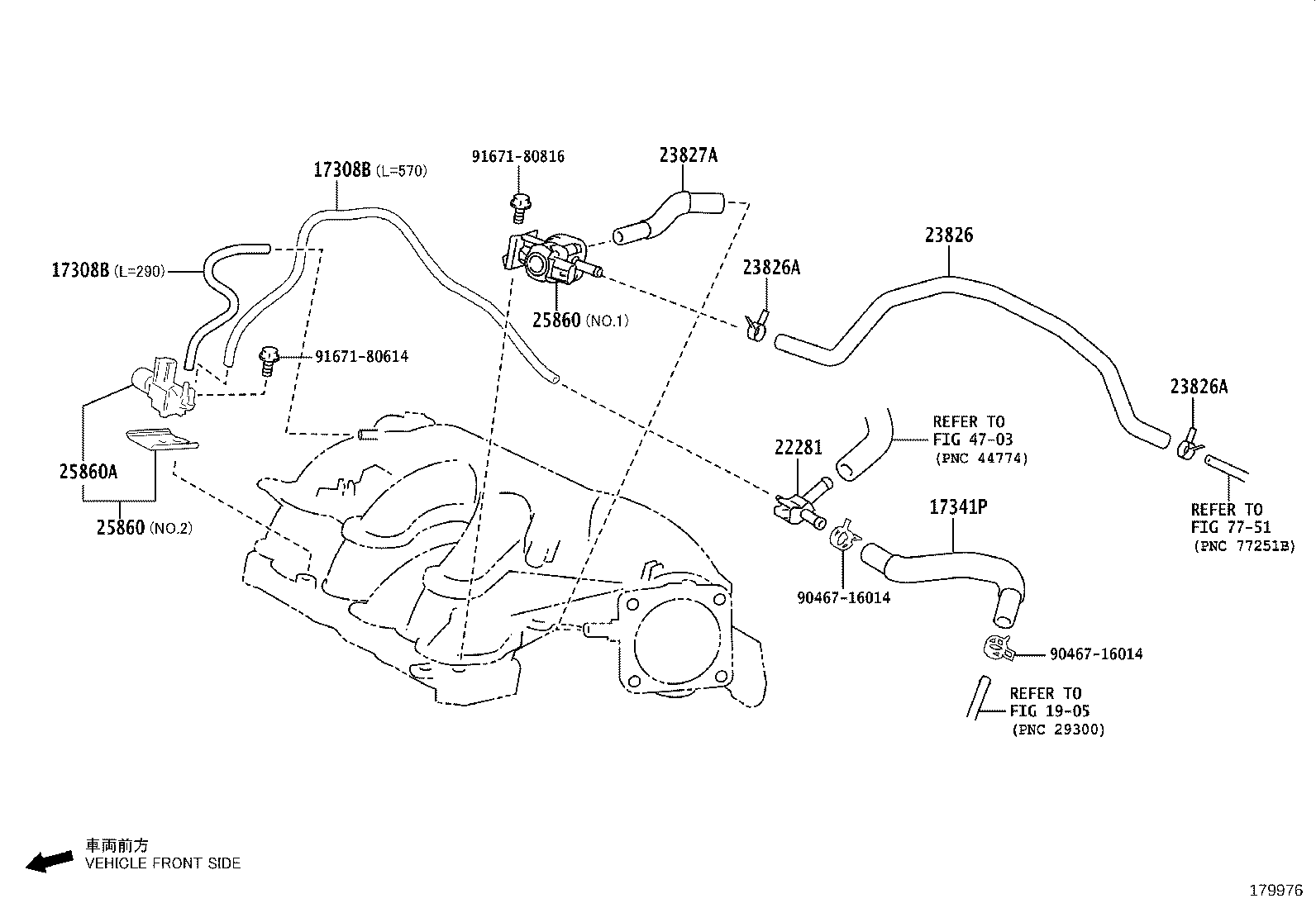

Click highlighted areas on diagram

diagram 17308B 17308B 17341P 1905 22281 23826 23826A 23826A 23827A 25860 25860 25860A 4703 7751 9046716014 9046716014 9167180614 9167180816
Part # Description Qty Price
17308B - HOSE SUB-ASSY, VACUUM
90999-92002

2GRFKS..GGH3#

長さ=290

 1
25760-31020

2GRFKS..GGH3#

長さ=570

 1
17308B - HOSE SUB-ASSY, VACUUM
90999-92002

2GRFKS..GGH3#

長さ=290

 1
25760-31020

2GRFKS..GGH3#

長さ=570

 1
17341P - HOSE, AIR
17341-31110

2GRFKS..GGH3#

 1
22281 - WAY, AIR DELIVERY
22281-31020

2GRFKS..GGH3#

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-31500

2GRFKS..GGH3#

 1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-51100

2GRFKS..GGH3#

 2
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-51100

2GRFKS..GGH3#

 2
23827A - HOSE, FUEL VAPOR FEED, NO.2
23826-31290

2GRFKS..GGH3#

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-31120

2GRFKS..GGH3#

NO.2

 1
25860-31090

2GRFKS..GGH3#

NO.1

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-31120

2GRFKS..GGH3#

NO.2

 1
25860-31090

2GRFKS..GGH3#

NO.1

 1
25860A - VALVE, VACUUM SWITCHING, NO.1
25860-46010

2GRFKS..GGH3#

 1
Common parts
90467-16014
91671-80614
91671-80816
Linked diagrams
1905
4703
7751
