GGH35W-NFZQK (2018)

Toyota Alphard/Vellfire/Hv

Production Jan 2018 - Jan 2020
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1801- )2GRFKS..GGH35

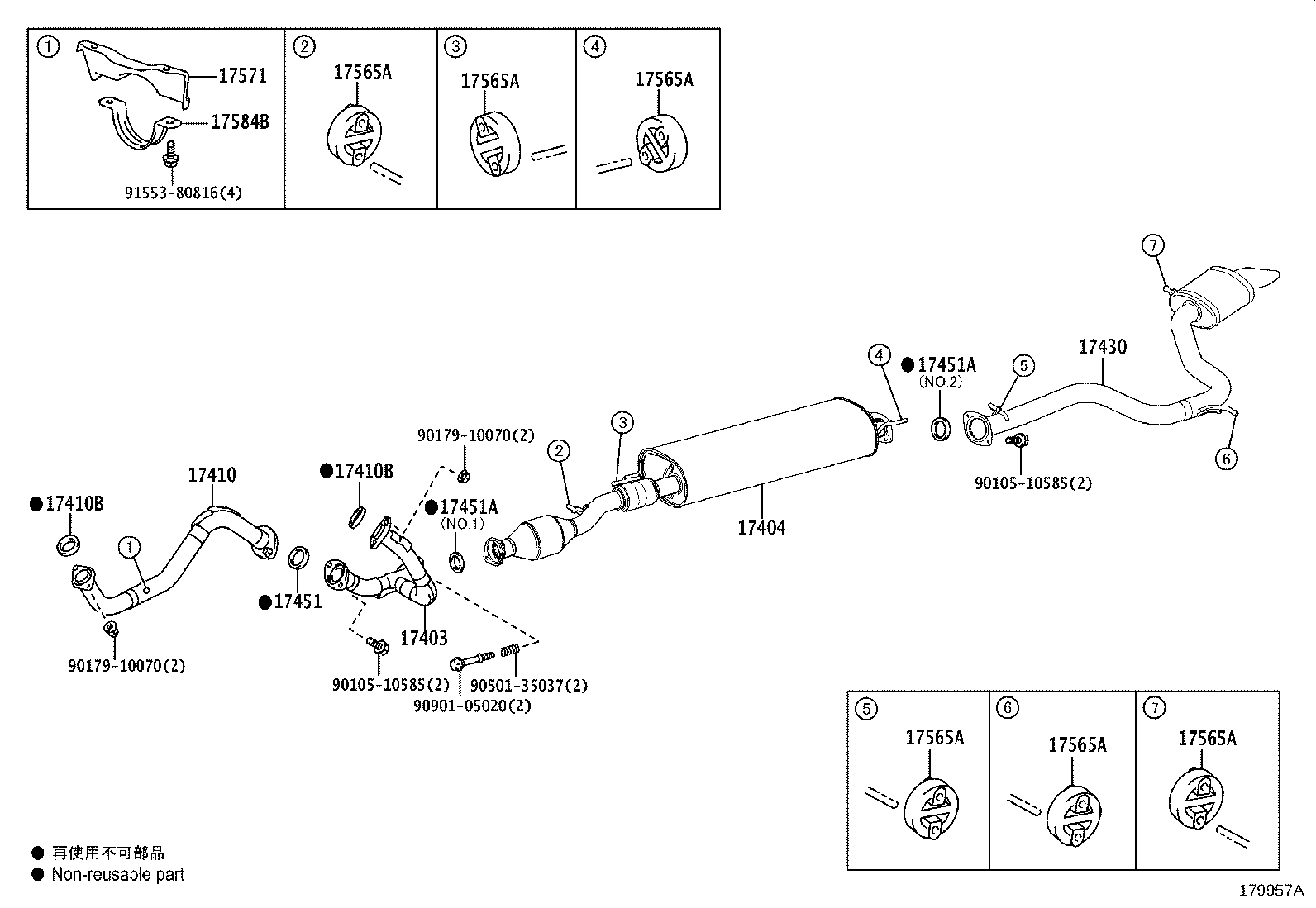

Click highlighted areas on diagram

diagram 17403 17404 17410 17410B 17410B 17430 17451 17451A 17451A 17565A 17565A 17565A 17565A 17565A 17565A 17571 17584B 9010510585 9010510585 9017910070 9017910070 9050135037 9090105020 9155380816
Part # Description Qty Price
17403 - PIPE SUB-ASSY, EXHAUST, FRONT NO.3
17403-31230

2GRFKS..GGH3#

 1
17404 - PIPE SUB-ASSY, EXHAUST FORKED
17404-31291

2GRFKS..GGH3#

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-31L90

2GRFKS..GGH3#

 1
17410B - GASKET, EXHAUST PIPE
90917-06089

2GRFKS..GGH3#

 2
17410B - GASKET, EXHAUST PIPE
90917-06089

2GRFKS..GGH3#

 2
17430 - PIPE ASSY, EXHAUST, TAIL
17430-31D91

2GRFKS..GGH35

 1
17451 - GASKET, EXHAUST PIPE
90917-06078

2AR#,2GRFKS..AGH3#,AYH30,GGH3#

 1
17451A - GASKET, EXHAUST PIPE, NO.2
17451-28040

2GRFKS..GGH3#

NO.1

 1
90917-06090

2GRFKS..GGH3#

NO.2

 1
17451A - GASKET, EXHAUST PIPE, NO.2
17451-28040

2GRFKS..GGH3#

NO.1

 1
90917-06090

2GRFKS..GGH3#

NO.2

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040

2AR#,2GRFKS..AGH3#,AYH30,GGH3#

 6
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040

2AR#,2GRFKS..AGH3#,AYH30,GGH3#

 6
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040

2AR#,2GRFKS..AGH3#,AYH30,GGH3#

 6
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040

2AR#,2GRFKS..AGH3#,AYH30,GGH3#

 6
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040

2AR#,2GRFKS..AGH3#,AYH30,GGH3#

 6
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040

2AR#,2GRFKS..AGH3#,AYH30,GGH3#

 6
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-31300

2GRFKS..GGH3#

 1
17584B - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17584-31040

2GRFKS..GGH3#

 1
Common parts
90105-10585
90179-10070
90501-35037
90901-05020
91553-80816
