GGH35W-NFTRK (2015)
Toyota Alphard/Vellfire/Hv

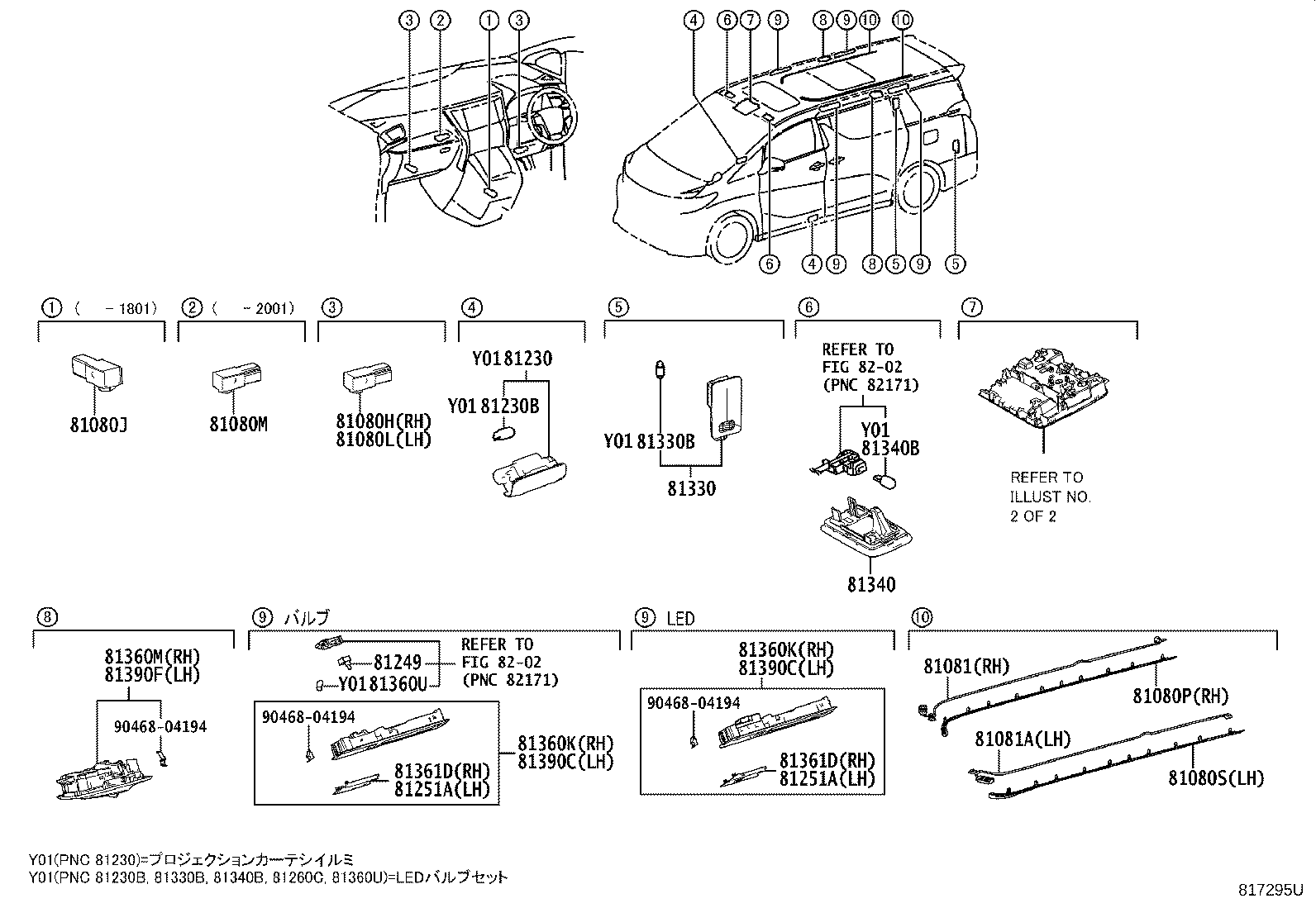

ILLUST NO. 1 OF 2(1501- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81080H - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH | ||||
| 81080-48010 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR |
1 | ||
| 81080-52050 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 81080-48010 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 81080-52050 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR |
1 | ||
| 81080J - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 | ||||
| 81080-48010 |
AGH3#,GGH3#..G,GF,V,VL |
1 | ||
| 81080-52050 |
AGH3#,GGH3#..G,GF,V,VL |
1 | ||
| 81080L - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH | ||||
| 81080-52050 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 81080-48010 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR |
1 | ||
| 81080-52050 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR |
1 | ||
| 81080-48010 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 81080M - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 | ||||
| 81080-52050 |
AGH3#,AYH30,GGH3# |
1 | ||
| 81080-48010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 81080P - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH | ||||
| 81080-58230A0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X FLAXEN,TRIM0# |
1 | ||
| 81080-58230B0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR LT.GRAY,TRIM2# |
1 | ||
| 81080S - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH | ||||
| 81080-58240A0 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X FLAXEN,TRIM0# |
1 | ||
| 81080-58240B0 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR LT.GRAY,TRIM2# |
1 | ||
| 81081 - LAMP SUB-ASSY, INTERIOR ILLUMINATION | ||||
| 81081-58010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 81081A - LAMP SUB-ASSY, INTERIOR ILLUMINATION, NO.2 | ||||
| 81081-58010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 81230 - LAMP ASSY, COURTESY | ||||
| 81230-30200 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR |
2 | ||
| 81230-30200 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
2 | ||
| 81230B - BULB(FOR COURTESY LAMP) | ||||
| 90981-12010 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) 12V 5W,“Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
2 | ||
| 90981-12010 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR 12V 5W |
2 | ||
| 81249 - SWITCH, ROOM LAMP | ||||
| 84532-58010 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA |
4 | ||
| 81251A - LENS, SPOT LAMP | ||||
| 81361-58120 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
2 | ||
| 81361-58080 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA |
2 | ||
| 81361-58120 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR |
2 | ||
| 81251A - LENS, SPOT LAMP | ||||
| 81361-58120 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
2 | ||
| 81361-58080 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA |
2 | ||
| 81361-58120 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR |
2 | ||
| 81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1 | ||||
| 81330-58010 |
AGH3#,AYH30,GGH3# |
2 | ||
| 81330B - BULB, LUGGAGE COMPARTMENT LAMP | ||||
| 99132-12050 |
AGH3#,AYH30,GGH3# 12V 5W |
2 | ||
| 81340 - LAMP ASSY, VANITY | ||||
| 81340-30110 |
AGH3#,AYH30,GGH3# |
2 | ||
| 81340B - BULB (FOR VANITY LAMP) | ||||
| 90981-11062 |
AGH3#,AYH30,GGH3# 12V 8W |
2 | ||
| 81360K - LAMP ASSY, SPOT, RH | ||||
| 81360-58030B0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM2# |
2 | ||
| 81360-58030A0 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA FLAXEN,TRIM0# |
2 | ||
| 81360-58040B0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,LT.GRAY,TRIM2# |
2 | ||
| 81360-58040A0 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR FLAXEN,TRIM0# |
2 | ||
| 81360-58030B0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM21 |
2 | ||
| 81360-58040A0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,FLAXEN,TRIM0# |
2 | ||
| 81360-58040B0 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR LT.GRAY,TRIM2# |
2 | ||
| 81360-58030C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) BLACK,TRIM21 |
2 | ||
| 81360K - LAMP ASSY, SPOT, RH | ||||
| 81360-58030B0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM2# |
2 | ||
| 81360-58030A0 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA FLAXEN,TRIM0# |
2 | ||
| 81360-58040B0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,LT.GRAY,TRIM2# |
2 | ||
| 81360-58040A0 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR FLAXEN,TRIM0# |
2 | ||
| 81360-58030B0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM21 |
2 | ||
| 81360-58040A0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,FLAXEN,TRIM0# |
2 | ||
| 81360-58040B0 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR LT.GRAY,TRIM2# |
2 | ||
| 81360-58030C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) BLACK,TRIM21 |
2 | ||
| 81360U - BULB, SPOT LAMP | ||||
| 99132-12050 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA |
4 | ||
| 81361D - LENS, SPOT LAMP | ||||
| 81361-58110 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
2 | ||
| 81361-58110 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR |
2 | ||
| 81361-58070 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA |
2 | ||
| 81361D - LENS, SPOT LAMP | ||||
| 81361-58110 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
2 | ||
| 81361-58110 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR |
2 | ||
| 81361-58070 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA |
2 | ||
| 81390C - LAMP ASSY, SPOT, LH | ||||
| 81390-58030A0 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA FLAXEN,TRIM0# |
2 | ||
| 81390-58030B0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM2# |
2 | ||
| 81390-58040B0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,LT.GRAY,TRIM2# |
2 | ||
| 81390-58030C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) BLACK,TRIM21 |
2 | ||
| 81390-58040A0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,FLAXEN,TRIM0# |
2 | ||
| 81390-58040B0 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR LT.GRAY,TRIM2# |
2 | ||
| 81390-58030B0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM21 |
2 | ||
| 81390-58040A0 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR FLAXEN,TRIM0# |
2 | ||
| 81390C - LAMP ASSY, SPOT, LH | ||||
| 81390-58030A0 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA FLAXEN,TRIM0# |
2 | ||
| 81390-58030B0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM2# |
2 | ||
| 81390-58040B0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,LT.GRAY,TRIM2# |
2 | ||
| 81390-58030C0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) BLACK,TRIM21 |
2 | ||
| 81390-58040A0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,FLAXEN,TRIM0# |
2 | ||
| 81390-58040B0 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR LT.GRAY,TRIM2# |
2 | ||
| 81390-58030B0 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) LT.GRAY,TRIM21 |
2 | ||
| 81390-58040A0 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR FLAXEN,TRIM0# |
2 | ||
| Common parts | ||||
| 90468-04194 | ||||
| Linked diagrams | ||||
| 8202 | ||||

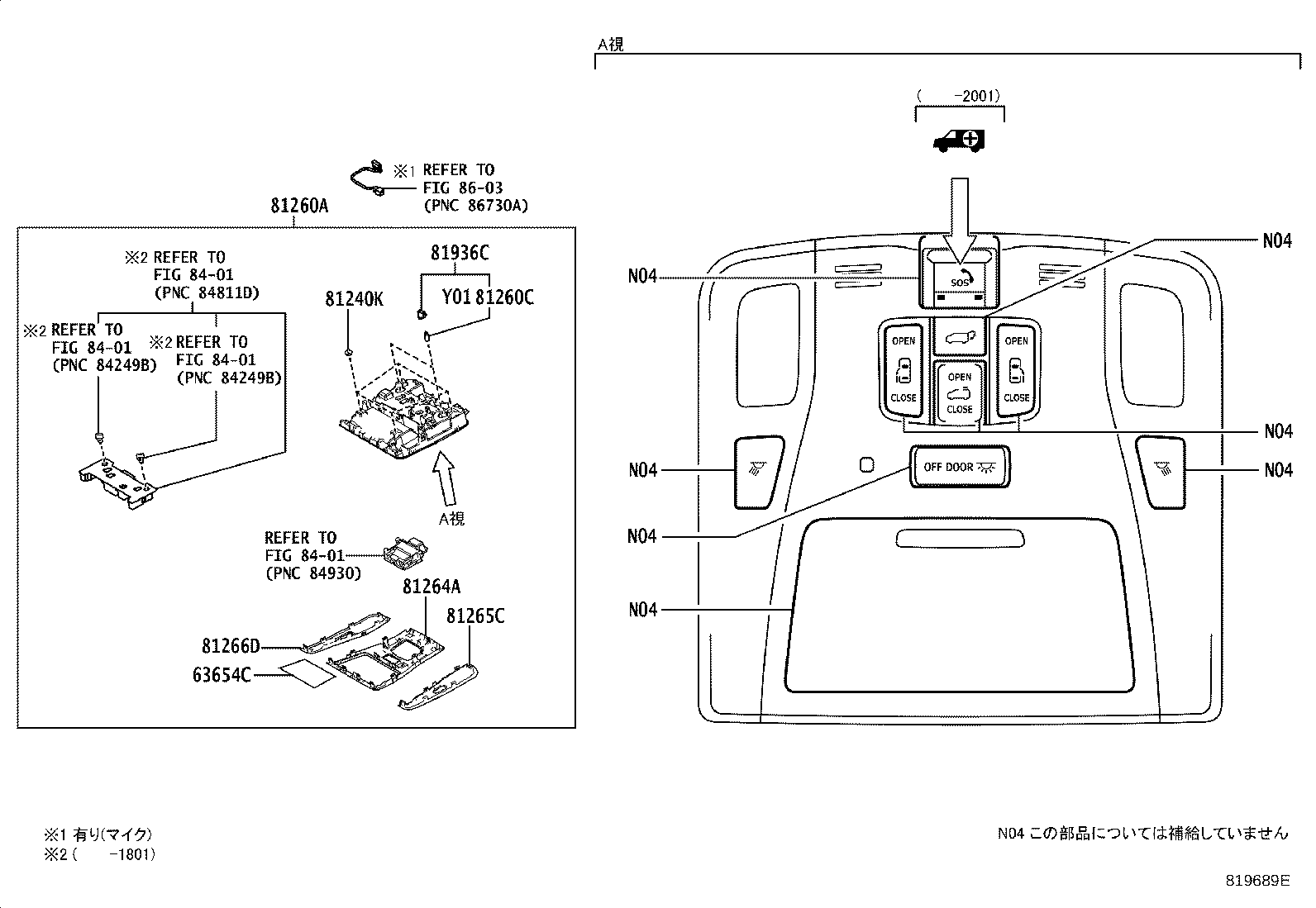

ILLUST NO. 2 OF 2(1501- )S,SA,X,Z,ZA
ﾊﾞﾙﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63654C - COVER, ROOF CONSOLE BOX, INNER | ||||
| 63654-58010 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR |
1 | ||
| 81240K - CLIP, ROOM LAMP | ||||
| 90467-09240 |
AGH3#,AYH30,GGH3# |
4 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81208-58040 |
GGH3#..SA,ZA ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 81208-58070 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 81208-58090 |
GGH3#..SA,ZA “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾒｰﾃﾞｰｼｽﾃﾑ−有り |
1 | ||
| 81208-58080 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 81208-58100 |
AGH30,AYH30,GGH3#..G,GF,SR,V,VL,ZR ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 81208-58110 |
AGH30,AYH30,GGH3#..G,GF,SR,V,VL,ZR ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 81208-58090 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾒｰﾃﾞｰｼｽﾃﾑ−有り |
1 | ||
| 81260-58160 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR |
1 | ||
| 81208-58120 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾒｰﾃﾞｰｼｽﾃﾑ−有り |
1 | ||
| 81260-58180 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 81260-58140 |
GGH3#..SA,ZA |
1 | ||
| 81260-58250 |
AGH30,AYH30,GGH3#..G,GF,SR,V,VL,ZR ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 81260-58180 |
GGH3#..SA,ZA “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 81208-58150 |
GGH3#..SA,ZA “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 81260-58270 |
AGH30,AYH30,GGH3#..G,GF,SR,V,VL,ZR ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 81208-58080 |
GGH3#..SA,ZA “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 81260-58320 |
GGH3#..SA,ZA “TYPE BLACK”*(E)or“GOLDEN EYES″*(E) |
1 | ||
| 81264A - COVER, MAP LAMP | ||||
| 81369-58030 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR |
1 | ||
| 81369-58040 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾒｰﾃﾞｰｼｽﾃﾑ−有り |
1 | ||
| 81369-58040 |
GGH3#..SA,ZA “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 81369-58040 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾒｰﾃﾞｰｼｽﾃﾑ−有り |
1 | ||
| 81369-58040 |
GGH3#..SA,ZA “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 81369-58040 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 81369-58040 |
AGH30,AYH30,GGH3#..G,GF,SR,V,VL,ZR ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 81369-58040 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 81369-58040 |
GGH3#..SA,ZA “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾒｰﾃﾞｰｼｽﾃﾑ−有り |
1 | ||
| 81265C - LENS, MAP LAMP, NO.1 | ||||
| 81361-58060 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA |
1 | ||
| 81361-58100 |
GGH3#..SA,ZA “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 81361-58100 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR |
1 | ||
| 81361-58100 |
GGH3#..SA,ZA “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 81361-58100 |
GGH3#..SA,ZA “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾒｰﾃﾞｰｼｽﾃﾑ−有り |
1 | ||
| 81266D - LENS, MAP LAMP, NO.2 | ||||
| 81361-58090 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR |
1 | ||
| 81361-58050 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA |
1 | ||
| 81361-58090 |
GGH3#..SA,ZA “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 81361-58090 |
GGH3#..SA,ZA “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 81361-58090 |
GGH3#..SA,ZA “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾒｰﾃﾞｰｼｽﾃﾑ−有り |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||
| 8603 | ||||

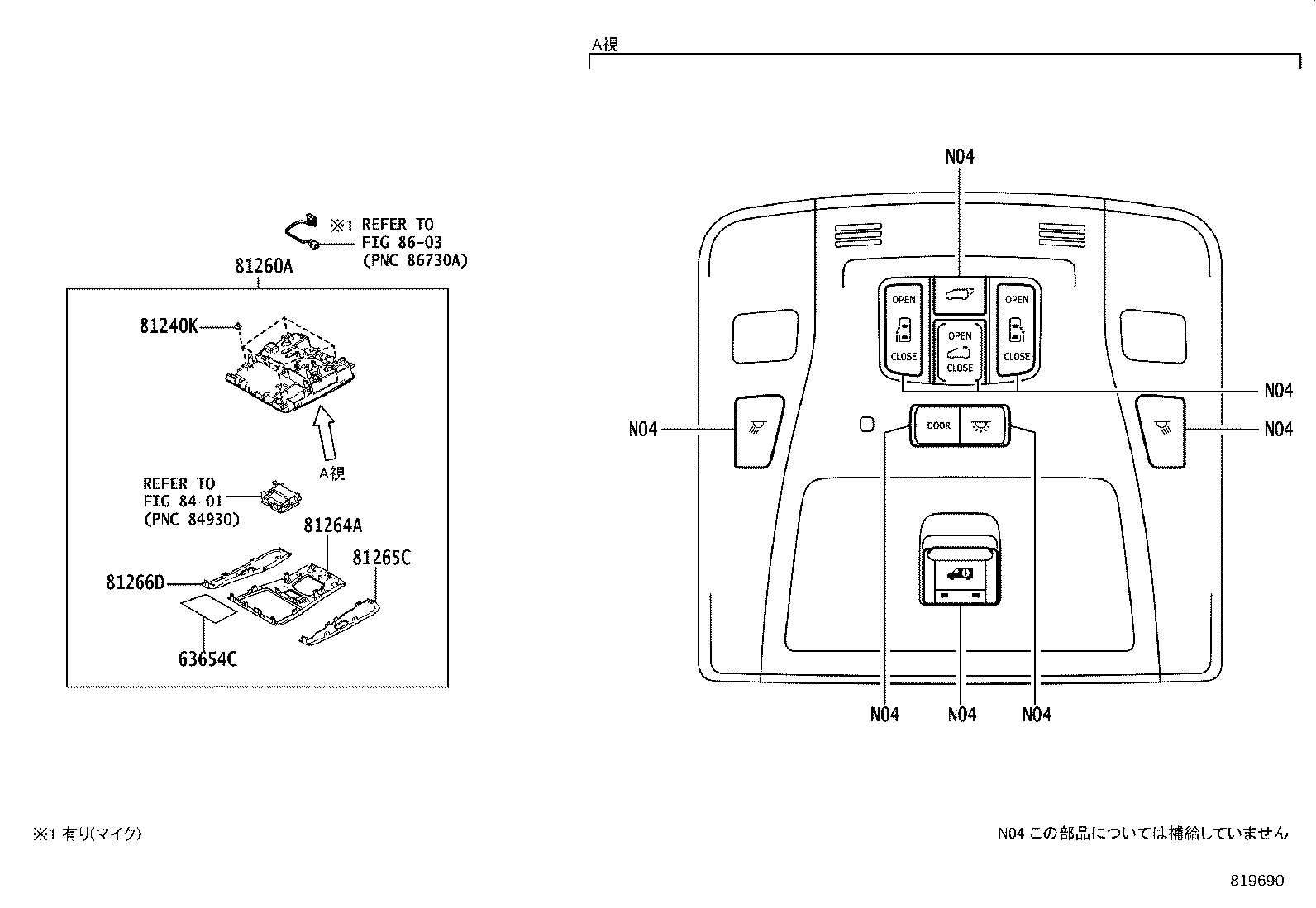

ILLUST NO. 2 OF 2(1501-1801)08S..G,V ; (1501-1801)07S..EL,G,GF,S,SA,SR,V,VL,Z,ZA,ZR
LED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63654C - COVER, ROOF CONSOLE BOX, INNER | ||||
| 63654-58010 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR |
1 | ||
| 81240K - CLIP, ROOM LAMP | ||||
| 90467-09240 |
AGH3#,AYH30,GGH3# |
4 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81208-58040 |
GGH3#..SA,ZA ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 81208-58070 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 81208-58090 |
GGH3#..SA,ZA “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾒｰﾃﾞｰｼｽﾃﾑ−有り |
1 | ||
| 81208-58080 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 81208-58100 |
AGH30,AYH30,GGH3#..G,GF,SR,V,VL,ZR ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 81208-58110 |
AGH30,AYH30,GGH3#..G,GF,SR,V,VL,ZR ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 81208-58090 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾒｰﾃﾞｰｼｽﾃﾑ−有り |
1 | ||
| 81260-58160 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR |
1 | ||
| 81208-58120 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾒｰﾃﾞｰｼｽﾃﾑ−有り |
1 | ||
| 81260-58180 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 81260-58140 |
GGH3#..SA,ZA |
1 | ||
| 81260-58250 |
AGH30,AYH30,GGH3#..G,GF,SR,V,VL,ZR ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ) |
1 | ||
| 81260-58180 |
GGH3#..SA,ZA “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 81208-58150 |
GGH3#..SA,ZA “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 81260-58270 |
AGH30,AYH30,GGH3#..G,GF,SR,V,VL,ZR ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 81208-58080 |
GGH3#..SA,ZA “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 81260-58320 |
GGH3#..SA,ZA “TYPE BLACK”*(E)or“GOLDEN EYES″*(E) |
1 | ||
| 81264A - COVER, MAP LAMP | ||||
| 81369-58030 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR |
1 | ||
| 81369-58040 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾒｰﾃﾞｰｼｽﾃﾑ−有り |
1 | ||
| 81369-58040 |
GGH3#..SA,ZA “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 81369-58040 |
AYH30,GGH3#..G,GF,V,VL “Fﾊﾟｯｹｰｼﾞ”*(B)or“Lｴﾃﾞｨｼｮﾝ”*(B)/GForVL&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾒｰﾃﾞｰｼｽﾃﾑ−有り |
1 | ||
| 81369-58040 |
GGH3#..SA,ZA “TYPE BLACK”*(E)or“GOLDEN EYES″*(E)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 81369-58040 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 81369-58040 |
AGH30,AYH30,GGH3#..G,GF,SR,V,VL,ZR ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 81369-58040 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 81369-58040 |
GGH3#..SA,ZA “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾒｰﾃﾞｰｼｽﾃﾑ−有り |
1 | ||
| 81265C - LENS, MAP LAMP, NO.1 | ||||
| 81361-58060 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA |
1 | ||
| 81361-58100 |
GGH3#..SA,ZA “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 81361-58100 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR |
1 | ||
| 81361-58100 |
GGH3#..SA,ZA “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 81361-58100 |
GGH3#..SA,ZA “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾒｰﾃﾞｰｼｽﾃﾑ−有り |
1 | ||
| 81266D - LENS, MAP LAMP, NO.2 | ||||
| 81361-58090 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR |
1 | ||
| 81361-58050 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA |
1 | ||
| 81361-58090 |
GGH3#..SA,ZA “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 81361-58090 |
GGH3#..SA,ZA “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 81361-58090 |
GGH3#..SA,ZA “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾒｰﾃﾞｰｼｽﾃﾑ−有り |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||
| 8603 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
