GGH35W-NFTRK (2015)

Toyota Alphard/Vellfire/Hv

Production Jan 2015 - Jan 2018
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

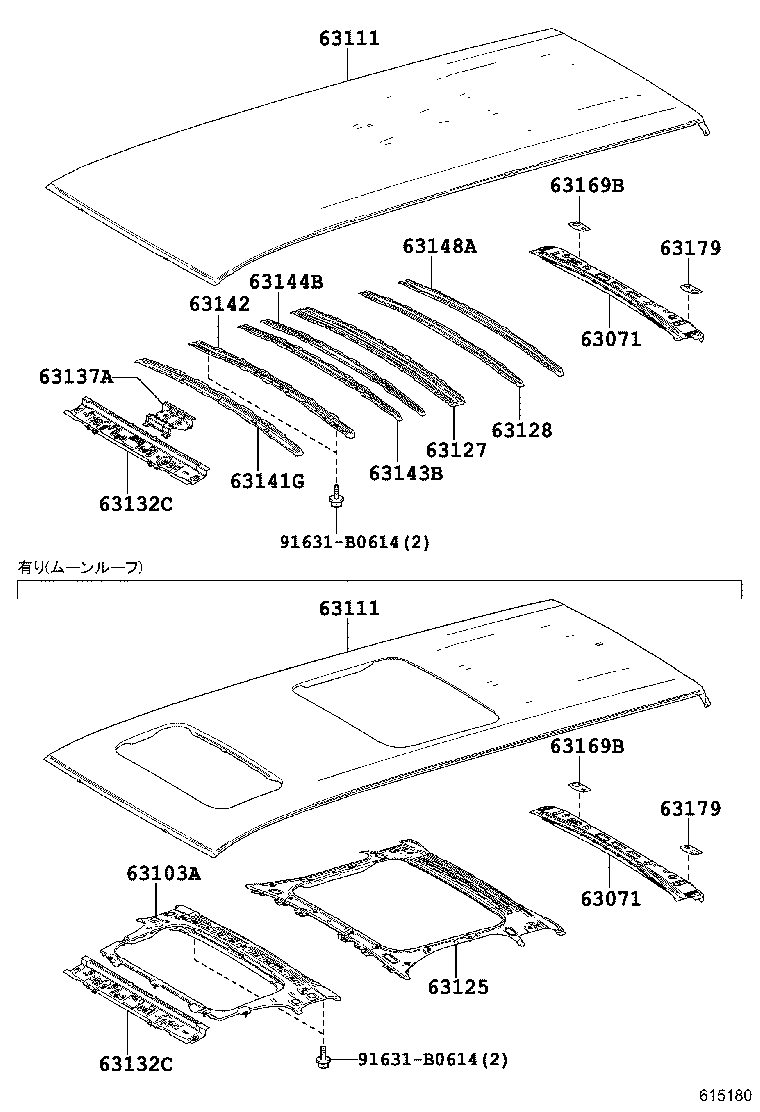

ILLUST NO. 1 OF 3(1501- )

Click highlighted areas on diagram

ﾙｰﾌﾊﾟﾈﾙ

diagram 63071 63071 63103A 63111 63111 63125 63127 63128 63132C 63132C 63137A 63141G 63142 63143B 63144B 63148A 63169B 63169B 63179 63179 91631B0614 91631B0614
Part # Description Qty Price
63071 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER
63071-58030

AGH3#,AYH30,GGH3#

 1
63071 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER
63071-58030

AGH3#,AYH30,GGH3#

 1
63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL
63103-58030

AGH30,GGH35..07S..(GF,S,VL,Z);AYH30,GGH30..G,GF,SA,SR,V,VL,ZA,ZR

ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&ﾒｰﾃﾞｰｼｽﾃﾑ−有り

 1
63111 - PANEL, ROOF
63111-58060

AGH3#..07S..(S,Z);AYH30,GGH3#..G,GF,SA,SR,V,VL,ZA,ZR

ﾒｰﾃﾞｰｼｽﾃﾑ−有り

 1
63111-58080

AGH30,GGH35..07S..(GF,S,VL,Z);AYH30,GGH30..G,GF,SA,SR,V,VL,ZA,ZR

ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&ﾒｰﾃﾞｰｼｽﾃﾑ−有り

 1
63111-58050

AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR

 1
63111 - PANEL, ROOF
63111-58060

AGH3#..07S..(S,Z);AYH30,GGH3#..G,GF,SA,SR,V,VL,ZA,ZR

ﾒｰﾃﾞｰｼｽﾃﾑ−有り

 1
63111-58080

AGH30,GGH35..07S..(GF,S,VL,Z);AYH30,GGH30..G,GF,SA,SR,V,VL,ZA,ZR

ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&ﾒｰﾃﾞｰｼｽﾃﾑ−有り

 1
63111-58050

AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR

 1
63125 - REINFORCEMENT, ROOF PANEL, NO.2
63125-58030

AGH30,GGH35..07S..(GF,S,VL,Z);AYH30,GGH30..G,GF,SA,SR,V,VL,ZA,ZR

ﾑｰﾝﾙｰﾌ−有り(ﾂｲﾝ)&ﾒｰﾃﾞｰｼｽﾃﾑ−有り

 1
63127 - REINFORCEMENT, ROOF PANEL, NO.5
63127-58030

AGH3#,AYH30,GGH3#

 1
63128 - REINFORCEMENT, ROOF PANEL, NO.6
63128-58030

AGH3#,AYH30,GGH3#

 1
63132C - PANEL, WINDSHIELD HEADER, INNER
63132-58030

AGH3#,AYH30,GGH3#

 1
63132C - PANEL, WINDSHIELD HEADER, INNER
63132-58030

AGH3#,AYH30,GGH3#

 1
63137A - BRACKET, DOME LAMP, NO.1
63137-58020

AGH3#,AYH30,GGH3#

 1
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63141-58030

AGH3#,AYH30,GGH3#

 1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63142-58030

AGH3#,AYH30,GGH3#

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-58030

AGH3#,AYH30,GGH3#

 1
63144B - REINFORCEMENT, ROOF PANEL, NO.4
63144-58030

AGH3#,AYH30,GGH3#

 1
63148A - REINFORCEMENT, ROOF PANEL, NO.7
63148-58030

AGH3#,AYH30,GGH3#

 1
63169B - PLATE, ROOF PANEL REINFORCEMENT, RH
63169-35020

AGH3#,AYH30,GGH3#

 1
63169B - PLATE, ROOF PANEL REINFORCEMENT, RH
63169-35020

AGH3#,AYH30,GGH3#

 1
63179 - PLATE, ROOF PANEL REINFORCEMENT, LH
63179-35020

AGH3#,AYH30,GGH3#

 1
63179 - PLATE, ROOF PANEL REINFORCEMENT, LH
63179-35020

AGH3#,AYH30,GGH3#

 1
Common parts
91631-B0614
