GGH35W-NFTRK (2015)

Toyota Alphard/Vellfire/Hv

Production Jan 2015 - Jan 2018
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

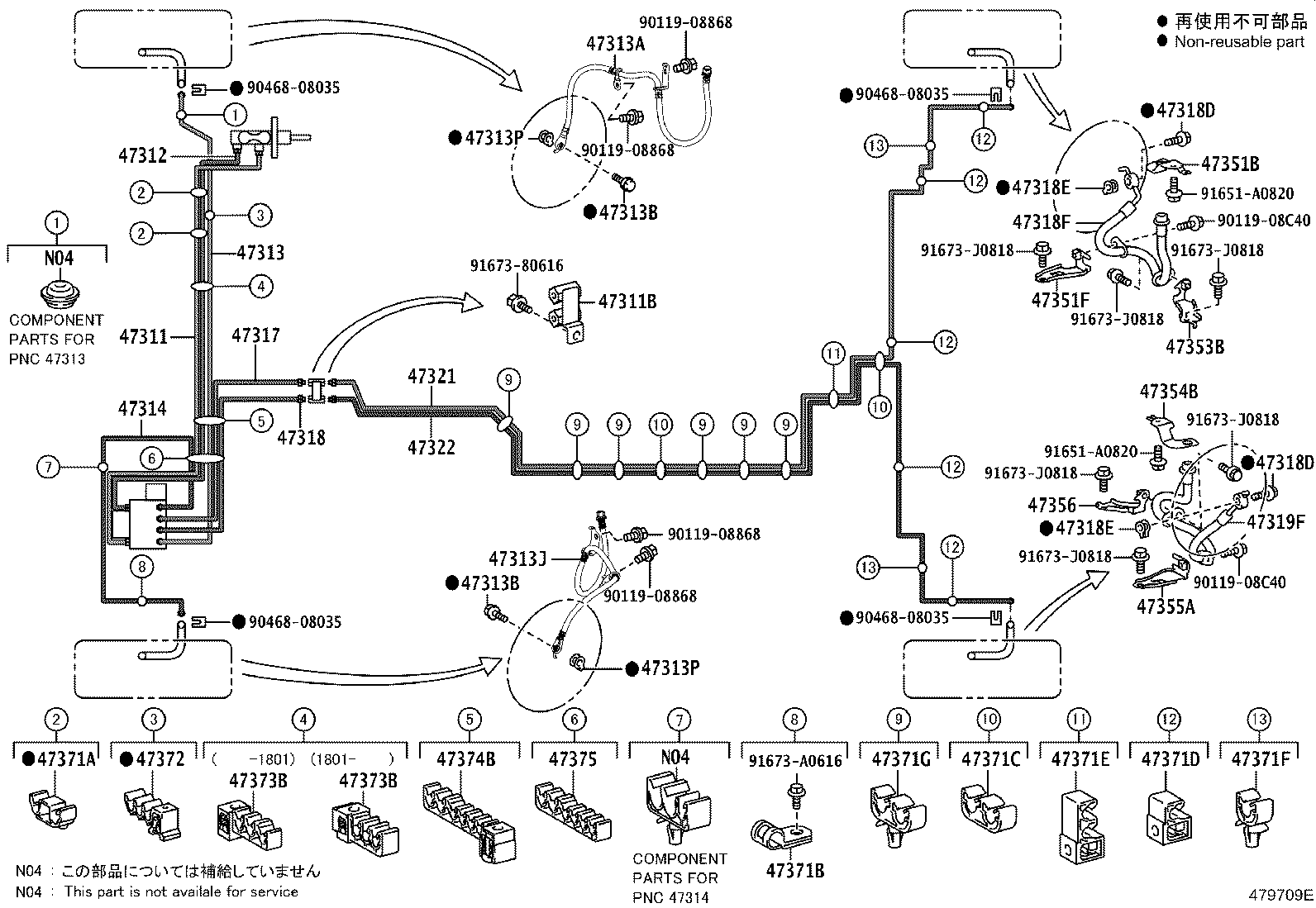

ILLUST NO. 1 OF 2(1501- )AGH3#,GGH3#

Click highlighted areas on diagram

diagram 47311 47311B 47312 47313 47313A 47313B 47313B 47313J 47313P 47313P 47314 47317 47318 47318D 47318D 47318E 47318E 47318F 47319F 47321 47322 47351B 47351F 47353B 47354B 47355A 47356 47371A 47371B 47371C 47371D 47371E 47371F 47371G 47372 47373B 47373B 47374B 47375 9011908868 9011908868 9011908868 9011908868 9011908C40 9011908C40 9046808035 9046808035 9046808035 9046808035 91651A0820 91651A0820 9167380616 91673A0616 91673J0818 91673J0818 91673J0818 91673J0818 91673J0818 91673J0818
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-58060

AGH3#,GGH3#

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10293

AGH3#,AYH30,GGH3#

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-58080

AGH3#,GGH3#

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-58040

AGH3#,GGH3#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02H42

AGH3#,GGH3#

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

AGH3#,AYH30,GGH3#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

AGH3#,AYH30,GGH3#

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02H43

AGH3#,GGH3#

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50021

AGH3#,AYH30,GGH3#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50021

AGH3#,AYH30,GGH3#

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-58100

AGH3#,GGH3#

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-58040

AGH3#,GGH3#

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-58010

AGH3#,GGH3#

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

AGH3#,AYH30,GGH3#

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

AGH3#,AYH30,GGH3#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50021

AGH3#,AYH30,GGH3#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50021

AGH3#,AYH30,GGH3#

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02H44

AGH3#,AYH30,GGH3#

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02H45

AGH3#,AYH30,GGH3#

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-58030

AGH3#,AYH30,GGH3#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-58020

AGH3#,AYH30,GGH3#

 1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-58010

AGH3#,AYH30,GGH3#

 1
47351F - BRACKET, FLEXIBLE HOSE, NO.2
47351-58020

AGH3#,AYH30,GGH3#

 1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47351-58030

AGH3#,AYH30,GGH3#

 1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47352-58010

AGH3#,AYH30,GGH3#

 1
47355A - BRACKET, FLEXIBLE HOSE, NO.5
47352-58020

AGH3#,AYH30,GGH3#

 1
47356 - BRACKET, FLEXIBLE HOSE, NO.6
47352-58030

AGH3#,AYH30,GGH3#

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90949-01C59

AGH3#,GGH3#

 2
47371B - CLAMP, BRAKE TUBE, NO.6
90461-08730

AGH3#,AYH30,GGH3#

 1
47371C - CLAMP, BRAKE TUBE, NO.7
90464-00903

AGH3#,AYH30,GGH3#

 2
47371D - CLAMP, BRAKE TUBE, NO.8
90949-01E19

AGH3#,AYH30,GGH3#

 5
90949-01C82

AGH3#,AYH30,GGH3#

 5
47371E - CLAMP, BRAKE TUBE, NO.9
90949-01D60

AGH3#,AYH30,GGH3#

 1
47371F - CLAMP, BRAKE TUBE, NO.10
90949-01E01

AGH3#,AYH30,GGH3#

 2
47371G - CLAMP, BRAKE TUBE, NO.11
90949-01E02

AGH3#,AYH30,GGH3#

 6
47372 - CLAMP, BRAKE TUBE, NO.2
90949-01C95

AGH3#,AYH30,GGH3#

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01E03

AGH3#,GGH3#

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01E03

AGH3#,GGH3#

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90949-01E04

AGH3#,GGH3#

 1
47375 - CLAMP, BRAKE TUBE, NO.5
90464-00958

AGH3#,GGH3#

 1
Common parts
90119-08868
90119-08C40
90468-08035
91651-A0820
91673-80616
91673-A0616
91673-J0818

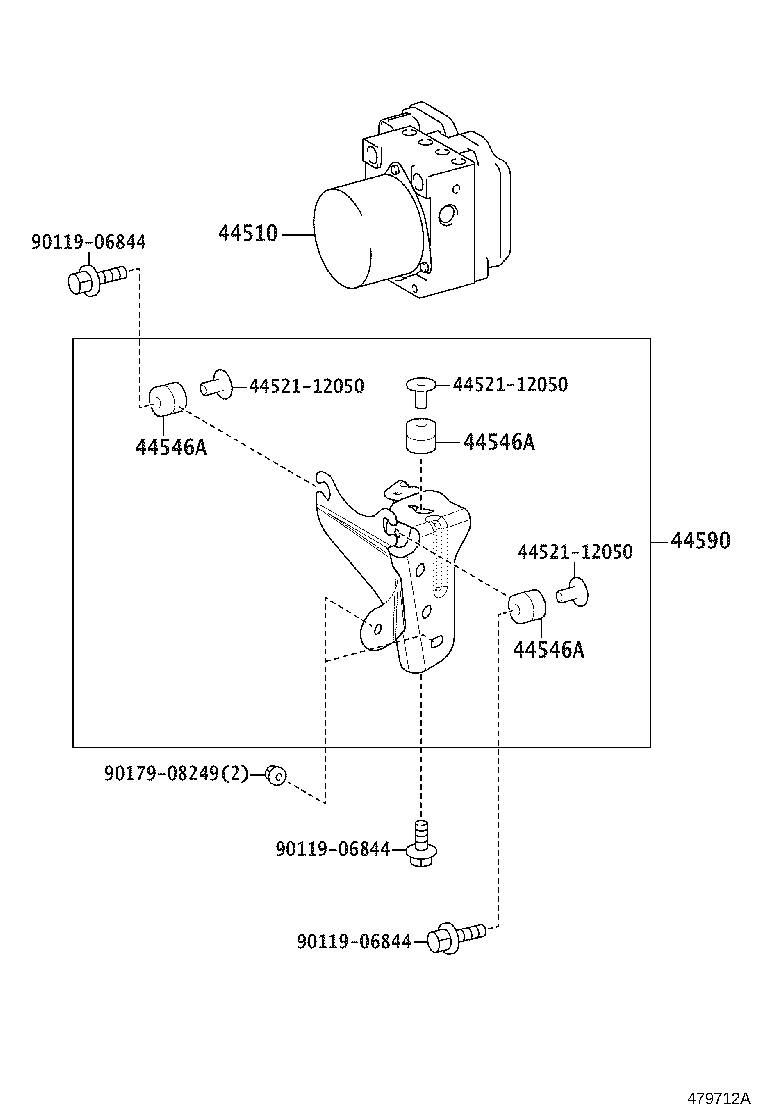

ILLUST NO. 2 OF 2(1501-1801)GGH3# ; (1501- )AGH3#

Click highlighted areas on diagram

diagram 44510 4452112050 4452112050 4452112050 44546A 44546A 44546A 44590 9011906844 9011906844 9011906844 9017908249
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-58160

GGH3#..GF,SA,VL,ZA

 1
44050-58180

GGH3#..GF,SA,VL,ZA

ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))

 1
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

AGH3#,GGH3#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

AGH3#,GGH3#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

AGH3#,GGH3#

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-58050

AGH3#,GGH3#

 1
Common parts
44521-12050
90119-06844
90179-08249
