GGH35W-NFTRK (2015)

Toyota Alphard/Vellfire/Hv

Production Jan 2015 - Jan 2018
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1501- )AGH35 ; (1501- )GGH35..6FC ; (1801- )GGH35

Click highlighted areas on diagram

GF1A

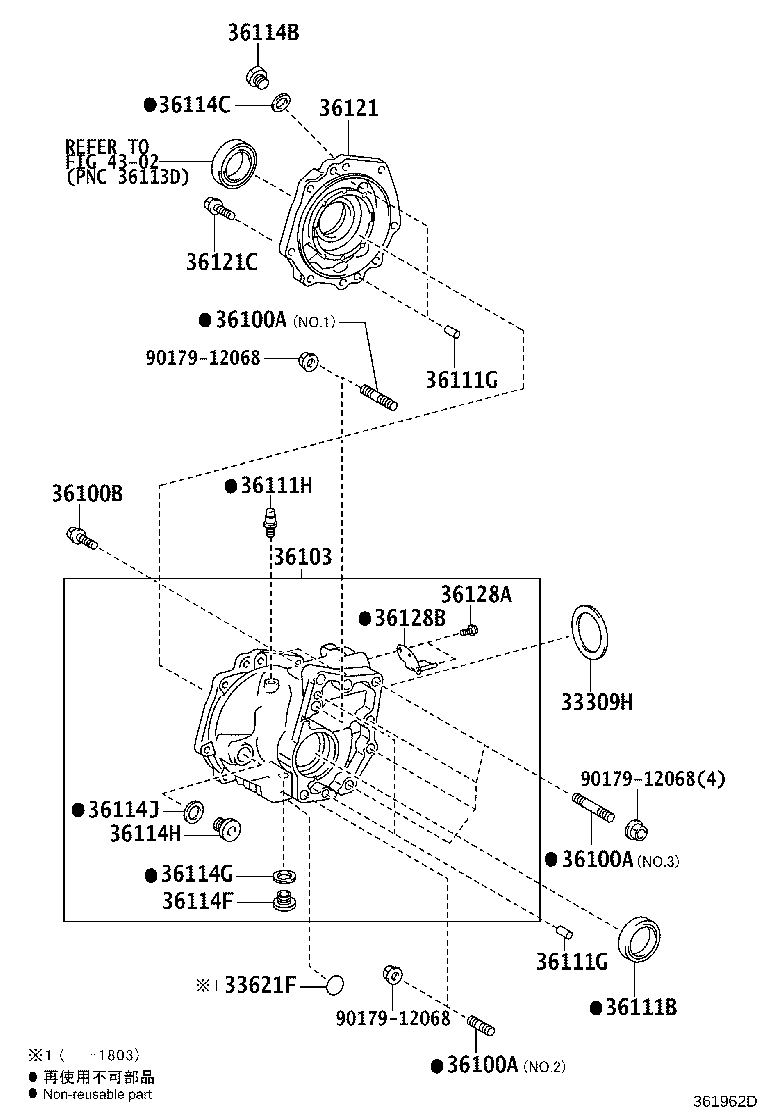

diagram 33309H 33621F 36100A 36100A 36100A 36100B 36103 36111B 36111G 36111G 36111H 36114B 36114C 36114F 36114G 36114H 36114J 36121 36121C 36128A 36128B 4302 9017912068 9017912068 9017912068
Part # Description Qty Price
33309H - WASHER, TRANSFER OUTPUT SHAFT
36275-52030

AGH35,GGH35

厚さ=1.06,ﾏｰｸ 03

 1
36275-52010

AGH35,GGH35

厚さ=1.02,ﾏｰｸ 01

 1
36275-52040

AGH35,GGH35

厚さ=1.08,ﾏｰｸ 04

 1
36275-52020

AGH35,GGH35

厚さ=1.04,ﾏｰｸ 02

 1
36275-52110

AGH35,GGH35

厚さ=1.22,ﾏｰｸ 11

 1
36275-52090

AGH35,GGH35

厚さ=1.18,ﾏｰｸ 09

 1
36275-52100

AGH35,GGH35

厚さ=1.20,ﾏｰｸ 10

 1
36275-52050

AGH35,GGH35

厚さ=1.10,ﾏｰｸ 05

 1
36275-52060

AGH35,GGH35

厚さ=1.12,ﾏｰｸ 06

 1
36275-52150

AGH35,GGH35

厚さ=1.30,ﾏｰｸ 15

 1
36275-52130

AGH35,GGH35

厚さ=1.26,ﾏｰｸ 13

 1
36275-52070

AGH35,GGH35

厚さ=1.14,ﾏｰｸ 07

 1
36275-52080

AGH35,GGH35

厚さ=1.16,ﾏｰｸ 08

 1
36275-52220

AGH35,GGH35

厚さ=1.44,ﾏｰｸ 22

 1
36275-52170

AGH35,GGH35

厚さ=1.34,ﾏｰｸ 17

 1
36275-52230

AGH35,GGH35

厚さ=1.46,ﾏｰｸ 23

 1
36275-52200

AGH35,GGH35

厚さ=1.40,ﾏｰｸ 20

 1
36275-52260

AGH35,GGH35

厚さ=1.52,ﾏｰｸ 26

 1
36275-52190

AGH35,GGH35

厚さ=1.38,ﾏｰｸ 19

 1
36275-52210

AGH35,GGH35

厚さ=1.42,ﾏｰｸ 21

 1
36275-52160

AGH35,GGH35

厚さ=1.32,ﾏｰｸ 16

 1
36275-52250

AGH35,GGH35

厚さ=1.50,ﾏｰｸ 25

 1
36275-52140

AGH35,GGH35

厚さ=1.28,ﾏｰｸ 14

 1
36275-52240

AGH35,GGH35

厚さ=1.48,ﾏｰｸ 24

 1
36275-52180

AGH35,GGH35

厚さ=1.36,ﾏｰｸ 18

 1
36275-52120

AGH35,GGH35

厚さ=1.24,ﾏｰｸ 12

 1
36275-52270

AGH35,GGH35

厚さ=1.54,ﾏｰｸ 27

 1
36275-52280

AGH35,GGH35

厚さ=1.56,ﾏｰｸ 28

 1
33621F - LABEL, TRANSAXLE OIL INFORMATION
33621-48020

AGH35,GGH35

 1
33621-42030

AGH35,GGH35

 1
36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
90116-12034

AGH35,GGH35

ﾈｼﾞ部長さ=19 & 19,長さ=47,NO.2

 1
90116-12028

AGH35,GGH35

ﾈｼﾞ部長さ=22 & 22,長さ=69,NO.1

 1
90116-12041

AGH35,GGH35

ﾈｼﾞ部長さ=30 & 22,長さ=64

 4
90116-12041

AGH35,GGH35

ﾈｼﾞ部長さ=30 & 22,長さ=64,NO.3

 4
36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
90116-12034

AGH35,GGH35

ﾈｼﾞ部長さ=19 & 19,長さ=47,NO.2

 1
90116-12028

AGH35,GGH35

ﾈｼﾞ部長さ=22 & 22,長さ=69,NO.1

 1
90116-12041

AGH35,GGH35

ﾈｼﾞ部長さ=30 & 22,長さ=64

 4
90116-12041

AGH35,GGH35

ﾈｼﾞ部長さ=30 & 22,長さ=64,NO.3

 4
36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
90116-12034

AGH35,GGH35

ﾈｼﾞ部長さ=19 & 19,長さ=47,NO.2

 1
90116-12028

AGH35,GGH35

ﾈｼﾞ部長さ=22 & 22,長さ=69,NO.1

 1
90116-12041

AGH35,GGH35

ﾈｼﾞ部長さ=30 & 22,長さ=64

 4
90116-12041

AGH35,GGH35

ﾈｼﾞ部長さ=30 & 22,長さ=64,NO.3

 4
36100B - BOLT (FOR TRANSFER & TRANSAXLE SETTING)
90105-12298

AGH35,GGH35

*12−1.25PX53−35

 2
36103 - CASE SUB-ASSY, TRANSFER
36103-42022

GGH35

 1
36103-42023

GGH35

 1
36111B - SEAL, OIL (FOR TRANSFER CASE)
90311-55002

AGH35,GGH35

 1
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90250-10017

AGH35,GGH35

長さ=20,外径=10

 4
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90250-10017

AGH35,GGH35

長さ=20,外径=10

 4
36111H - PLUG, BREATHER (FOR TRANSFER CASE)
90930-03133

AGH35,GGH35

 1
36114B - PLUG, NO.1 (FOR TRANSFER CASE)
90341-18006

AGH35,GGH35

 1
36114C - GASKET, NO.1 (FOR TRANSFER CASE)
12157-10010

AGH35,GGH35

 1
36114F - PLUG (FOR TRANSFER DRAIN)
90341-18051

AGH35,GGH35

 1
36114G - GASKET (FOR TRANSFER DRAIN PLUG)
12157-10010

AGH35,GGH35

 1
36114H - PLUG, NO.2 (FOR TRANSFER CASE)
90341-18023

AGH35,GGH35

 1
36114J - GASKET, NO.2 (FOR TRANSFER CASE)
12157-10010

AGH35,GGH35

 1
36121 - COVER, TRANSFER CASE, NO.1
36121-42011

GGH35

 1
36121C - BOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVE
91552-81030

AGH35,GGH35

 8
36128A - BOLT (FOR BREATHER OIL DEFLECTOR)
91621-60614

AGH35,GGH35

 2
36128B - DEFLECTOR, BREATHER OIL
36128-42010

AGH35,GGH35

 1
Common parts
90179-12068
Linked diagrams
4302
