GGH35W-NFTQK (2015)

Toyota Alphard/Vellfire/Hv

Production Jan 2015 - Jan 2018
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1501- )

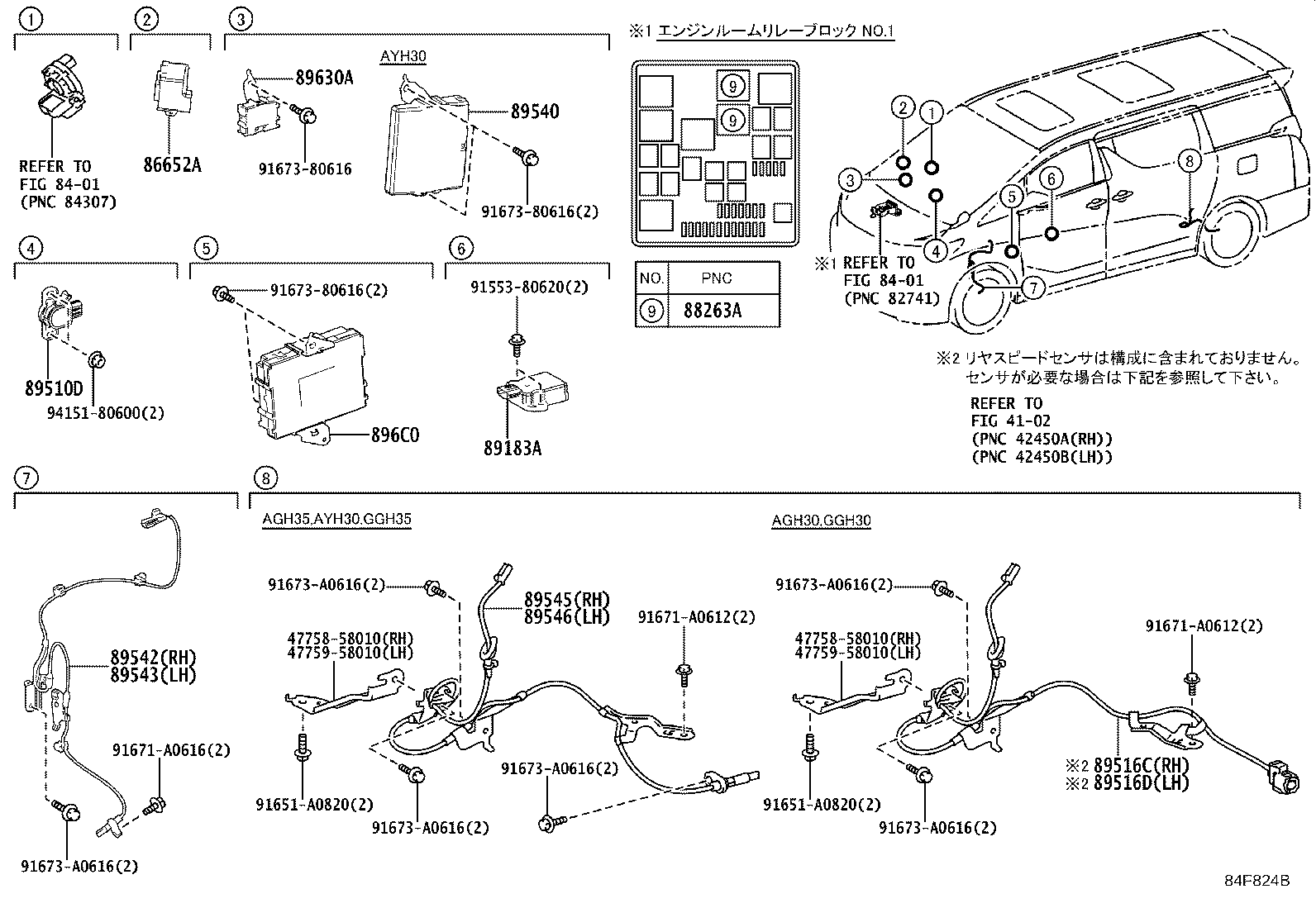

Click highlighted areas on diagram

diagram 4102 4775858010 4775858010 4775958010 4775958010 8401 8401 86652A 88263A 89183A 89510D 89516C 89516D 89540 89542 89543 89545 89546 89630A 896C0 9155380620 91651A0820 91651A0820 91671A0612 91671A0612 91671A0616 9167380616 9167380616 9167380616 91673A0616 91673A0616 91673A0616 91673A0616 91673A0616 91673A0616 9415180600
Part # Description Qty Price
86652A - BUZZER ASSY, SKID CONTROL
86652-50010

AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR

ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))

 1
89542 - SENSOR, SPEED, FRONT RH
89542-58020

AGH3#,AYH30,GGH3#

 1
89543 - SENSOR, SPEED, FRONT LH
89543-58020

AGH3#,AYH30,GGH3#

 1
89545 - SENSOR, SPEED, REAR RH
89545-58040

AGH35,AYH30,GGH35

 1
89546 - SENSOR, SPEED, REAR LH
89546-58030

AGH35,AYH30,GGH35

 1
89630A - COMPUTER ASSY, 4WD
89630-58020

AGH35,GGH35

 1
Common parts
47758-58010
47759-58010
91553-80620
91651-A0820
91671-A0612
91671-A0616
91673-80616
91673-A0616
94151-80600
Linked diagrams
4102
8401
